Diameter 18"Width 9"Lugs 5Offset +24 mm.Backspacing 5.95 in.Bolt Circle 114.3 in.

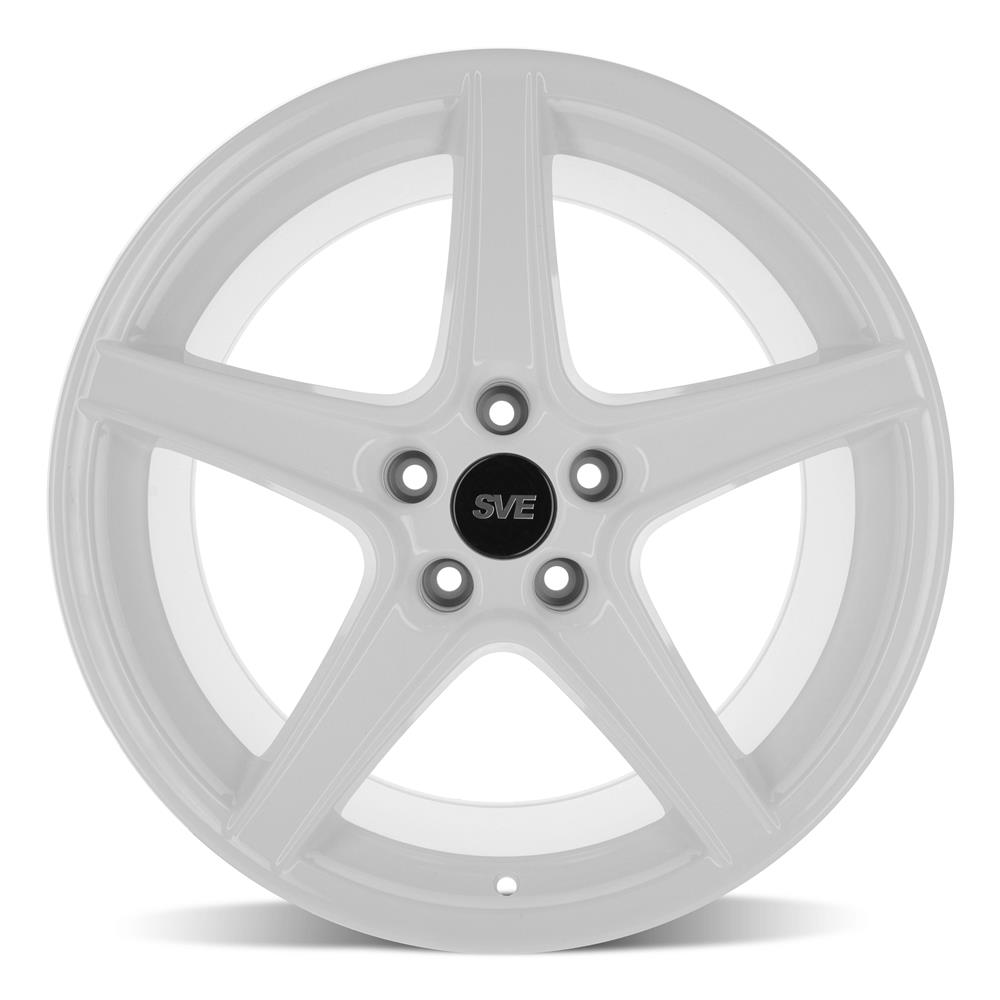

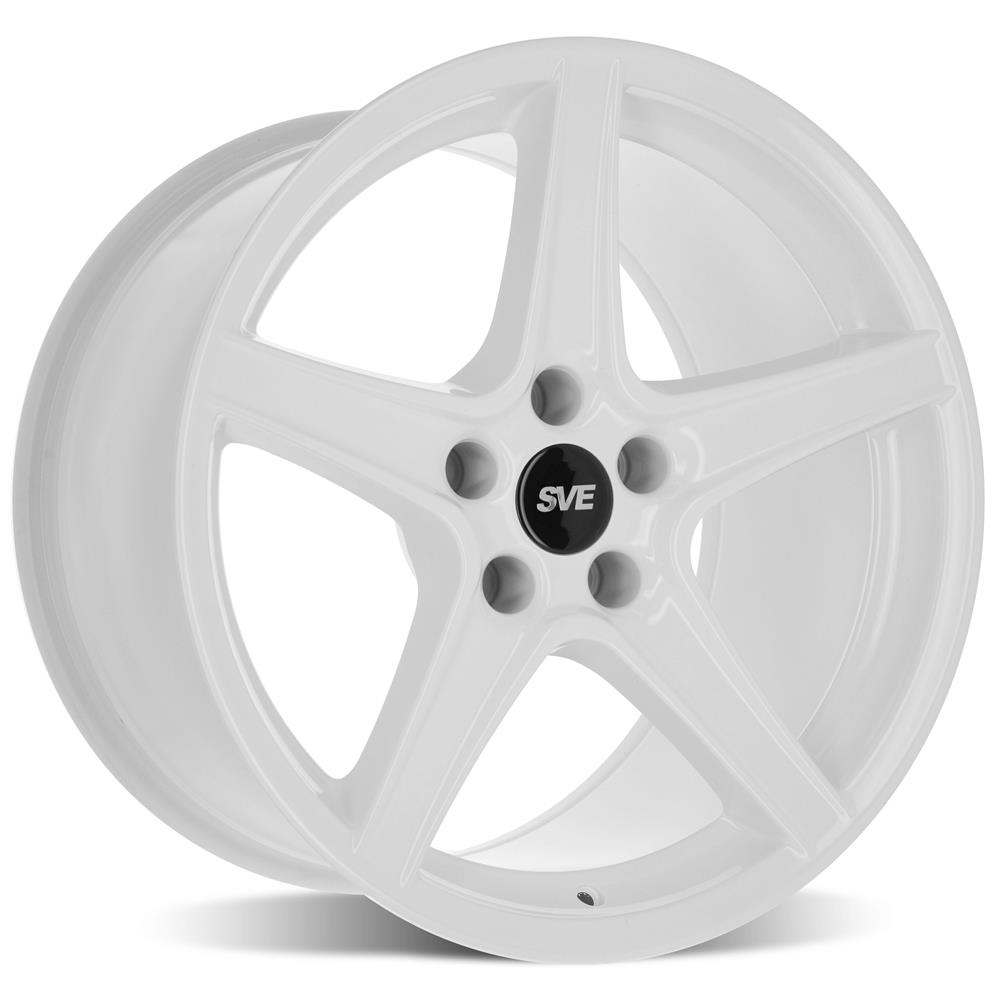

White Saleen 18X9 Style Wheel
Give your 1994-2004 Mustang a custom new look with this 18x9 white Saleen wheel. This wheel features the same style as the original Saleen wheels but has a white painted finish to get your SN95 or New Edge Stang standing out from the crowd. With an aggressive 5 spoke pattern, these wheels look great on any GT, V6, Mach 1, or Cobra.
High Quality Construction
These 1 piece, 5 lug wheels are made from cast aluminum to give you a durable wheel that stands up to the harshest conditions. With a glossy white painted finish, this rim adds custom styling to any color Mustang.
SVE® specializes in performance and specialty parts for 1979-2018 Ford Mustangs. Using years of experience in the late model Mustang restoration and aftermarket industry, SVE® is your source for everything Mustang. While designing, and manufacturing, several items such as brake kits, wheels, styling components and interior items, SVE® also uses many other name brand suppliers to provide problem solving products directly to the Mustang community. As with any part branded as SVE®, they stand behind all of these products to the fullest extent and have tested these products to ensure they live up to the quality and performance you have come to expect!
Upload your own picture of the Mustang Saleen Wheel - 18x9 White (94-04)
Please make sure to hold your device horizontally (like a camera) rather than vertical (like a phone).
By uploading an image, you agree to give LMR.com ® permission to use it in future advertisements and promotions.
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Circle
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Lug Pattern
Wheel lugs or bolt pattern is merely the number of bolts or lugs on the wheel. As the bolts will be evenly spaced, the number determines the bolt pattern. For example, most U.S. passenger cars have 5 bolts while compact models sometimes have only 4 and pick-up trucks can have as many as 6 or 8.
