Adds Newer Style Wheel Look Without Converting To 5 Lug
Fits Factory 4 Lug Applications
Weight 22 lbs
10th Anniversary Wheel Styling
1 Piece Cast Aluminum Construction
Chrome Plated Finish
What's in the Box

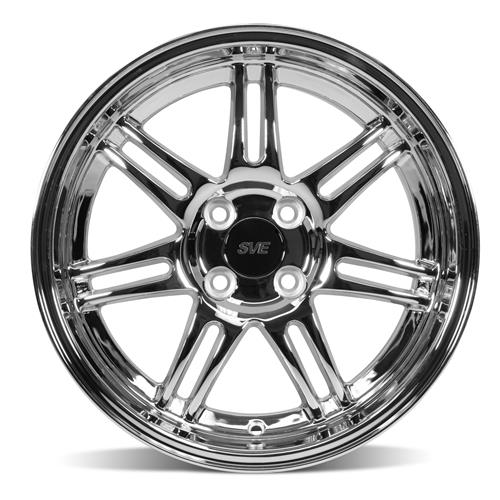

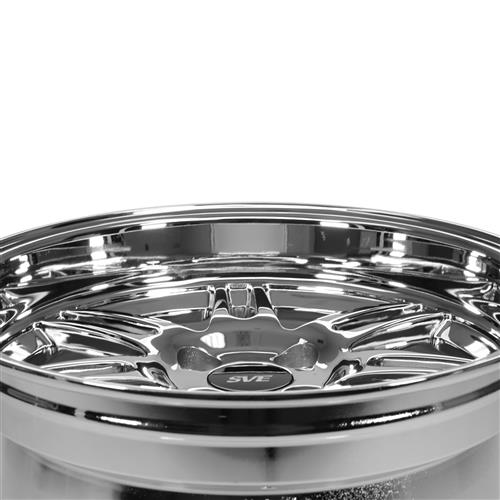

(1) 17x10 SVE 10th Anniversary Style Wheel
Diameter 17"Width 10"Lugs 4Offset +25 mm.Backspacing 6.25 in.Bolt Circle 4.25 in.

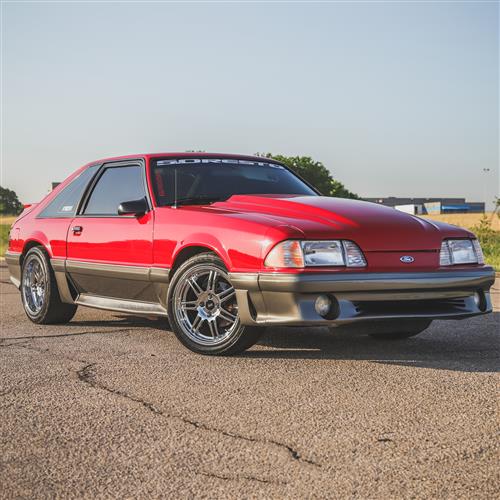

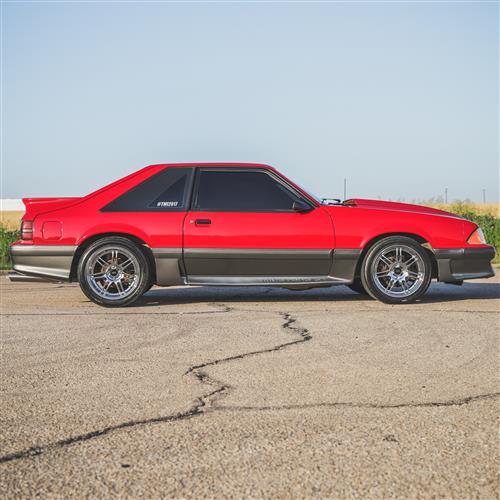

10th Anniversary Cobra Styling For Your Fox Body
There really hasn't been a new style 4 lug wheel since the Cobra R's were released in the late 90's. Until now! LRS has taken the popular design of the 2003 10th Anniversary Cobra wheel and made a wheel that 1979-93 Foxbody Mustang fans can enjoy. These wheels are 17x10's that come finished in chrome and are designed to be a direct bolt on for 1987-93 4 lug Mustang applications.
Deep Dish Mustang Wheels
From the factory your Ford Mustang was equipped with the same size wheels on both the front and back. This is great for regular consumers because it makes tire rotation a snap. Many enthusiasts choose to put a deep dish wheel, often 10" wide or wider, on the rear of their Mustang while running a more narrow, standard lip wheel on the front. Most Mustang enthusiasts call this the "staggered" look.
Why Deep Dish Wheels?
Mustang owners usually install deep dish wheels for two reasons. The first is that it allows the owner to install a wider tire in the rear which will offer more traction, usually for drag racing. The second reason is just for looks, wider tires in the rear will make your Mustang look more muscular and the dished lip on the wheel looks better and matches the body lines on the Mustang closer than a standard lip wheel, especially on later model Mustangs.
Deep Dish Clearance Questions Answered
Yes, it is possible to run a 17x10 wheel with a 315/35/17 tire on the rear of your Mustang. However, you will have to remove the rear quad shocks and possibly modify the inner fender with a "large hammer!". You may also need to roll the fender lip. Don't worry, this can be done in your driveway in no time. Just remember that every Mustang is different, depending on your setup you may not have to make any other modifications other than just removing the rear quad shocks.
Wheel Clearance Notes.
- 1979-93 Mustangs All: Quad shocks may need to be reversed or removed for proper fitment. Please check for clearance issues before driving the car.
- This wheel is designed to ONLY be used on the rear of your 1979-1993 Mustang!
- Fits 1979-1993 Ford Mustangs
Center Cap Fitment
If you need a replacement center cap for this wheel; then you'll need part number SVE-CAP - Click Here.
SVE® specializes in performance and specialty parts for 1979-2018 Ford Mustangs. Using years of experience in the late model Mustang restoration and aftermarket industry, SVE® is your source for everything Mustang. While designing, and manufacturing, several items such as brake kits, wheels, styling components and interior items, SVE® also uses many other name brand suppliers to provide problem solving products directly to the Mustang community. As with any part branded as SVE®, they stand behind all of these products to the fullest extent and have tested these products to ensure they live up to the quality and performance you have come to expect!
Upload your own picture of the Mustang SVE Deep Dish Anniversary Wheel - 17x10 Chrome (79-93)
Please make sure to hold your device horizontally (like a camera) rather than vertical (like a phone).
By uploading an image, you agree to give LMR.com ® permission to use it in future advertisements and promotions.
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Circle
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Lug Pattern
Wheel lugs or bolt pattern is merely the number of bolts or lugs on the wheel. As the bolts will be evenly spaced, the number determines the bolt pattern. For example, most U.S. passenger cars have 5 bolts while compact models sometimes have only 4 and pick-up trucks can have as many as 6 or 8.
