1993-95 Ford F-150 SVT Lightning 5.8L Belt Routing Guide

Created by Andrew Perry / 2 min read
Date Created: 8/14/2026
Last Updated: 9/17/2026

Check out our guide on how to properly route your 1993-1995 Ford Lightning 5.8L serpentine drive belt!

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.
  • 1993-95 Ford F-150 SVT Lightning 5.8L Belt Routing Guide

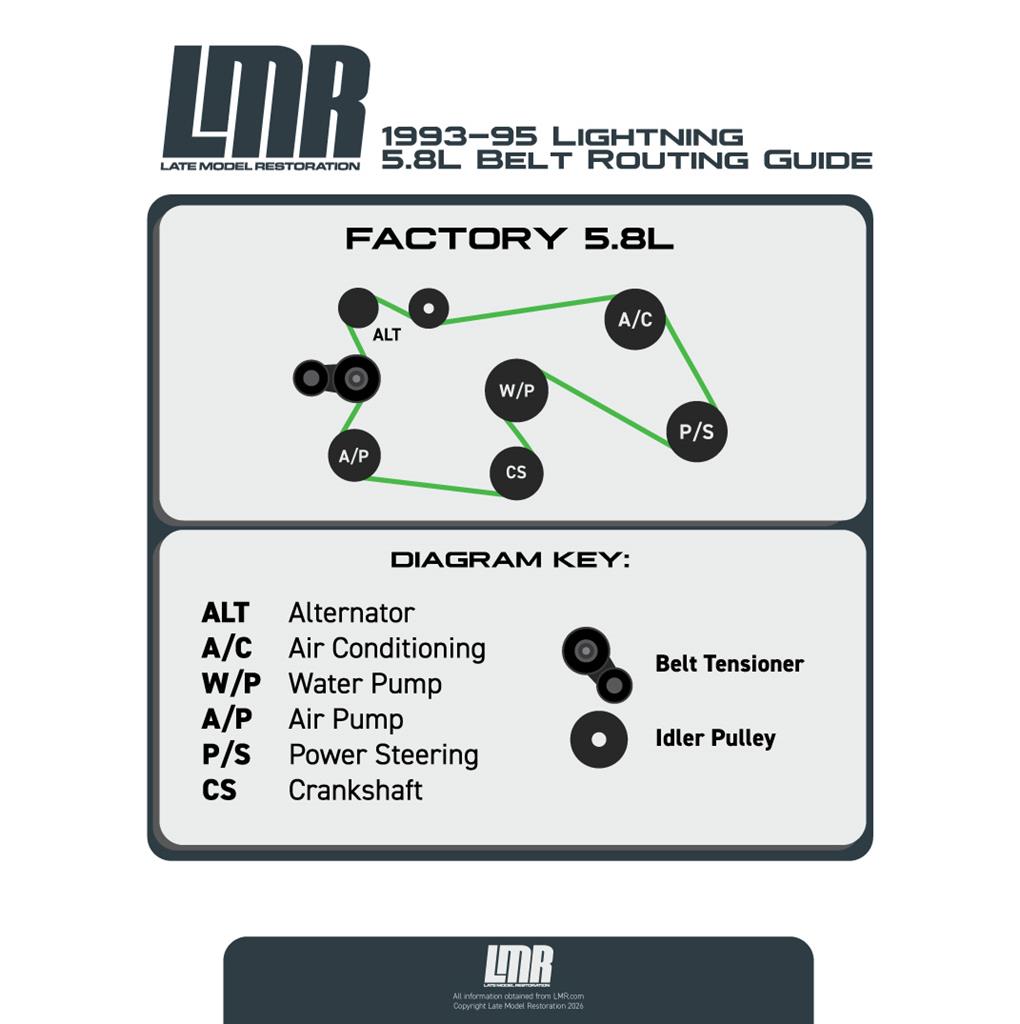

Before replacing your 1993-1995 Ford Lightning serpentine belt, check out this 5.8L belt routing guide. See the proper belt configuration and routing diagram for your first gen Lightning!
