2001-2004 Ford Lightning 3rd Brake Light Install

Created by Andrew Perry / 5 min read
Date Created: 11/21/2025
Last Updated: 11/21/2025

Watch as we go through the install and overview of a factory reproduction 3rd brake light for the 2001-2004 SVT Lightning!

Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.
Upgrade your 3rd brake light or replace a faded original with this reproduction 2001-2004 SVT Lightning 3rd brake light from Late Model Restoration®. For years, Gen 2 Lightning owners had to search for good used or rare new-old-stock lights, but the wait is finally over. LMR now offers a high-quality reproduction built to OEM standards, so your restoration is complete down to the smallest detail. Crafted from durable charcoal colored plastic with the correct OE textured finish, this light features crystal-clear lenses and reflective chrome cargo light housings just like the factory original. The faithful recreation features bright LED brake lights and OE-style reverse lights, providing optimum light output and modern reliability. Installation is quick and hassle-free thanks to factory mounting locations, built-in alignment tabs, and a direct plug-and-play electrical connector that matches the original 3rd brake light. To ensure long-lasting performance, this unit comes pre-fitted with durable rubber bulb socket seals and a new body grommet to keep out moisture. Lastly, the Phillips head screws that attach the 3rd brake light to the rear window trim of your Lightning are also included. Over time, the factory hardware can go missing or become rusted, allowing the light to fall out and rattle out of place. Complete your Lightning’s restoration the right way with LMR’s 2001-2004 SVT Lightning 3rd brake light.

While this 3rd brake light is listed to fit 2001-2004 Ford Lightnings, it is also a great upgrade for the 1999-2000 Ford Lightning trucks.


Product Links

Watch

Tool List
  • Microfiber Towels
  • All-purpose Cleaner
  • Waterless Wash Product
  • Isopropyl Alcohol
  • Gray Scuff Pads
  • Bucket & Dishwashing Liquid
  • PPE (Personal Protective Equipment)
  • Phillips Head Screwdriver
  • 1/2" Ratchet & 15mm Socket
  • SEM Sand Free Adhesion Promoter
  • LMR Exterior Gray Trim Paint

Torque Specs
  • Third Brake Light Housing Screws - Hand Tight
  • Upper Seat Belt Anchor Nuts - 30 lb-ft

Removal & Installation Instructions

Step 1: Remove Interior Parts For Access

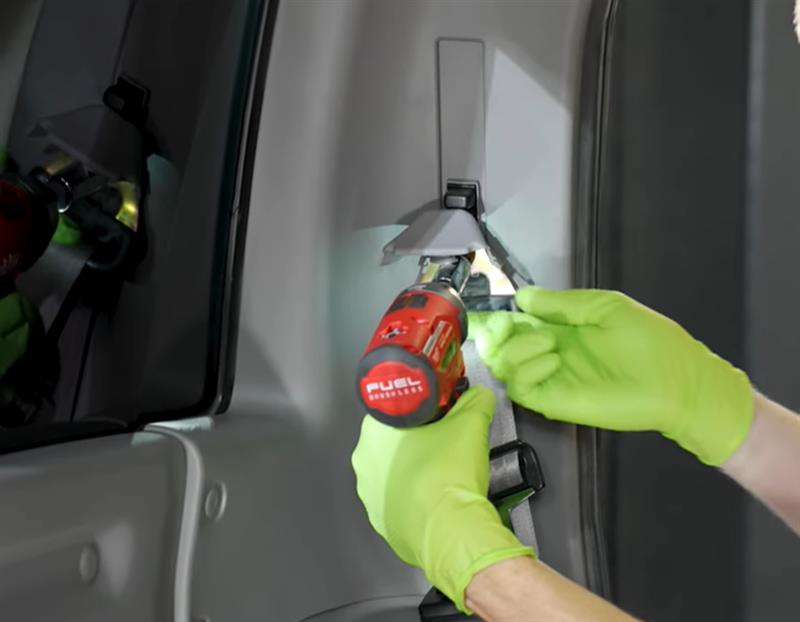

  • Starting on the driver's side, pop off the seat belt trim to loosen and remove the 15MM nut.
  • Position the seat belt out of the way and remove the top two fasteners from the panel.
  • Roll back the door to body weatherstrip away from the pinch weld.

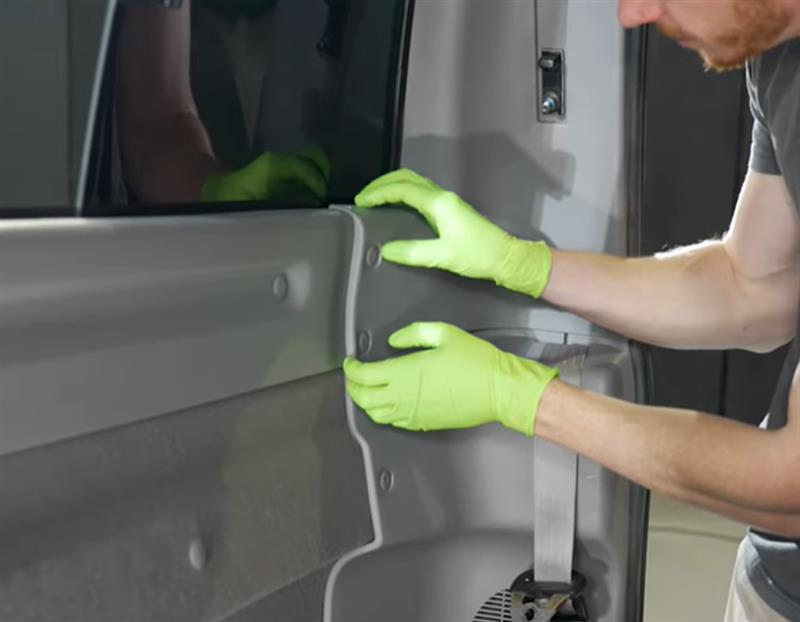

  • Pull the seat belt panel out away towards the center of the truck.

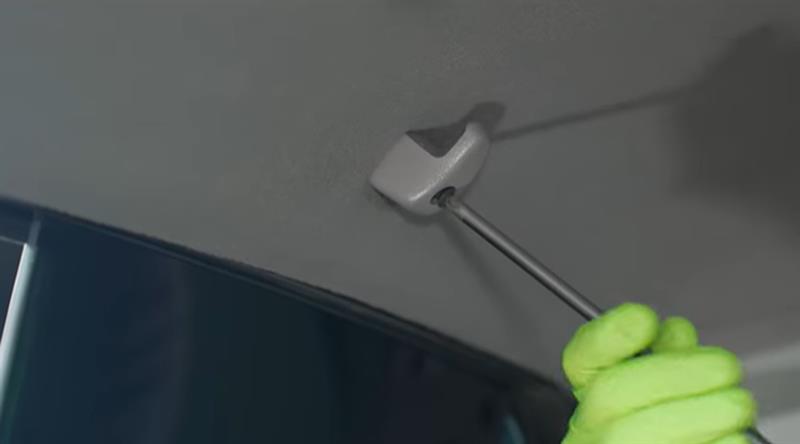

  • Remove the coat hanger hook with a Philips head screwdriver.

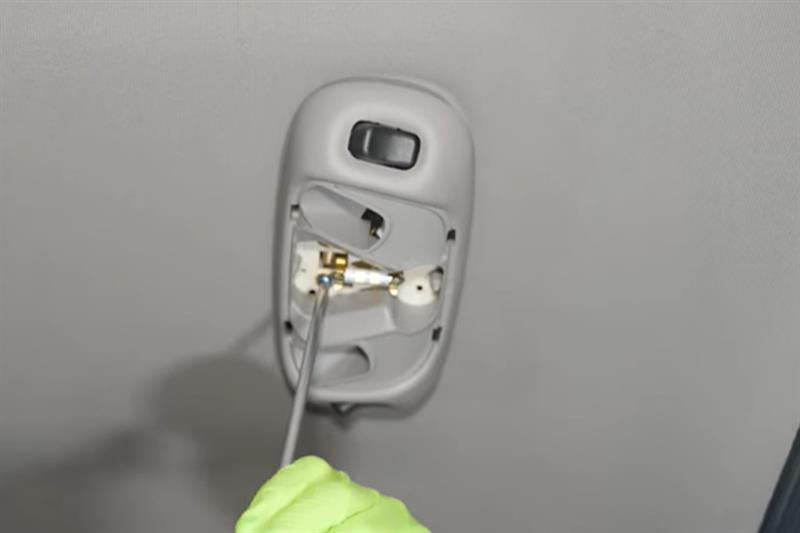

  • Next, remove the dome light by popping off the lens and removing the (3) Philips head screws attaching the light assembly. Disconnect the connector to fully remove.

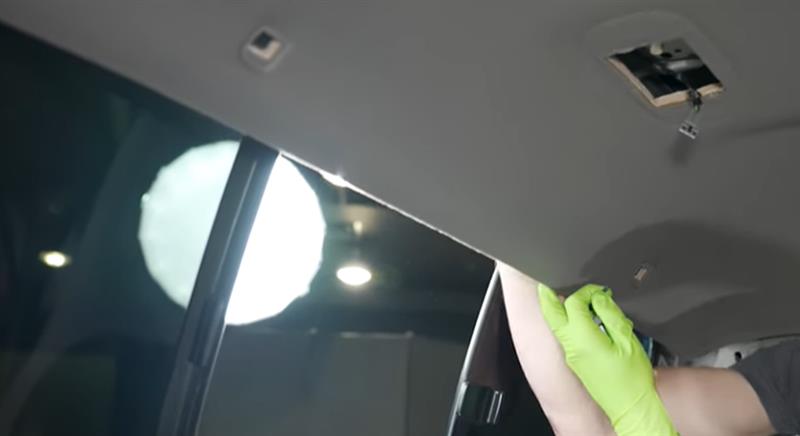

  • Remove the panel on the passenger side as well. Doing this will allow you enough access to get behind the headliner to disconnect the third brake light without having to pull down the whole thing.

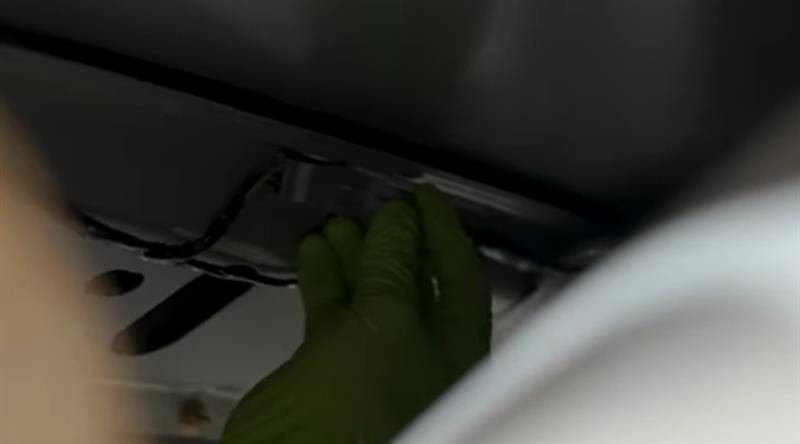

  • Disconnect the third brake light connector.







Step 2: Remove Old Third Brake Light

  • Remove the (2) Philips head screws securing the third brake light to the truck.

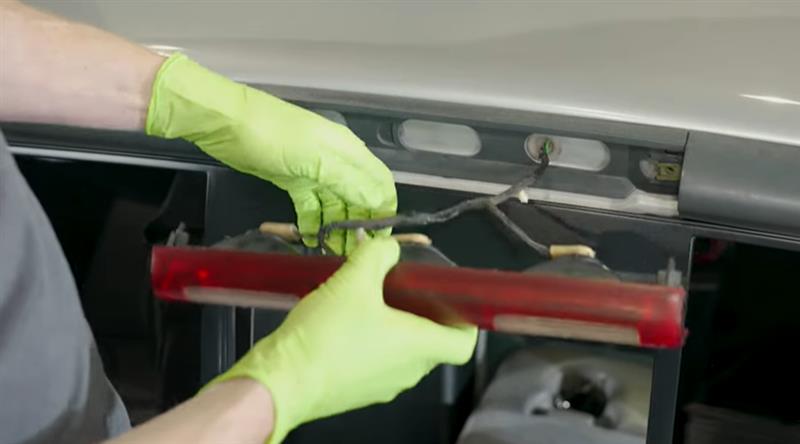

  • Pull the light from the truck.

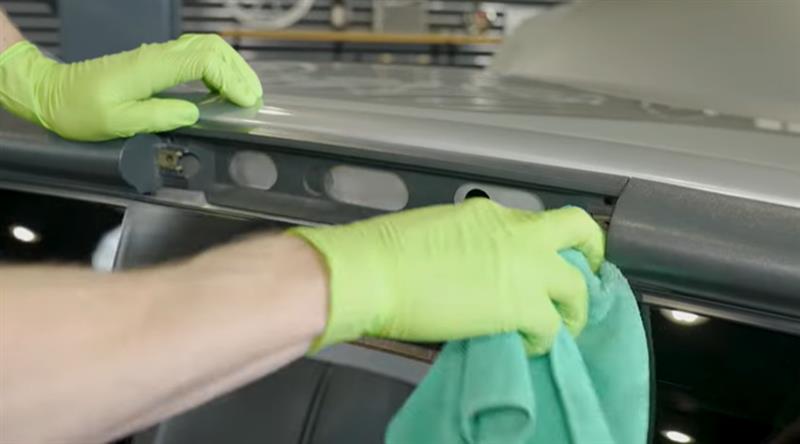

  • Take this time to clean up the area and prep for the new light.



Step 3: Install New Third Brake Light

  • To install the new light, simply reverse the removal steps.
  • Ensure none of the wires are pinched and situate and screw the new light in place.

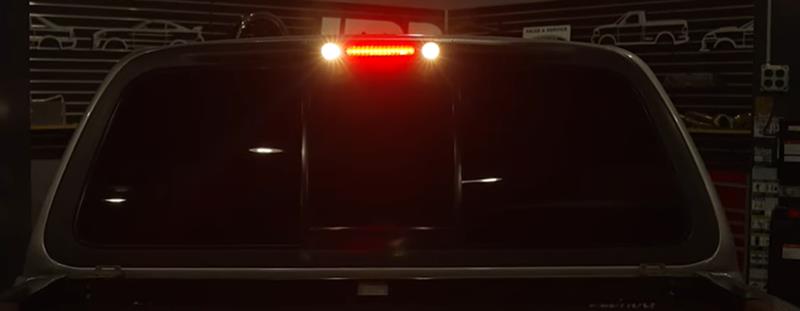

  • Once the brake light is connected, test for operation.
  • When everything lights up properly, you are all set to finish reinstalling your interior components.
  • After that, you are good to go!
