2010-2014 Ford F-150 SVT Raptor 6.2L Belt Routing Guide

Created by Andrew Perry / 2 min read
Date Created: 8/14/2026
Last Updated: 9/18/2026

Check out our guide on how to properly route your 2010-2014 Ford Raptor 6.2L serpentine drive belt!

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.
  • 2010-2014 Ford F-150 SVT Raptor 6.2L Belt Routing Guide

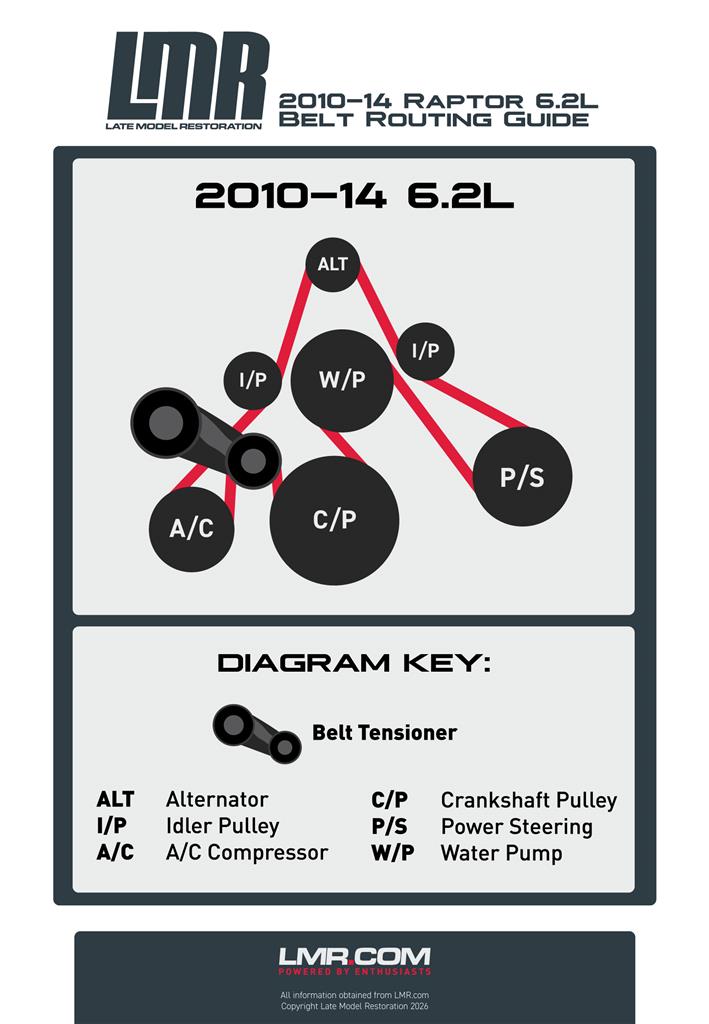

The serpentine belt powers essential components like your alternator, power steering pump, A/C compressor, and water pump, so proper routing is critical to keeping everything running smoothly. Check out our guide on how to properly route your 2010-2014 Ford Raptor 6.2L serpentine drive belt and make sure you get the install right the first time! Before replacing your 2010-2014 Ford Raptor serpentine belt, check out this 6.2L engine belt routing guide. See the proper belt configuration and routing diagram for your first gen Raptor!
