2011-2014 Mustang 5.0L Coyote Belt Routing Guide

Created by Andrew Perry / 2 min read
Date Created: 9/18/2026
Last Updated: 9/18/2026

Check out our guide on how to properly route your 2011-2014 Ford Mustang 5.0L engine serpentine drive belt!

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.
  • 2011-2014 Mustang 5.0L Coyote Belt Routing Guide

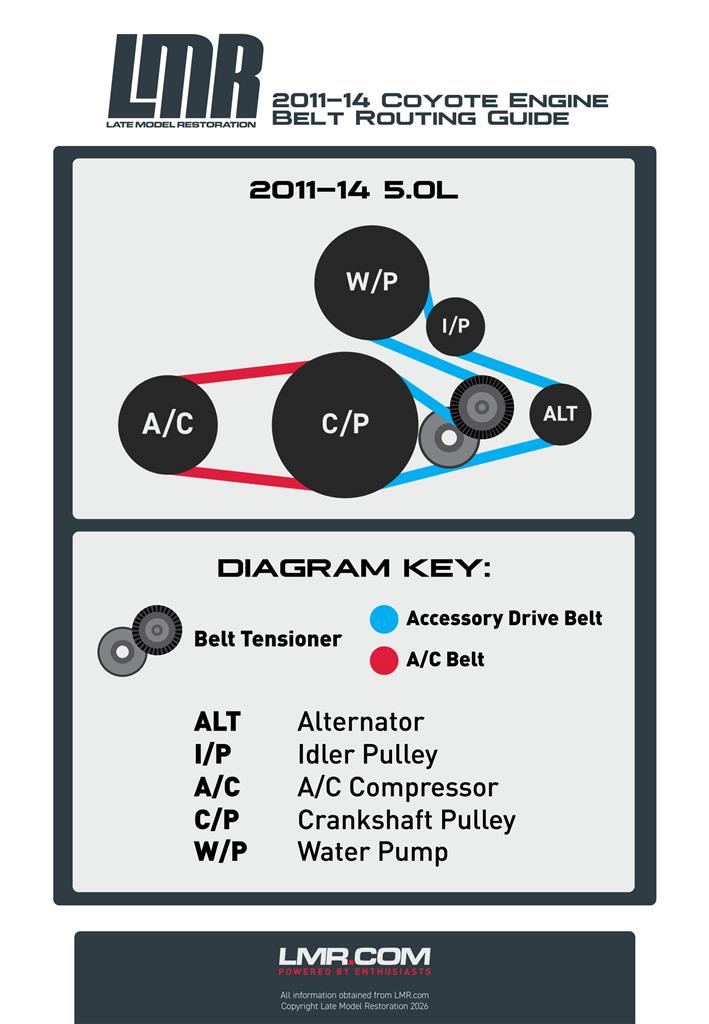

The serpentine belt powers essential components like your alternator, power steering pump, A/C compressor, and water pump, so proper routing is critical to keeping everything running smoothly. Check out our guide on how to properly route your 2011-2014 Ford Mustang 5.0L serpentine drive belt and make sure you get the install right the first time! Before replacing your 2011-2014 Ford Mustang serpentine belt, check out this 5.0L engine belt routing guide. See the proper belt configuration and routing diagram for your Coyote!
