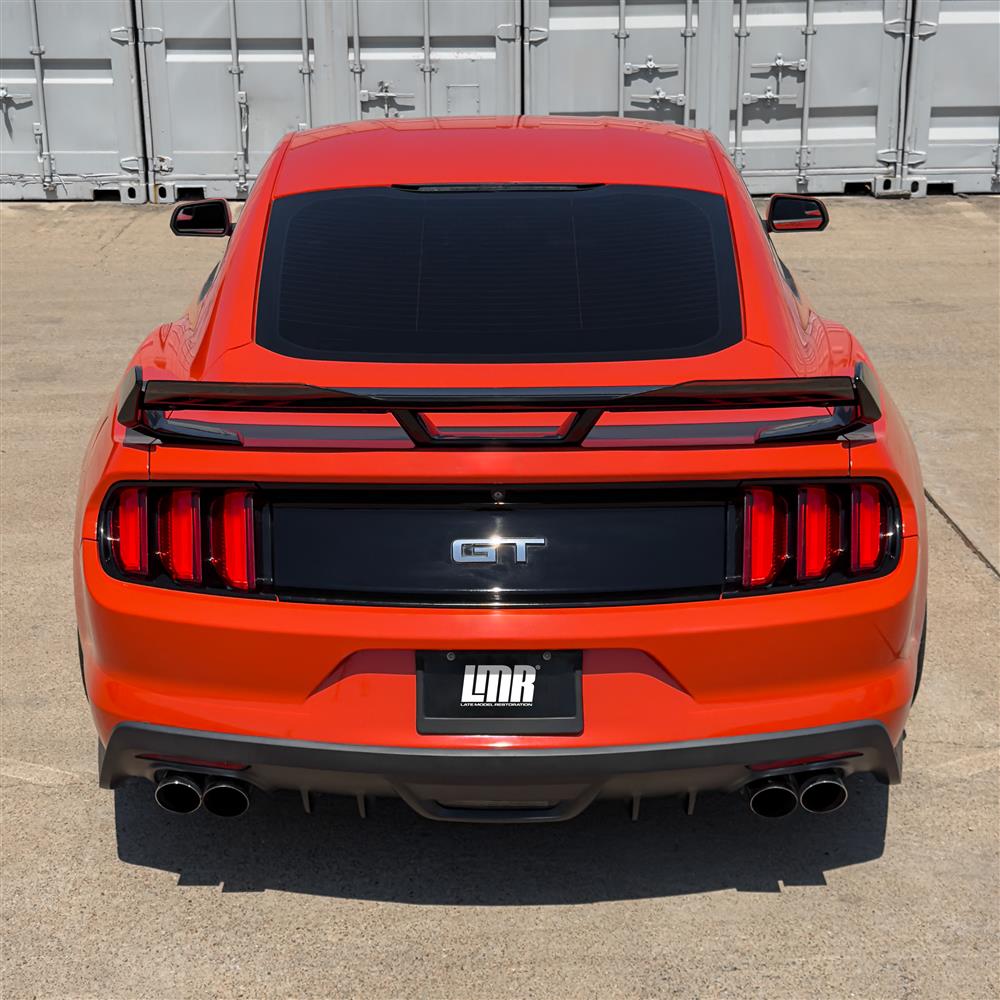

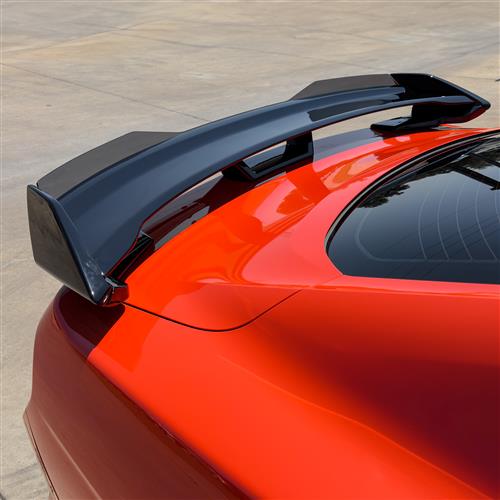

If you are installing the LRS-16600DH 2015-2023 Mustang Dark Horse Style Spoiler on your S550 Mustang, this step-by-step guide will help you every step of the way.
* A #3 Phillips screwdriver is required for assembly of this Dark Horse style rear spoiler.
* To ease installation, a small piece of masking tape can be used to hold the screws onto the driver
during placement.
- Unbox all components and arrange them on a clean, flat level surface, utilizing the provided protective foam to prevent damage to painted surfaces. Carefully inspect and verify that all components and hardware are present prior to beginning installation.

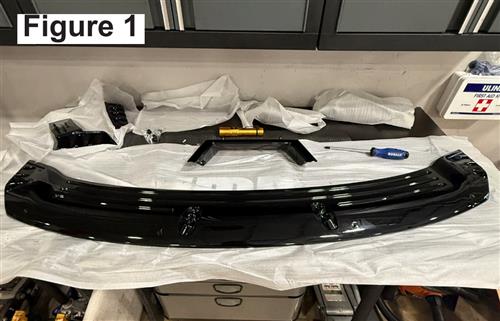

- Before beginning, carefully remove all protective film from the components. Starting with the main spoiler deck, position it upside down in the forward orientation. This will aid in the installation of the center support and side winglets. (See Figure 1)

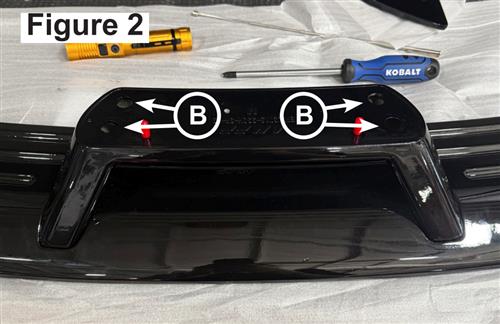

- Position the center support onto the underside of the spoiler deck, aligning the mounting holes. Using the four (4) supplied short screws (B), securely fasten the center support to the spoiler. (See Figure 2)

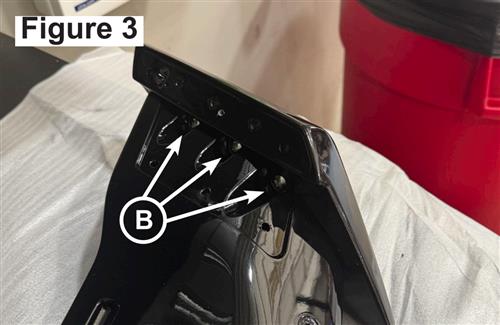

- With the center support securely fastened, proceed to the side winglets. Position each side specific winglet onto the spoiler, align the mounting holes, and secure using three (3) short screws (B). Repeat this process for both sides. (See Figure 3)

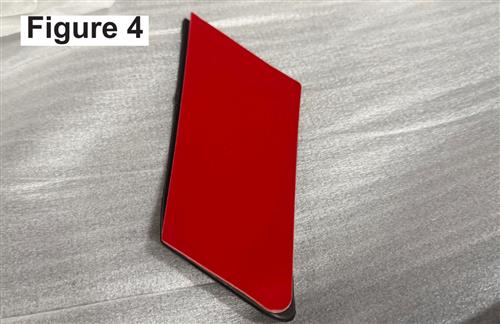

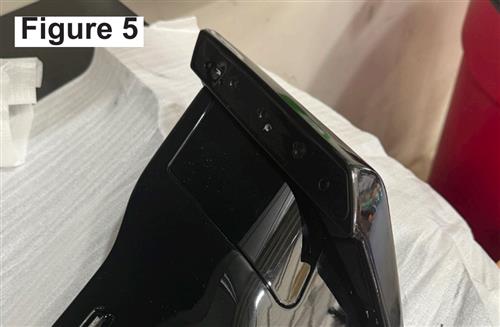

- Once the winglets are securely fastened, apply the side-specific adhesive tape padding to the hardware cover plate. Remove the red backing from the tape, then carefully position and press the cover plate into place, ensuring it fully conceals the winglet mounting screws. (See Figure 4 & 5)

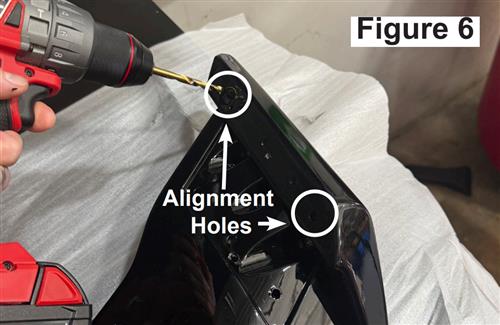

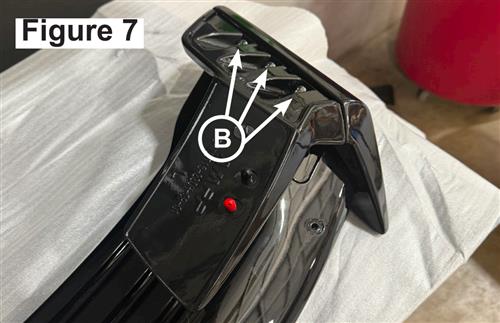

- Once the hardware cover plate is attached, proceed to the side mounting brackets. Some drilling may need to be applied for the locator studs, if this is present use a 1/4” drill bit on the outter holes. This will allow proper fitment of the side mounting brackets. Position each mounting bracket onto the winglet and secure it using three (3) supplied short screws (B). Repeat this step for both sides. (See Figure 6 & 7)

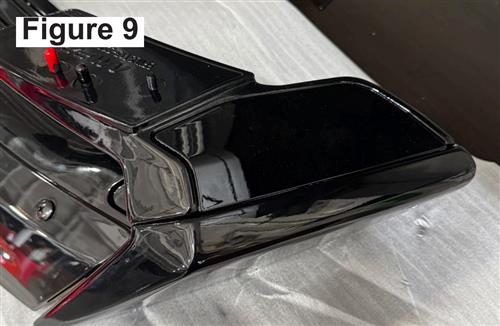

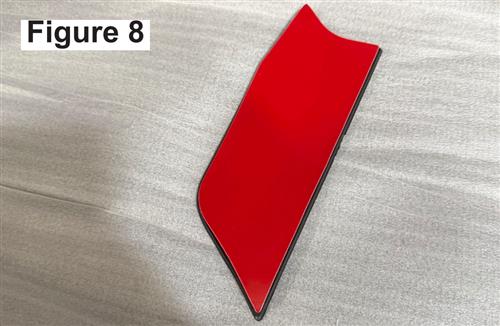

- Using the supplied, side-specific bracket hardware cover, apply the provided tape padding to the cover plate. Once the padding is in place, peel off the red backing and carefully position and secure the cover onto the bracket. (See Figure 8 & 9)

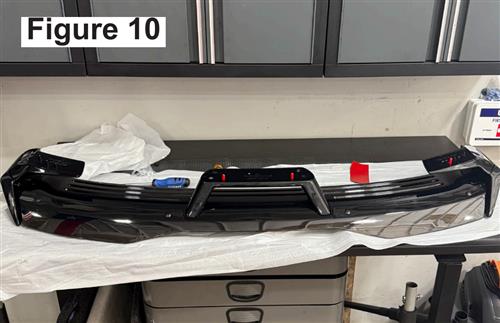

- Now that all components are in place, install the provided gurney flap. Position the gurney flap on the rear of the spoiler, aligning it with the screw holes. Using the supplied screws (C), securely attach the gurney flap to the spoiler. (See Figure 10)

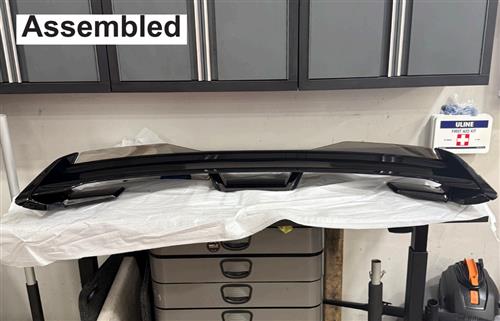

- Your Dark Horse-style spoiler is now fully assembled and ready to be installed on the vehicle using the supplied foam padding. For installation instructions, scan the provided QR code on the final page.
*Not all hardware included will be used.
