How To Install 2024-2026 S650 Mustang LED Rear Reflectors

Enhance your Mustang’s style and rear visibility with Form Lighting’s Smoked LED Rear Reflectors. Unlike the stock reflectors, which only reflect light, these feature a full strip of LEDs behind a sleek smoked lens for a modern, stealthy look. It’s a simple upgrade that makes a big visual impact—perfect for standing out on the road.

Product Links:

• LED Rear Reflectors

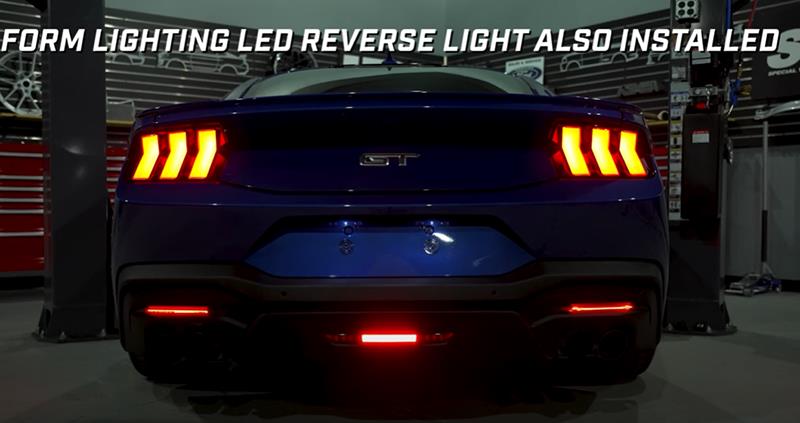

• LED Reverse Light Assembly

Tool List:

• Wrench or Ratchet Set
• 7mm Socket
• 10mm Socket
• Push Pin Pry Tool
• Zip Ties

Installation Instructions

Step 1: Remove Rear Splash Guard

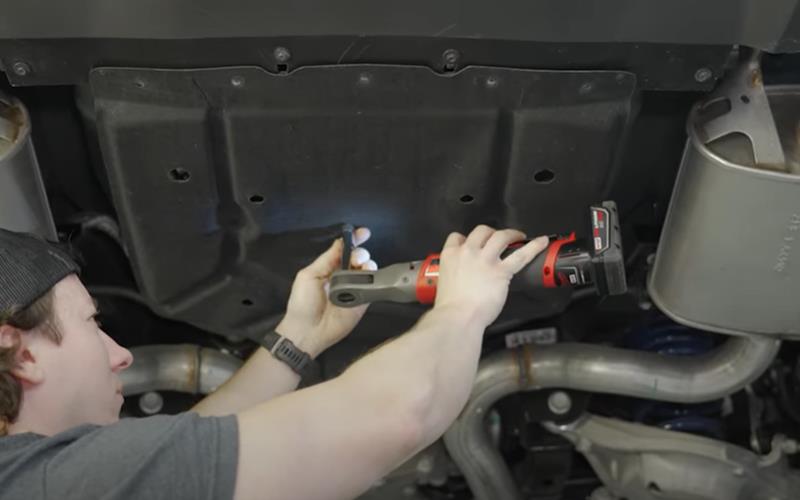

• Start by removing the (7) 7mm bolts.
• Remove the 10mm bolt and (2) push pins.
• Once the splash guard is removed, remove the (4) 7mm bolts holding the bumper to the car.

Step 2: Remove Factory Reflectors

• Starting on the passenger side, remove the 10mm nut holding on the factory reflector.

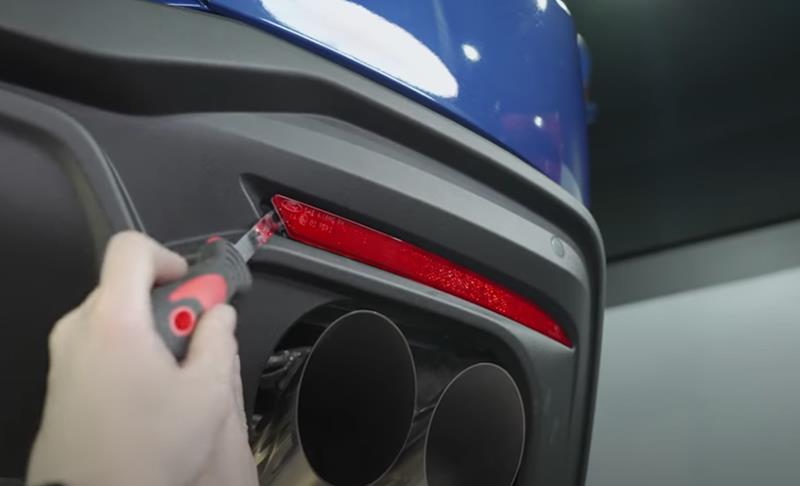

• Use the pry tool to pop out the reflector to fully remove it.
• Do the same for the other side.

Step 3: Install New LED Reflectors

• The new reflectors are marked (L) and (R) to indicate the side it goes to.

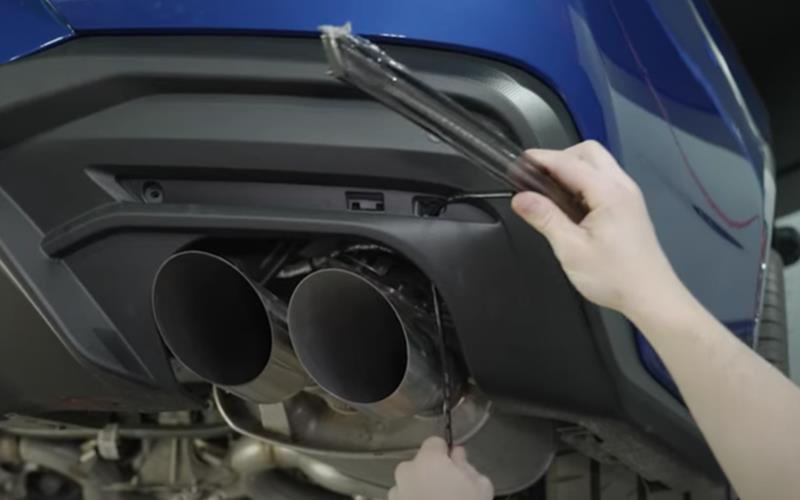

• Disconnect the harness and feed the male end into the hole in the bumper.
• Once the harness is fed through the bumper, secure the new reflector in place, reusing the factory 10mm nut.
• Do the same for the other side.

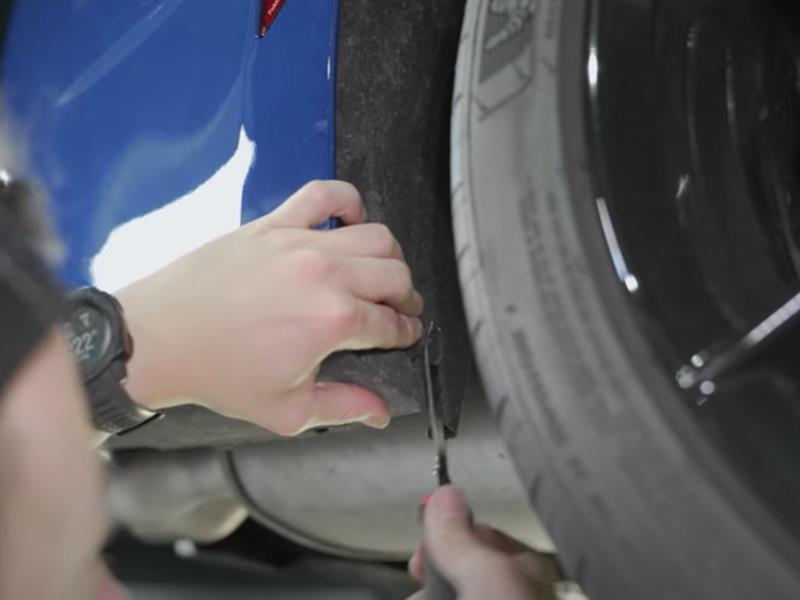

• Once the reflectors are installed, move to the rear fender liner and remove the (2) bolts and push pin, holding the liner to the car.

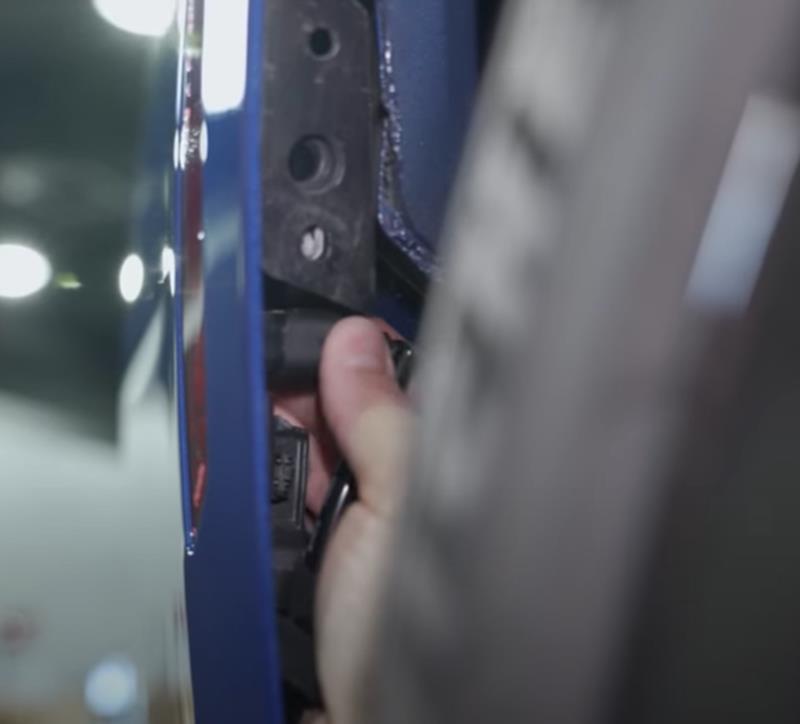

• Pull back the liner and disconnect the rear side marker.

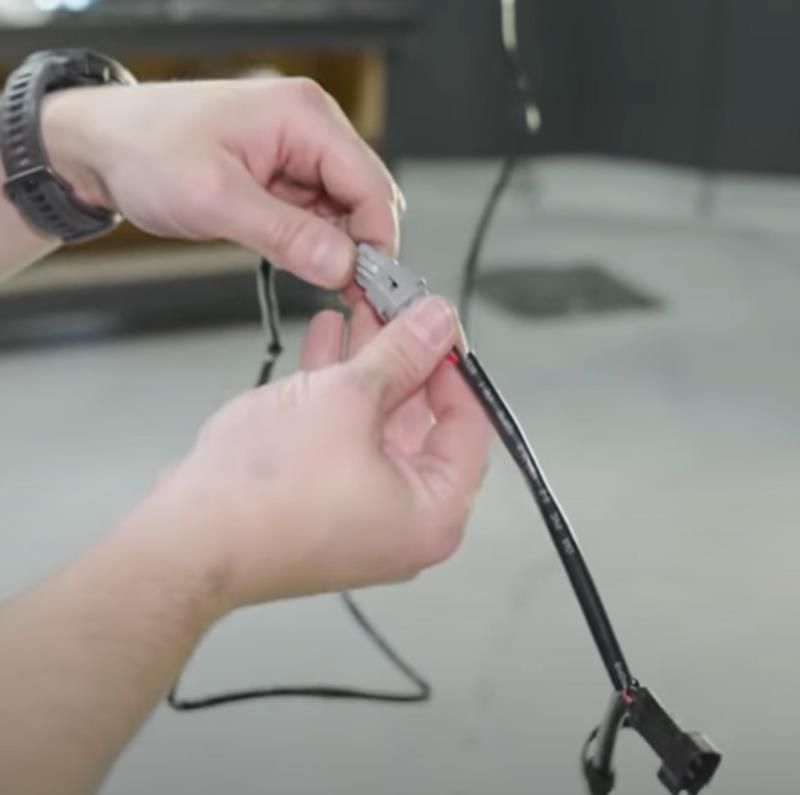

• Now take the previously disconnected connector harness and plug it into the new rear reflector.

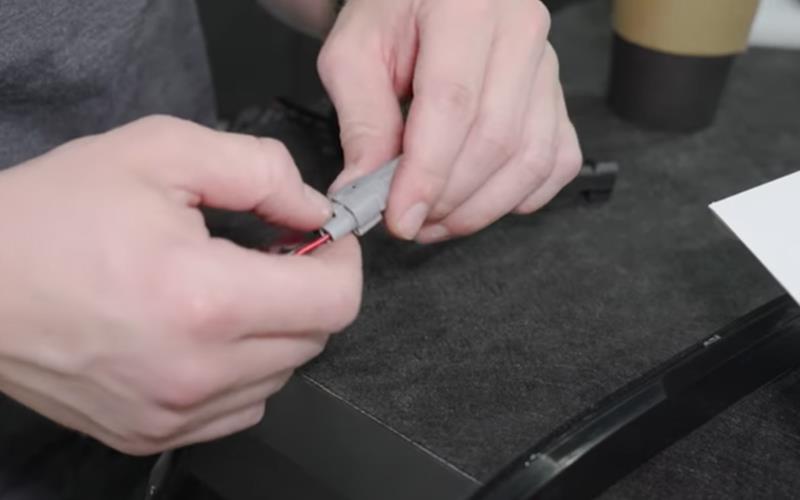

• Then connect the factory rear side marker light to the Form lighting harness.
• Reconnect the Form lightning harness to the rear OEM side marker.
• Take this time to zip tie the wiring up and out of the way.
• Reinstall the fender liner.
• Repeat these steps for the other side. After this you are good to go!

---
