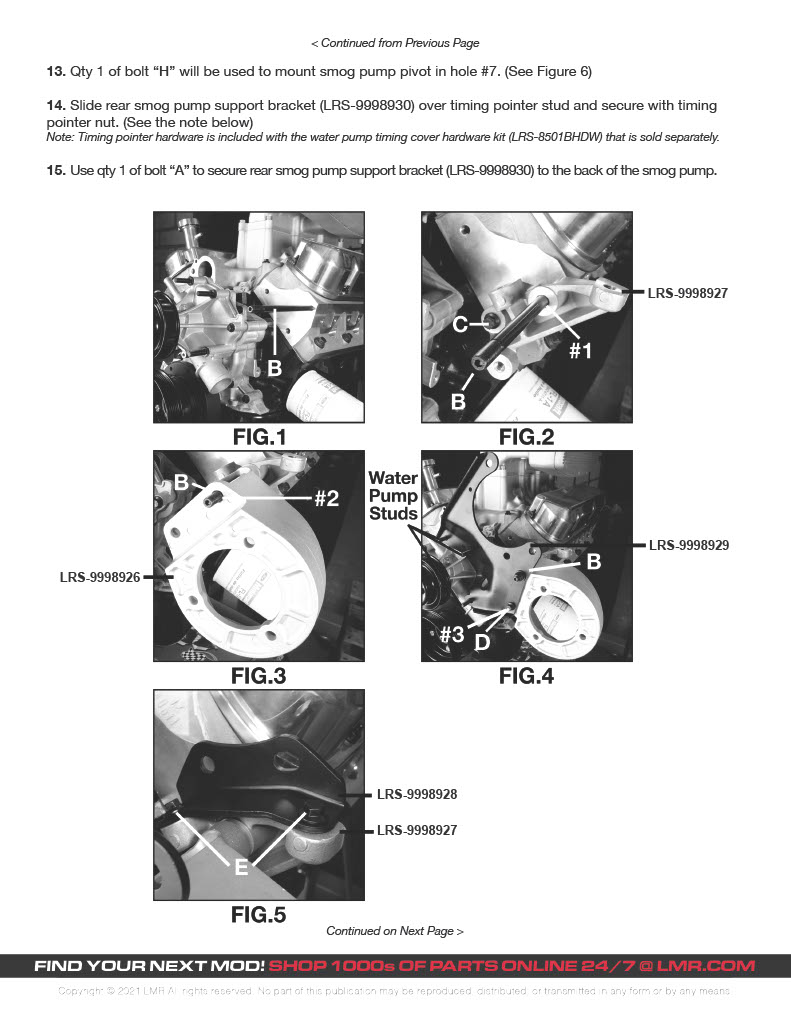

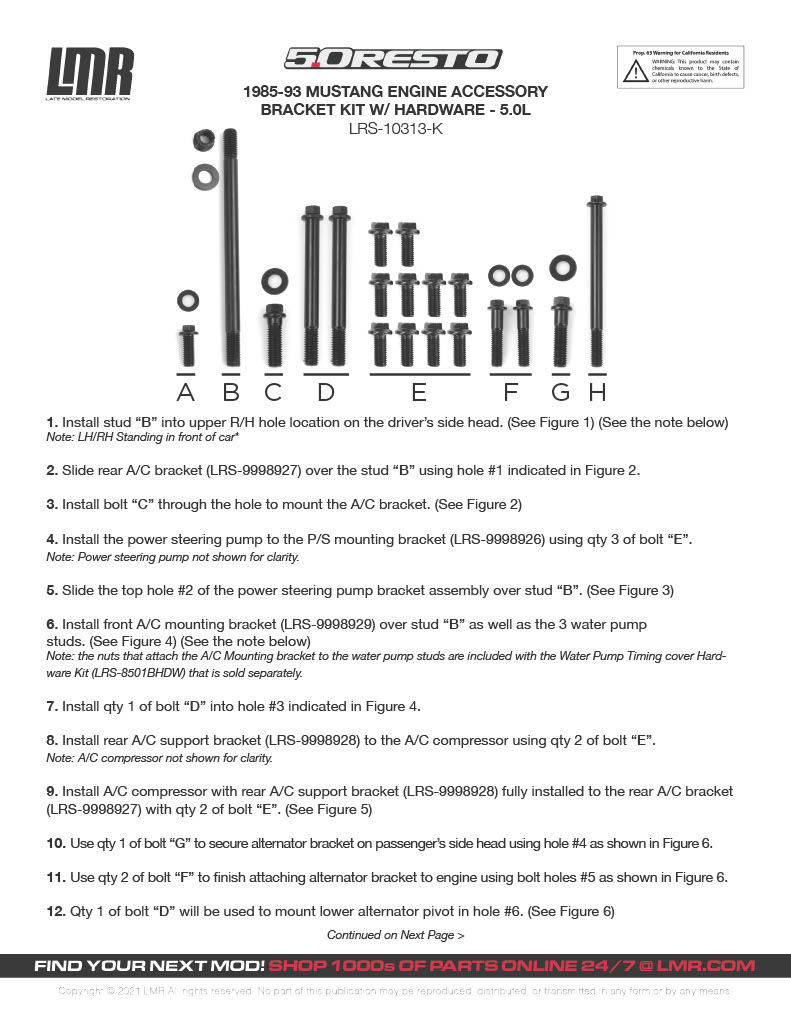

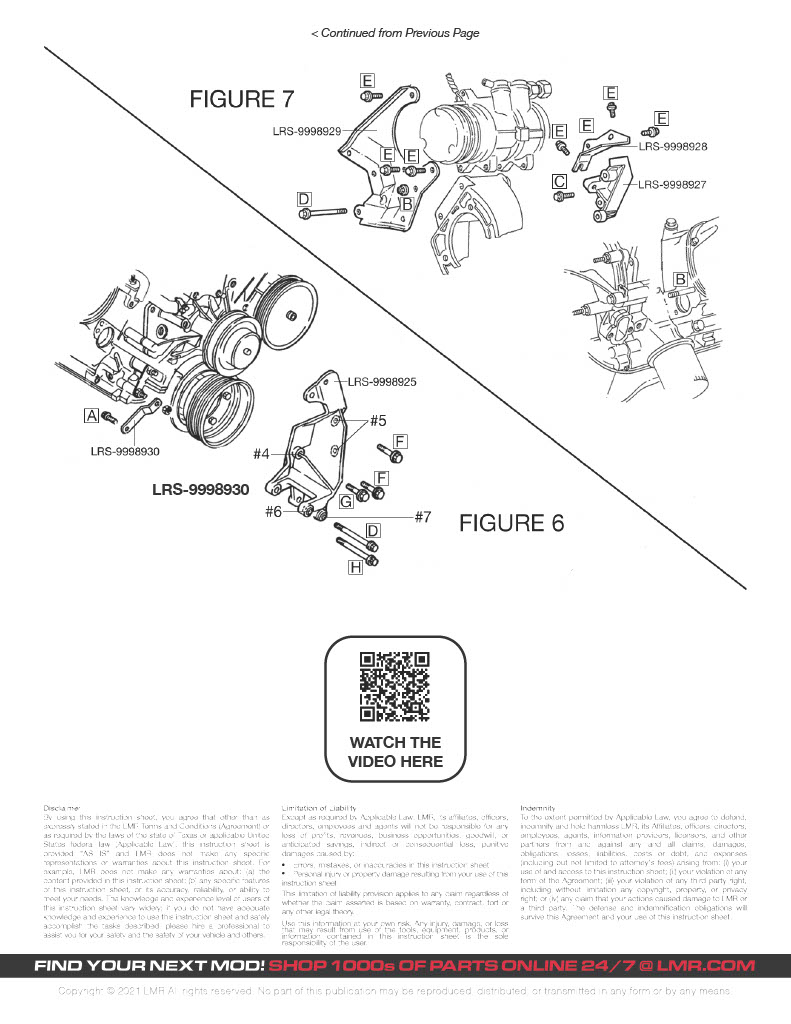

Mustang Engine Accessory Bracket Hardware Kit 5.0 Installation Instructions

Created by Brian Horn / 5 min read
Date Created: 3/26/2026
Last Updated: 3/27/2026

Replace your missing or rusted engine accessory bracket hardware with this complete kit from 5.0 Resto!

Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.
It's all too common for an A/C compressor or smog pump to be removed, and the hardware to be lost. This kit replaces the missing hardware and ensures all engine accessories are secured to the engine! This 21-piece kit is made exclusively for Late Model Restoration to restore your engine. The studs, bolts, and nuts are made of ARP 8740 chrome-moly steel. This hardware is nominally rated at a 180,000psi tensile strength, which is a fair margin stronger than standard Grade 8 hardware and significantly stronger than the factory pieces. Each piece is black oxide-coated for corrosion resistance and long life.
