2024-Current Mustang GT Oil Change Instructions

We get it. By now, most folks know how to change engine oil. However, we see this as watchable content for those wanting to learn a little something they may not know or just want to enjoy the process. In this video, Landan explains the full oil change and oil life reset procedures in detail on a 2024 Mustang GT.

Product Links

2024+ Mustang GT Oil Change Kit

Tool List

• Lift or Jack & Jack Stands
• Microfiber Towels
• Cardboard, Aluminum Foil, or Form-a-funnel
• Brake Clean
• 15mm Socket or Wrench
• 7mm Socket
• Push Pin Removal Kit
• 1/4" Socket Wrench
• 3/8" Socket Wrench
• 3/8" Torque Wrench

Torque Specs

• Oil Pan Drain Plug - 19 lb-ft
• Oil Filter Stage 1 - 144 lb-in
• Oil Filter Stage 2 - 180-degree rotation
• Lower Closeout Panel Bolts - 18 lb-in

Installation Instructions

Step 1: Prepare Tools:

• Ensure you have the necessary tools such as a socket set, push pin removal tool, a pick tool, a drain pan, and a funnel.

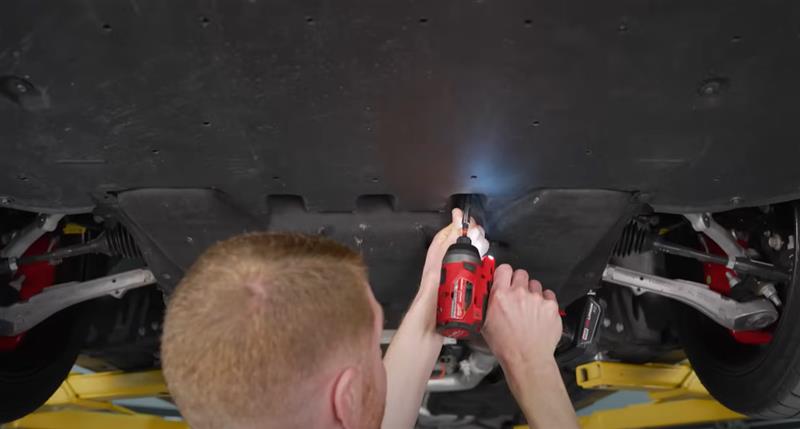

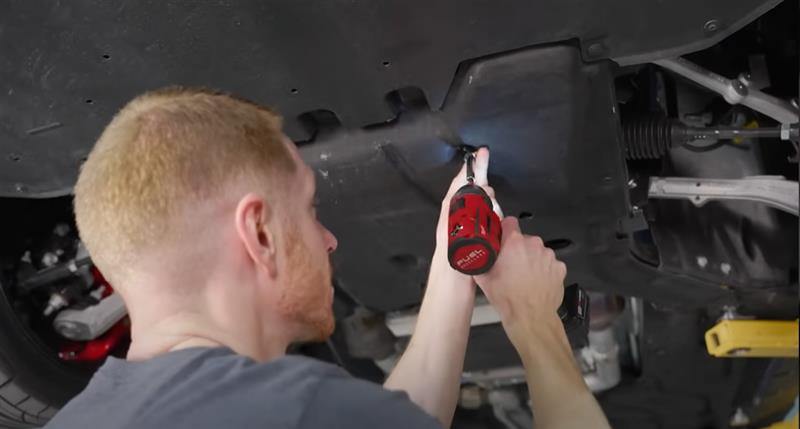

Step 2: Remove Lower Closeout Panel:

• Use a 7 mm socket to remove the 7 mm screws from the lower closeout panel.
• Use a pick tool to dislodge the head of the push-type retainers and remove them.
• Pull down the lower closeout panel.

Step 3: Drain Oil Pan:

• Locate the oil pan underneath the car.
• Position the drain pan underneath the oil pan.
• Loosen and remove the oil pan drain plug. Replace when oil comes to a slow drip. Tighten to 19 ft/lbs

Step 4: Remove Old Oil Filter:

• Locate the oil filter.
• Loosen the oil filter and let the oil drain into the pan.
• Wipe the area around the oil filter adapter.

Step 5: Prepare Oil Filter:

• Clean the O-ring of the new oil filter with brake clean and a microfiber towel.
• Blow out any debris from the filter.
• Pre-oil the filter and lubricate the O-ring with a thin film of fresh engine oil.

Step 6: Install New Oil Filter:

• Screw on the new oil filter until it makes contact with the oil filter adapter.
• Tighten hand-tight, then give it a little extra turn.
• Check for any leaks or drips.

Step 7: Reinstall Lower Closeout Panel:

• Reverse the removal steps for the lower closeout panel.
• Use flat push pins to secure the panel in place.

Step 8: Tighten Fasteners:

• Use a 7 mm socket to tighten the screws securing the lower closeout panel. Do not overtighten.

Step 9: Fill Engine with Oil:

• Open the hood and locate the oil fill cap.
• Use a clean funnel to pour 10 quarts of 5W30 oil into the engine.

Step 10: How To Reset Oil Life 2024 Mustang GT:

• Turn the key to the "on" position (without starting the engine).
• Navigate to the vehicle settings on the infotainment screen.
• Find the oil life section, hold down the selection to reset it to 100%.

Step 11: Check Oil Level:

• Start the engine and let it idle.
• Turn off the engine and check the oil level using the dipstick on the driver's side valve cover.



---
