1992-96 Ford Bronco Door Panel Reinforcement Brackets Installation Instructions

Restore the interior of your Bronco with LMR's 1992-1996 Ford Bronco door panel reinforcement brackets! This all-in-one solution fixes the broken door panel issue commonly found on these OBS trucks. The plastic at the top of the panel becomes brittle, which cracks, leaving your inner door belt weatherstrip nothing to attach to. LMR's creative thinking brings you these brackets that reinforce this section of the panel. Each pre-formed bracket matches the contour of your door panel for a stress-free installation. This kit extends the life of your door panels without breaking the bank!

Parts List:

• 1992-1996 Bronco Door Panel Reinforcement Brackets

Tool List:

• Microfiber Towels & All-purpose Cleaner

• Clamps

• Gaft Tape Or Painters Tape

• Isopropyl Alcohol

• Green Scotch Brite Pad

Step-by-Step Guide:

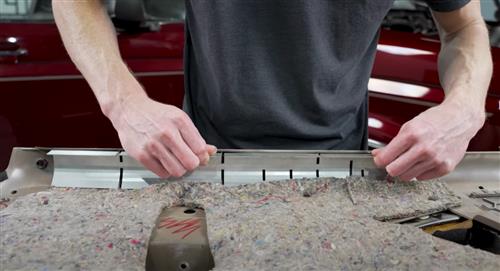

Step 1: Determine the Correct Bracket

• Before starting, identify the passenger side reinforcement repair bracket.



Step 2: Prepare the Door Panel for Installation

• To avoid damaging the jute padding, gently roll it back.
• Consider using painters tape or Gaff tape to secure the jute padding temporarily.

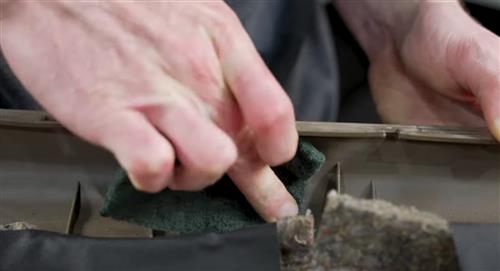

Step 3: Scuff the Door Panel

• Use a green scotch bright to roughen the surface of the door panel.
• Ensure you also scuff underneath the lip or flange.

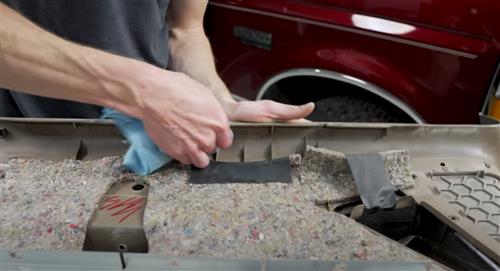

Step 4: Clean the Prepared Area

• Wipe the scuffed area with isopropyl alcohol to remove any impurities, dirt, or oils.
• Ensure the surface is clean to allow proper adhesion of the adhesive.

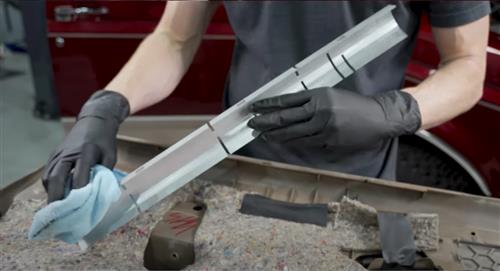

Step 5: Prepare the Repair Bracket

• Put on nitrile gloves to prevent oil transfer from your hands.
• Clean the side of the bracket that will adhere to the door panel.

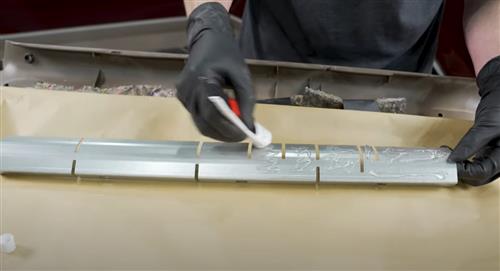

Step 6: Apply the Adhesive

• Use the adhesive sparingly, covering the entire reinforcement repair bracket.
• Be cautious not to use too much adhesive, as it can damage the plastic.

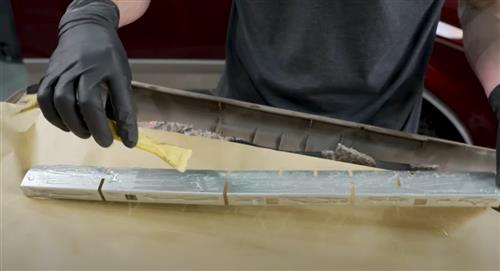

Step 7: Spread the Adhesive

• Spread the adhesive using a spreading tool or your finger (protected with gloves).
• Ensure even coverage over the bracket.

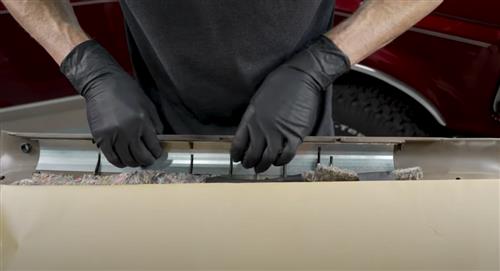

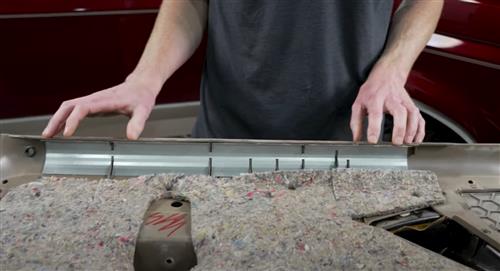

Step 8: Position the Bracket

• Place the bracket in position on the door panel, matching the dry fit from earlier.
• Press it into place with your hands, and ensure it fits snugly.

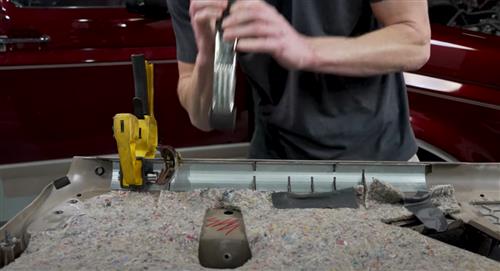

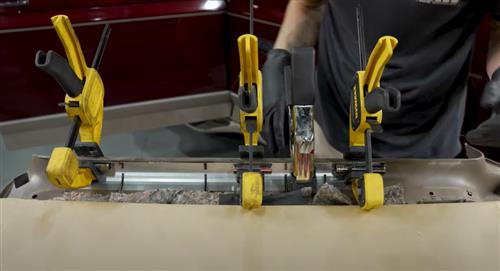

Step 9: Clamp the Bracket

• Use rubber-padded clamps to hold the bracket securely in place.
• Do not over-tighten; the clamps should be snug but not excessive.



Step 10: Allow the Adhesive to Dry & Remove Clamps

• Wait for the adhesive to dry; it's recommended to wait at least an hour for it to set properly.
• Once the adhesive has dried, carefully remove the clamps.

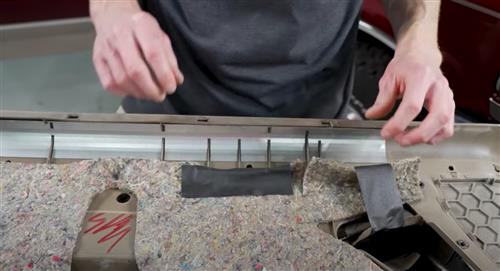

Step 11: Check the Result

• Inspect the repaired area; it should have securely attached the bracket to the door panel.

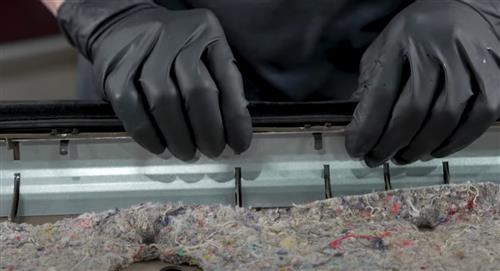

Step 12: Reinstall Inner Door Belt Weather Strip

• If required, bend the tabs on the weather strip to fit over the repair bracket.
• Align the tabs and engage the clips to reattach the weather strip.

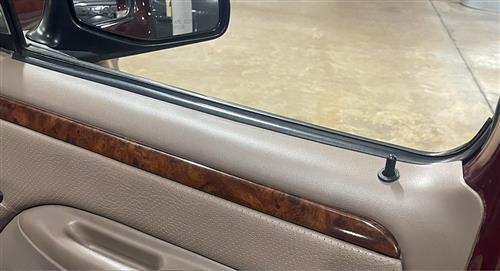

Step 13: Finishing Touches

• Reinstall the door panel and check for proper alignment on the weather strip.
