How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)

Posted 10/25/2019 by Cristian Coronado

Our article makes installing your radiator side air deflectors simple and easy! Buy a pair for your 79-93 Fox Body Mustang today!

FOLLOW: fox body , 79 93 mustang , 5.0resto , radiator , installation

How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93) - How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)

  1. Remove the airbox (if working on a fuel-injected car), the battery as well as the battery tray.

  2. How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93) - How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)


  3. Within the engine bay dislodge the (2) upper pushpins from each deflector.

  4. How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93) - How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)


  5. From underneath the car dislodge the lower pushpin from each side.

  6. How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93) - How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)


  7. Remove the deflectors and you can take time to wipe down the area.

  8. How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93) - How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)

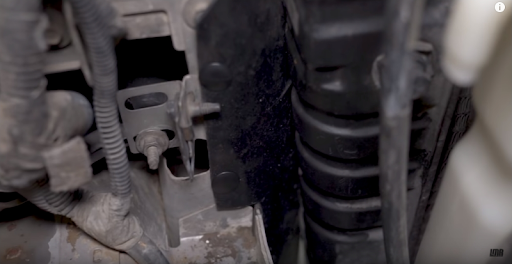

  9. Install the driver side deflector (the deflectors are not side specific) and verify it is at a 45-degree angle towards the radiator.

  10. How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93) - How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)


  11. Install the (2) upper push pins into the deflector.

  12. How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93) - How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)


  13. Install the passenger side deflector and orientate it the same as the driver side, then install the (2) upper push pins.

  14. How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93) - How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)


  15. Install the lower push pins on both sides, and reinstall any other component that may have been removed.

  16. How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93) - How To Install Fox Body Mustang Radiator Side Air Deflectors (79-93)



Shop Air Deflectors!

  • $24.99
    5.0 Resto Logo

About the Video

1979-1993 Mustang 5.0 Resto Radiator Side Air Deflectors - Install & Review

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2019-01-15
Mustang 5.0 Resto Side Air Deflector Pair.
These are the rubber air deflectors that are located on each side of the radiator and attach to the radiator core support in 1979-1993 Mustang. They help direct the air through the radiator instead of around it. This 5.0 Resto kit includes factory-correct push pins!

Fitment Note:
- This was a factory installed part from 1984-1993, but will fit 1979-1983 Fox Bodys as well.

Application: 1979-1993 Mustang

Item # LRS-8310PR
MPN # E4ZZ-8310
Transcript
How’s it going everyone? Landan with LMR.com! Today I’ll be taking a look at this radiator side air deflector kit from 5.0 Resto; as well as showing you how they install into your Fox Mustang.

These air deflectors are constructed from the similar rubber material that Ford used back in the day. It’s black in color and is extremely pliable so that they can properly conform to the sides of the core support and radiator.

They’re molded the exact same so they won’t be side specific and each deflector also incorporates accurately placed holes for the provided push pins to secure each deflector to the core support.

In the box will be two radiator side air deflectors and 6 push pins.

For those of you that don’t know the entire specifics on this part, let me fill you in. These deflectors weren’t installed from Ford until 1984. This means that late production 1983 cars have these and of course all Fox Mustangs until 1993.

If you own a 1979 to an early production 1983 car, these will still work if you want to add them to your car.

Before installing these into your car, it’s going to be beneficial if you remove the air box if you own a fuel injected car, the battery, and battery tray.

This may also be a good time to replace your battery tray and battery tray hardware.

Once those are removed, you’ll have enough room to replace and install the new deflectors.

From within the engine bay, dislodge the two upper push pins from each deflector.

Now from underneath the car, dislodge the lower push pin from each side.

Take this time to wipe down the area.

Position the driver side deflector into place and ensure that the deflector is positioned toward the front of the car and a forty-five degree angle to the radiator.

Install the two upper push pins. Position the passenger side deflector into place.

Now on the passenger side; I’ve seen this middle piece rotated back for a/c line clearance and I’ve also seen it orientated the same way as the driver side. Either way seems fine. Install the two upper push pins.

From underneath, install the two lower push pins. Reassemble any component that you may have removed and you’re all finished.

If you’ve been a longtime viewer of our videos, than you fellas know that I’m a fanboy for easy restoration parts. If you don’t have these radiator side air deflectors on your list of things to do, get on them on your list.

The quality is great, the fit and finish is right on the money, and more importantly; these won’t break the bank.

For the most current pricing and product information be sure and check out the product page.

To see more how-to and review videos covering industry leading products, be sure and subscribe to our YouTube channel, like this video, and turn on notifications. While you’re at it, checkout our other videos and for all things 1979 to present Mustang and SVT Lightning; keep it right here with the real enthusiasts, LMR.com!
