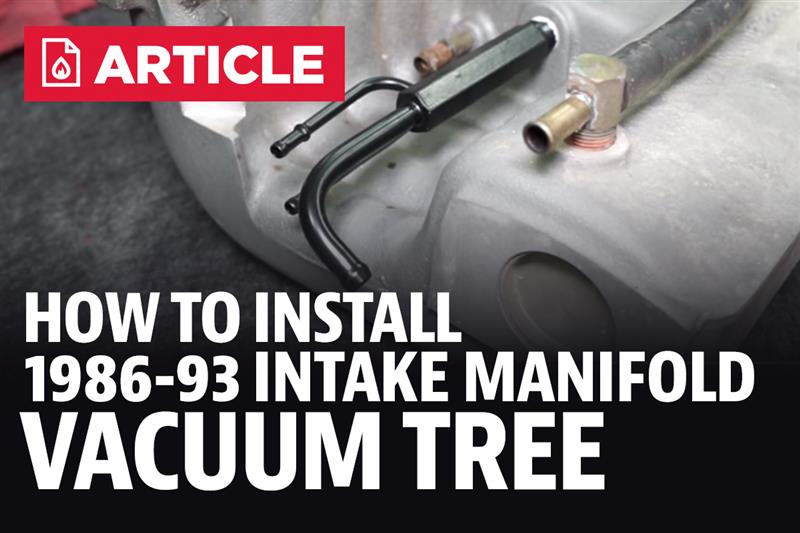

How To Install Mustang Intake Manifold Vacumm Tree (86-93)

Restore the performance of your 5.0 engine with this 1986-1993 Mustang intake manifold vacuum tree! Your upper intake manifold has various vacuum ports all underneath the intake. If the main tree starts to rust or come up missing, you could experience numerous driveability problems. This 5.0 Resto fitting is located in the upper intake manifold on the underneath side, facing towards the rear of the engine. It's purpose is to provide a vacuum source for engine accessories and sensors.

How To Install Mustang Intake Manifold Vacumm Tree (86-93)

Tools Needed:

  • Eleven-sixteenths Combination Wrench

    Installation Instructions

    1. Remove the upper intake. (We’re going to show you how to install this tree with the upper intake already off of the car.)


    2. Apply thread sealer or Teflon tape to the threads on the tree.



    3. Thread the tree in by hand and then tighten it down with an eleven-sixteenths combination wrench. (Rotate until the main three-eighths port is orientated “up” toward the driver side of the car at a forty-five degree angle.)



    4. At this point, you can reinstall the upper intake and reconnect your vacuum lines.



    • $32.39
      Was: $35.99
      You Save: $3.60

      VIDEO AVAILABLE
      ON SALE

      Mustang Intake Manifold Vacuum Tree Restore the performance of your 5.0 engine with this 1986-1993 Mustang intake manifold vacuum tree! Your upper intake manifold has various vacuum ports all underneath the intake. If the main tree starts Read More


    About the Video

    1986-1993 Mustang 5.0 Resto Intake Manifold Vacuum Tree - Install & Review

    Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

    Published on 2018-02-16
    Mustang Intake Manifold Vacuum Tree.
    Restore the performance of your 5.0 engine with this 1986-1993 Mustang intake manifold vacuum tree! Your upper intake manifold has various vacuum ports all underneath the intake. If the main tree starts to rust or come up missing, you could experience numerous driveability problems. This 5.0 Resto fitting is located in the upper intake manifold on the underneath side, facing towards the rear of the engine. It's purpose is to provide a vacuum source for engine accessories and sensors.

    5.0 Resto Quality.
    Featuring a steel construction and black finish, this tree is durable and built to last. The tree has two 1/8" barbed ports to connect vacuum lines to your fuel pressure regulator and vacuum line block. The main 3/8" barbed port connects to the vacuum tree on your firewall on the port labeled "S" for source. Factory thread is utilized so this tree simply screws into your intake manifold for a quick and easy installation. 5.0 Resto's quality makes this the perfect restoration item for your engine!

    Fitment Note:
    - Will fit Cobra intake if open port(s) are capped off.

    Application: 1986-1993 Mustang 5.0

    Item # LRS-9474A
    Transcript
    What’s up everybody, Landan with LMR.com! Welcome to my overview on 5.0 Resto’s intake manifold vacuum tree; designed for the 1986 to 1993 five liter Fox Mustang.

    The intake manifold vacuum tree plays a vital role in engine performance. A defective one can cause a host of problems with the biggest being vacuum.

    The Fox Body restoration perfectionists at 5.0 Resto offers a replacement intake manifold vacuum tree that incorporates the factory thread and ports.

    This particular vacuum tree features steel construction and a black finish for a long service life, and was designed for a factory mustang upper intake.

    The tree has two, eighth inch barbed ports that connect fuel pressure and the vacuum line block. The main three-eighths port connects to the firewall vacuum tree in the port labeled “S” indicating source.

    This intake manifold vacuum tree will also fit 1993 Cobra intakes if the unused port on the tree is capped off.

    When installing this vacuum tree, you will have to remove the upper intake. We’re going to show you how to install this tree with the upper intake already off of the car.

    Make sure the ports on the intake are clean and free of debris.
    Apply thread sealer or Teflon tape to the threads on the tree.

    Thread the tree in by hand and then tighten it down with an eleven-sixteenths combination wrench.

    Tighten the tree until it becomes tight and then rotate until the main three-eighths port is orientated “up” toward the driver side of the car at a forty-five degree angle.

    At this point, you can reinstall the upper intake and reconnect your vacuum lines.

    Wrapping things up here guys; this is a crucial part for optimal engine performance. Again this intake manifold vacuum tree will fit 86 to 93 Mustang upper intake manifolds, 93 Cobra intakes if the unused port is capped off, and of course any aftermarket manifold that uses this factory vacuum tree.
