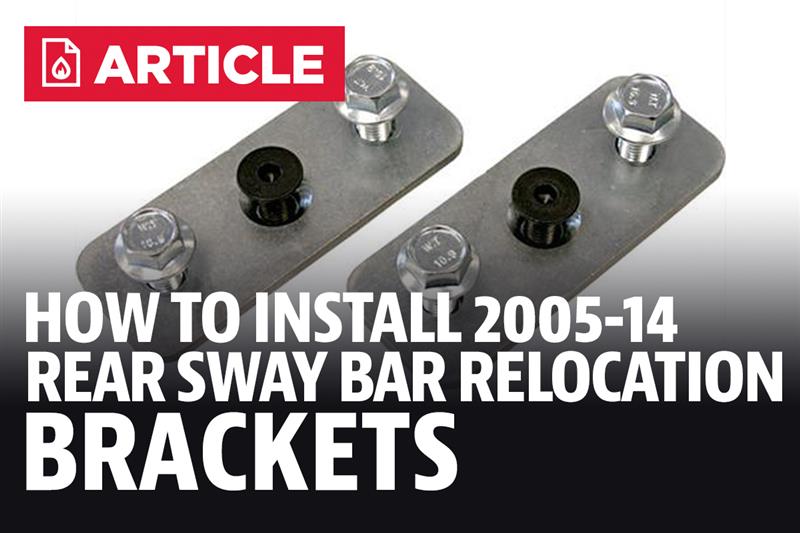

How to Install S197 Mustang Rear Sway Bar Location Brackets

Relocating the sway bar in your 2005-2014 Mustang is a necessity when you are wanting to run a smaller rear drag set up. This will retain the use of your S197 Mustang's factory sway bar while allowing room for a 15" drag wheel set up!

Installation Instructions

  1. Raise the rear of the vehicle and support the axle on jackstands so that the suspension remains loaded.
  2. Remove the rear Wheels.
  3. Remove the nuts that secure the sway bar end brackets to the axle assembly and slide the sway bar forward off the mounting studs.

  4. How to Install S197 Mustang Rear Sway Bar Location Brackets - How to Install S197 Mustang Rear Sway Bar Location Brackets
  5. Remove the bolt securing each rear shock to the axle brackets. Please note the shock does lightly pre-load these bolts from its internal pressure, so handle with care.

  6. How to Install S197 Mustang Rear Sway Bar Location Brackets - How to Install S197 Mustang Rear Sway Bar Location Brackets
  7. Slide out and remove the 2 mounting bolts from the axle bracket on each side by depressing the retaining tab.
  8. Place the countersunk bolt through the center hole of the Steeda bracket, so the head is flush with the surface of the bracket.
  9. Place the countersunk bolt through the upper slotted hole of the axle bracket. The bracket should be facing towards the front of the vehicle.

  10. How to Install S197 Mustang Rear Sway Bar Location Brackets - How to Install S197 Mustang Rear Sway Bar Location Brackets
  11. Place the provided washer and nylock nut on the backside of the axle bracket and loosely secure the countersunk bolt. Be sure the lower hole of the Steeda bracket lines up with the center hole of the axle bracket.
  12. Using the plate as a guide, draw a cut line on the axle bracket on each side.

  13. How to Install S197 Mustang Rear Sway Bar Location Brackets - How to Install S197 Mustang Rear Sway Bar Location Brackets
  14. Remove the plates and cut the axle brackets at the drawn lines. (Note: All photos show uncut brackets.)
  15. Reinstall the plate with the countersunk bolt, flat washer, and nylock nut as in Steps 6-8.
  16. Position the sway bar end brackets into place and secure the bushing clamps to the Steeda plates using the provided nuts and bolts.

  17. How to Install S197 Mustang Rear Sway Bar Location Brackets - How to Install S197 Mustang Rear Sway Bar Location Brackets
  18. Once complete, double check all fasteners and bolts. All bolts should be secured to 52 lb-ft. Thread locker is recommended to prevent fasteners from coming loose.
  19. Replace lower rear shock bolts. The shock will need to be pushed or pried into position.
  20. Replace wheels/tires or install new wheels/tires and carefully lower vehicle.
Instructions and pictures provided by Steeda Autosports
