How To Run 10.5" Front Wheel On 2015-2025 Mustang Non-HP Car

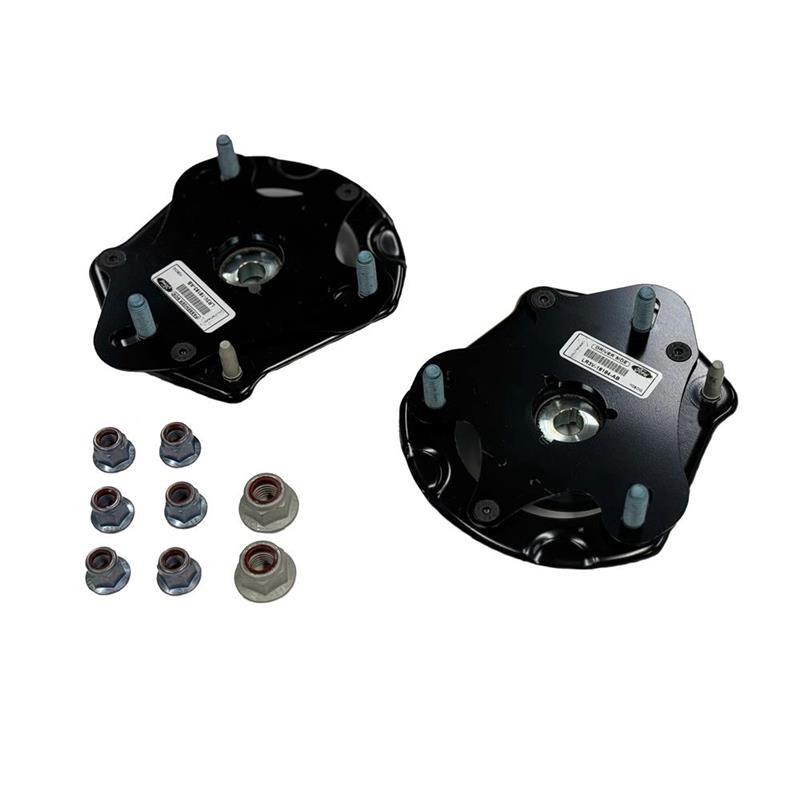

Running a 10.5" +24mm offset front wheel on a 2015-2025 Mustang (Non-Handling Pack) might seem unheard of, but it can be done. This wheel spec was found on PP2, Mach 1 with Handling Pack, & Dark Horse with Handling Pack. To install these wheels on your Non-Handling Pack Mustang, you will need to use the M-18183-MDH 2015-25 Mustang Ford Performance Camber Plates.

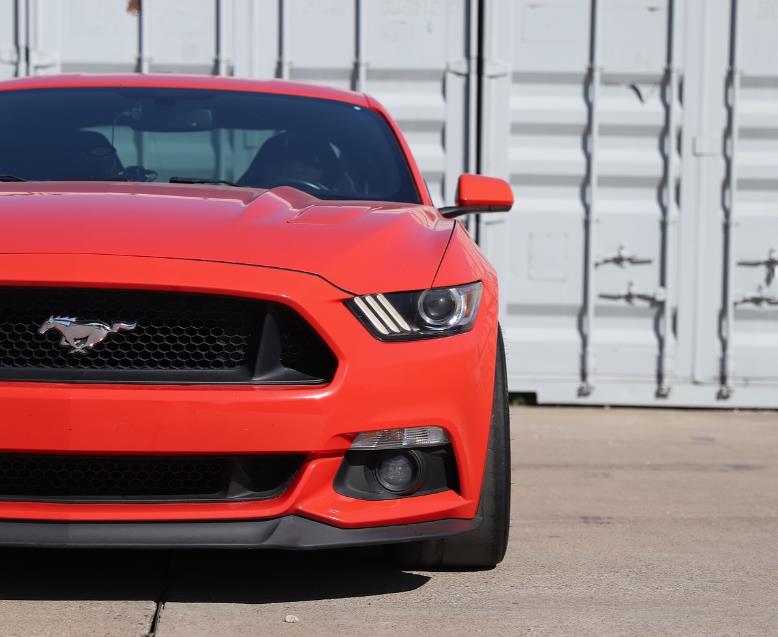

As you can see here, our S550 was set up with almost -3° camber for it's track setup for an HPDE event. This particular car is running a 305/30/19 Michelin Pilot Sport Cup 2 which has a unique sidewall that sort of "rolls" into the tread, making it easier to fit this aggressive size.

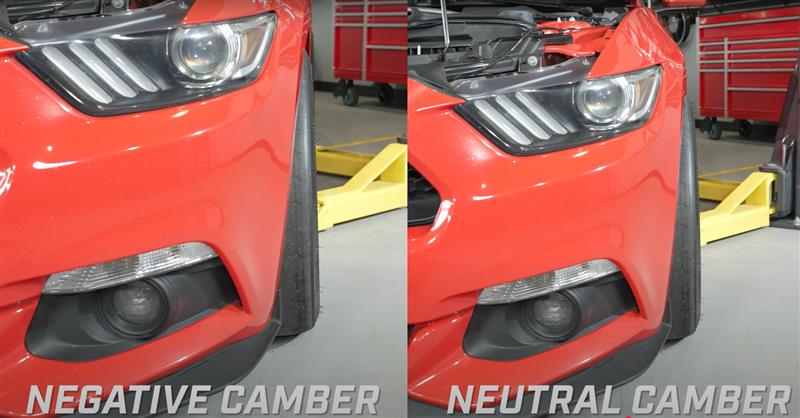

Now let's take a look at the difference the camber plates make. In this photo, you will see the negative camber vs the neutral camber. Notice how in the neutral position, the tire sticks out slightly pass the fender. This can cause some rubbing issues if the camber is not adjusted.
