Fox Body Mustang Mass Air Conversion Installation Instructions (86-88)

Last Updated 2/10/2020 by Dustin Leathers

Rid your Mustang of that speed density air intake setup with our mass air conversion wiring harness to allow the use of a mass air meter!

FOLLOW: 79 93 mustang , mustang

How To Install Fox Body Mustang Mass Air Conversion

Parts & Tools Required

  • Conversion harness
  • Cold air intake
  • Mass air assembly
  • Mass air compatible PCM (Manual transmission cars use a A9L or A3M processor) (Automatic transmission cars use A9P or C3W processor)

Installation Instructions

  1. Remove your negative battery cable


  2. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  3. Remove your existing air inlet system, and install a mass air tight induction


  4. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  5. Take your mass air meter, and slide it into the coupler, making sure the meter electronics are parallel to the ground


  6. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  7. Finish installing your inlet system, and tighten all clamps


  8. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  9. Locate the rubber firewall grommet for the PCM harness


  10. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  11. Using a long screwdriver, carefully puncture the boot, and remove the screwdriver


  12. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  13. From inside the car, find the puncture hole you created in the grommet, and feed the screwdriver through it


  14. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  15. Using quality electrical tape, attach the mass air conversion harness to the tip of the screwdriver, making the tape wrap as smooth as possible


  16. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

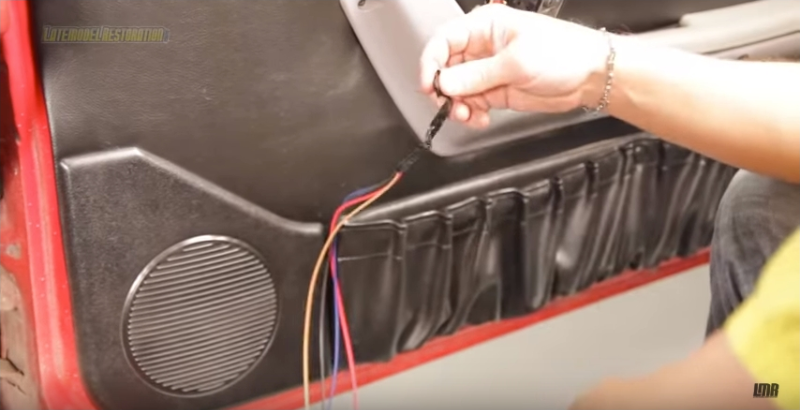

  17. From inside the car, carefully pull the screwdriver back through the grommet pulling the wires through


  18. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  19. Remove the tape from the harness


  20. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

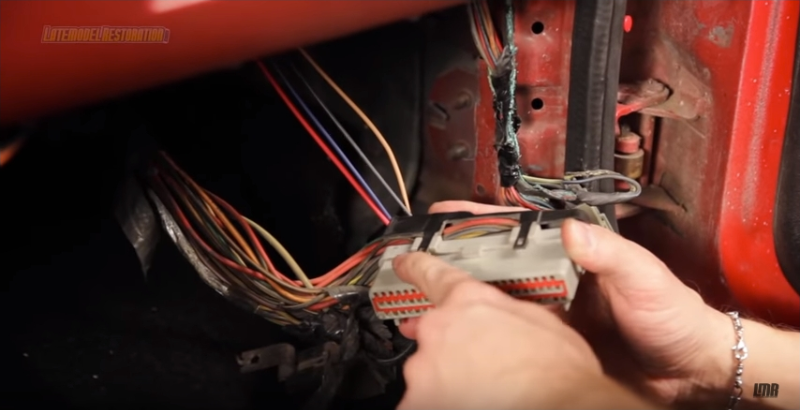

  21. Remove your kick panel along with the PCM, and remove the electrical connector from it


  22. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  23. Release the 4 retaining tabs, and remove the black plastic harness guard


  24. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

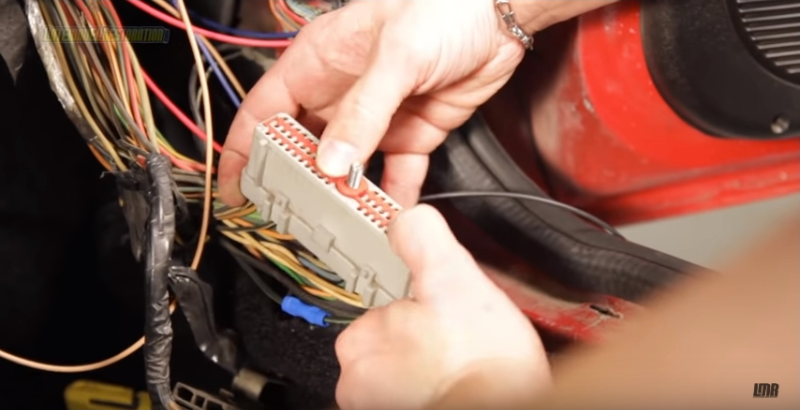

  25. Using a small pick, or similar tool remove the red plastic pin retainer from the PCM harness plug


  26. cHow To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  27. Locate the wire running to either pin #37, or #57 of the PCM connector, we used #57

  28. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

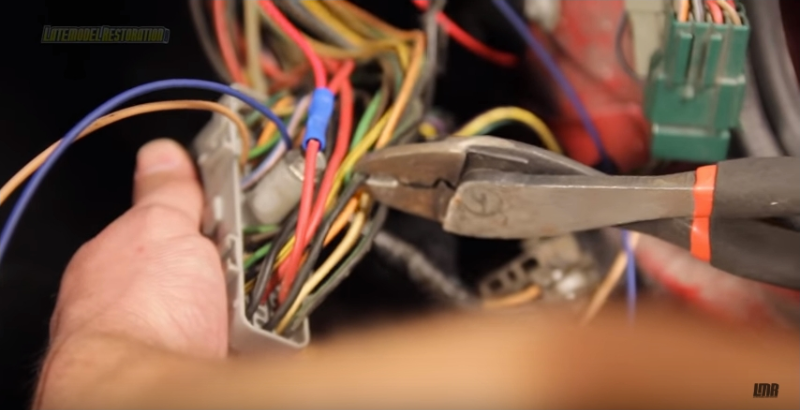

  29. Cut the PCM harness wire and splice in the red wire from the mass air conversion harness into the PCM harness, using a butt connector, or by soldering


  30. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  31. Locate the black wire running to either pin #40, or #60 of the PCM connector. We used pin #40


  32. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  33. Cut the PCM harness wire, and splice in the black wire from the mass air conversion harness into the PCM harness using a butt connector, or by soldering


  34. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  35. Click the pre-terminated tan wire from the mass air conversion harness into the empty terminal location #9


  36. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  37. Click the pre-terminated blue wire from the mass air conversion harness into the empty terminal location #50


  38. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  39. Locate the white wire, with the red tracer located in the #51 position, and use a tiny pick to release the terminal lock, and remove the wire from the connector


  40. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  41. This wire will be snapped into place at empty terminal location #38


  42. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  43. Locate the green wire with the black tracer located in the #11 position. Using a tiny pick release the terminal lock, and remove the wire from the connector


  44. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  45. This wire will be snapped into place at terminal location #32


  46. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  47. Re-install the red pin retainer by simply pushing it back into place


  48. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  49. Group the harness together, and re-install the black plastic PCM harness guard


  50. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  51. Back under the hood, make a few tape wraps around the mass air conversion harness, to keep the wires together


  52. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  53. Route your harness where you'd like it. Pull any slack you need from inside the car


  54. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

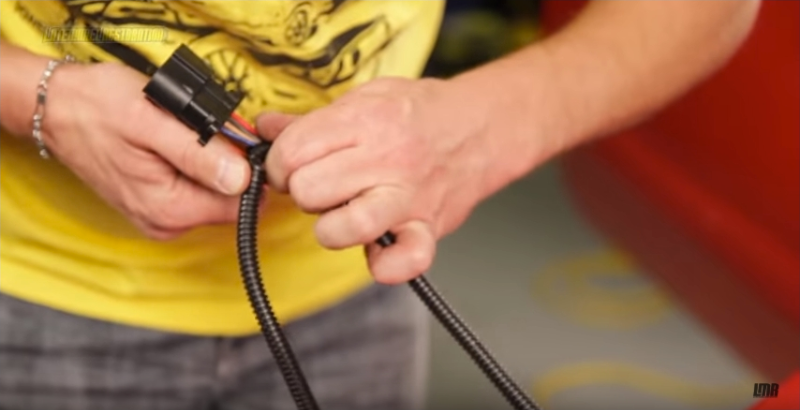

  55. Install the supplied split loom tubing onto the harness


  56. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  57. Cut it to length and retain the end with electrical tape


  58. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  59. Make a wrap around the harness, route the tape through the split in the loom, and then tape the loom


  60. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  61. Plug in the conversion harness to the mass air


  62. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  63. Pull any extra harness slack back into the car



  64. To keep everything nice and neat, use a few zip ties to keep everything together


  65. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  66. Reconnect the PCM to the harness, and slide your PCM back into place, and re-install the kick panel


  67. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

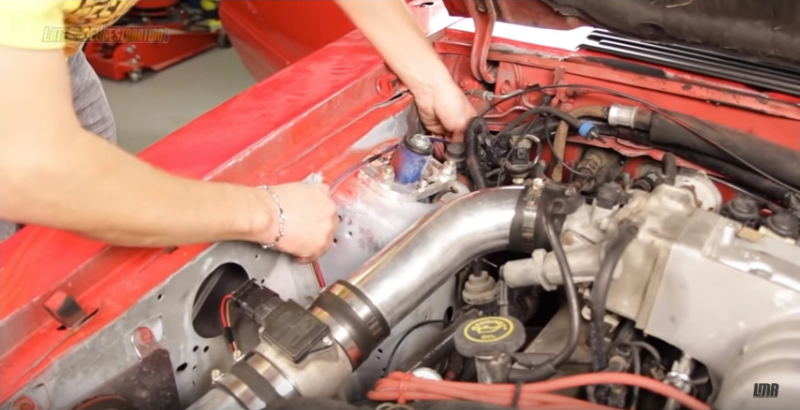

  68. Remove the vacuum hose running from the intake manifold to the MAP sensor


  69. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)
    NOTE:
    This will now function as a barometric air sensor

  70. Plug or cap off the open vacuum hose or port


  71. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  72. Reconnect the negative battery cable, and double check your work, and you're all done


  73. How To Install Fox Body Mustang Mass Air Conversion (86-88) - How To Install Fox Body Mustang Mass Air Conversion (86-88)

  • 1986-1988 Mustang 5.0 Pro-M Mass Air MAF Conversion Wiring Harness - by Pro-M
    #PMA-EMAWH

    $49.99

    VIDEO AVAILABLE

    Mustang Mass Air Conversion Kit Easily convert your 1986-1988 Mustang to mass air with this mass air conversion kit from Pro-M! This kit was developed to allow the use of a mass air meter on cars that were originally equipped with a speed Read More


About the Video

Mustang GT/LX Mass Air Conversion Review & Install (86-88 5.0L)

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2015-03-10
In this video, JMAC breaks down Pro-M's Mass Air Conversion Harness for your 86-88 5.0L Fox Body!

If you've been around the Fox Mustang community, you have likely heard of a mass air conversion. The necessity of this swap comes in when you decide to change camshafts, increase displacement, changing injector size, or otherwise modify the car in a way the manifold vacuum will be altered.

This mass air meter conversion wiring harness was developed to allow the use of a mass air meter on cars that were originally equipped with a speed density air intake setup. It comes complete with wiring, looming and easy to follow installation instructions.

- Requires use of a mass air PCM
- Some wire splicing is required

Manual Transmission PCMs
- A9L
- A3M

Automatic Transmission PCMs
- A9P
- C3W

Mustang Fitment: 1986 (86), 1987 (87), 1988 (88) - 5.0L GT/LX
Transcript
[MUSIC PLAYING] If you've been around the Fox Mustang community, you've likely heard of a mass air conversion. A mass air conversion pertains to '86 to '88 Mustangs that were originally equipped with a speed density system. The necessity of the swap comes in when you decide to change camshafts, increased displacement, or otherwise modify the car in a way the manifold vacuum will be altered or injector size will be changed.

To perform this swap, you'll need a conversion harness, cold air kit, and a mass air sensor assembly, all available on our website. You'll also need a mass air compatible PCM. For manual transmission cars, use an A9L or A3M processor. And for automatic cars, use A9P or C3W processors.

The difference in PCM versus transmission comes from differences in the O2 sensor harness that can cause PCM failure if the two are intermixed.

The conversion harness we offer comes with printed instructions, so what follows are video highlights of each step in the process.

Before you begin installation, disconnect the negative battery cable. Remove your existing air inlet system and install a mass air-tightened induction, like the cold air kit that we have here.

Take your mass air meter and slide it into the coupler, making sure the meter electronics are parallel to the ground. Finish installing you inlet system and tighten all the clamps.

Locate the rubber firewall grommet for the PCM harness. Using a long screwdriver, carefully puncture the boot and remove the screwdriver. From inside the car, find the puncture hole you created in the grommet and feed the screwdriver through it.

Using quality electrical tape, attach the mass air conversion harness to the tip of the screwdriver, making the tape wrap as smooth as possible. From inside the car, carefully pull the screwdriver back through the grommet, pulling the wires through. Remove the tape from the harness.

Remove your kick panel along with the PCM and remove the electrical connector from it. Release the four retaining tabs and remove the black, plastic harness guard. Using a small pick or similar tool, remove the red, plastic pin retainer from the PCM harness plug.

Locate the red wire running to either pin 37 or 57 of the PCM connector. We use pin 57. Cut the PCM harness wire and slice in the red wire from the mass air conversion harness into the PCM harness using a butt connector or by soldering.

Locate the black wire running to either pin 40 or 60 of the PCM connector. We used pin 40. Cut the PCM harness wire and splice in the black wire, from the mass air conversion harness into the PCM harness, using a butt connector or by soldering.

Click the pre-terminated tan wire from the mass air conversion harness into the empty terminal location number nine. Click the pre-terminated blue wire from the mass air conversion harness into the empty terminal location number 50.

Locate the white wire with the red tracer located in the number 51 position. Using a tiny pick, release the terminal lock and remove the wire from the connector. This bar will be snapped into place at empty terminal location number 38.

Locate the green wire, with black tracer, located in the number 11 position. Using a tiny pick, release the terminal lock and remove the wire from the connector. This wire will be snapped into place to terminal location number 32.

Reinstall the red pin retainer by simply pushing it back into place. Group the harness together and reinstall the black plastic PCM harness guard. Back under the hood, make a few tape wraps around the mass air conversion harness to keep the wires together.

Route your harness where you'd like it. Pull any slack you need from inside the car. Install the supplied split-loom tubing onto the harness. Cut it to length and retain the end with electrical tape. Make a wrap around the harness, route the tape through the split in the loom, and the tape the loom.

Plug in the conversion harness to the mass air. Pull any extra harness slack back into the car. To keep things nice and neat, use a few zip ties to keep everything together. Reconnect the PCM to the harness and slide your PCM back into place and reinstall the kick panel.

Remove the vacuum hose running from the intake manifold to the map sensor. This will now function as a barometric air pressure sensor. Plug or cap off the open vacuum hose or port. Reconnect the negative battery cable, double check your work, and you're all done.
