How To Install Mustang Front Sway Bar (15-18)

Posted 12/8/2017 by Tyler Rodriquez

Follow along as LMR walks you through step by step on how to install an aftermarket 2015-2018 Mustang front sway bar.

FOLLOW: 2015 mustang , mustang , steeda , installation

Mustang Front Sway Bar Installation (15-18)

If you want to get your S550's suspension tightened up and performing like a track car, this 2015-2018 Mustang Steeda front sway bar is the solution! This billet machined sway bar replaces your factory bar for a stronger, more reliable setup. It features press-fit welded billet ends that are far stronger than stamped ends. Included in this kit is 35mm front sway bar and a new set of sway bar bushings. This 2015-2018 Mustang sway bar has been designed, manufactured, and tested by Steeda here in the USA. Pair it up with a set of lowering springs to get the ultimate suspension setup on your S550!

Tools Needed

  • Socket Wrench Set
  • Ratcheting Wrenches
  • Torque Wrench

Mustang Front Sway Bar Installation Instructions

  1. To get things started, support the car via a lift or jack stands.

  2. 2015-2018 Mustang Front Sway Bar Install

  3. Remove both front wheels.

  4. 2015-2018 Mustang Front Sway Bar Install

  5. Now, remove the sway bar end link from the sway bar.Use a 17mm open end wrench on the stud and an 18mm deep socket on the nut.

  6. 2015-2018 Mustang Front Sway Bar Install

  7. Slide the end link out of the sway bar. Do this for the other side.

  8. 2015-2018 Mustang Front Sway Bar Install

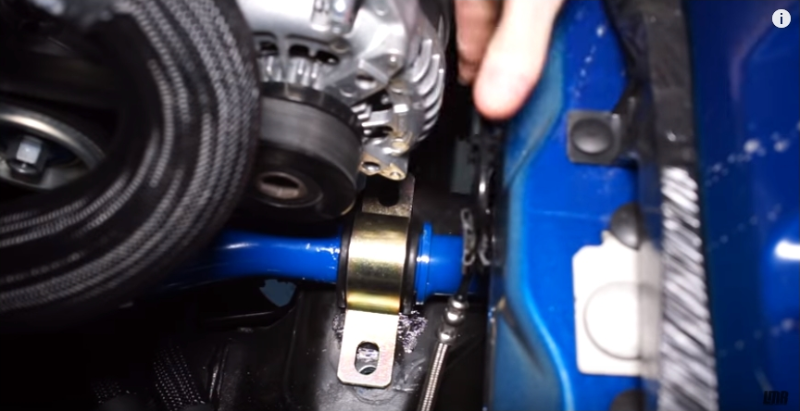

  9. Locate the two the sway bar mounting brackets attached to the top of the k-member.

  10. 2015-2018 Mustang Front Sway Bar Install

  11. To make some room, disconnect the MAF sensor connection and remove the push pin from the air box.

  12. 2015-2018 Mustang Front Sway Bar Install

  13. Loosen the 7mm hose clamp securing the inlet elbow to the air box. Slide the inlet elbow off of the air box.Remove the 10mm air box retaining bolt from the fender. Now you can remove the air box from the car.

  14. 2015-2018 Mustang Front Sway Bar Install

  15. On the driver side frame rail, remove the plastic push pin securing the brake lines. Go ahead and remove the two push pins securing the plastic alternator shield from the frame rail. Set the shield aside.

  16. 2015-2018 Mustang Front Sway Bar Install

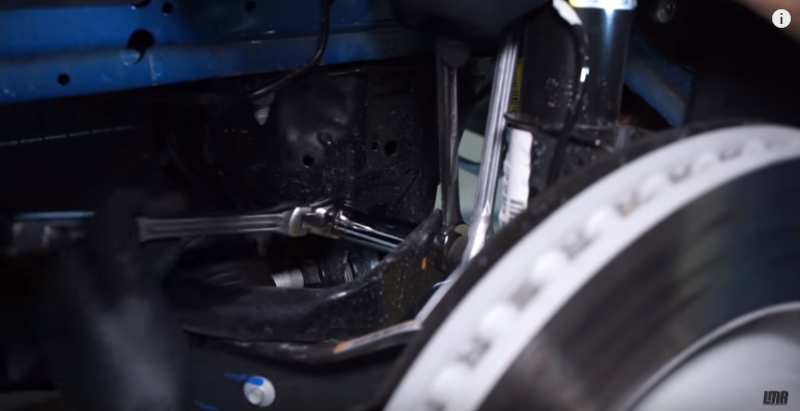

  17. On the passenger side, use an assortment of extensions and an 18mm wobble socket to remove both bolts securing the sway bar bracket.

  18. 2015-2018 Mustang Front Sway Bar Install

  19. Once loosened, you can fetch the bolts from within the wheel well opening.

  20. 2015-2018 Mustang Front Sway Bar Install

  21. On the driver side, loosen and remove the frontward bolt.

  22. 2015-2018 Mustang Front Sway Bar Install

  23. Because of the alternator placement, you’ll have to remove the rearward bolt with a ratcheting wrench from within the wheel well opening.

  24. 2015-2018 Mustang Front Sway Bar Install

  25. The two brackets are attached to the sway bar, so no need to remove those.

  26. 2015-2018 Mustang Front Sway Bar Install

  27. With the assistance from a friend, remove the sway bar from the car.

  28. 2015-2018 Mustang Front Sway Bar Install

  29. Taking a closer look at the attachment points on the sway bar ends; you’ll find four holes to choose from. The hole furthest to the end of the bar will provide the softest setting. Each hole leading back towards the bar itself will net a firmer setting; with the hole closest to the front of the car resulting in the stiffest setting.

  30. 2015-2018 Mustang Front Sway Bar Install

  31. Before installing the Steeda sway bar into the car, liberally lubricate the inside of the two provided bushings with the provided grease.

  32. 2015-2018 Mustang Front Sway Bar Install

  33. Position them over the sway bar and on the inside of the bushing stop.

  34. 2015-2018 Mustang Front Sway Bar Install

  35. Now, go ahead and install the Steeda sway bar into the car in the same location and orientation as the factory bar.

  36. 2015-2018 Mustang Front Sway Bar Install

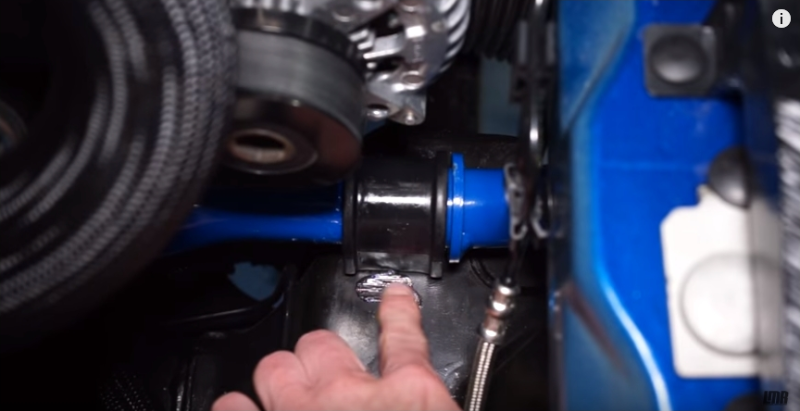

  37. On the driver side, lubricate the top of the k-member where the bushing will make contact with the provided grease.

  38. 2015-2018 Mustang Front Sway Bar Install

  39. Lubricate the inside of the provided bracket and then position it over the bushing.

  40. 2015-2018 Mustang Front Sway Bar Install

  41. Align the mounting holes and loosely tighten the two factory bolts.Repeat these steps for the passenger side bushing and bracket.

  42. 2015-2018 Mustang Front Sway Bar Install

  43. Go ahead and torque the four factory bolts to 35 to 40 lb-ft.

  44. 2015-2018 Mustang Front Sway Bar Install

  45. Reposition the factory alternator shield, reinstall the push pins, and the push pin securing the brake lines to the frame rail.

  46. 2015-2018 Mustang Front Sway Bar Install

  47. Reinstall the air box back into the car. Connect the MAF sensor, tighten the 7mm hose clamp, and then reinstall the 10mm retaining bolt.

  48. 2015-2018 Mustang Front Sway Bar Install

  49. Because our car will see several open track events, I’m installing the end link in the second hole from the front of the car.

  50. 2015-2018 Mustang Front Sway Bar Install

  51. Once the end link is in position, rethread the nut and then torque to 65 lb-ft.

  52. 2015-2018 Mustang Front Sway Bar Install

  53. Do the same for the other side and make sure the end link is in the same position on the sway bar end.

  54. 2015-2018 Mustang Front Sway Bar Install

  55. Reinstall the front wheels and then double check your work.

  56. 2015-2018 Mustang Front Sway Bar Install

  57. Get the car on the ground, take it for a test drive, and then you’re all finished.

  58. 2015-2018 Mustang Front Sway Bar Install


Filter by
ALL Front

About the Video

2015-2018 Mustang Steeda Front Sway Bar - Review & Install

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2017-12-05
Tighten Up Your Suspension.
If you want to get your S550's suspension tightened up and performing like a track car, this 2015-2018 Mustang Steeda front sway bar is the solution! This billet machined sway bar replaces your factory bar for a stronger, more reliable setup. It features press-fit welded billet ends that are far stronger than stamped ends. Included in this kit is 35mm front sway bar and a new set of sway bar bushings. This 2015-2018 Mustang sway bar has been designed, manufactured, and tested by Steeda here in the USA.

Application: 2015-2018 Mustang Ecoboost, V6, and GT

Bushing Lubrication.
The suspension bushings included with this part can only be lubricated with PTFE grease, also referred to as "Marine Grease". PTFE grease is a very sticky, opaque grease that is water proof and will not degrade the bushing material. If lubed properly at installation, these bushings will not need to be lubricated again. Use of any other grease on these bushings will cause the bushing to fail and any bushing warranty to be voided.

Front Sway Bar:
Item # ST-5551015
MPN # 555-1015
Transcript
How’s it going guys? Landan here with LMR.com! This video will cover my product breakdown and installation on Steeda’s front sway bar fitting the 2015 to 2018 Mustangs.

Here at Late Model Restoration, taking corners at speed is by far one of our favorite things to do during our spare time. Because of that, stronger aftermarket sway bars are usually one of the first upgrades we do to our cars.

For our 2018 Mustang GT shop car we chose Steeda’s aftermarket front sway bar for several reasons. For one, Steeda’s quality and craftsmanship is second to none, and the fit and finish is always spot on.

Now, this front sway bar from Steeda is going to be larger than the factory unit measuring in at 38mm in diatmeter which also equates to an inch and three-eighths. This will allow for reduced body roll, improved handling, and more stability when cornering.

Steeda designs and manufacturers each sway bar in-house from the highest quality materials. This sway bar features billet steel ends versus the coined ends found on other offerings.

What does this mean? This means that the sway bar ends are machined from billet steel round stock on a multi-axis CNC lathe, and then go through hundreds of computer simulations to ensure the ultimate in strength and performance.

This sway bar is designed to fit 2015 to 2018 V6, EcoBoost and GT Mustangs. In the box will be a front sway bar, poly urethane bushings and bushing brackets. The factory retaining bolts will be reused. This sway bar sold by itself or in a kit with Steeda’s rear sway bar.

To get things started, support the car via a lift or jack stands.

Remove both front wheels.

Now, remove the sway bar end link from the sway bar.

Use a 17mm open end wrench on the stud and an 18mm deep socket on the nut.

Slide the end link out of the sway bar.

Do this for the other side.

Locate the two the sway bar mounting brackets attached to the top of the k-member.

All but one of these bolts will be removed from the engine bay.

To make some room, disconnect the MAF sensor connection and remove the push pin from the air box.

Loosen the 7mm hose clamp securing the inlet elbow to the air box.

Slide the inlet elbow off of the air box.

Remove the 10mm air box retaining bolt from the fender.

Now you can remove the air box from the car.

On the driver side frame rail, remove the plastic push pin securing the brake lines.

Go ahead and remove the two push pins securing the plastic alternator shield from the frame rail.

Set the shield aside.

On the passenger side, use an assortment of extensions and an 18mm wobble socket to remove both bolts securing the sway bar bracket.

Once loosened, you can fetch the bolts from within the wheel well opening.

On the driver side, loosen and remove the frontward bolt.

Because of the alternator placement, you’ll have to remove the rearward bolt with a ratcheting wrench from within the wheel well opening.

The two brackets are attached to the sway bar, so no need to remove those.

With the assistance from a friend, remove the sway bar from the car.

Most people have success with removing this from the driver side, but me personally; I find it easiest to pass the sway bar out from the passenger side.

Taking a closer look at the attachment points on the sway bar ends; you’ll find four holes to choose from.

The hole furthest to the end of the bar will provide the softest setting.

Each hole leading back towards the bar itself will net a firmer setting; with the hole closest to the front of the car resulting in the stiffest setting.

Before installing the Steeda sway bar into the car, liberally lubricate the inside of the two provided bushings with the provided grease.

Position them over the sway bar and on the inside of the bushing stop.

Now, go ahead and install the Steeda sway bar into the car in the same location and orientation as the factory bar.

On the driver side, lubricate the top of the k-member where the bushing will make contact with the provided grease.

Lubricate the inside of the provided bracket and then position it over the bushing.

Align the mounting holes and loosely tighten the two factory bolts.

Repeat these steps for the passenger side bushing and bracket.

Go ahead and torque the four factory bolts to 35 to 40 lb-ft.

Reposition the factory alternator shield, reinstall the push pins, and the push pin securing the brake lines to the frame rail.

Reinstall the air box back into the car.

Connect the MAF sensor, tighten the 7mm hose clamp, and then reinstall the 10mm retaining bolt.

Because our car will see several open track events, I’m installing the end link in the second hole from the front of the car.

This will set the car up with an aggressive stiffness.

Once the end link is in position, rethread the nut and then torque to 65 lb-ft.

Do the same for the other side and make sure the end link is in the same position on the sway bar end.

Reinstall the front wheels and then double check your work.

Get the car on the ground, take it for a test drive, and then you’re all finished.

Alright guys, I would recommend the assistance from a buddy when installing this front sway bar. It isn’t difficult by any means, but an extra set of hands wouldn’t hurt to get the job done.

All in all here fellas, this a great sway bar for daily driven Mustangs and even better for those of you that auto cross or road race your car.

To see more industry leading products from Steeda, be sure and subscribe to our YouTube channel. This Steeda front sway bar is currently available from the real Mustang enthusiasts, LMR.com!
