MSD Digital 6AL Ignition Box Installation Instructions

Created by Andrew Perry / 5 min read
Date Created: 7/17/2026
Last Updated: 7/30/2026

Follow the instructions below to see how to install the MSD Digital 6AL Ignition Box to your Mustang!

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

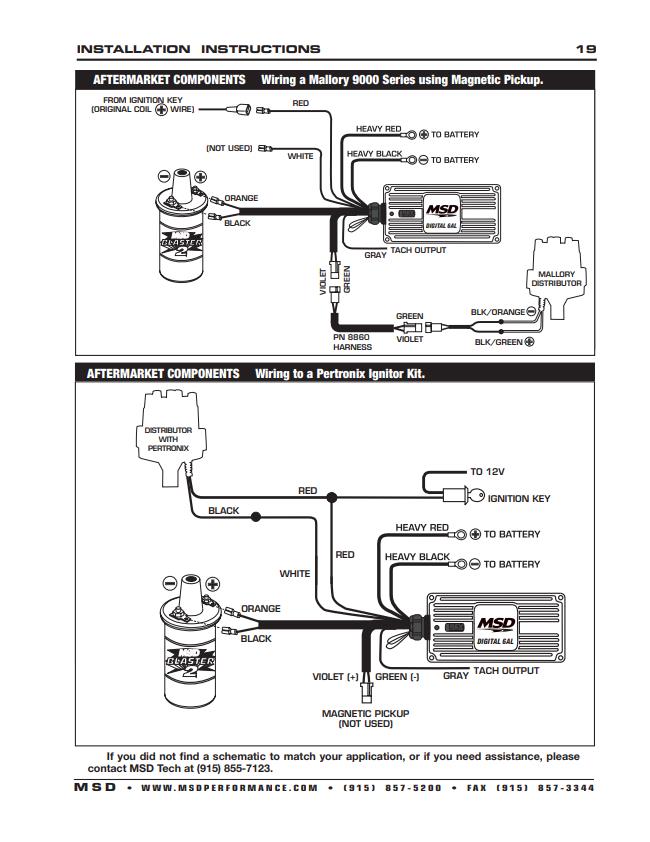

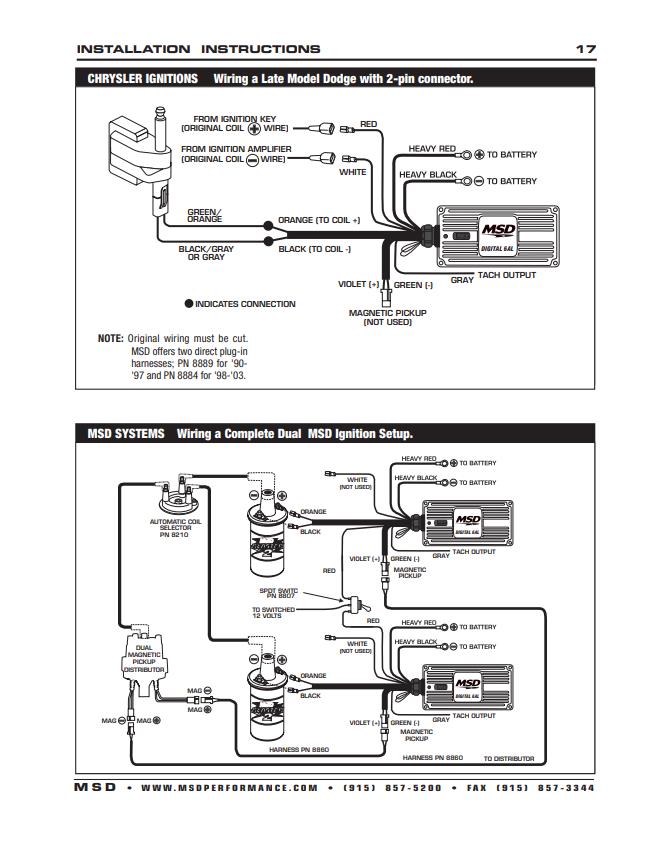

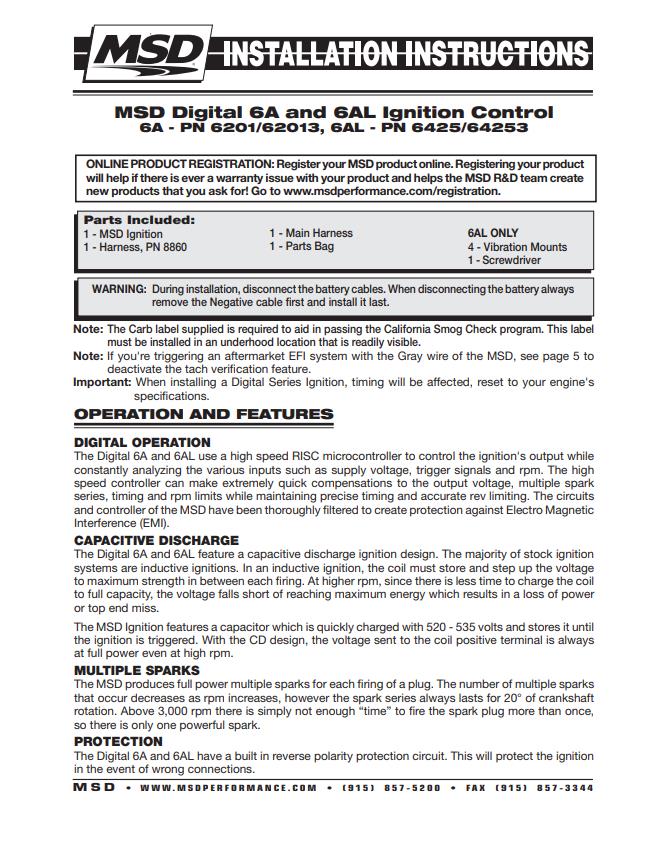

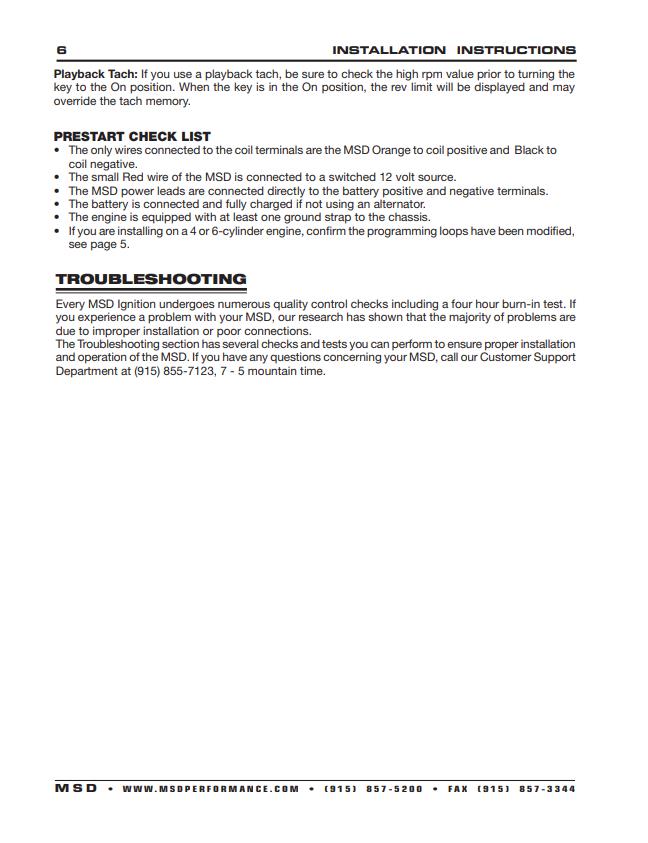

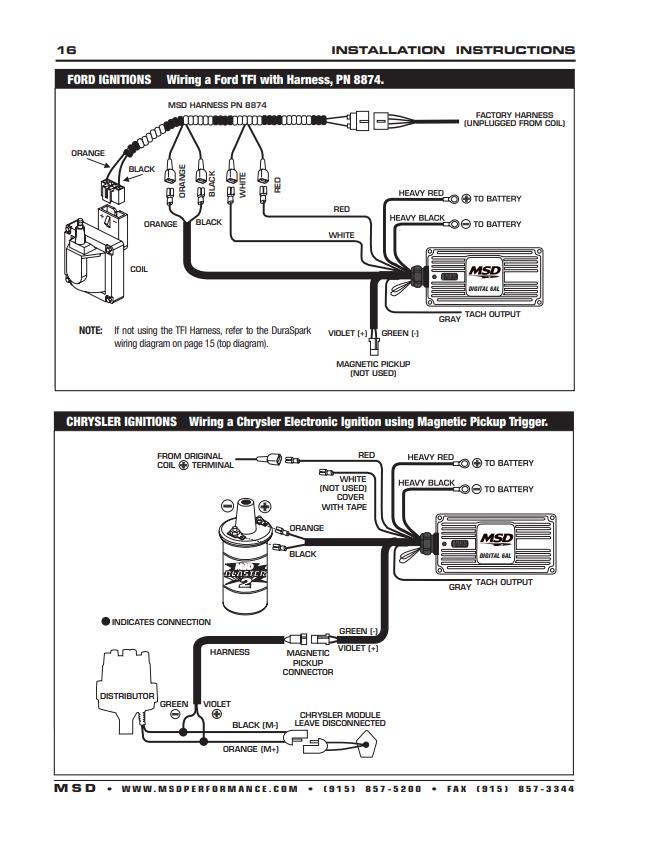

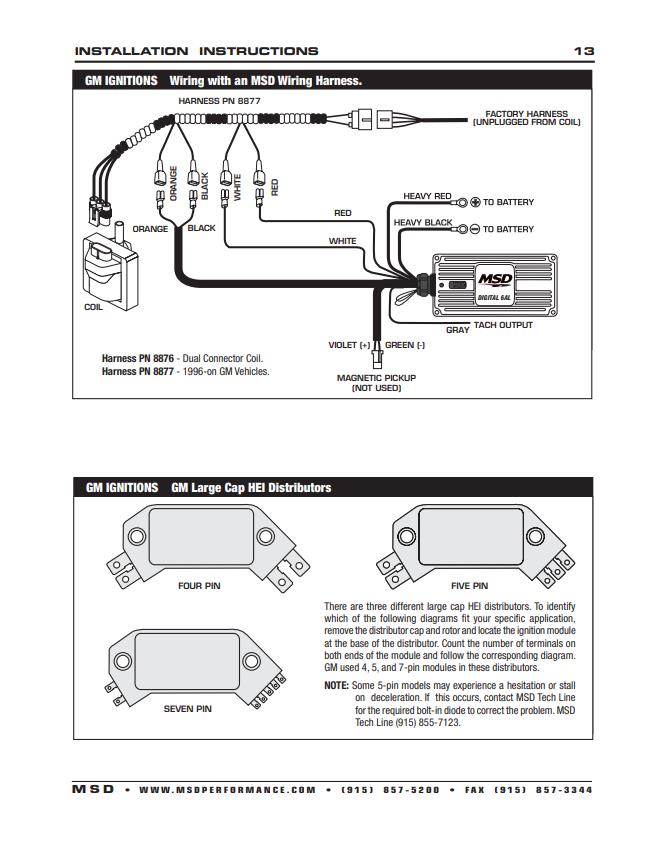

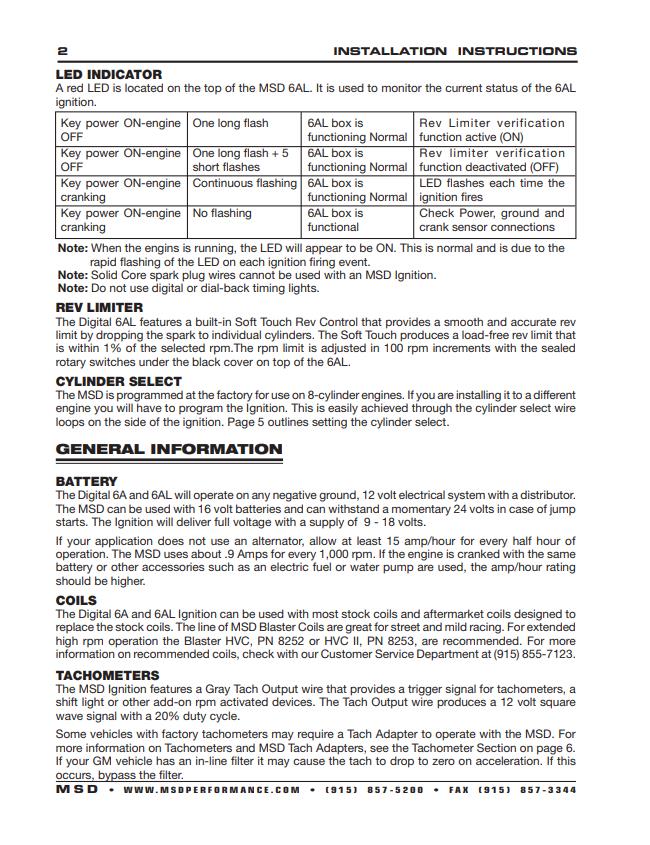

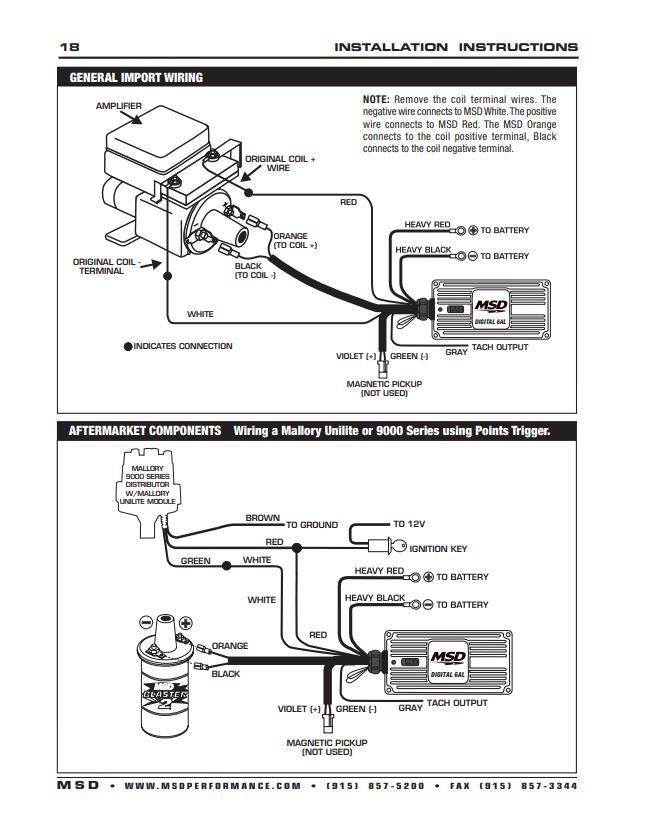

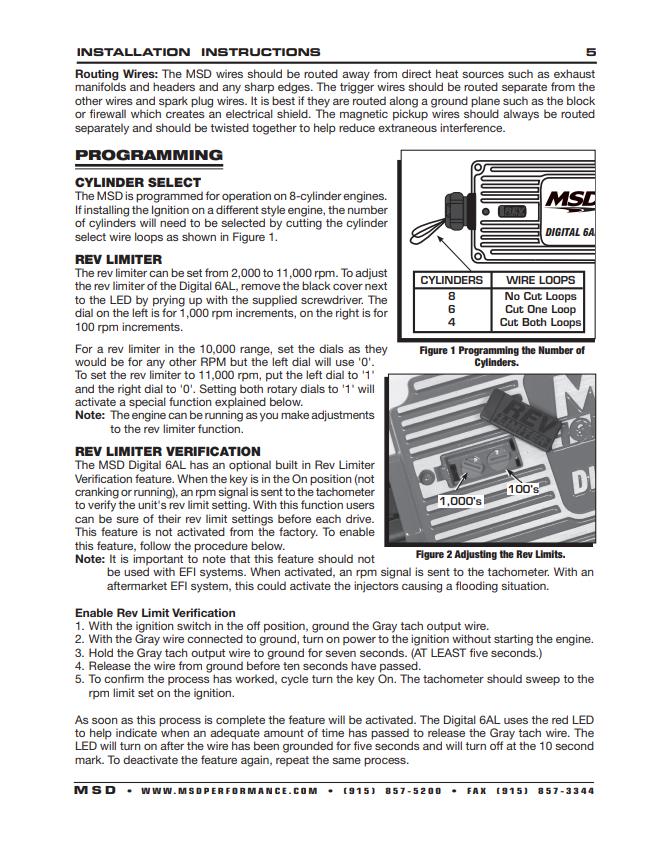

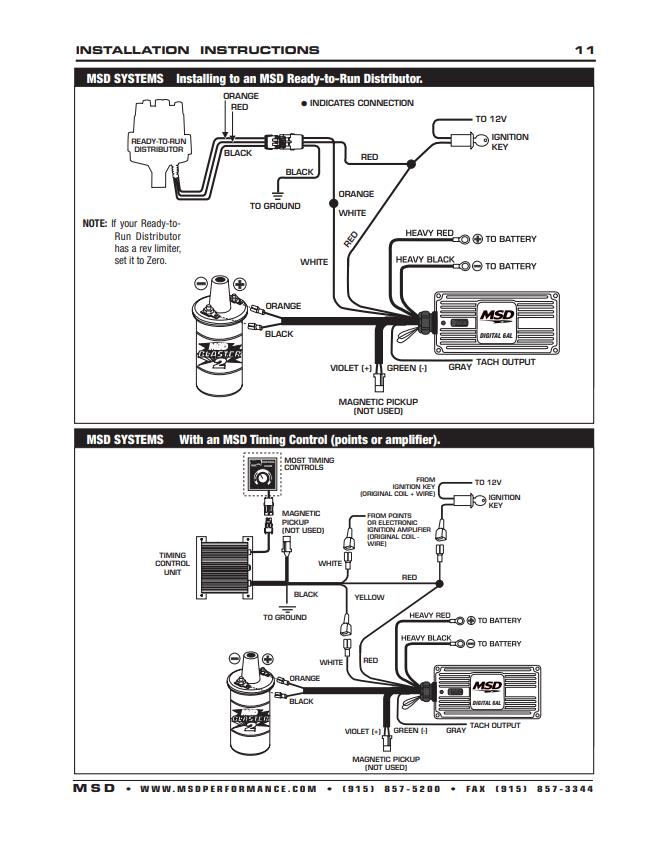

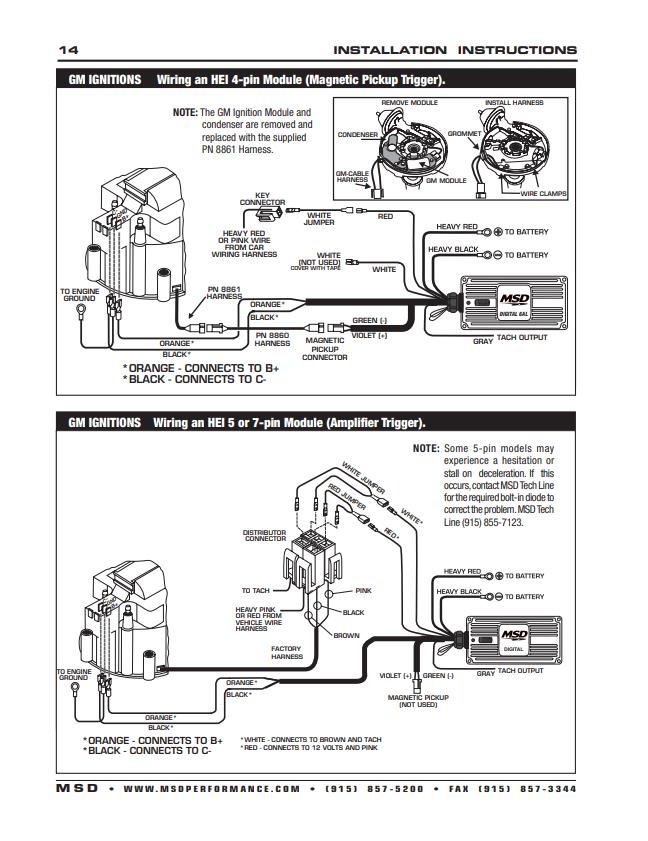

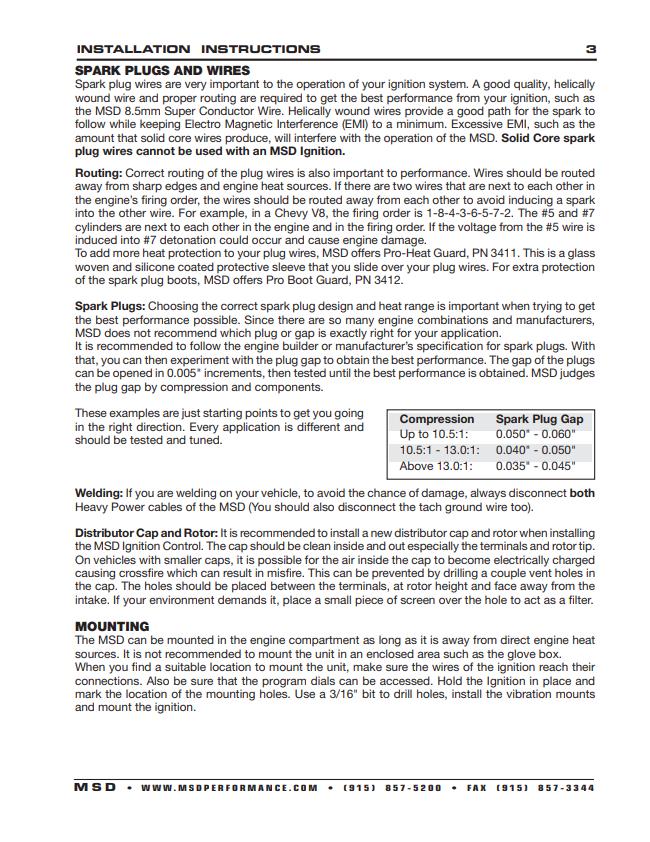

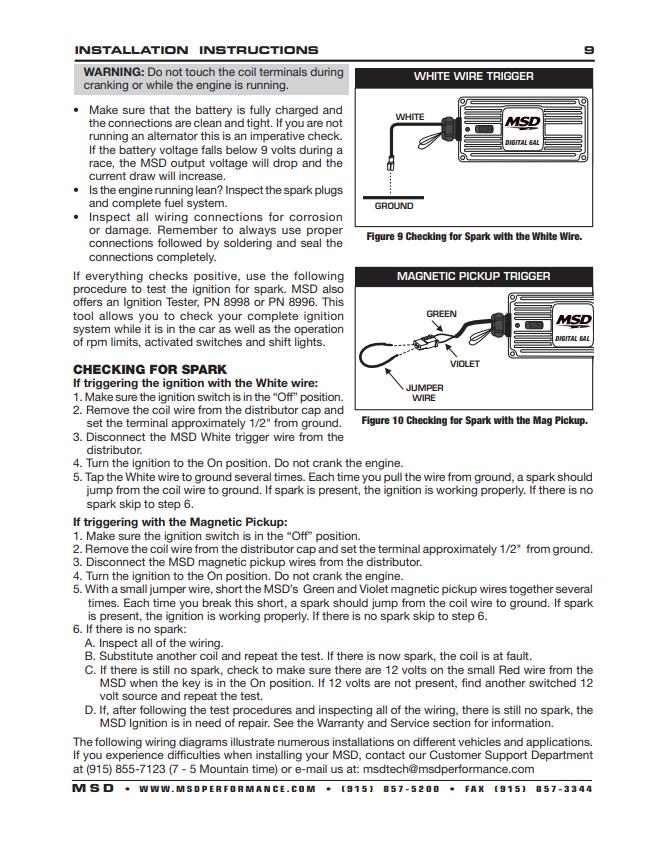

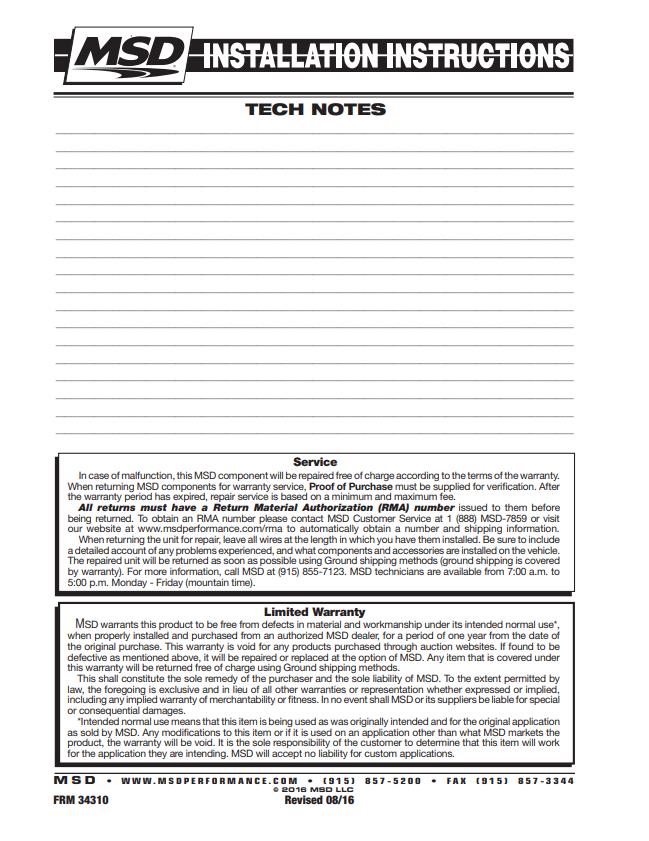

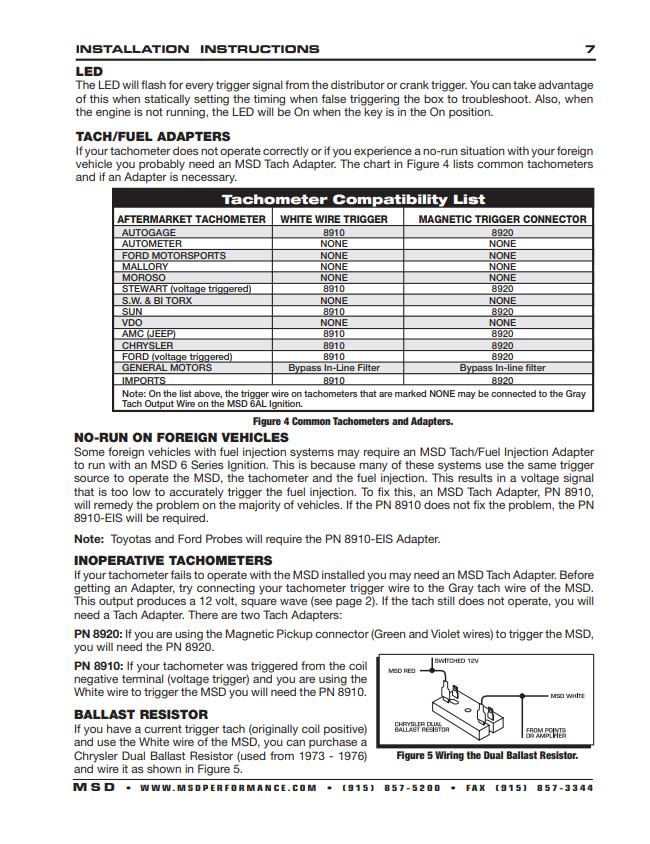

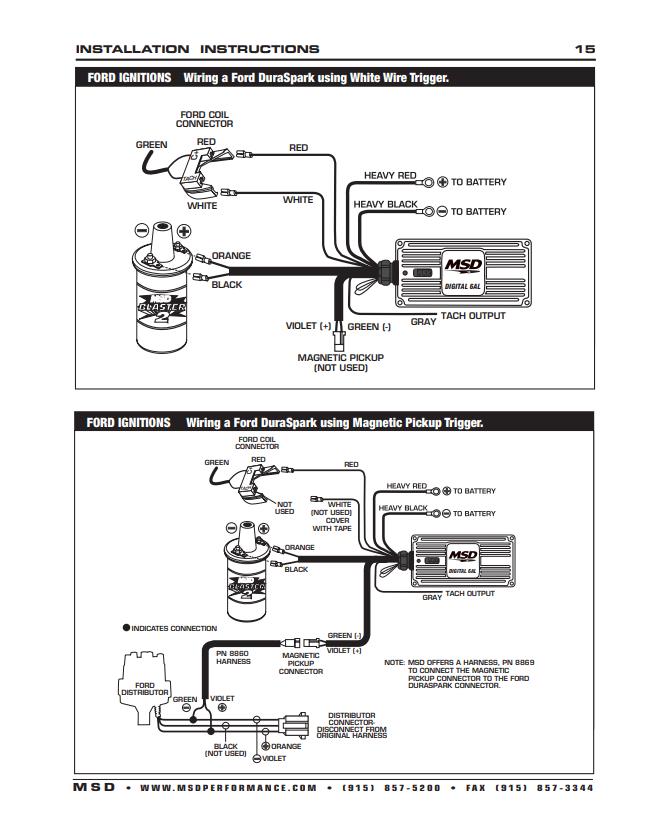

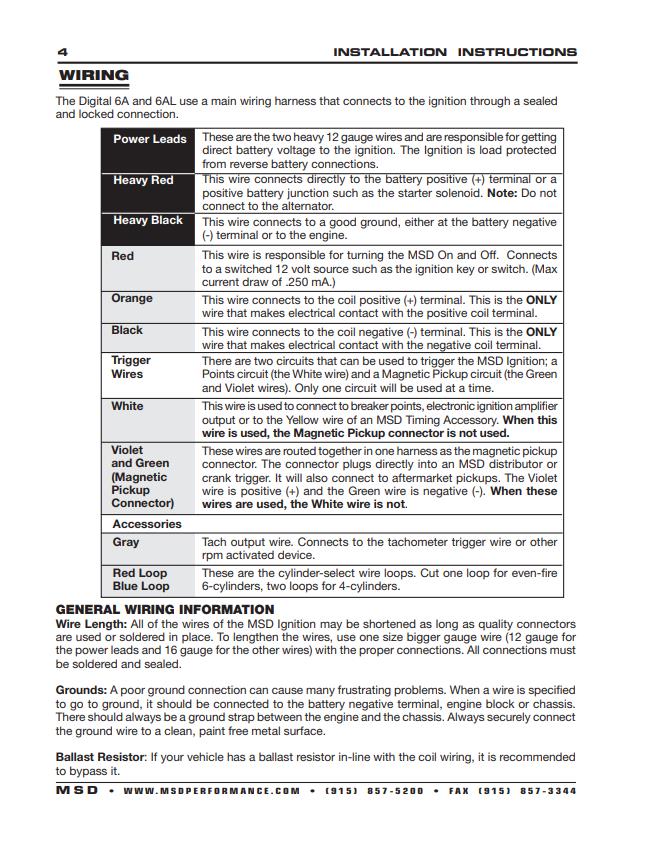

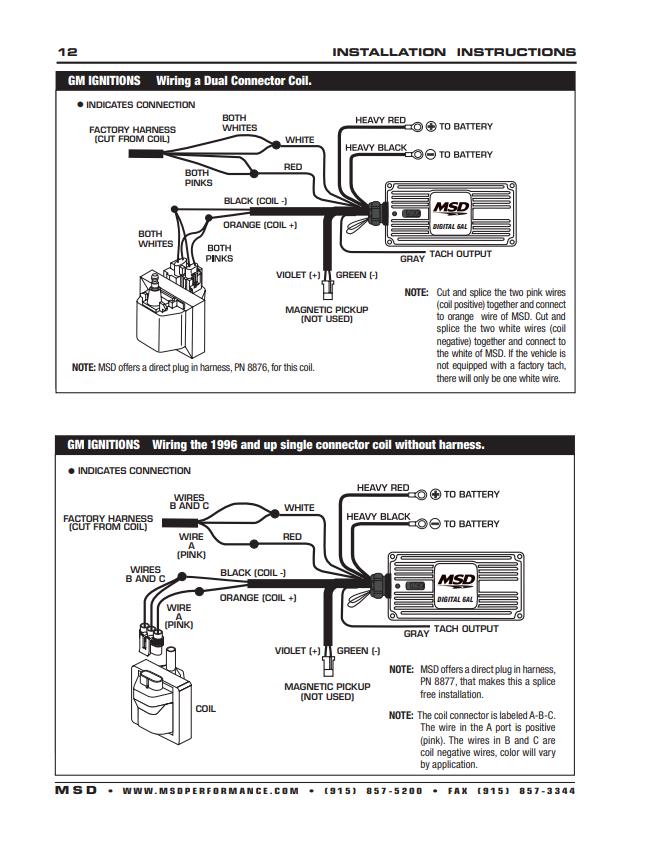

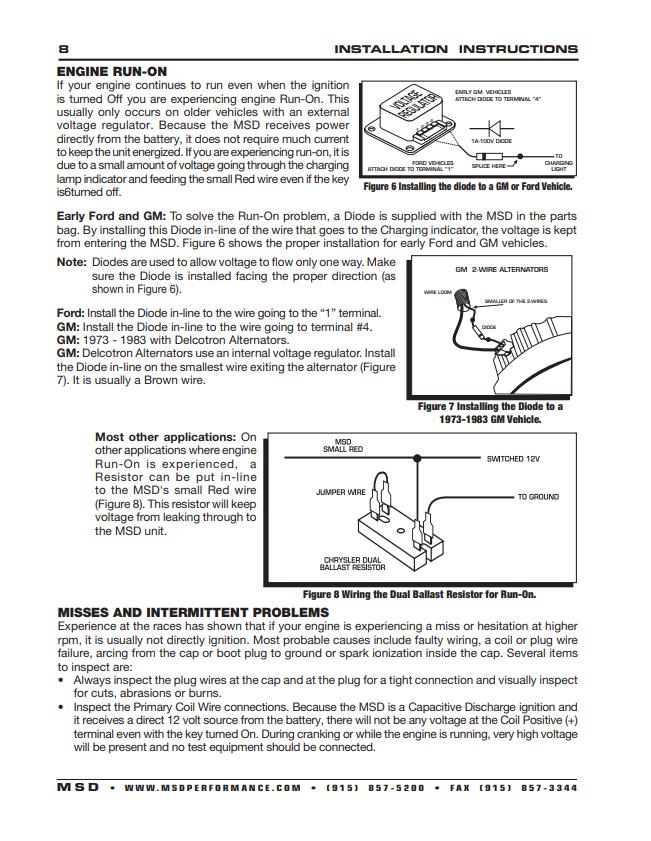

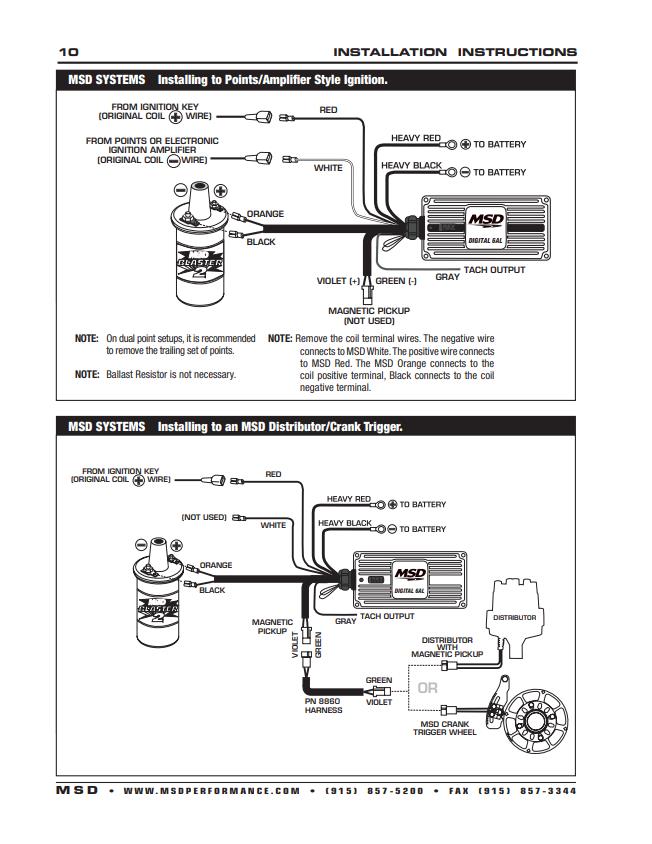

Install the MSD Digital 6AL Ignition with this step-by-step guide. Featuring higher spark energy, lower power draw, an updated digital design, and easy-to-set rev limits, the MSD 6AL delivers reliable multiple-spark performance and a straightforward installation using the included wiring harness and mounting hardware.
