Power By The Hour Coyote Engine Swap Accessory NA Bracket Kit Install Guide

Created by Andrew Perry / 10 min read
Date Created: 7/29/2026
Last Updated: 8/6/2026

Learn how to install the PBH Coyote engine swap accessory bracket kit for naturally aspirated applications on your Gen 1-3 Coyote-powered Mustang!

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.
This guide covers mounting the alternator, A/C compressor, power steering pump, belt routing, and hardware installation to help you complete your engine swap with factory-style accessory placement and maximum engine bay clearance.

Product Link:

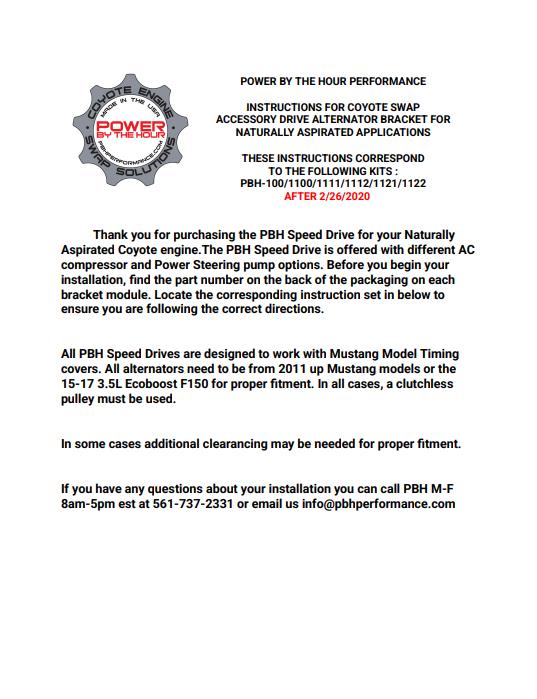

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_b34c4a14.jpg (537×699)

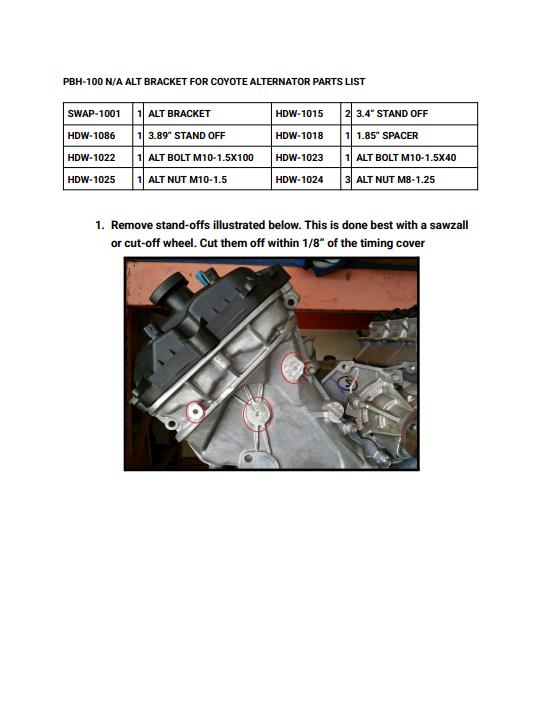

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_3b36a60a.jpg (538×702)

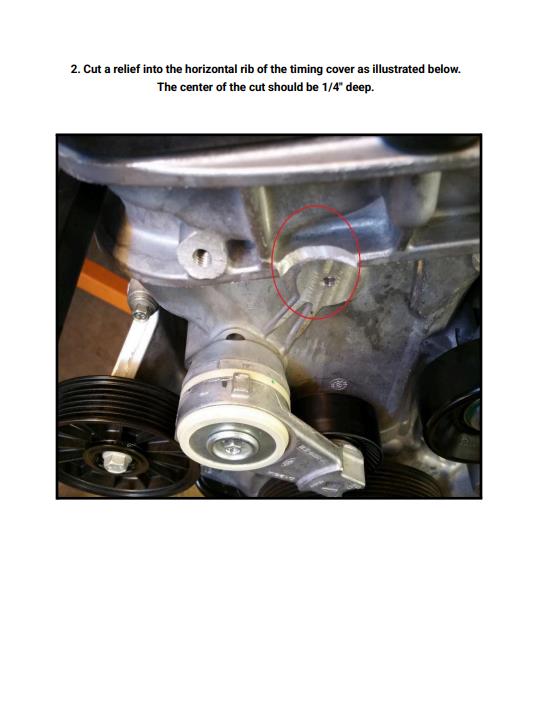

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_50706ada.jpg (538×701)

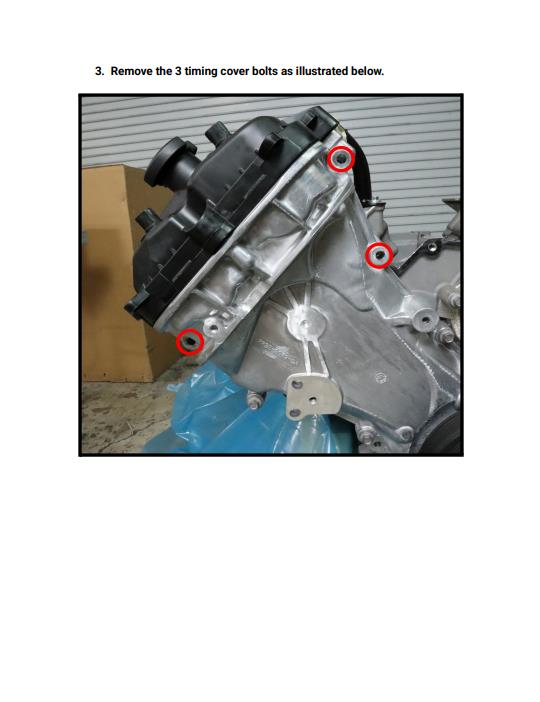

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_2e0e5bf8.jpg (540×702)

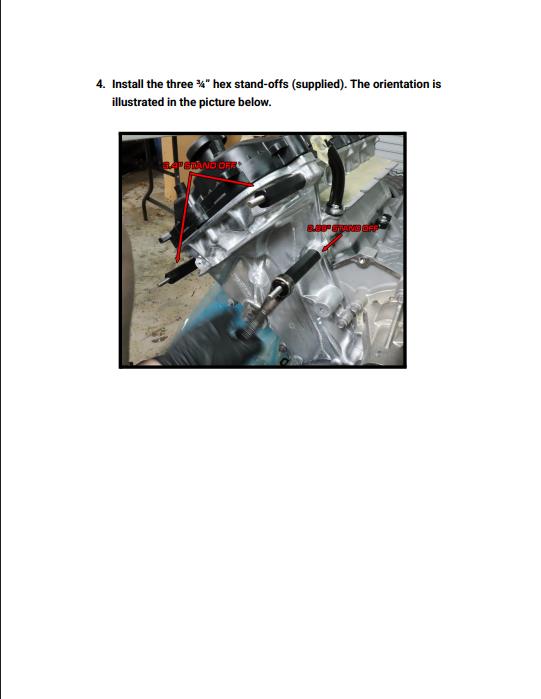

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_4fb37db4.jpg (541×699)

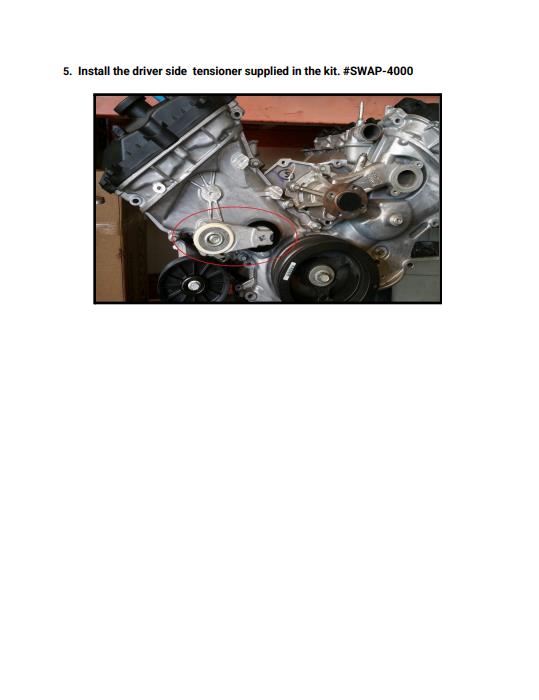

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_acb61147.jpg (539×700)

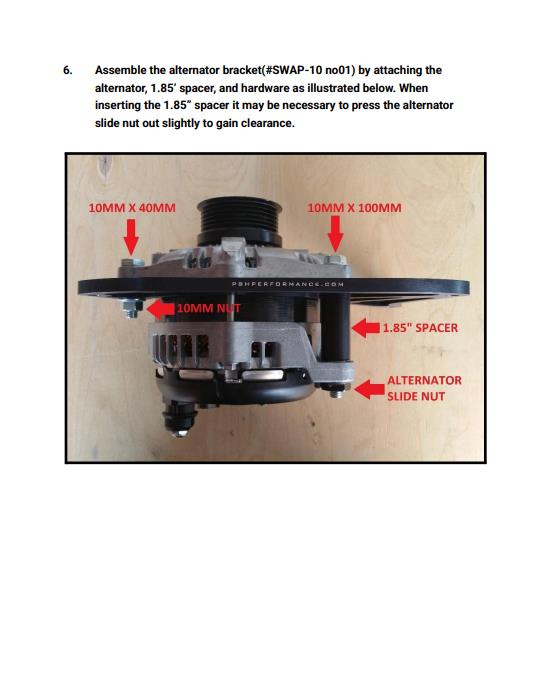

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_9a69438a.jpg (539×698)

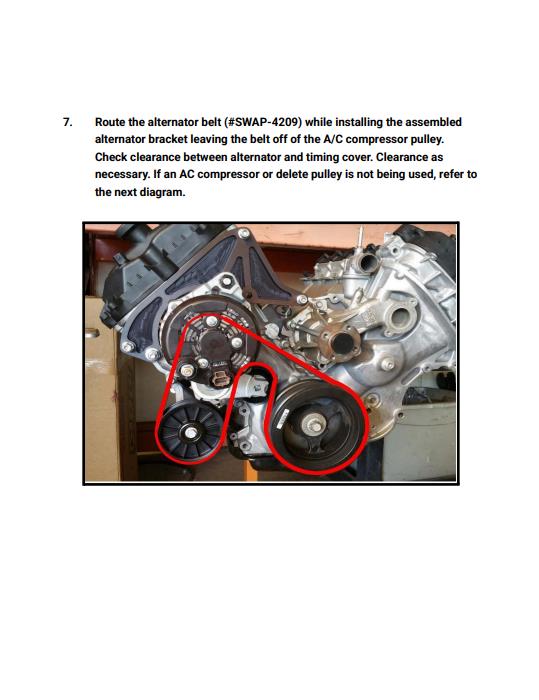

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_e529a417.jpg (539×700)

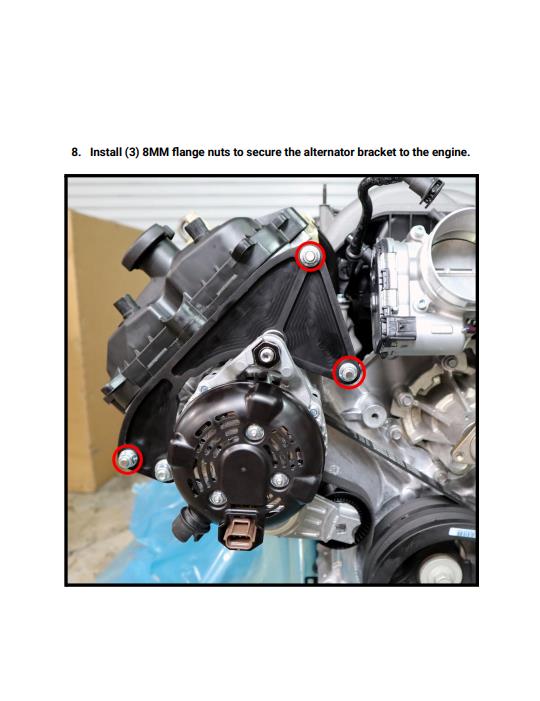

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_c3b203fa.jpg (540×701)

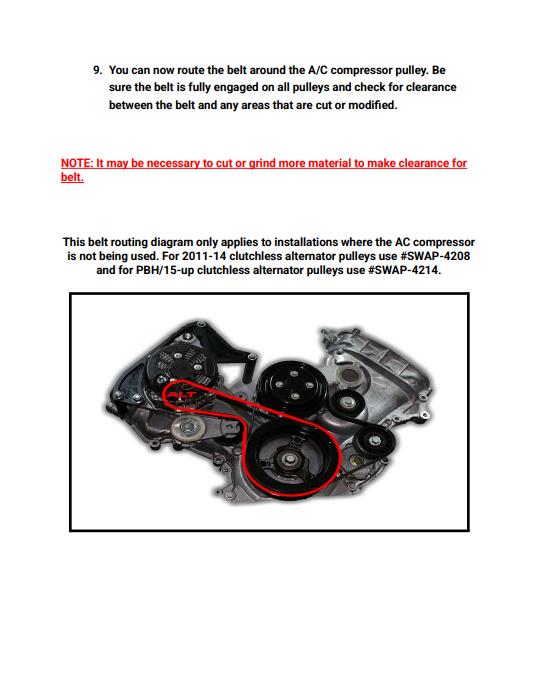

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_09673177.jpg (537×699)

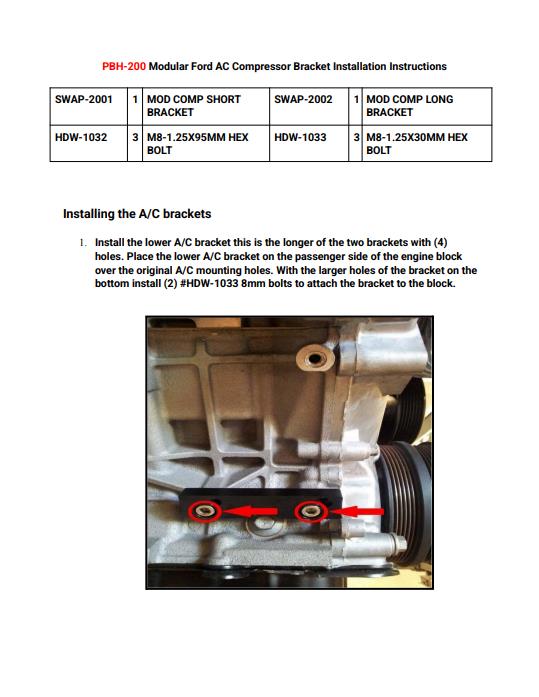

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_9edfbf0f.jpg (539×697)

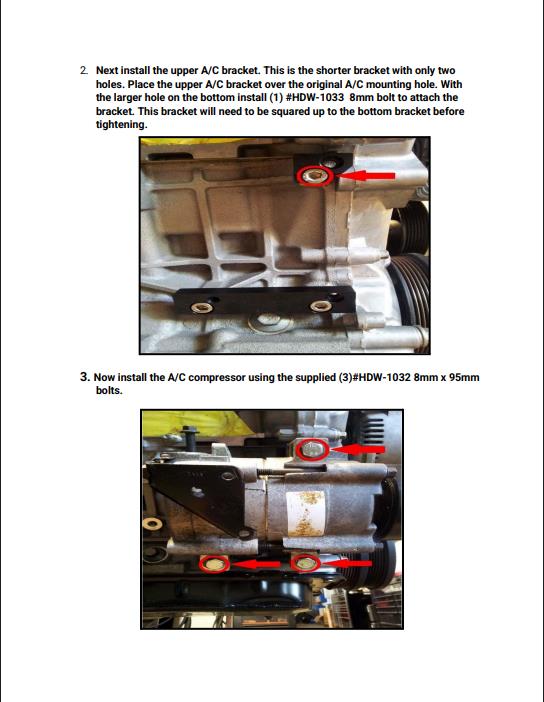

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_a5a32b30.jpg (544×702)

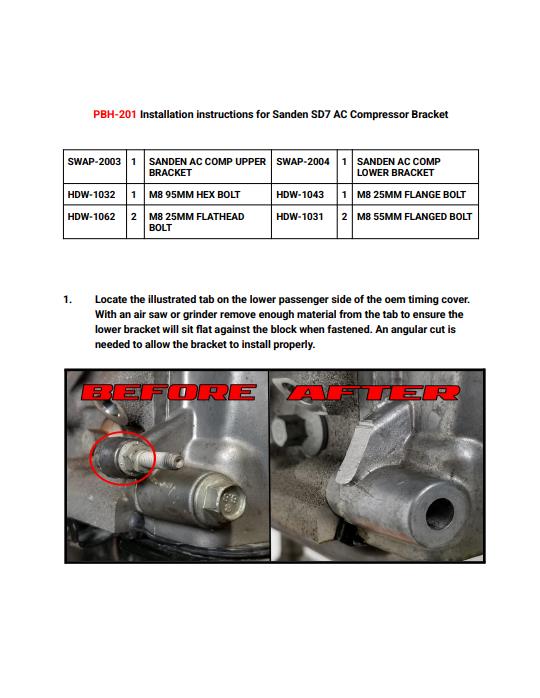

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_1f4dfee1.jpg (540×698)

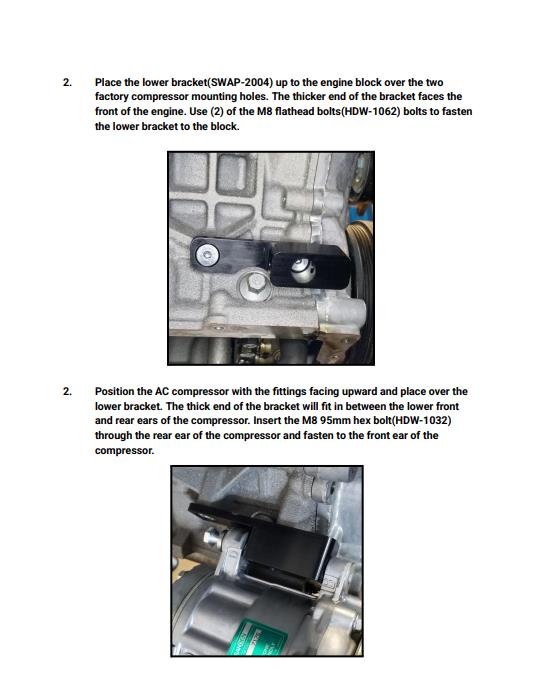

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_af2f0551.jpg (538×698)

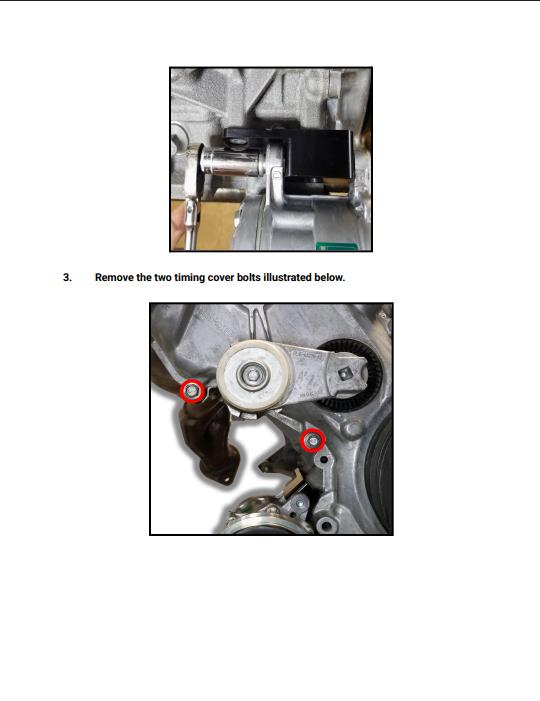

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_558ccf92.jpg (540×701)

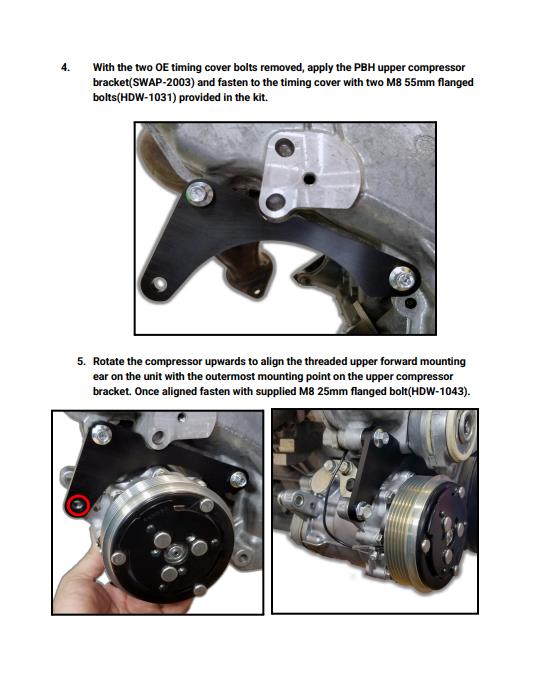

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_0d71adc5.jpg (538×696)

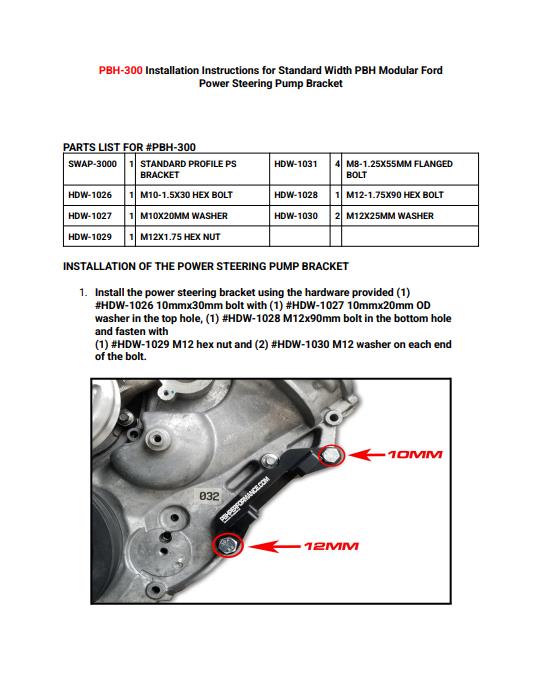

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_47868771.jpg (538×700)

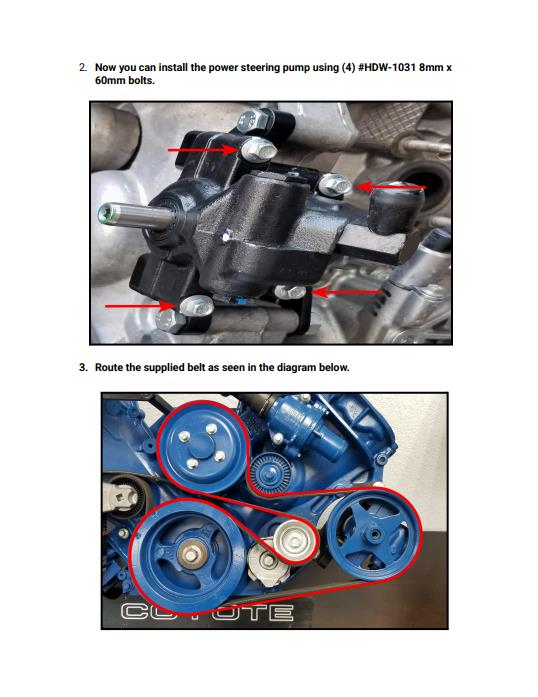

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_587c491b.jpg (538×697)

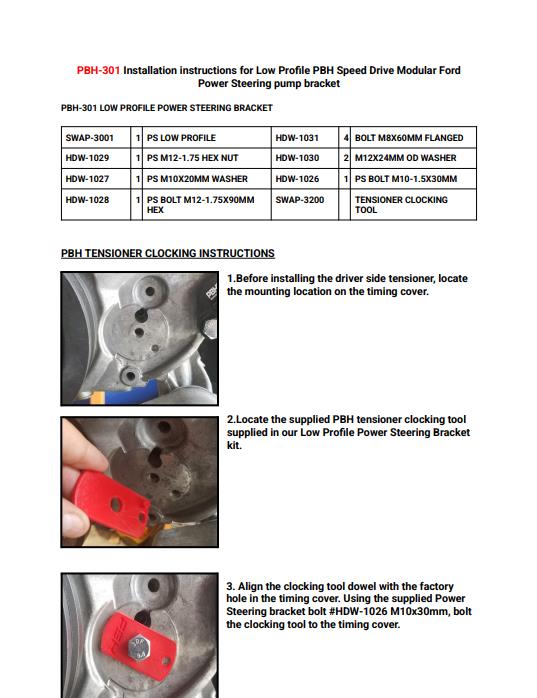

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_553e33ed.jpg (537×698)

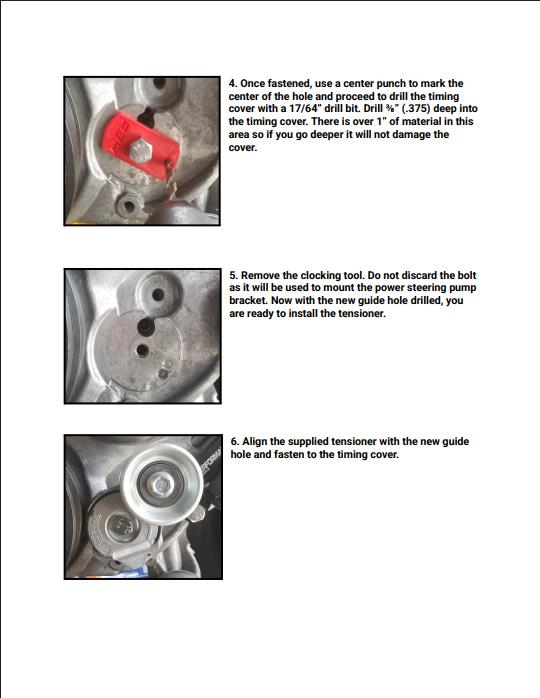

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_84041be6.jpg (540×698)

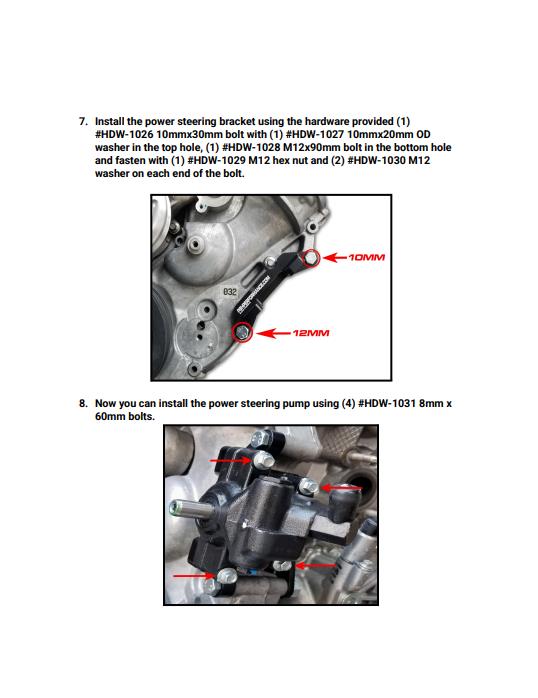

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_6f7e5154.jpg (538×698)

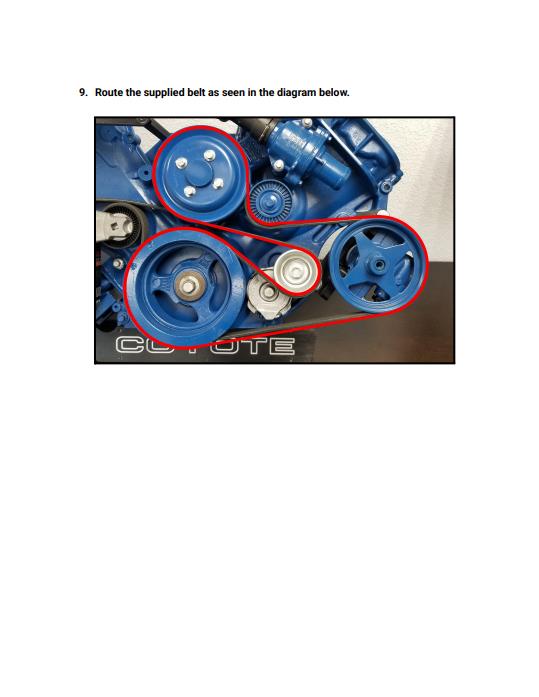

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_b3a66abe.jpg (539×697)

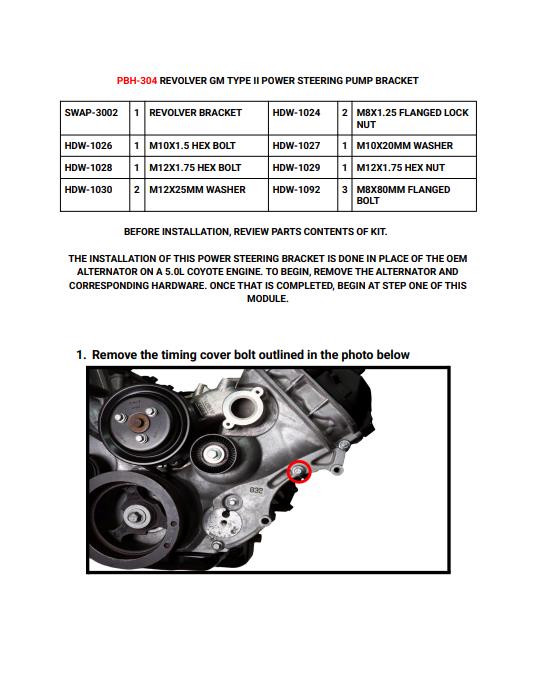

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_3d49cf22.jpg (537×696)

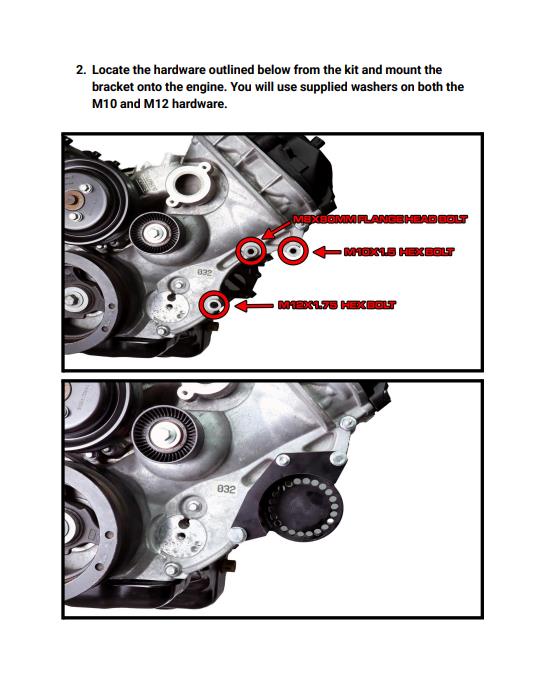

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_8cdca14a.jpg (535×696)

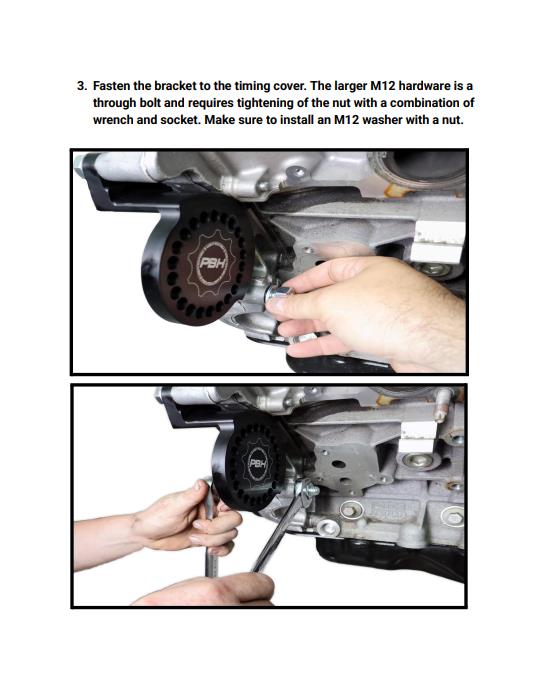

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_614924a8.jpg (538×697)

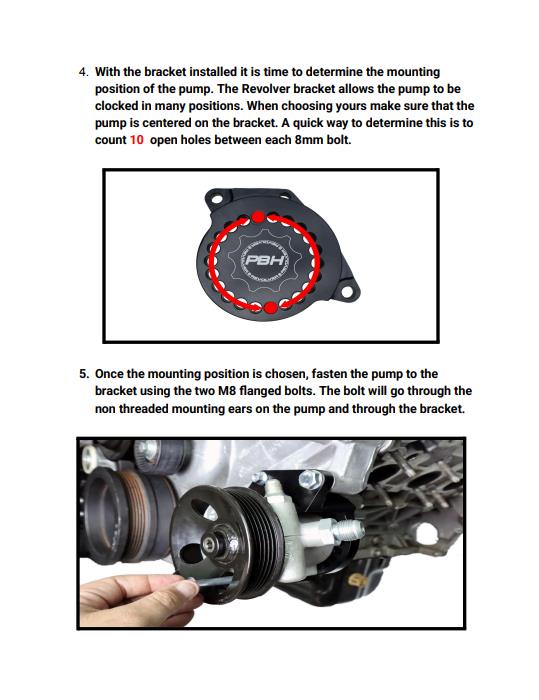

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_3ff9f0a1.jpg (539×700)

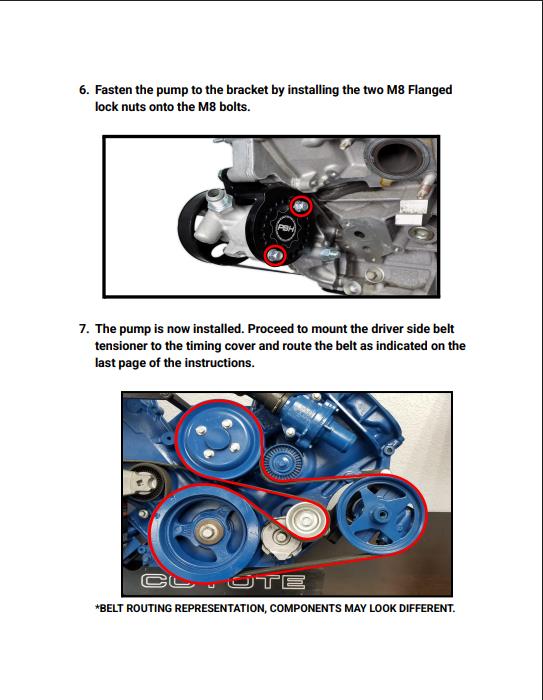

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_9b944c6c.jpg (543×700)

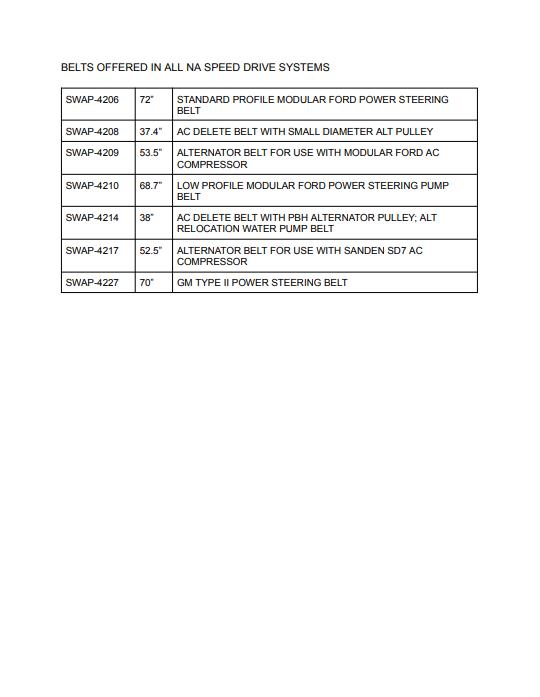

power-by-the-hour-coyote-engine-swap-accessory-bracket-kit-naturally-aspirated-instructions_d65f332e.jpg (540×697)
