Benefits
- Increases Fluid Capacity
- Maintains Oil Control Under Cornering Conditions
- Prevents Oil Starvation
- Corrosion Resistant
Features
- 7 QT. Capacity
- 6 1/4" Deep
- 12 3/4" W by 9 1/4" L
- Steel Construction
- Zinc Coated Finish
What's in the Box
- (1) Canton T-Sump Road Race Pan

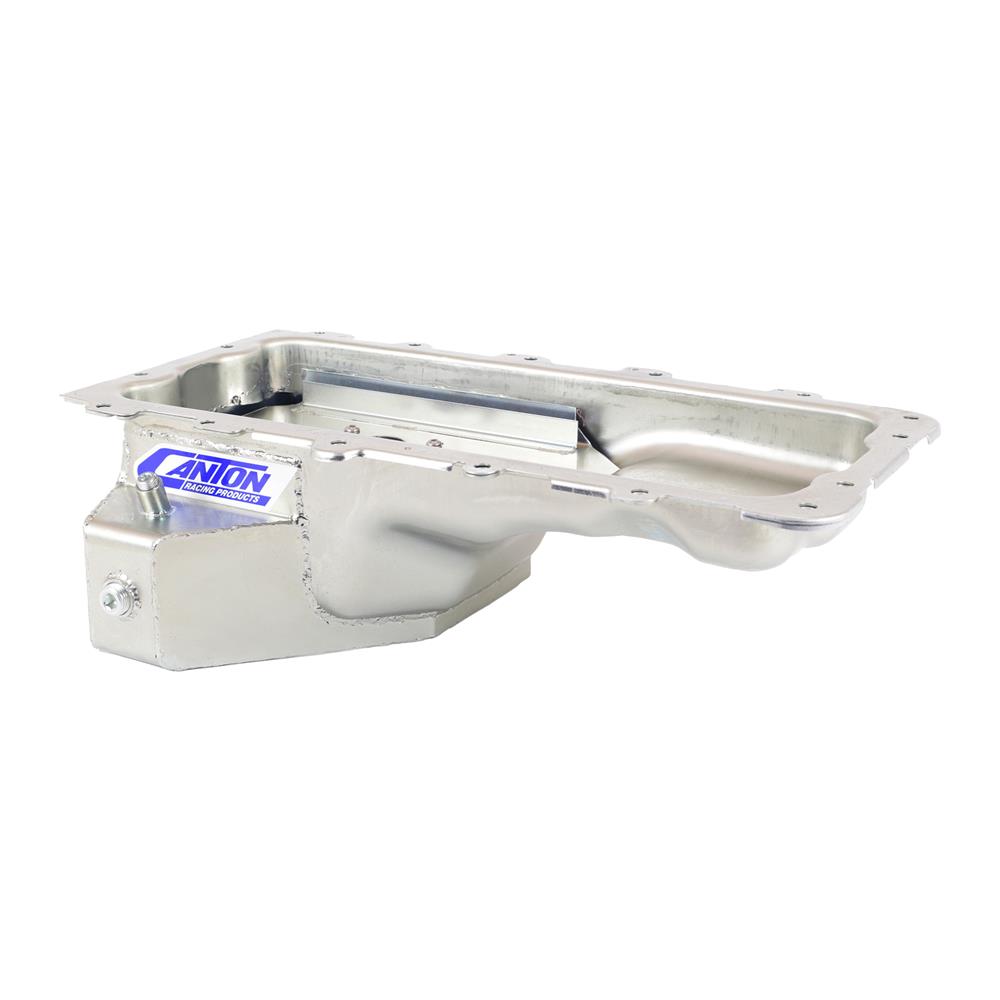

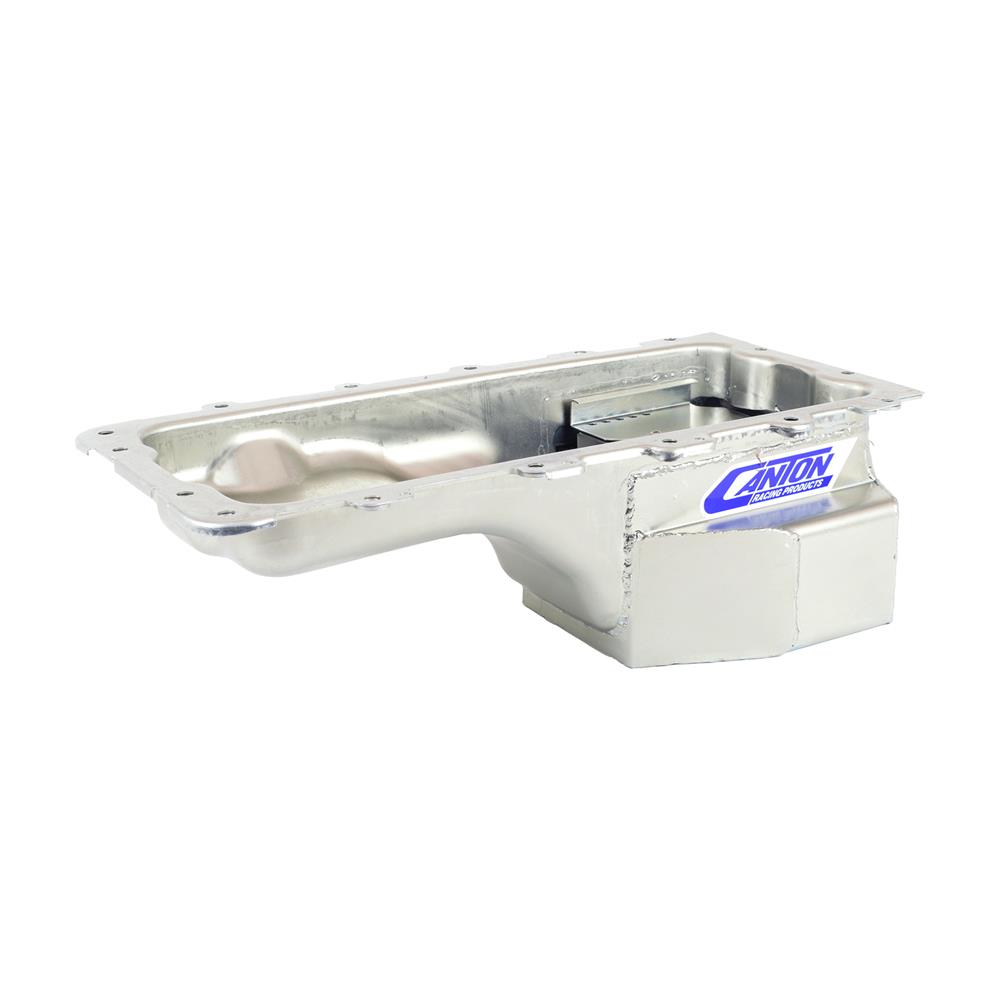

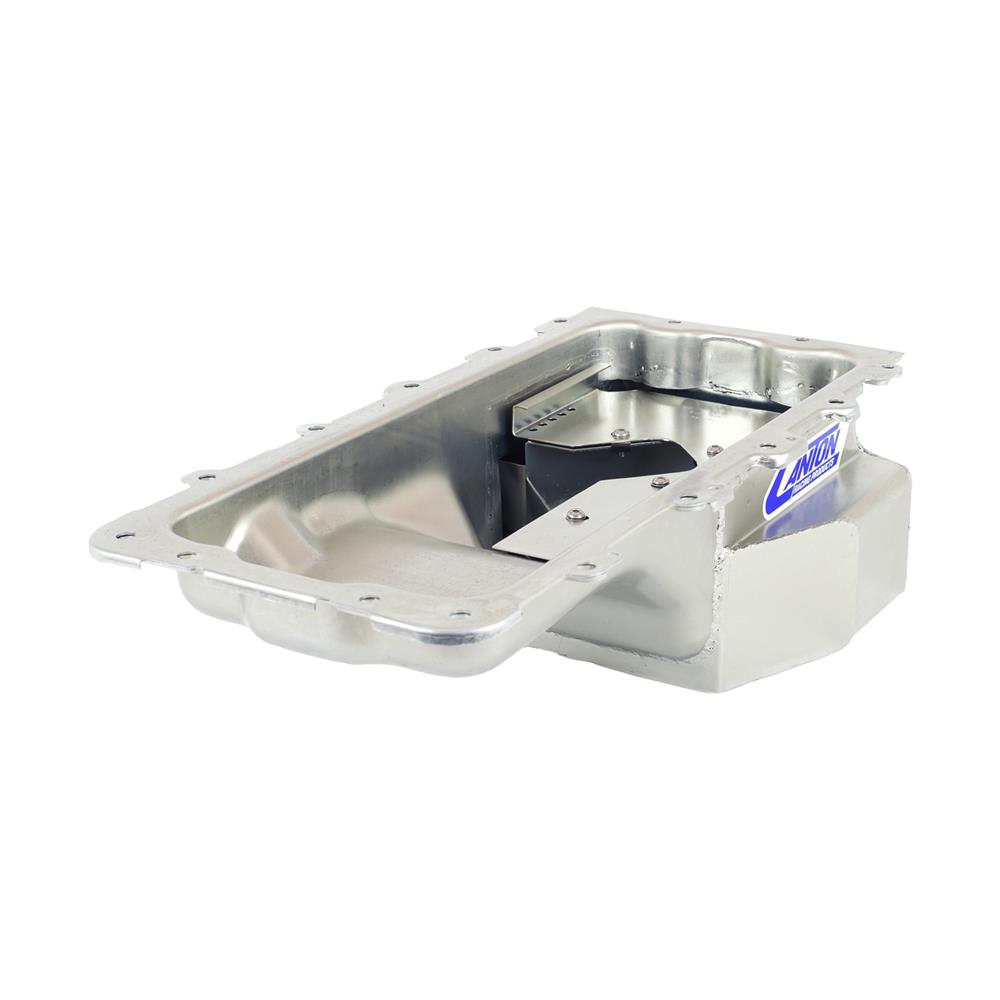

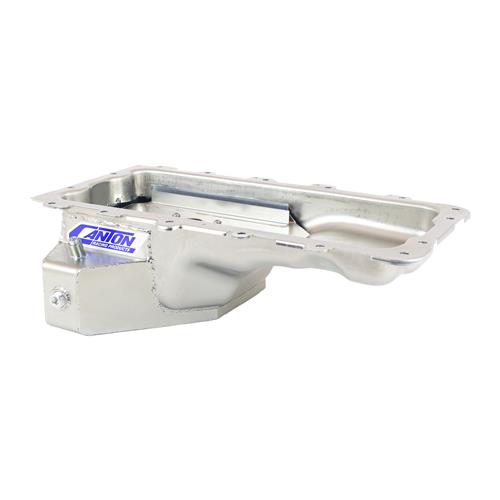

1996-2010 Mustang Canton Road Race Oil Pan
Prevent oil starvation during road racing in your 1996-2010 Mustang with this Canton "T" style rear sump oil pan! Road racing involves 20+ minutes of hard left and right turns that slosh oil back and forth in your oil pan. One hard turn either way can cause your engine starvation with your stock oil pan. Canton's road race oil pan resolves this problem with a combination of an anti-slosh baffle and an increased 7-quart capacity! This provides your engine the oil it needs during spirited driving.
Canton Quality

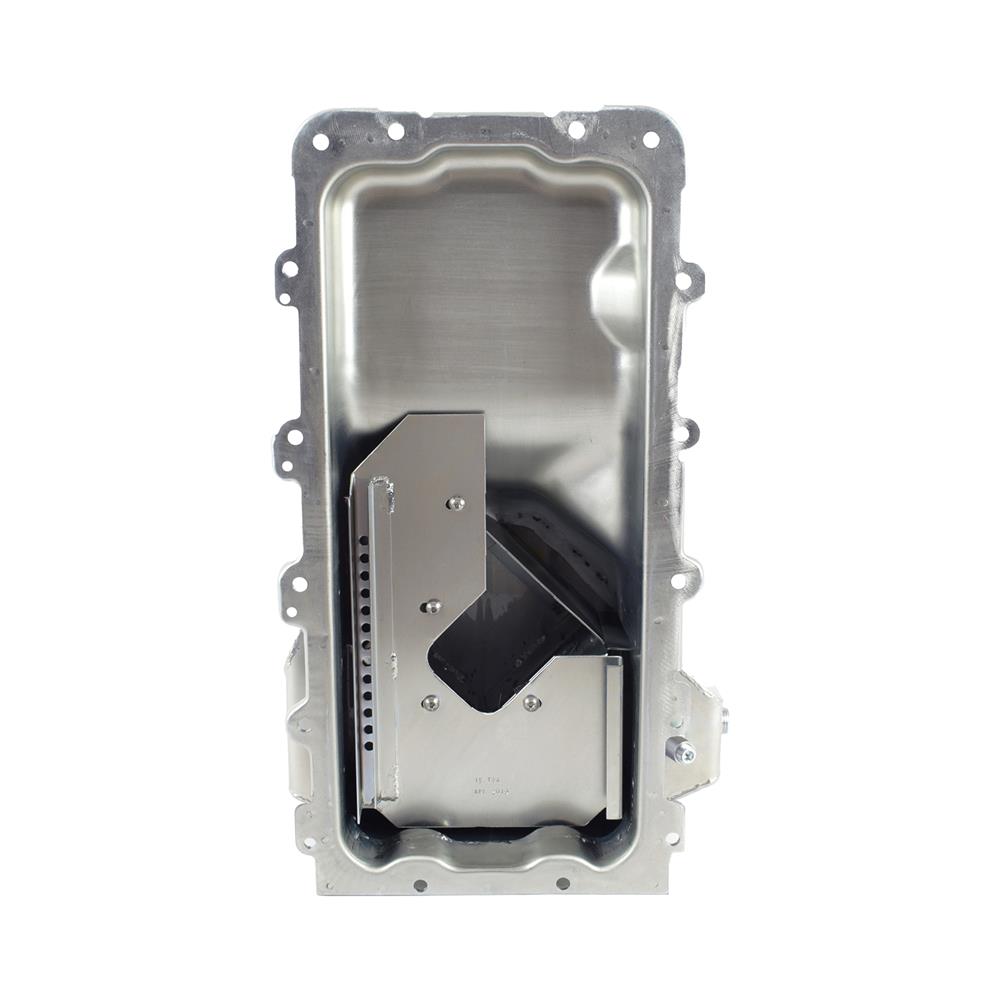

Canton's road race pan features a 6-1/4" deep by 9 1/4" long by 12-3/4" wide sump and 7-quart system capacity. Canton retains the stock pan depth and increases capacity with it's "T" style rear sump. This Mustang pan kit has a track-proven diamond shape road race baffle assembly with four trap doors and runners to direct oil to the pickup under all conditions. Other features include a temperature fitting bung, magnetic drain plugs, crank scraper, and a provision for pan mounted dipstick.
Pan Features
- Uses stock pickup
- 7 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
Canton Racing Warranty - Click Here
