5.8 by Comp Cams

Price: 227.95 USD
Availability: InStock

1979-95 Mustang Comp Camps Valve Spring Upgrade Kit - GT40/GT40P 5.0/5.8

Use this Comp Cams kit to upgrade the valve springs on your cast iron GT40/GT40P cylinder heads equipped 1979-1995 Mustang 5.0/5.8.

Item #CCA-GT40CSKIT
MPN# GT40CS-KIT

Everyday Low Price: $227.95

In Stock

This item is returnable. Details

This item is not eligible for discounts or coupon codes.

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Increased Valvetrain Stability
Fits GT40/GT40P Cast Iron Heads
Correct Spring Pressure

Features

Up To 0.570" Lift
Chromoly Retainers
Viton Valve Stem Seals

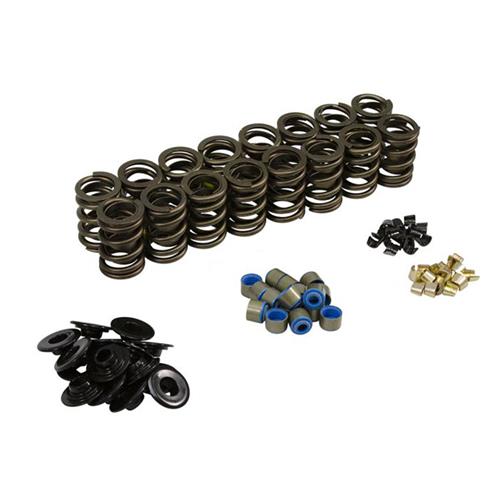

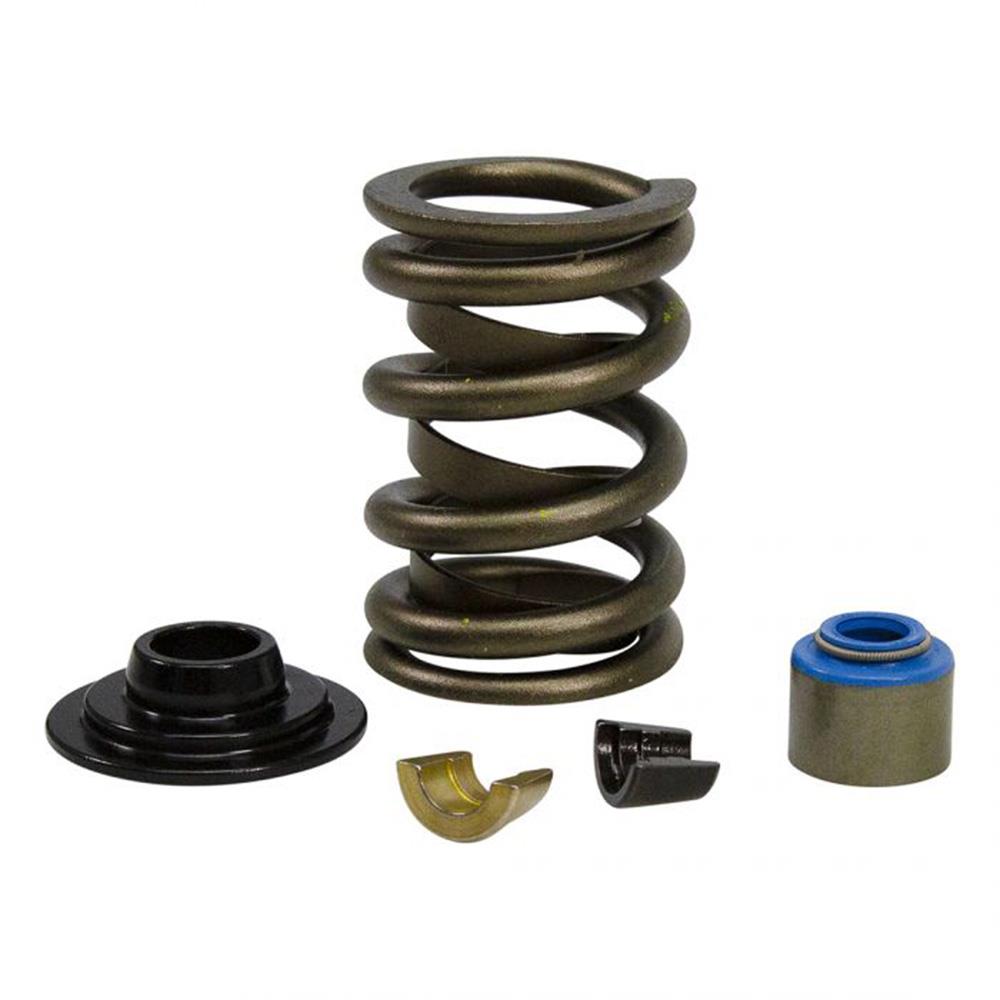

What's in the Box

(16) Valve Springs
(16) Retainers
(16) Valve Stem Seals
(16) Valve Locks

Camps Valve Spring Upgrade Kit - GT40/GT40P - 5.0/5.8
Install an upgraded camshaft in your cast iron GT40/GT40P cylinder heads equipped 1979-1995 Mustang 5.0/5.8 with this Comp Cams valve spring kit. The Comp Cams GT40 drop-in valve spring kit is designed to maximize the potential of cast iron GT40 and GT40P cylinder heads. This kit allows up to .570" lift and provides spring rates that can handle significantly more aggressive lobe profiles. These have been developed to make your valvetrain upgrade as easy as possible by combining quality components in a package that does not require any machining! These valve springs will drop right onto stock GT40 and GT40P cylinder heads. Comp Cames kit includes 1.486" diameter valve springs with 110 lbs. of seat pressure at 1.800" installed height with a max lift of 0.570". The package includes upgraded springs, Chromoly retainers, Viton valve stem seals, and eight standard and eight +.050 locks to achieve the correct installed height with factory valves.

Spring Specs

Retainer Material: Chromoly
Valve Stem Size: 11/32"
Max Lift: 0.570"
Installed Height: 1.8"
Coil Bind Height: 1.170"
O.D. of Outer: 1.486"
I.D. of Outer: 1.052"
Valve Lock Type: 10°
Spring Rate: 416 (lbs/in)
Valve Seals Type: Positive Stop
Load at Installed Height: 110 (lbs)
Load at Open Height: 318 (lbs)
Valve Stem Seal Material: Viton
Open Height: 1.300 in
Machine Work Required: No

Comp Cam Warranty - Click Here

Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Engines: 5.0, 5.8
