Mustang DSS 3.5" Aluminum Driveshaft - Manual | 15-17 5.0 by Driveshaft Shop

Price: 997.71 USD
Availability: OutOfStock

Mustang DSS 3.5" Aluminum Driveshaft - Manual | 15-17 5.0

Upgrade the weak 2-piece driveshaft in your Manual 2015-2017 Mustang GT to a 1-Piece forged aluminum driveshaft from DSS today!

Item #DSS-FDSH25-A
MPN# FDSH55-A

Everyday Low Price: $997.71

Out of Stock

This item is returnable. Details

This item is not eligible for discounts or coupon codes.

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Reduces Driveline Vibrations
Minimizes Unsprung Weight
Improves Acceleration
One-Piece Design
Smoother Ride

Features

3.5" Diameter Aluminum Construction
Spicer 1350 Series Solid U-Joint

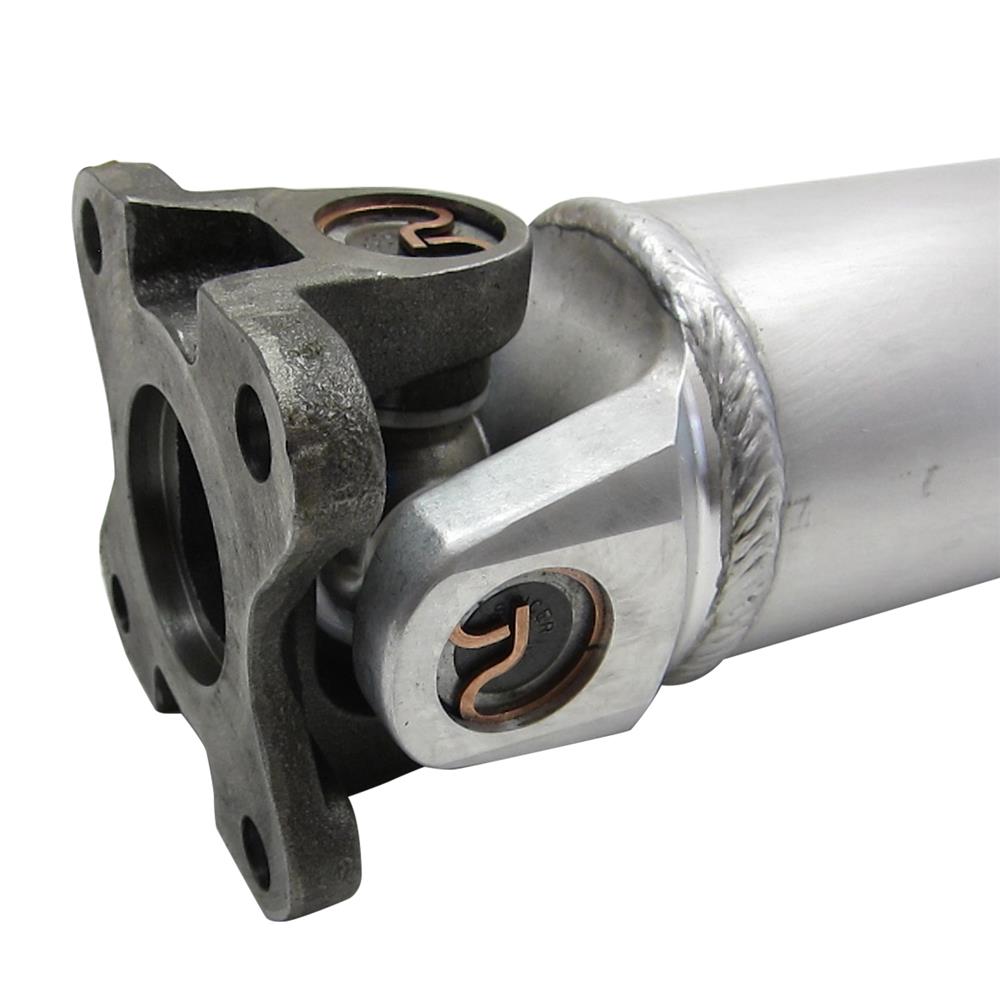

Forged aluminum U-Joint flange
Billet Aluminum Endcaps
1000+ HP Rating

What's in the Box

(1) Aluminum Drive Shaft

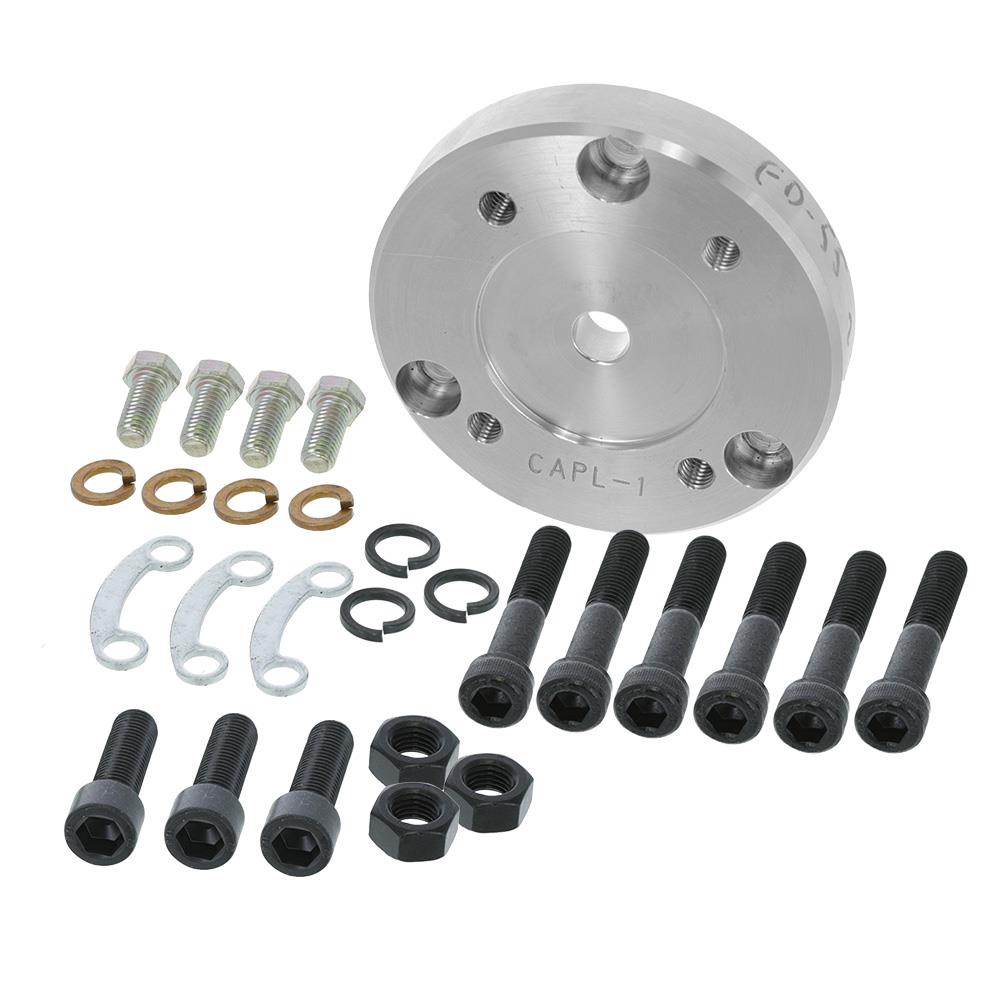

(1) Front Billet Flange Adapter
(1) Flange Hardware Kit

The Driveshaft Shop 1-Piece Aluminum Driveshaft

Reduce your 60ft times and save some weight all at the same time with this DSS driveshaft. What's great about the 2015-2017 Mustang being IRS is that there are no issues with angles, adjustable arms, or ride height issues that can affect the drivetrain. The Driveshaft Shop's 1-Piece driveshaft is the perfect upgrade for your S550 Mustang. It is lighter, stronger, and will reduce rotating mass. This lightweight DSS driveshaft is balanced to 9500 RPMs, has billet aluminum endcaps, 300M Chromoly spline plugs, and forged aluminum U-Joint flange. It's rated at 1000+ horsepower, so it will be able to handle whatever you want to throw at it!

Product Notes

Driveshaft hardware is not included.

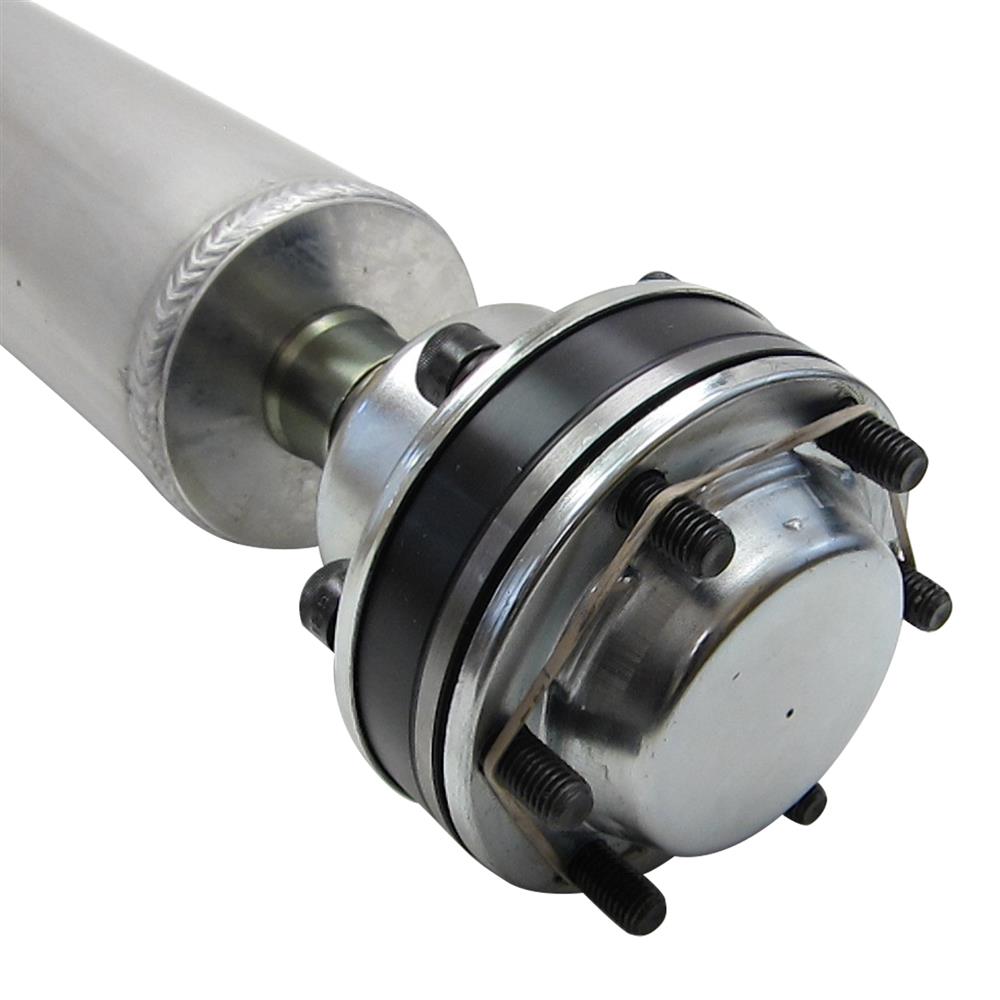

The DSS design eliminates the adapter plate at the rear end with a precision ground CV to fit inside the pinion flange just like the factory.
Driveshaft is 3.5" in diameter, giving you plenty of clearance needed to avoid interference with the undercarriage of your lowered Mustang.

Torque Specs

Front Adapter: 70lb/ft
Rear Adapter: 45lb/ft
Front of Driveshaft: 54lb/ft
Rear of Driveshaft: 57lb/ft

Product Note

If using solid rear IRS bushings and a one-piece driveshaft NVH (noise, vibration, and harshness) will increase.

Application

Fits 2015-2017 Ford Mustang w/ 5.0L 6-Speed Manual Transmission

Disclaimer - Driveshaft Hardware

The 1979-2004 Mustang factory driveshaft bolts are installed using a thread locker chemical and are NOT torque to yield. If reusing the factory bolts, clean the old thread locker material from the threads, and apply new blue thread locker before reinstalling the bolts or use new driveshaft bolts and apply blue thread locker to threads and torque to the factory specifications. New bolts can be found here: HDW-4602.
For 2005-2021 Ford Mustangs, it is recommended that you install new driveshaft to pinion flange bolts when removing the driveshaft. The driveshaft to pinion flange bolts are torque to yield and should be torqued to 41ft-lbs.

DriveShaft Shop Warranty Warranty - Click Here

Ford Mustang - 2015, 2016, 2017
Engines: 5.0

Fitment Notice

Emergency brake cable bracket clearance/ relocation may be necessary. Failure to check this clearance may damage the driveshaft and void the warranty.

Please Note Failure to follow the items below may damage the driveshaft and void the warranty.

WARNING: Rear Subframe/Cradle Lock-out kit MUST BE INSTALLED on the vehicle PRIOR to installing a Driveshaft Shop 1-Piece Driveshaft. Any damage to the driveshaft (or any subsequent damage) caused by failing to reinforce the rear cradle and limit movement properly will VOID ANY AND ALL WARRANTY provided by The Driveshaft Shop.

Install Instructions

Download the pdf Link opens in a new window

California Residents:

WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

About This Brand

For the past 30 years, The Driveshaft Shop has designed many of the driveshafts used in numerous record-setting racecars. They offer driveshafts in aluminum, steel, chromoly and now carbon fiber so they can design a solution that fits your needs. Each driveshaft they produce is dynamically balanced at over 9000 RPMs to ensure unbeatable reliability. The Driveshaft Shop specializes in the impossible. Shop our selection of Mustang and Ford Lightning driveshafts at LMR.com!
