2015-17 Mustang DSS 3.5" Aluminum Driveshaft - Automatic 5.0 by Driveshaft Shop


2015-17 Mustang DSS 3.5" Aluminum Driveshaft  - Automatic  5.0

Upgrade the weak 2-piece drive shaft in your Automatic 2015-17 Mustang 5.0L GT to a DSS 1-Piece aluminum shaft!

Item #DSS-FDSH26-A
MPN# FDSH54-A

Everyday Low Price: $1,124.78

Available!
Ships today!
This item is not eligible for discounts or coupon codes.
 This item is returnable. Details

Free Shipping over $99

 Add to Cart


  • Ford Mustang - 2015, 2016, 2017
  • Engines: 5.0
Please Note Failure to follow the items below may damage the driveshaft and void the warranty.
  • WARNING: Rear Subframe/Cradle Lock-out kit MUST BE INSTALLED on the vehicle PRIOR to installing a Driveshaft Shop 1-Piece Driveshaft. Any damage to the driveshaft (or any subsequent damage) caused by failing to reinforce the rear cradle and limit movement properly will VOID ANY AND ALL WARRANTY provided by The Driveshaft Shop.

 Benefits

  • Improves Acceleration
  • Reduces Unsprung Weight
  • Reduces Driveline Vibrations
  • Smoother Ride

 Features

  • 1-Piece Forged Aluminum Flange
  • 3.5" Diameter
  • 6061 T-6 Aluminum Construction
  • 24lb Weight

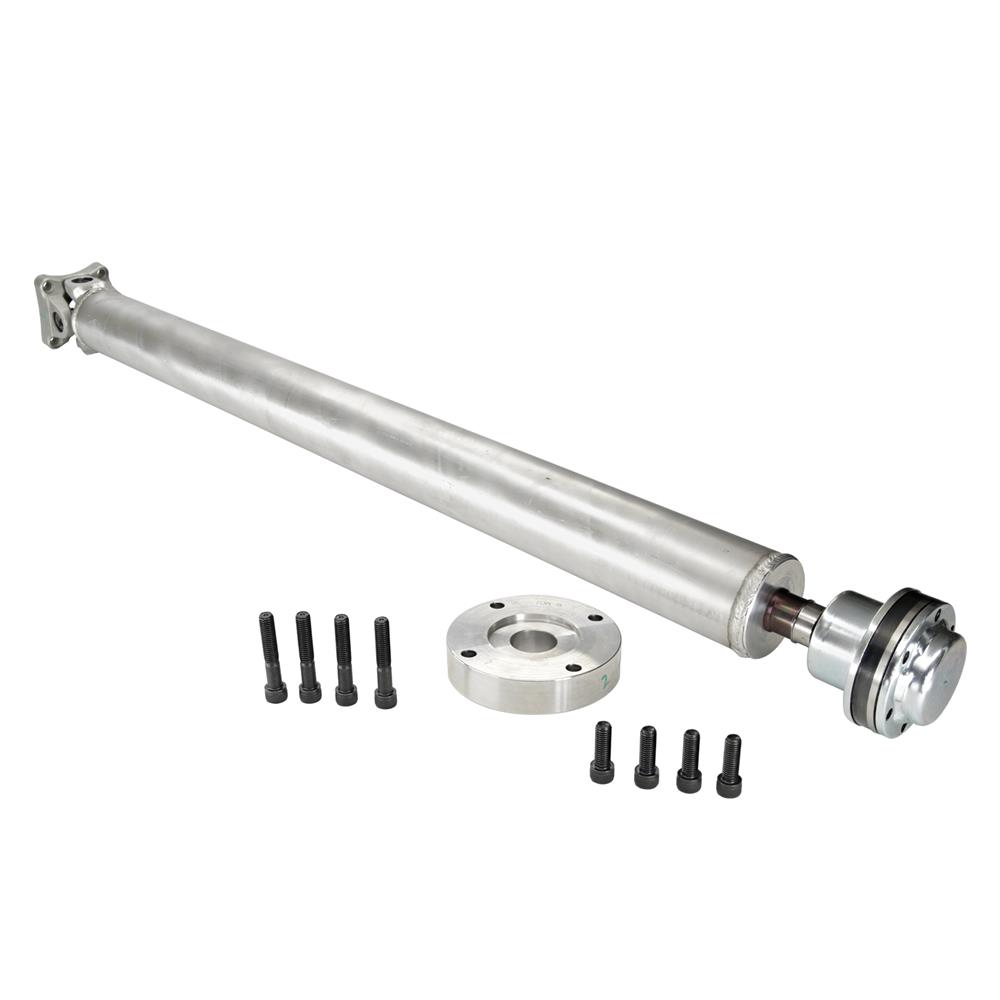

 What's in the Box

  • (1) 3.5" Aluminum Drive Shaft
  • (1) Front Billet Flange
  • (1) Flange Hardware Kit

The Driveshaft Shop 1-Piece Aluminum Driveshaft

Upgrade your weak and heavy, stock, 2-piece driveshaft. The Driveshaft Shop's 1-Piece driveshaft is the perfect upgrade for your S550 Mustang. It is lighter, stronger and will reduce rotating mass. This lightweight DSS driveshaft weighs in at 24 pounds and is balanced to 9500 RPM's. It's rated at 1,000 horsepower, so it will be able to handle whatever you want to throw at it!

Clearance

If you have already lowered your 2015-2017 S550 Mustang, don't worry! This DSS driveshaft is 3.5" in diameter, giving you plenty of clearance needed to avoid interference with the undercarriage of your lowered Mustang.

Built To Last

The Driveshaft Shop has built this 3.5" driveshaft to handle anything and everything possible. It is built with 6061-T6 aluminum tubing and is rated for 3,450ft lbs of torque! This direct-fit rear CV driveshaft is made from 300M material and features a solid 1350 front spicer u-joint with flange to mate directly to the transmission and rear end.

Torque Specs

Front Adapter: 70lb/ft Rear Adapter: 45lb/ft Front of Driveshaft: 54lb/ft Rear of Driveshaft: 57lb/ft

Product Note

  • Emergency brake cable bracket clearance/ relocation may be necessary. Failure to check this clearance may damage the driveshaft and void the warranty.
  • If using solid rear IRS bushings and a one-piece driveshaft NVH (noise, vibration, and harshness) will increase.


Application

  • Fits 2015-2017 Ford Mustang w/ Automatic Transmission

Disclaimer - Driveshaft Hardware

  • The 1979-2004 Mustang factory driveshaft bolts are installed using a thread locker chemical and are NOT torque to yield. If reusing the factory bolts, clean the old thread locker material from the threads, and apply new blue thread locker before reinstalling the bolts or use new driveshaft bolts and apply blue thread locker to threads and torque to the factory specifications. New bolts can be found here: HDW-4602.
  • For 2005-2021 Ford Mustangs, it is recommended that you install new driveshaft to pinion flange bolts when removing the driveshaft. The driveshaft to pinion flange bolts are torque to yield and should be torqued to 41ft-lbs.


DriveShaft Shop Warranty Warranty - Click Here


California Residents:
Prop 65 Warning SignWARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

About This Brand


Driveshaft Shop
For the past 30 years, The Driveshaft Shop has designed many of the driveshafts used in numerous record-setting racecars. They offer driveshafts in aluminum, steel, chromoly and now carbon fiber so they can design a solution that fits your needs. Each driveshaft they produce is dynamically balanced at over 9000 RPMs to ensure unbeatable reliability. The Driveshaft Shop specializes in the impossible. Shop our selection of Mustang and Ford Lightning driveshafts at LMR.com!
