2016-23 Mustang DSS 3.5" Aluminum One Piece Driveshaft GT350/Mach 1 by Driveshaft Shop

Price: 992.49 USD
Availability: InStock

2016-23 Mustang DSS 3.5" Aluminum One Piece Driveshaft GT350/Mach 1

Upgrade the weaker 2-piece drive shaft in your Manual 2016-2023 Mustang Shelby GT350 or Mach 1 to this DSS 1-Piece aluminum driveshaft!

Item #DSS-FDSH60-A
MPN# FDSH60-A

Everyday Low Price: $992.49

Available!
Ships by Monday, September 28

This item is returnable. Details

This item is not eligible for discounts or coupon codes.

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Rated for 1000+ HP
Less Rotational Mass
Stronger Than Factory Shaft

Features

25 lbs
Aluminum Construction
Spicer 1350 Series U-Joint

What's in the Box

(1) One Piece Driveshaft

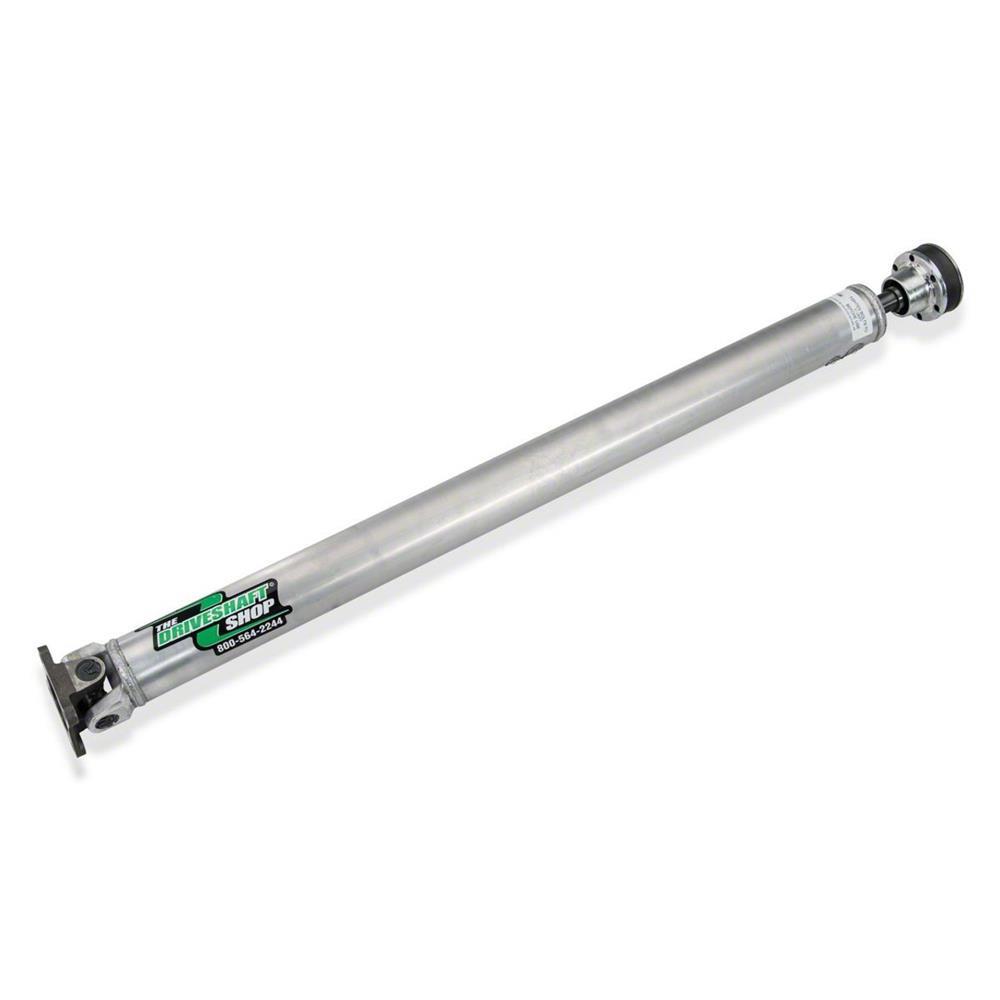

Aluminum One Piece Driveshaft - GT350/Mach 1

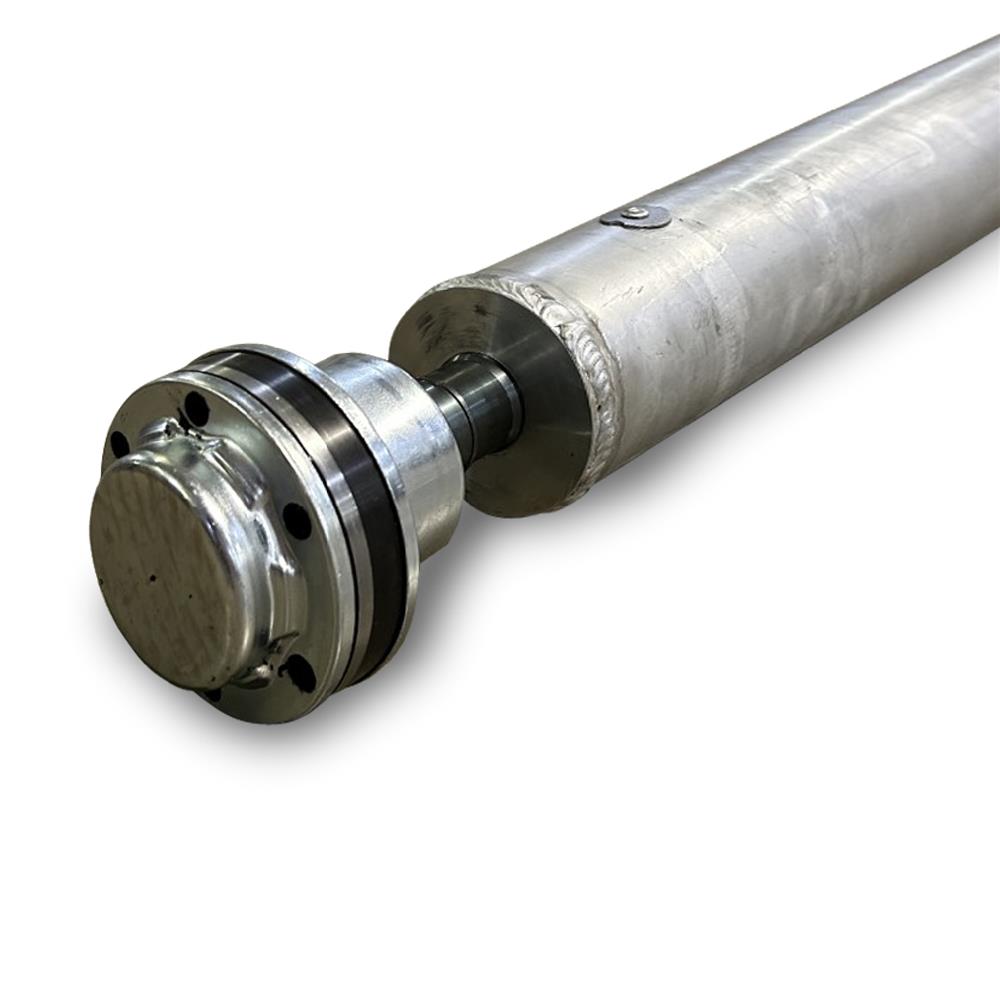

Dramatically increase acceleration by reducing rotational mass in your TR-3160 equipped 2016-2023 Mustang Shelby GT350 or Mach 1 with this aluminum driveshaft from DSS! This driveshaft from The DriveShaft Shop is lighter and stronger than the factory 2-piece shaft, coming in at only 25 pounds! Shedding rotational weight greatly improves your Mustang's acceleration and quarter-mile times. Constructed of high-quality aluminum, this shaft features a beefy 1350 forged aluminum front u-joint with flange, which mounts directly to the transmission. A high-speed precision ground CV joint with chromoly internals fits directly inside the pinion flange just like the factory along with a Spicer 1350 u-joint makes a durable combination. This lightweight, 1-piece driveshaft is 3.5" in diameter which avoids interference that can happen on lowered Mustangs equipped with a 4" shaft. DSS rates this driveshaft up to 1000+ horsepower!

DriveShaft Shop Warranty Warranty - Click Here

Ford Mustang - 2016, 2017, 2018, 2019, 2020
Sub Models: GT350, Mach 1

Ford Mustang - 2021, 2022, 2023
Sub Models: GT350, Mach 1

Fitment Notice

Fits 2016-2020 Shelby GT350
Fits 2021-2023 Mustang Mach 1

Product Note

If using solid rear IRS bushings and a one-piece driveshaft NVH (noise, vibration, and harshness) will increase.
Emergency brake cable bracket clearance/ relocation may be necessary.
Rear Subframe/Cradle Lock-out kit MUST be installed on the vehicle prior to installing a Driveshaft Shop 1-Piece Driveshaft. Any damage to the driveshaft (or any subsequent damage) caused by failing to properly reinforce the rear cradle and limit movement will void any and all warranty provided by The Driveshaft Shop.

California Residents:

WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

About This Brand

For the past 30 years, The Driveshaft Shop has designed many of the driveshafts used in numerous record-setting racecars. They offer driveshafts in aluminum, steel, chromoly and now carbon fiber so they can design a solution that fits your needs. Each driveshaft they produce is dynamically balanced at over 9000 RPMs to ensure unbeatable reliability. The Driveshaft Shop specializes in the impossible. Shop our selection of Mustang and Ford Lightning driveshafts at LMR.com!
