Benefits
- Real-Time Self-Learning Fuel Strategies
- Built-In Boost & Nitrous Control
- On-Board Diagnostics
Features
- Pre-Loaded With Base Maps For Common V8 Combinations
- High Impedance Injector Drivers
- Customizable Gauge Display
- Built-In 1 Bar MAP Sensor
What's in the Box
- (1) Terminator X ECU
- (1) 3.5" Touchscreen LCD Handheld
- (1) Universal Engine Harness

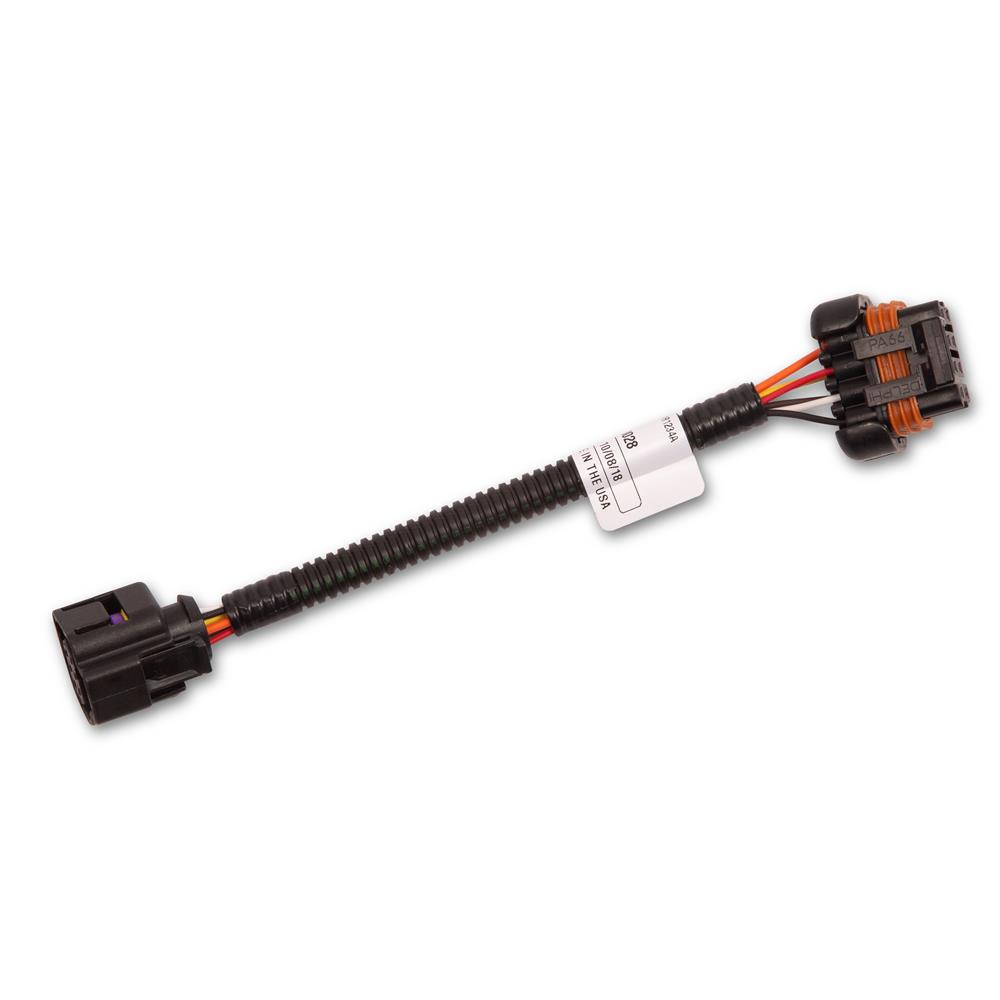

- (1) EV1 Injector Harness
- (1) MAP Sensor vacuum hose adapters
- (1) Bosch LSU 4.9 Wideband Oxygen Sensor
- (1) Built-In 1 Bar Manifold Absolute Pressure Sensor
Holley EFI Ford Terminator X MPFITake control of your EFI Equipped 5.0 or 5.8 Ford Windsor engine and transform the power, efficiency, and drivability with Holley's universal Terminator X EFI! Control your engine, self-learning fuel strategies, and the proven, race-winning technology of Holley's EFI at a budget-friendly price! The Terminator X features real-time fuel learning, high impedance injector drivers, an integrated 1 bar MAP sensor, and 4 programmable inputs and outputs. Inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. This Terminator X comes fully loaded with base maps for common V8 engine combinations to get you out of the garage and on the road/track fast! The 3.5" touchscreen LCD handheld device contains an easy-to-use calibration wizard as well as tuning and gauge display functions. Holley EFI's industry-leading, easy-to-use software is provided to allow full laptop access for advanced tuning. This Holley Terminator X EFI kit is the perfect solution for an engine-swapped classic car or competition race car, thanks to its impressive features and technology that won't break the bank!
Full List of Features- NOT for emission-compliant applications.
- Plug and play Universal Ford V8 engine control, such as the 302w, 351w or 460 Big Block.
- Includes EV1 Injector Harness
- High Impedance Injector Drivers will safely power most Stock injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)
- All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.
- Built-in 1bar MAP Sensor, vacuum hose adapters included (1/8th – ¼ and 3/16ths) - or for Boosted applications, you can disable the internal MAP sensor, and utilize an external MAP Sensor, the harness comes with the connector terminated, making the install simpler.
- MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
- Plug and plug ignition capability with Dual Sync and HyperSpark Distributors, adapter 558-323 required for HyperSpark Distributors.
- 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!
- On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance
- The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any domestic V8 engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display.
- The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
- Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support!
- Free EFI Tuning Software for complete control of your Terminator X power plant
Holley Warranty - Click Here
