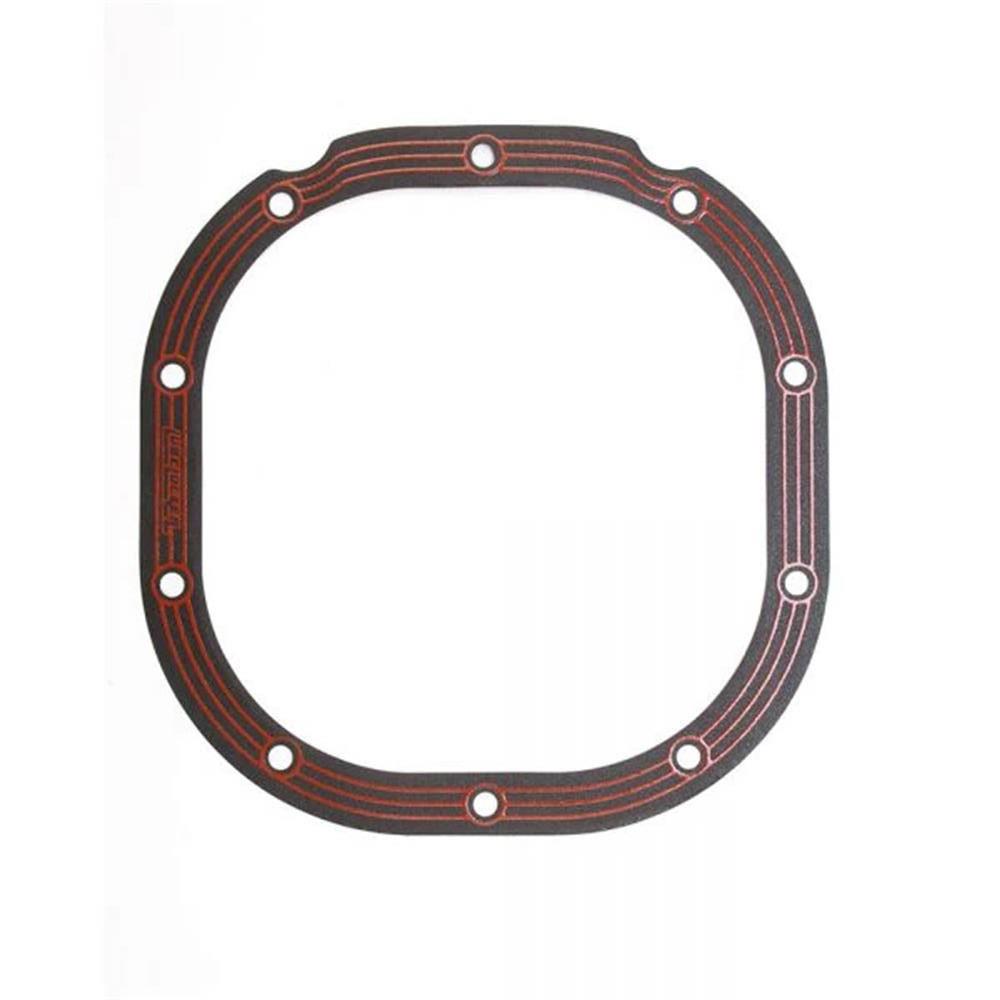

LubeLocker 8.8" Rear Differential Cover Gasket
Keep your 1986-2014 Mustang 8.8" rear end clean and leak free with this LubeLocker differential cover gasket! LubeLocker gaskets feature a high quality, rubber coated, steel core construction. LubeLocker’s signature orange elastomer beading allows you to install the gasket with no silicone mess! LubeLocker Gaskets can retain their seal even if the differential cover shifts, while the orange elastomer beading delivers superior sealing through a wide range of temperatures!
Installation Note
While these gaskets were not intended to be reused, many customers have reused them with great success. This is the gasket you need when installing a cast aluminum girdle type rear differential cover!
Replace your grime-covered factory differential with our SVE differential cover! Our article and video will give you every step to make this install seamless! more
LubeLocker - The Highest Quality Gaskets
Designed for uncompromising quality and performance in high demand motorsports, LubeLocker Gaskets are without equal. Their unique and tested quality rubber-coated, aluminum core construction translates into reliability and parts that are built to last. LubeLocker’s signature orange elastomer beading emphasizes their single-minded purpose: to be the best differential gasket made.
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
Wheel Width
Wheel Backspacing
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Pattern
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
Wheel Offset
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
