1979-93 Mustang Tubular K Member Kit by Team Z Motorsports by Team Z Motorsports


Details   |  Description   |  Videos   |  Customer Photos   |  Reviews
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175
  • Team Z Mustang Matrix Tubular K Member Kit 12" 170lbs (79-93) TZM-KM175

Use this Team Z tubular k member for weight reduction & more performance in your 1979-1993 Mustang.

Item #LRS-TZMKM175
MPN# TZM-KM175

Everyday Low Price: $849.99

Temporarily out of stock


This item is currently out of stock and cannot be purchased at this time.
Add to cart
Add to Wishlist


Benefits

  • Lightweight Design
  • Tubular Construction
  • All In One Kit

Features

  • Black Hammertone Finish
  • Direct Bolt On
  • 170lb Spring Rate
  • Great Weight Reduction
  • Fox Style Ball Joints

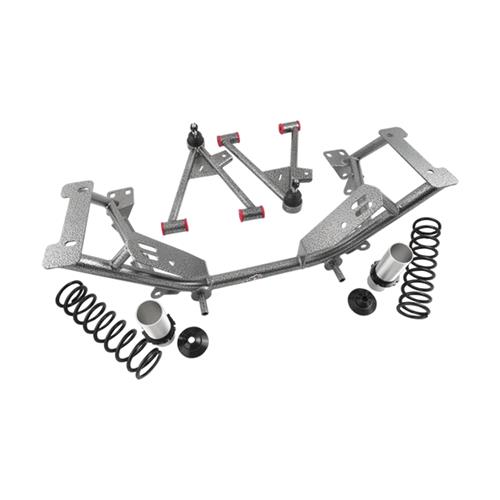

What's in the Box

  • (1) Tubular K-Member
  • (2) Tubular A-Arms
  • (1) Coilover Kit
  • (1) Installation Bolt Kit

Team Z Motorsports Brand Image

Product Description

Great Weight Reduction
A great way to get better performance from your 1979-1993 Mustang is by reducing weight. Team Z has put together a black hammertone Matrix tubular k member kit that will give you great weight reduction and a better performing suspension all in one! This kit includes a tubular k member, tubular a-arms, and a 12" 170lb spring rate coil over kit to replace your factory steel components. With the included coil over kit, you can easily adjust the ride height of your Mustang to get the perfect look!

Chromoly A-Arms
Chromoly control arms will save more weight and exceed any strength limitations of mild steel, while allowing maximum clearance. This kit was designed for the abuse of drag race and Street Enthusiasts – most importantly it will handle the everyday wear and tear of city & highway streets.

Product Notes
  • Clunks, squeaks and pops can be normal occurrences with coil over setups.

    Additional Parts Required
  • Spherical Bearing Style Caster/Camber Plates
  • Bumpsteer Kit - Required for proper steering geometry.
  • Offset Steering Rack Bushings - Required for adequate oil pan clearance.
  • Spanner wrench not included.

    Installation Note
  • If solid motor mounts are used, Team Z REQUIRES the use of LRS-74766
  • Depending on your vehicle, modification of the stock steering shaft or a low profile steering shaft may be required.
  • If running 94-04 spindles, you will need to run Ball Joint Spacers or stack washers between spindle and nut for the castle nut and cotter pin to line up.

    Application
  • 1979-1993 Mustang with 302 & 351 Based engines


    Bushing Lubrication
    The suspension bushings included with this part can only be lubricated with PTFE grease, also referred to as "Marine Grease". PTFE grease is a very sticky, opaque grease that is water proof and will not degrade the bushing material. If lubed properly at installation, these bushings will not need to be lubricated again. Use of any other grease on these bushings will cause the bushing to fail and any bushing warranty to be voided.


    Engine Mount Fitment Note
    - Stock and aftermarket engine mounts can have alignment pins that can cause fitment issues. Removal of the alignment pin might be necessary for correct mating of engine mount to k-member.


    Team Z Motorsports Warranty - Click Here

  • Fitment Notes

  • For use on stock, Strange, Koni, Tokico, Lakewood or KYB struts.
  • Caster Camber plates are required for this kit to operate properly
  • Aftermarket control arms can vary in length from stock control arms and may be one to two inches shorter. This will not affect the geometry of the suspension as the length variation has been accounted for.


  • California Residents:
    Prop 65 Warning SignWARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

    Related Articles

  • 1999-2004 Mustang Team Z Matrix Tubular K Member Kit

    This Team Z tubular k-member kit easily drops weight on your 1994-2004 Mod-Motor Mustang for better performance! more

    Read more: 1999 mustang gt , project green bean , green bean , lmr project , gt build , team z , strange , strange struts , 2000 mustang , 2001 mustang , 2002 mustang , 2003 mustang , 2004 mustang , sn95 , sn95 mustang , new edge mustang , suspension

    Posted on 4/4/2016

  • How To Install Fox Body Mustang K-Member | 79-93

    Follow along as LMR shows you how to install a Fox Body K-Member. Installing a K-Member on your 1979-93 Mustang can be much easier with our install. more

    Read more: how to , installation , fox body , k member

    Posted on 4/7/2021


  • Product Videos

    Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!


    Customer Photos (3)


    • Matrix Tubular K Member Kit
    • Matrix Tubular K Member Kit
    • Matrix Tubular K Member Kit

    Vehicle Applications

    Ford Mustang - 1979 (79) - 1980 (80) - 1981 (81) - 1982 (82) - 1983 (83) - 1984 (84) - 1985 (85) - 1986 (86) - 1987 (87) - 1988 (88) - 1989 (89) - 1990 (90) - 1991 (91) - 1992 (92) - 1993 (93)


    About This Brand


    Team Z Motorsports
    Team Z motorsports has researched and developed a variety of different Mustang suspension components to have your vehicle handling, cornering, and performing better than ever. Choose from Team Z tubular k-members, drag springs, anti roll bars, control arms, bumpsteer kits, panhard bars, and many more suspension components for your Mustang. These parts have been built and tested by Team Z for maximum performance on and off the track.
