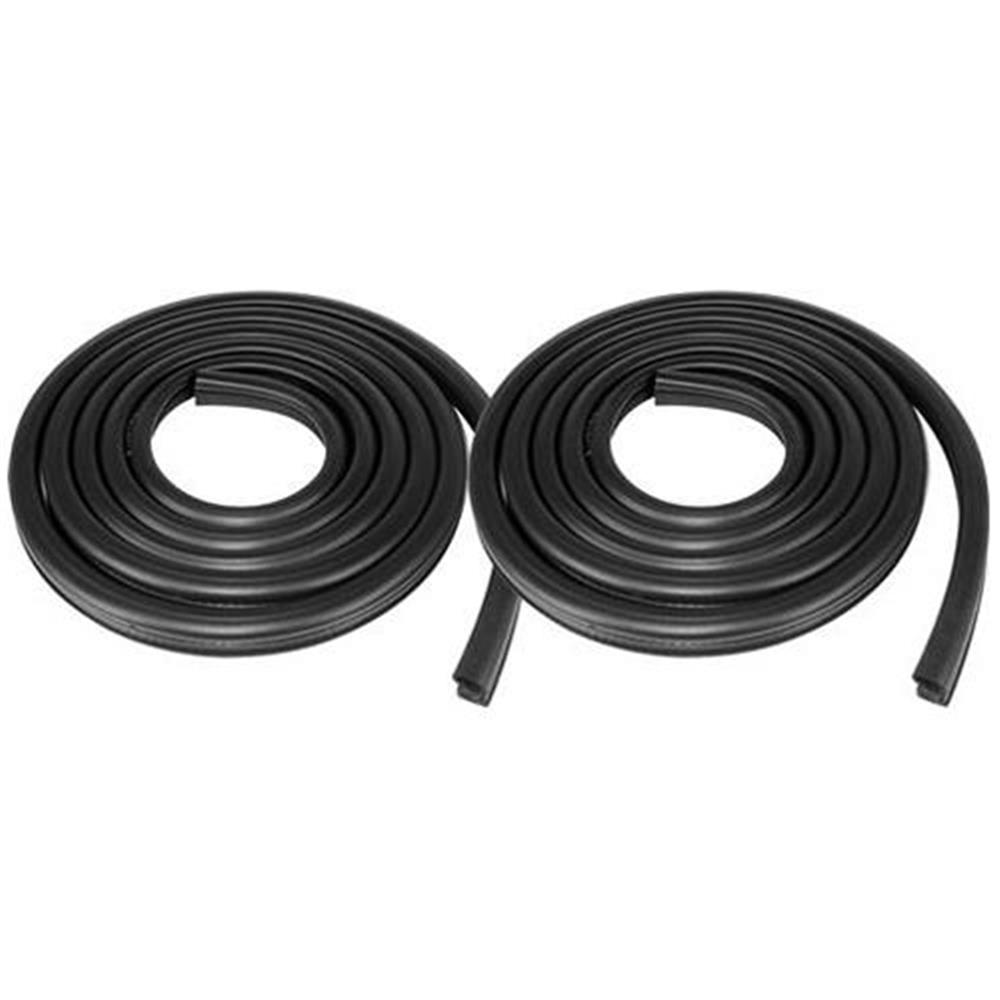

SVT Lightning Door to Body Weatherstrip
The door to body weatherstrip is the most commonly worn out piece of weatherstrip on your SVT Lightning. When this piece is worn out, wind and moisture can enter the truck. These 1993-1995 Ford F-150 Lightning door to body weatherstrip seals fit both driver & passenger side. The door to body weatherstrip runs around the frame of your door in a complete cycle and each end touches the other. They are trim to fit and simply install over the factory pinch weld so no adhesive is needed.
Installation Note
In the corners, try not to stretch out the weatherstrip. If you are getting a kink, pull the weatherstrip back off and try to compress it into the bend. Sometimes lightly heating the weatherstrip with a hair dryer helps ease this situation.
1993-1995 F-150 SVT Lightning Door to Body Weatherstrip - Install & Review
1993-1995 F-150 SVT Lightning Door to Body Weatherstrip - Install & Review
Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!
Published on 2018-05-24 SVT Lightning Door to Body Weatherstrip. The door to body weatherstrip is the most commonly worn out piece of weatherstrip on your SVT Lightning. When this piece is worn out, wind and moisture can enter the truck. These 1993-1995 Ford F-150 Lightning door to body weatherstrip seals fit both driver & passenger side. The door to body weatherstrip runs around the frame of your door in a complete cycle and each end touches the other. They are trim to fit and simply install over the factory pinch weld so no adhesive is needed.
Installation Note: - In the corners, try not to stretch out the weatherstrip. If you are getting a kink, pull the weatherstrip back off and try to compress it into the bend. Sometimes lightly heating the weatherstrip with a hair dryer helps ease this situation.
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
Wheel Width
Wheel Backspacing
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Pattern
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
Wheel Offset
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Centerbore
The centerbore of the wheel is the opening in the middle of the wheel, surrounded by the lug holes. This opening helps to center the wheel to the hub. Its diameter is typically measured in millimeters (mm) and varies in size depending on vehicle application. Manufacturers approve up to a 1% variance in tolerance to pass wheels during inspection.
