1986-97 Mustang SVE -6AN High Performance Fuel Pump Hanger Assembly by SVE Special Vehicle Equipment ®

Price: 149.99 USD
Availability: InStock

1986-97 Mustang SVE -6AN High Performance Fuel Pump Hanger Assembly

SVE Performance -6AN High Performance Fuel Pump Hanger Assembly

Upgrade the fuel hanger assembly and increase the fuel flow capabilities in your 1986-1997 Mustang using this -6AN high-performance fuel pump hanger from SVE!

Item #SVE-9407AHP-K

Everyday Low Price: $149.99

In Stock Ships tomorrow!

This item is returnable. Details

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Redesigned Fitting Locations
Increased Fuel Flow Capabilities
Fits Factory Location

Features

-6AN Feed & Return Fittings
Upgraded 3/8" Feed & Return Lines
Upgraded 12 Gauge Wiring to Pump
Ethanol Resistant Supply Hose

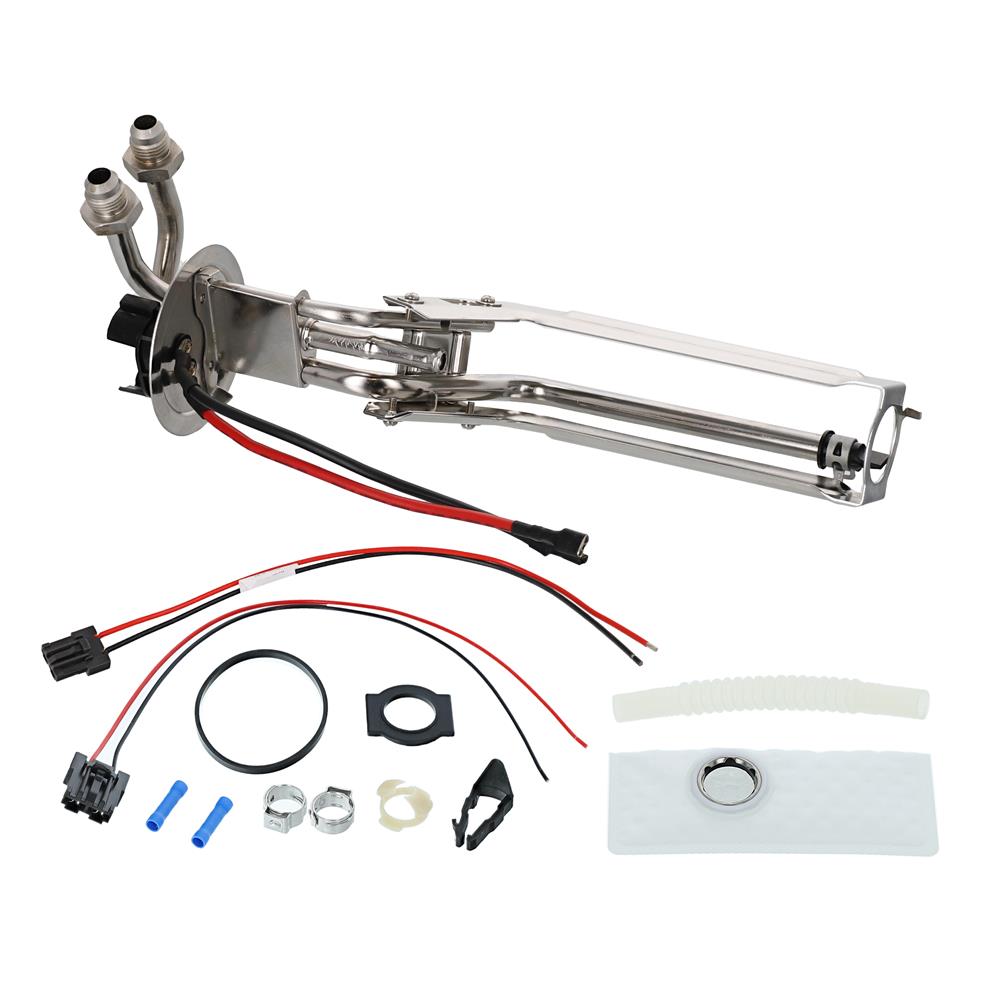

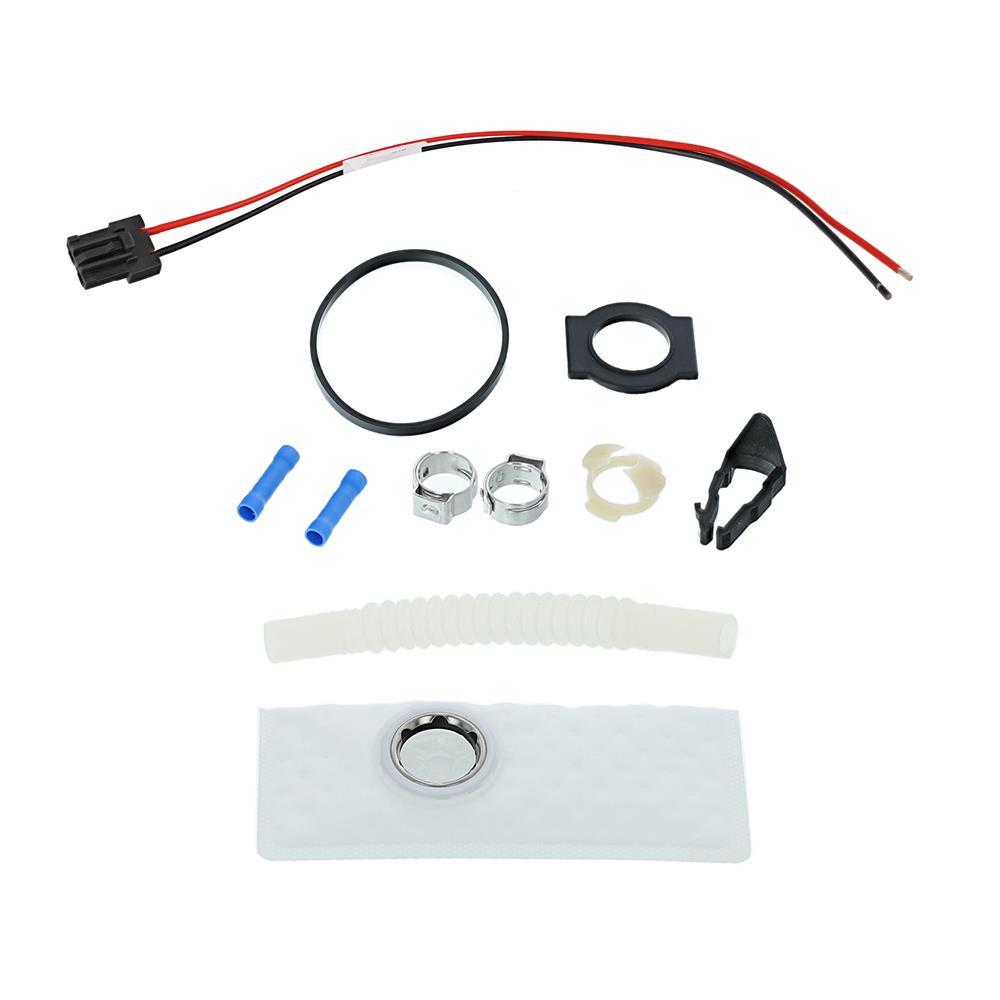

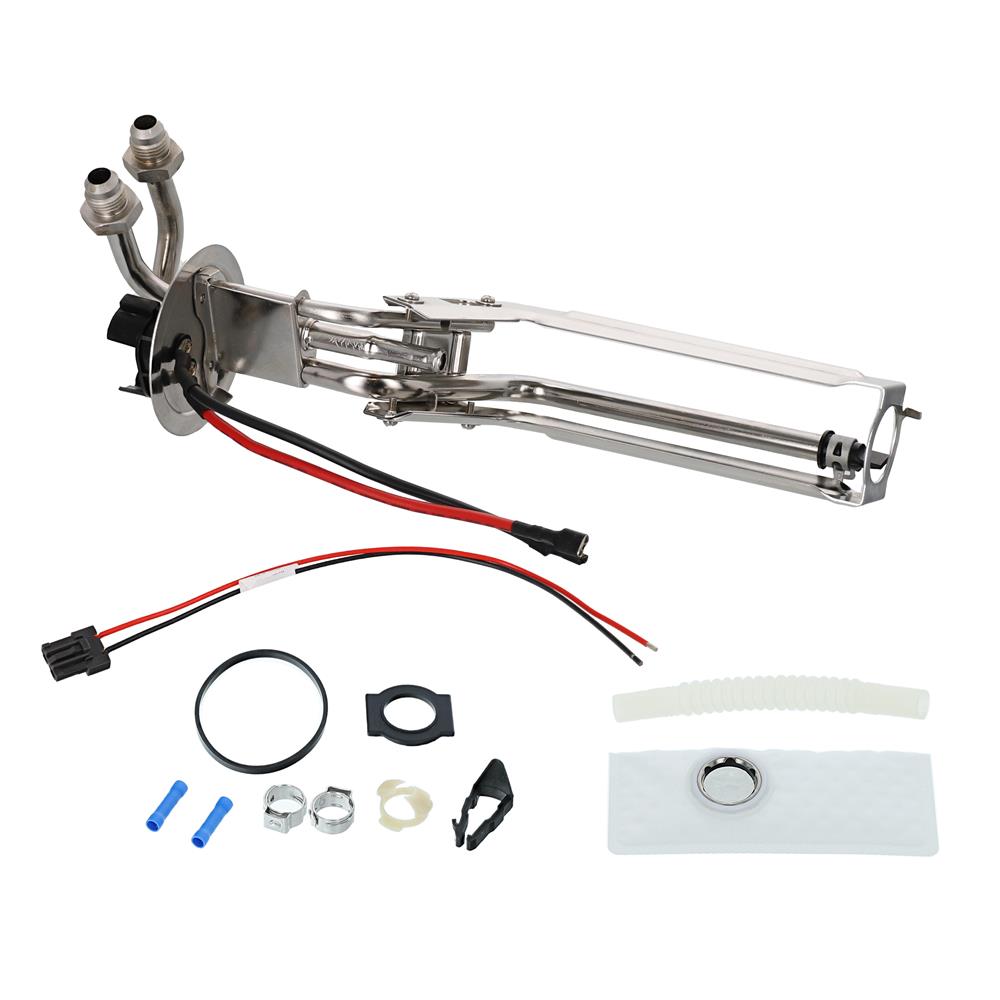

What's in the Box

(1) -6AN Fuel Pump Hanger

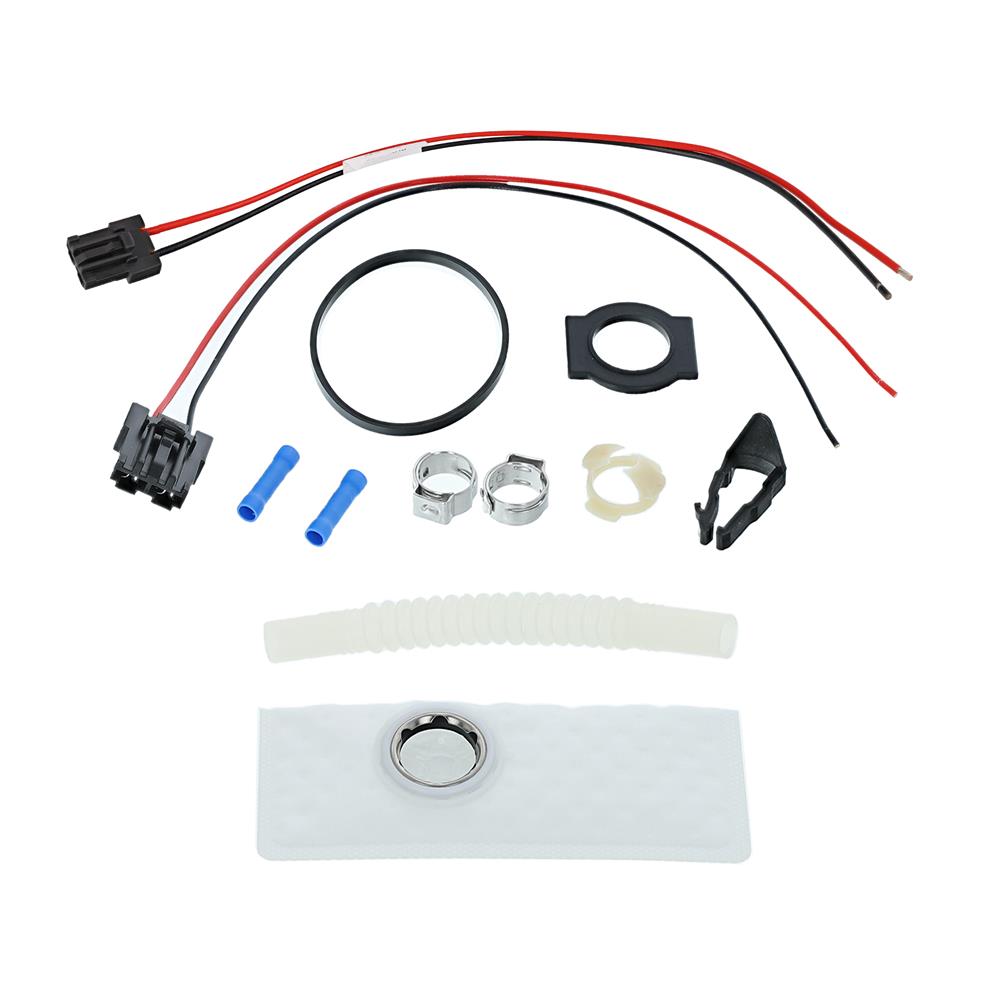

(1) 12ga Extension/Jumper Harness

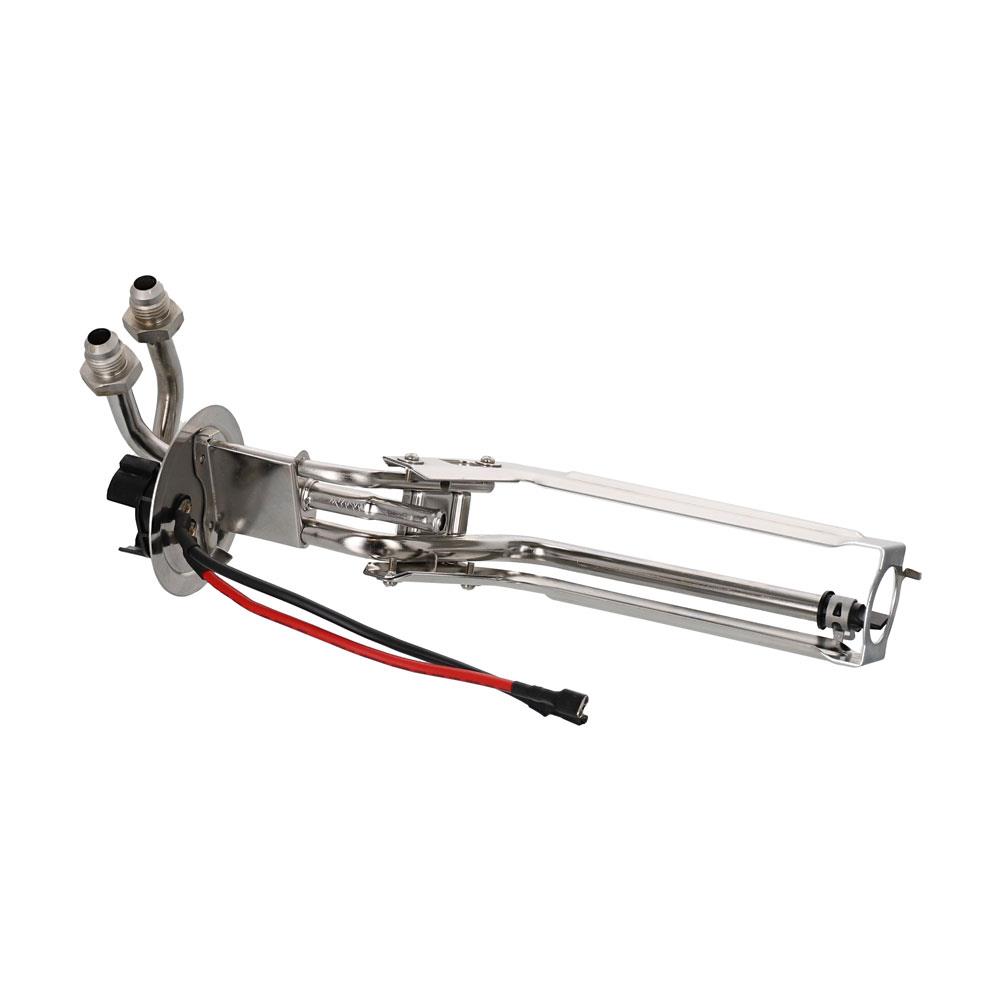

SVE -6AN Fuel Pump Hanger Assembly
Upgrade the fuel system in your 1986-1997 Mustang with this High Performance -6AN fuel pump hanger assembly from Special Vehicle Equipment®. When upgrading the engine in your Mustang, it's easy to meet the limitations of the factory Pump hanger and lines. Upgrading to a -6AN line will give you the additional fuel flow needed for your high performance engine.

Equipped with stainless steel -6AN fittings, this fuel pump hanger is the foundation you need, allowing for a larger volume of fuel to be supplied to your engine. SVE has also relocated the feed and return ports on this hanger to allow for an improved hose layout, which lets you run the lines cleanly outside the tank and provides more room to make your connections under the car. This hanger assembly features upgraded 3/8" feed and return lines, helping to reduce any restrictions found with a factory fuel system. With function in mind, SVE designed this hanger to include an extended return line running further down toward the pump pickup, helping minimize aeration of the fuel during the return process. The fuel supply hose has also been upgraded to an ethanol-compatible 3/8" Flex line to prevent any rubber hose failures caused by the use of modern day fuels. Finally, SVE upgraded the pump power supply wires to a larger 12-gauge wire in order to handle the demands of modern high volume fuel pumps.

Why Buy an SVE Fuel Pump Hanger?

Designed With Performance In Mind - This SVE -6AN Fuel Pump Hanger was designed to offer a simple solution to the installation of your upgraded return style fuel system. SVE has updated all aspects of the hanger to support a larger pump while improving the location of the feed and return ports to allow for better routing of stainless steel braided hoses.
Minimized Fuel Aeration - SVE has extended the return port closer to the pump pick up to help reduce and minimize fuel aeration commonly found in traditional fuel systems.
Upgraded Components - SVE offers this fuel pump hanger assembly with upgraded 12-gauge wiring for a better power delivery to your fuel pump, along with an ethanol-compatible supply hose to prevent common failures associated with rubber hoses.

Product Note

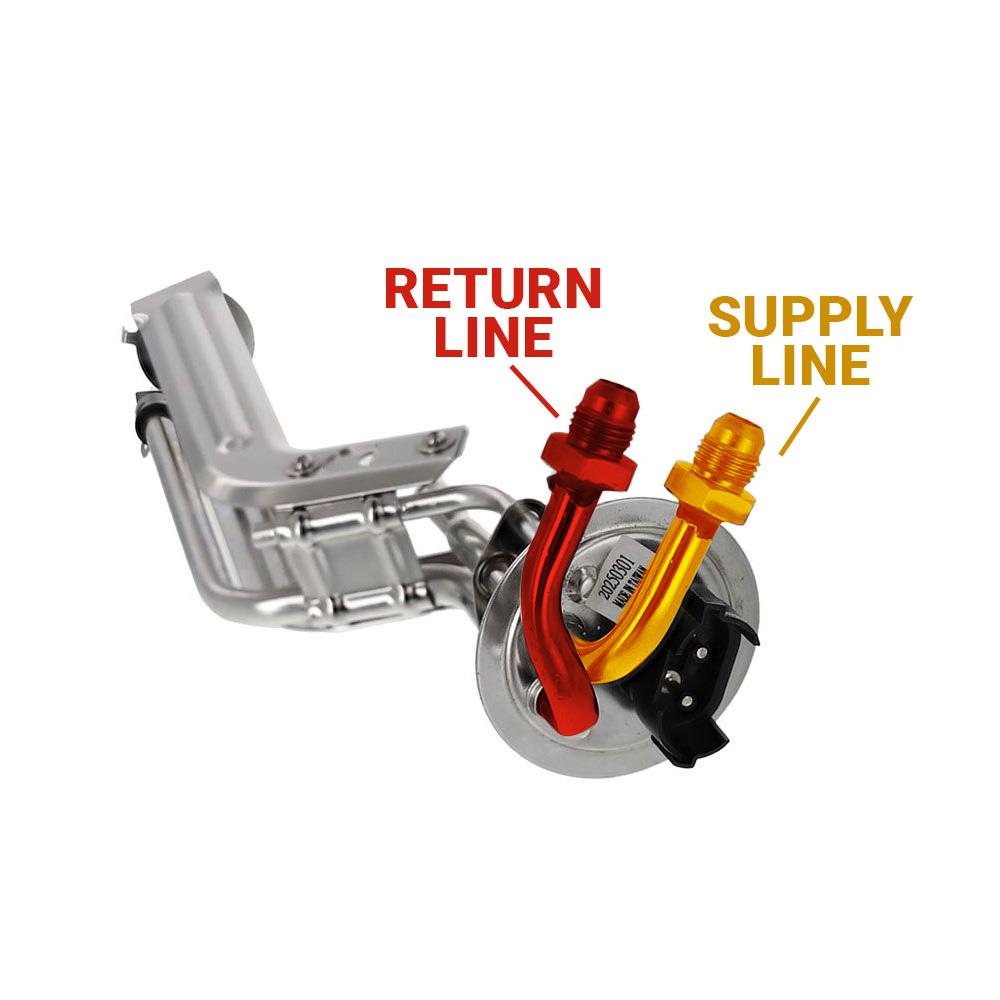

The fitting closer to the connector (more towards the center) is the Supply line, and the one farther away (toward the outer edge) is the Return line.

SVE Products Limited Warranty - Click Here

Ford Mustang - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997

Fitment Notice

Since the factory connector and wiring harness are reused with this hanger, any fuel pump larger than 255 lph is not recommended due to the increased amp draw of larger pumps. An Aeromotive Premium Heavy Duty Fuel Pump Wiring Kit or equivalent is recommended for pumps with a flow rate greater than 255 lph.
If using an aftermarket pump with a body length different from the stock length, the power wiring may need to be extended to ensure proper fitment.

SVE Performance -6AN High Performance Fuel Pump Hanger Assembly

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

California Residents:

WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

About This Brand

SVE Special Vehicle Equipment is a brand focused on providing superior performance and restoration parts for 1979-present Mustang and Ford Lightning trucks. From kits to swap solutions, SVE fuels the enthusiast lifestyle with problem-solving solutions that provide performance with a purpose. Comprised of the highest quality materials, all SVE products display the thorough research and meticulous attention to detail that went into the development of that part. Rest assured that when you purchase an SVE part, you will know you are purchasing a quality solution that will save you time and money.
