2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0 by Whipple Superchargers


2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0
2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0
2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0
2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0
2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0
2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0
2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0
2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0
2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0
2024 Mustang Whipple Gen 6 Supercharger Kit - Stage 2 5.0

Crank out over 855 HP on your S650 coyote-powered 2024 Mustang 5.0 with this Whipple Gen 6 stage 2 supercharger kit!

Item #WHP-2640S230
MPN# WK-2640-S2-30

Everyday Low Price: $9,995.99

Ships from Supplier!
Ships in 42-70 business days
This item is not eligible for discounts or coupon codes.
 This item is returnable. Details

Free Shipping over $99

 Add to Cart

This product cannot be sold or shipped to the state of California. More Details
× close

  • Ford Mustang - 2024
  • Engines: 5.0
Fitment Notice
  • Fits 2024 Mustang 5.0 and Dark Horse Models, both automatic and manual applications.
  • OPERATING THE ENGINE WITHOUT THE PROPER CALIBRATION WILL RESULT IN ENGINE DAMAGE OR FAILURE AND WILL VOID THE WARRANTY!
  • NOT Emissions Legal.
Made in the USA

 Benefits

  • 6th Gen 3.0L Twin-Screw Supercharger
  • Up To 855HP On 93-octane Fuel
  • Fits Under Factory Hood
  • Improved Rotor & Port Design
  • Plug & Play Wiring

 Features

  • Air-To-Water Dual Pass Intercooler
  • High Flow Intercooler Pump
  • Bosch 55lb/hr Fuel Injectors
  • 112mm Billet Throttle Body
  • Billet Fuel Rails

 What's in the Box

  • (1) Stage 2 Supercharger Kit

Whipple Gen 6 Supercharger Kit - Stage 2 - 5.0

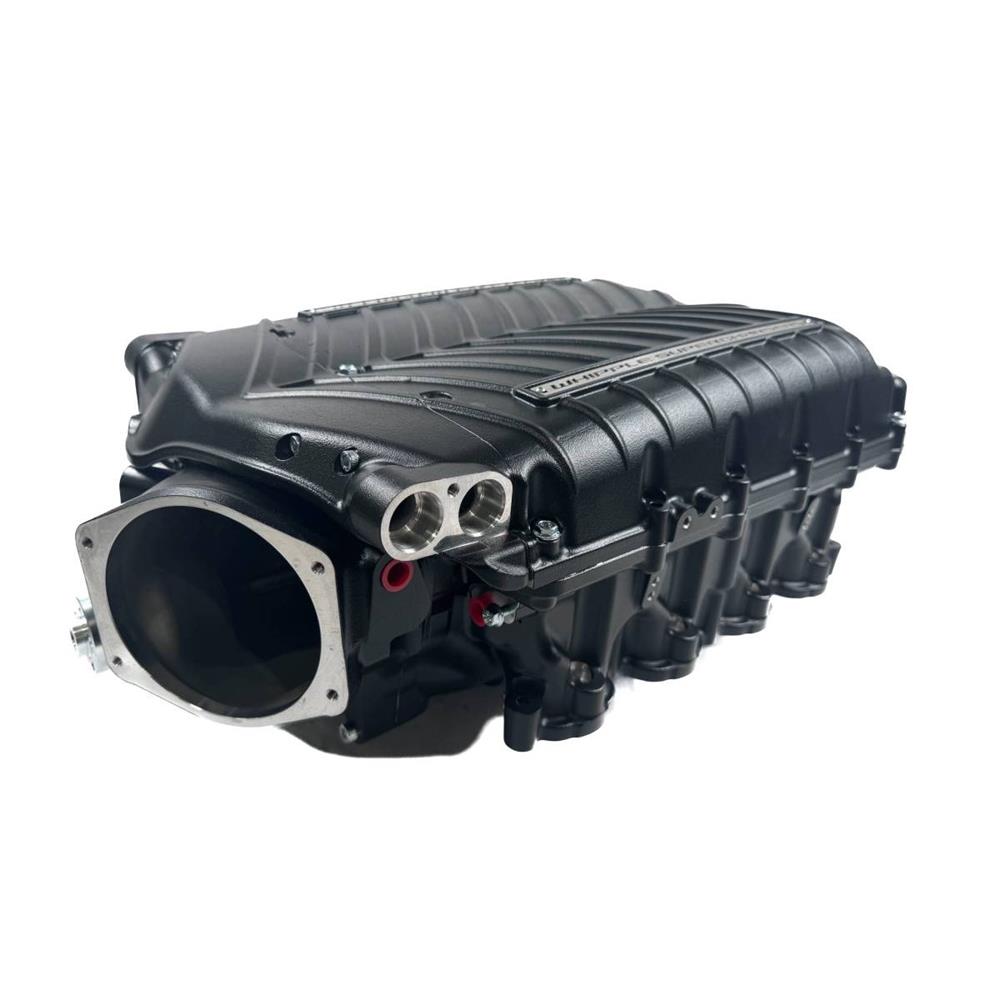

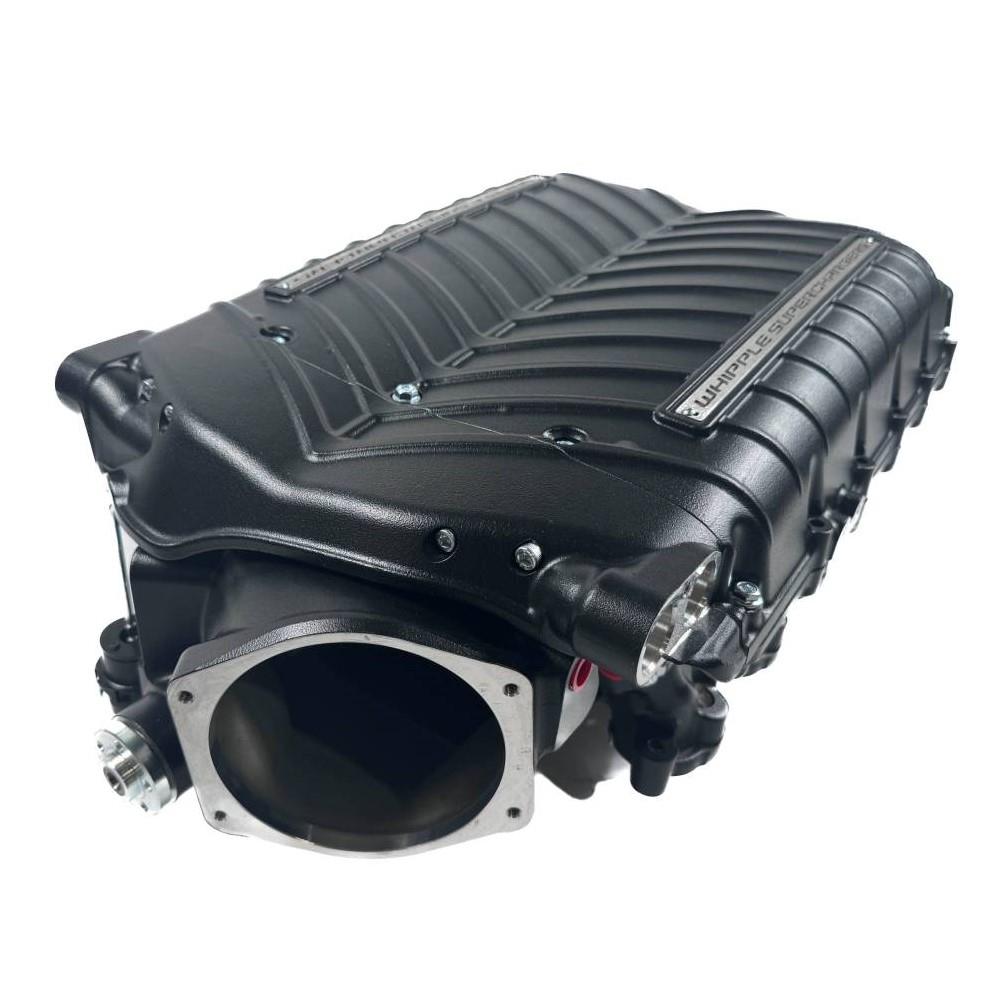

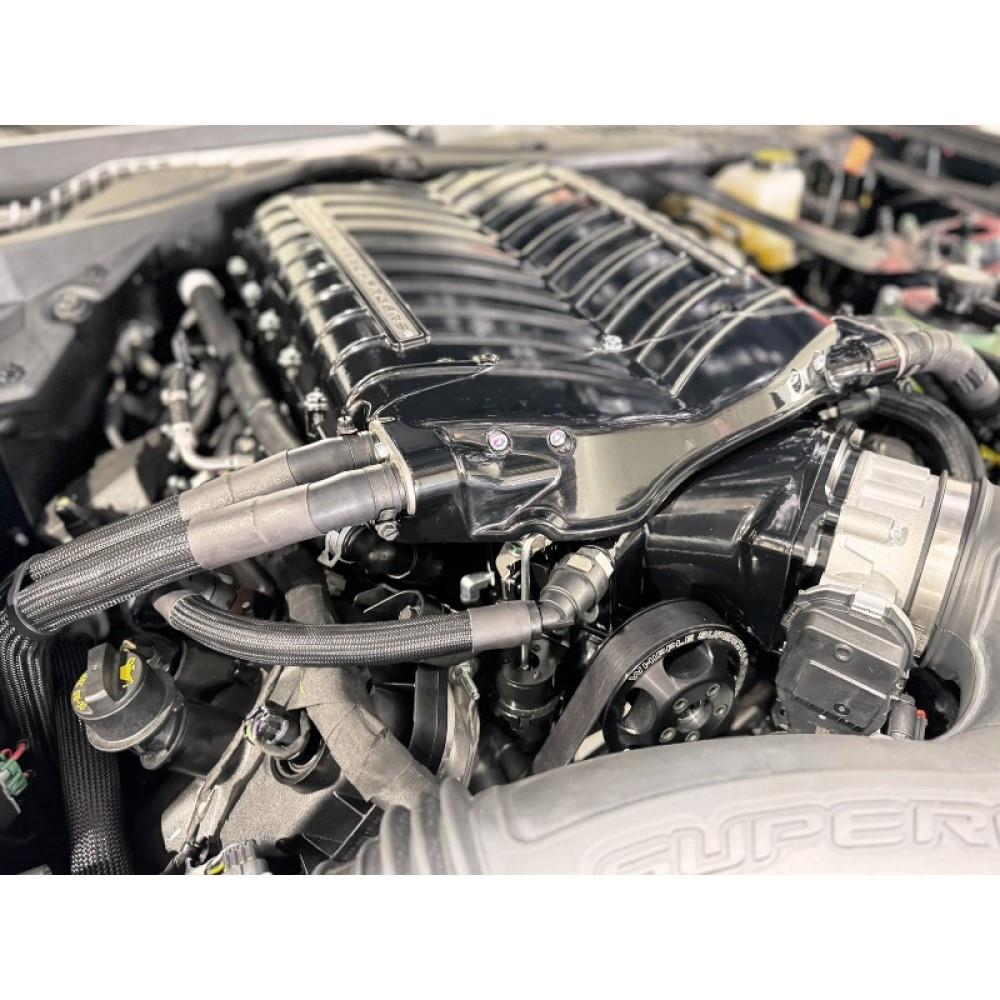

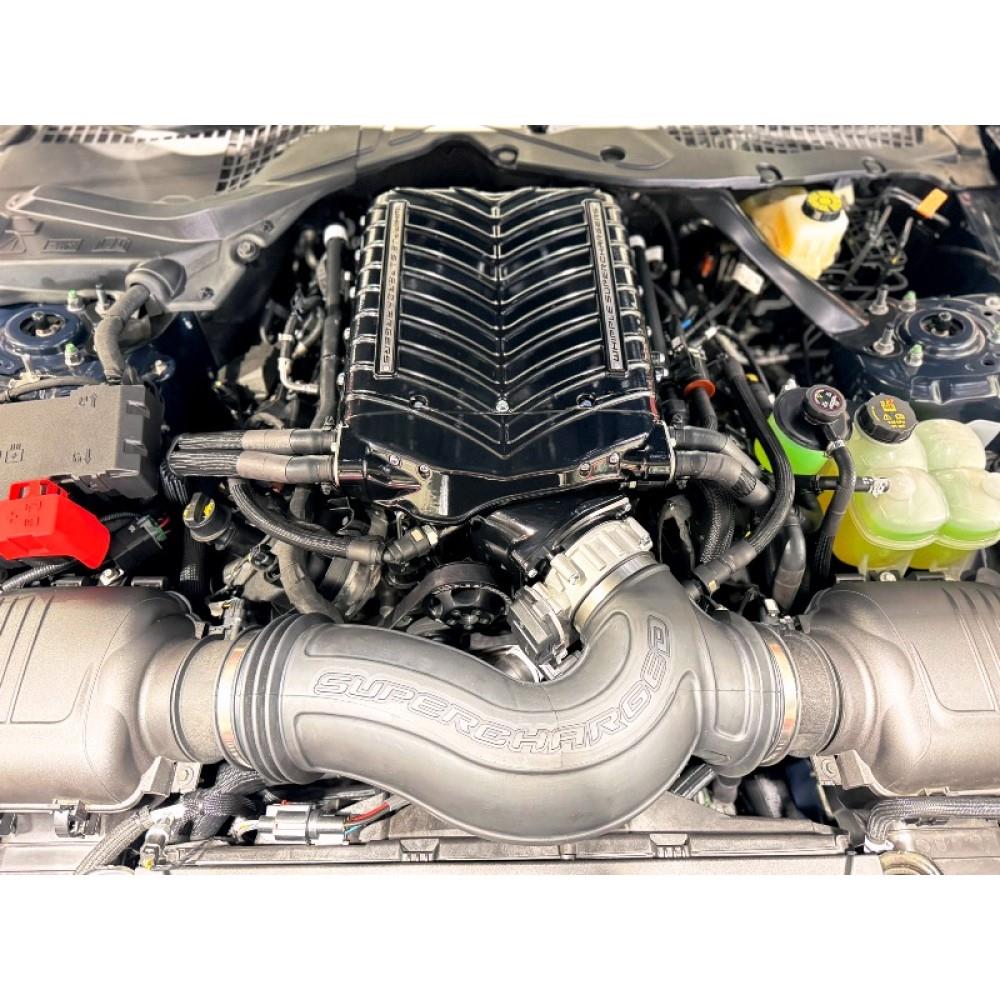

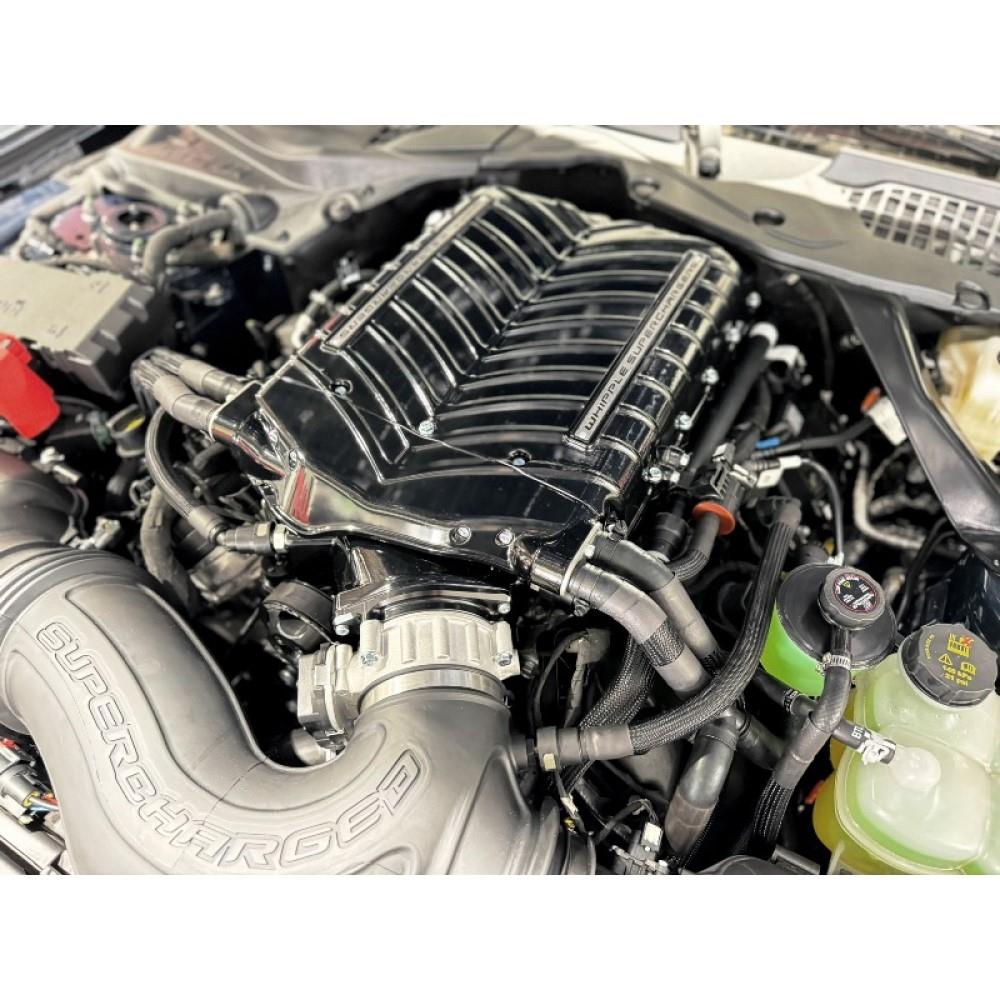

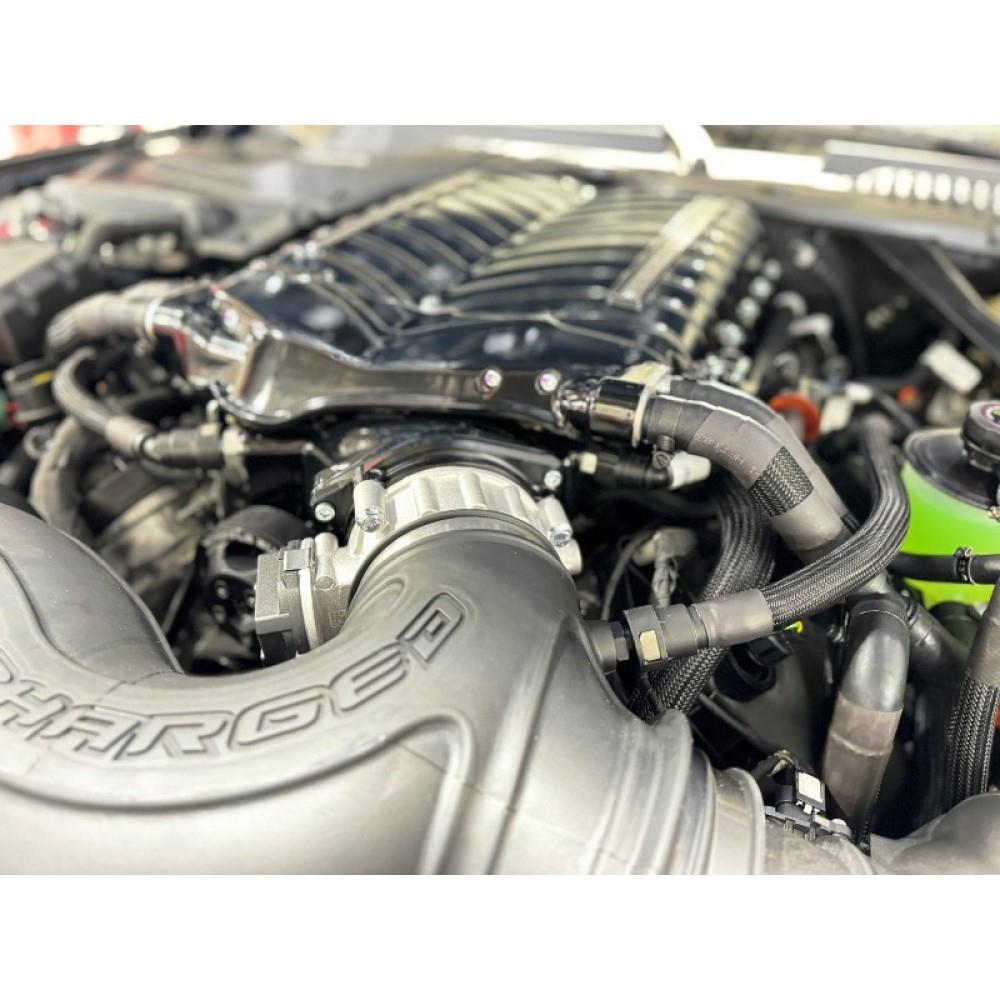

Add one of the most advanced supercharger systems on the market to your 2024 Mustang 5.0 with this Gen 6 Whipple stage 2 supercharger kit! Whipple's new 6th generation 3.0 liter supercharger features an all-new rotor profile, inverted front feed rotor housing, and dual-core dual-pass intercooler system that can unleash up to 855hp on your S650 Coyote engine! Whipple's unique twin screw supercharger, massive air-to-water intercooler, oversized front feed air system, and innovative PCM programming keeps the power-train safe and secure at these power levels. No internal modifications or grinding of the engine block are required for installation. Plug-and-play wiring harness and flash tool help speed up installation and programming. Whipples PCM calibration using their Tomahawk v.2 flash tool reconfigures all the necessary engine functions, including fuel, spark, knock detection, torque management, transmission control, and electronic throttle control. Whipple's supercharger kit comes complete with all the necessary parts and hardware for installation.

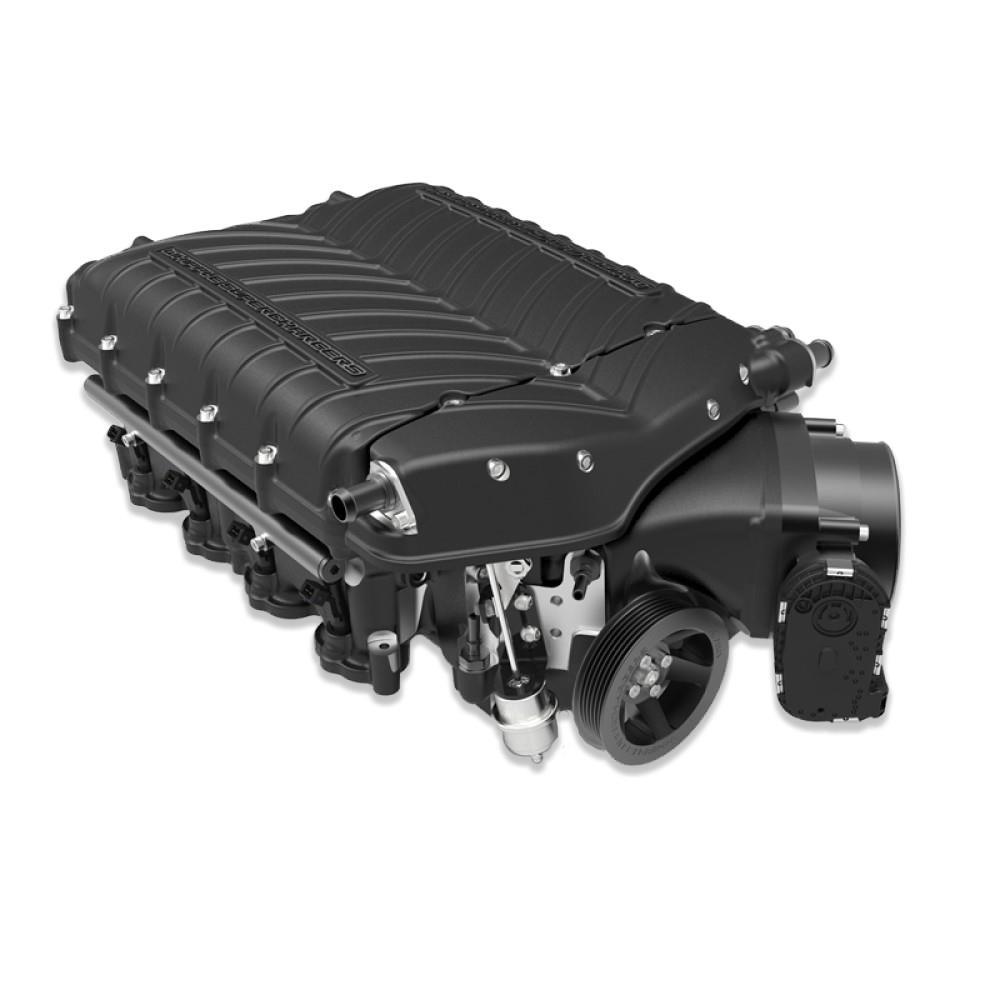

Gen 6 Supercharger - Stage 2

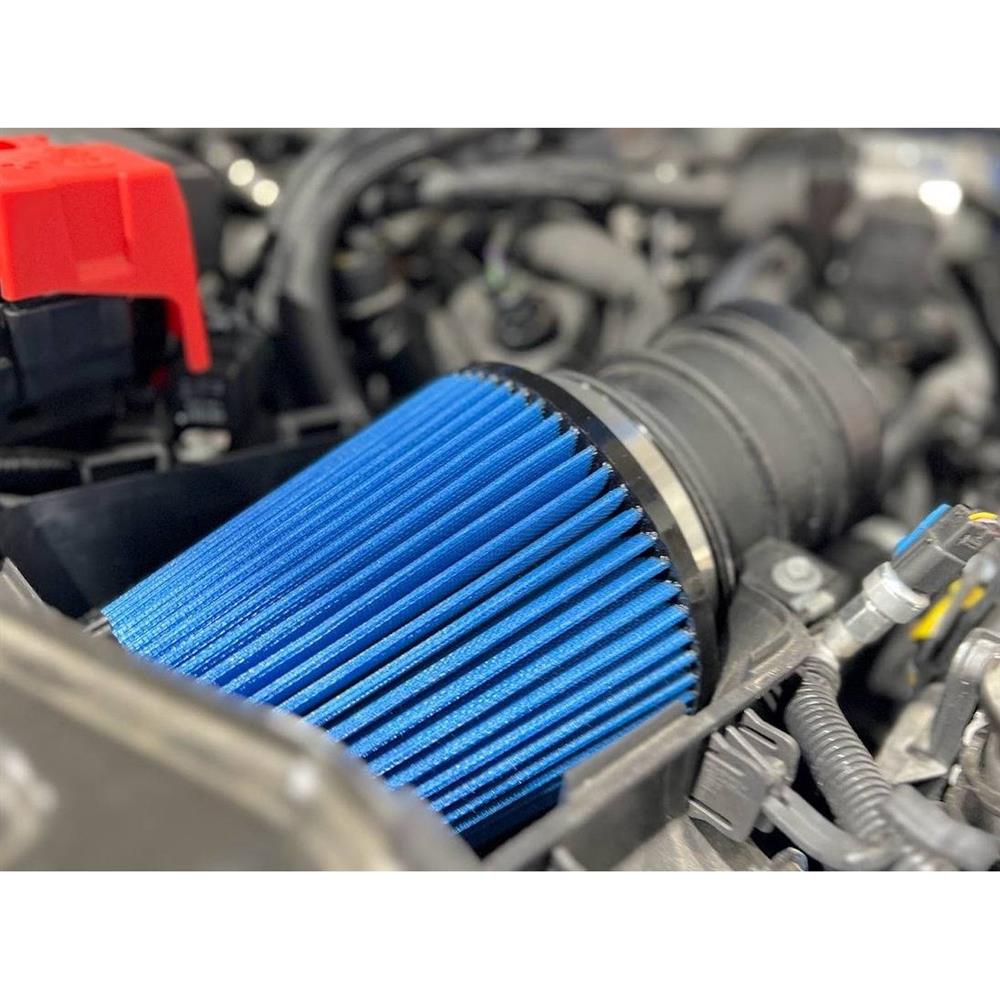

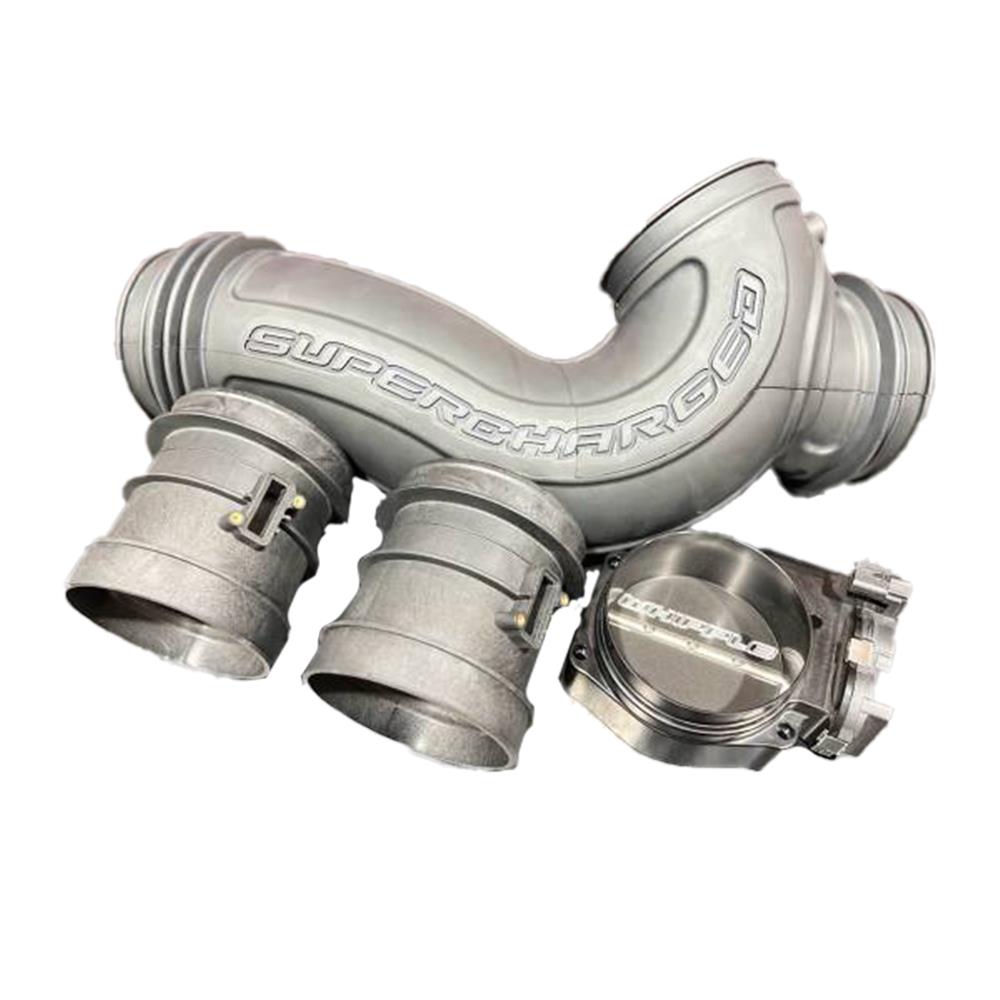

The Stage 2 system makes that much power on only standard boost on 93-octane fuel, giving you more power per lb of boost than any other system. The Gen 6 3.0 liter supercharger makes incredible power across the entire RPM range while maintaining industry-leading drivability. Utilizing a superior front feed inlet style for a very simple, less restrictive, and more room for the air-to-water intercooler. Featuring a state-of-the-art air intake system that includes two high-performance air filters and a massive Y intake setup, allowing for unparalleled free flow of air into the supercharger Exclusive 3x4 rotor combo for a significant increase in airflow under the curve than less efficient rotor combos. Self-contained oversized oil system for dramatically reduced oil temps in even the most demanding conditions. The Stage 2 kit has a few upgrades; one is a 112mm billet throttle body to allow even more airflow to the supercharger and an improved calibration. A proven 6-rib belt system with a heavy-duty spring-loaded tensioner and adjustable idler system.

Heat Exchanger & Intercooler
The patented dual-core, dual-pass air-to-water aluminum bar-plate intercooler offers more cooling efficiency. A large heat exchanger has nearly 150% more volume than the competition, and the nearly 2-gallon reservoir holds more fluid for less heat soak. High flow intercooler pump, nearly double the flow rate of the standard units. All of this combines together, allowing longer, more consistent power without heat soaking the supercharger.

Fuel System
High-flowing Bosch 55lb fuel injectors offer an excellent idle, cold start, and drivability, yet enough capacity for massive power gains. Each system comes with Billet fuel rails that feature 6AN fittings along with a 1/8" NPT port for fuel psi checking or gauges. The fuel rails are finished in a stealthy black hard anodized finish for superior durability and great looks. Another benefit of this system is that no other fuel system modifications are required.


Whipple Superchargers Warranty - Click Here


California Residents:
Prop 65 Warning SignWARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

About This Brand


Whipple Superchargers
With Whipple Superchargers extensive knowledge, technology and years of experience, Whipple developed a supercharger lineup that features all of the latest technology in rotor profile, housing, rotor coating and bearing design to once again, revolutionize the twin-screw supercharger market. As the pioneer of the screw compressor market, Whipple’s dedication to innovative thinking, hard work, attention to detail and outstanding product performance has led to a better, American made product for the performance industry. Bolt on serious horsepower and torque to your Mustang or Lightning with a Whipple Supercharger. These blowers can increase the performance of your Mustang by up to 100+ horsepower. Shop our wide variety of Wipple Superchargers at LMR.com!
