1981-1988 Fox Body Mustang Convertible & T-Top Run Channel Weatherstrip Install

• 1981-86 Weatherstrip
• 1987-88 Weatherstrip
• Rivets

• 1981-86 Door Panel Removal
• 1987-93 Door Panel Removal

• Dish Soap
• Paint Stir Stick
• 3M 08581 Weatherstrip Adhesive
• 1/4" Socket or Wrench Set
• Wedge Tool

Installation Instructions

Step 1: Remove Old Weatherstrip

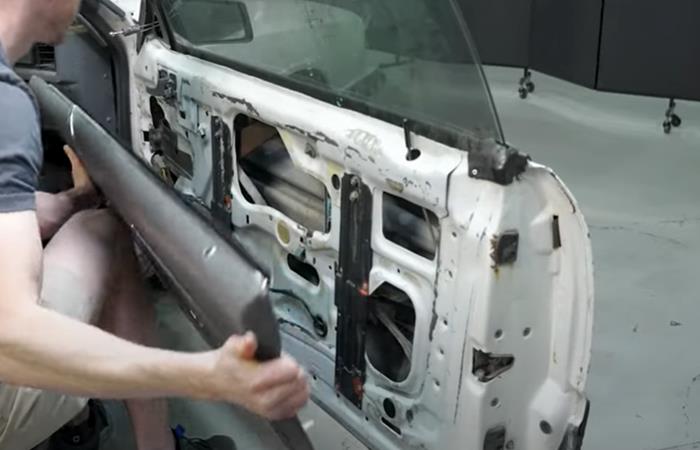

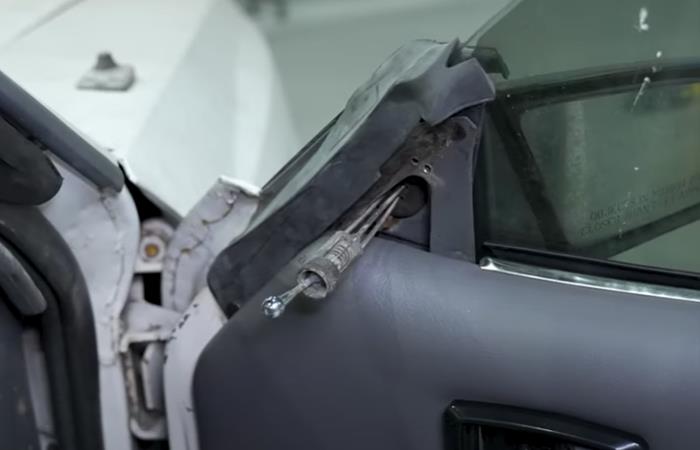

• Start by removing the door panels and mirror covers if equipped.
• Once you have access, remove any push pins or rivets securing the old weatherstrip in place.
• After those are removed, pull out and remove the weatherstrip.

Step 2: Install New Weatherstrip

• The weatherstrip is side-specific, so grab the correct side you are going to start working on.

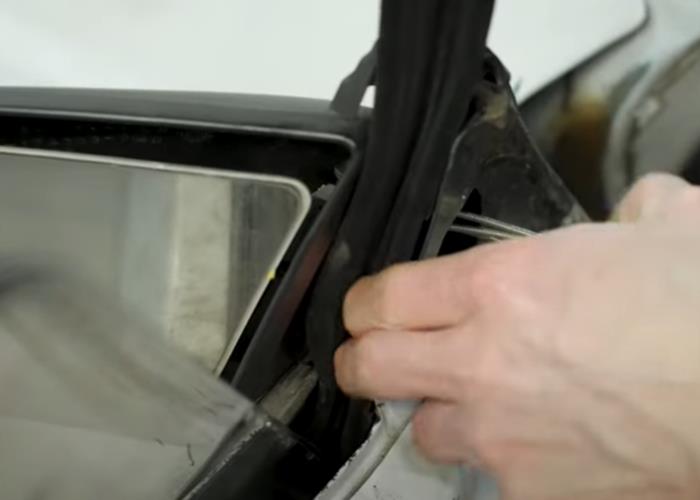

• Start at the top section of the door and feed the weatherstrip in between the glass and C channel.
• Once started, feed the weatherstrip all the way to the bottom while making sure it is seated correctly.

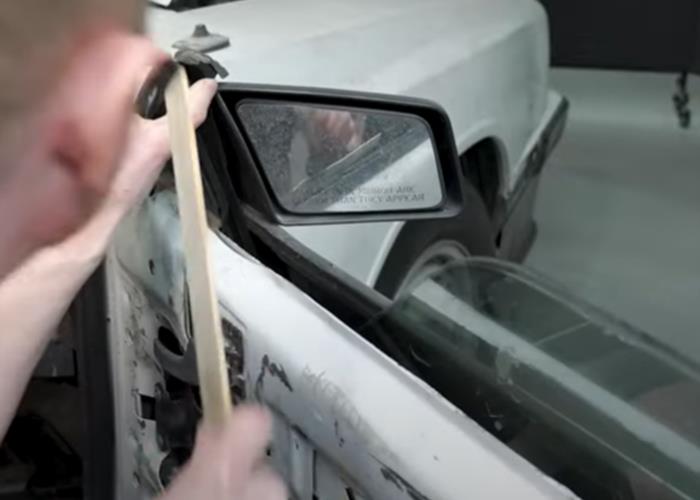

• Seat and align the top of the weatherstrip to the door frame. Use the 3M adhesive to get any sections held in place as needed.
• Align the holes of the weatherstrip with those of the door and install the rivets or push pins.
• After everything is in place, test to make sure the window can roll up and down freely.
• Reinstall the mirror covers and door panels.
• After this, you are good to go!
