1986-93 Mustang Vortech V3 Installation Instructions

Created by Tyler Rodriquez / 15 min read
Date Created: 6/24/2026
Last Updated: 6/24/2026

Follow these step by step instructions to install your Vortech V3 supercharger on your Fox Body Mustang.

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

Vortech has put together a step-by-step guide to get your Vortech V3 supercharger installed on your Fox Body Mustang.

Product: 1986-93 Mustang Vortech V-3 SCI Entry Supercharger Kit

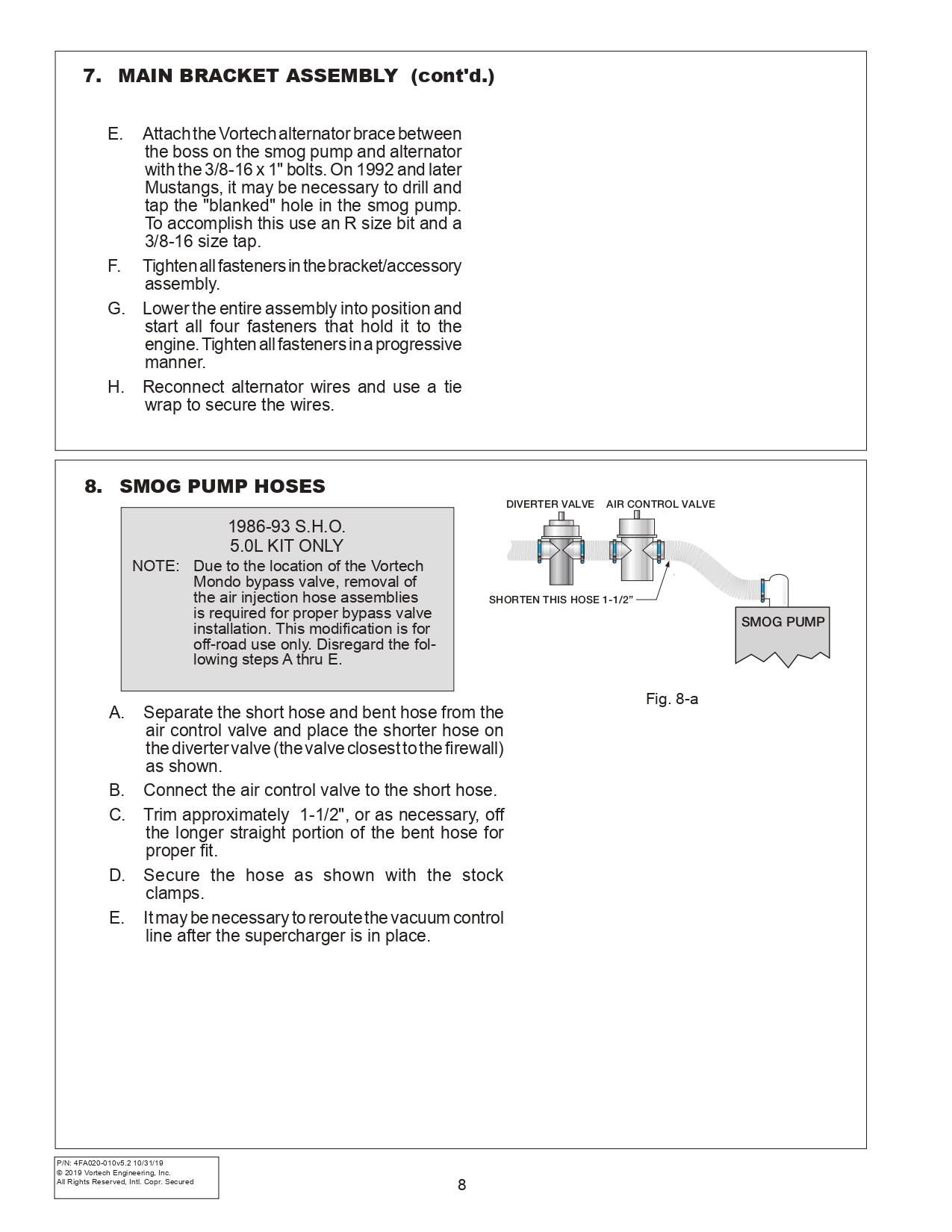

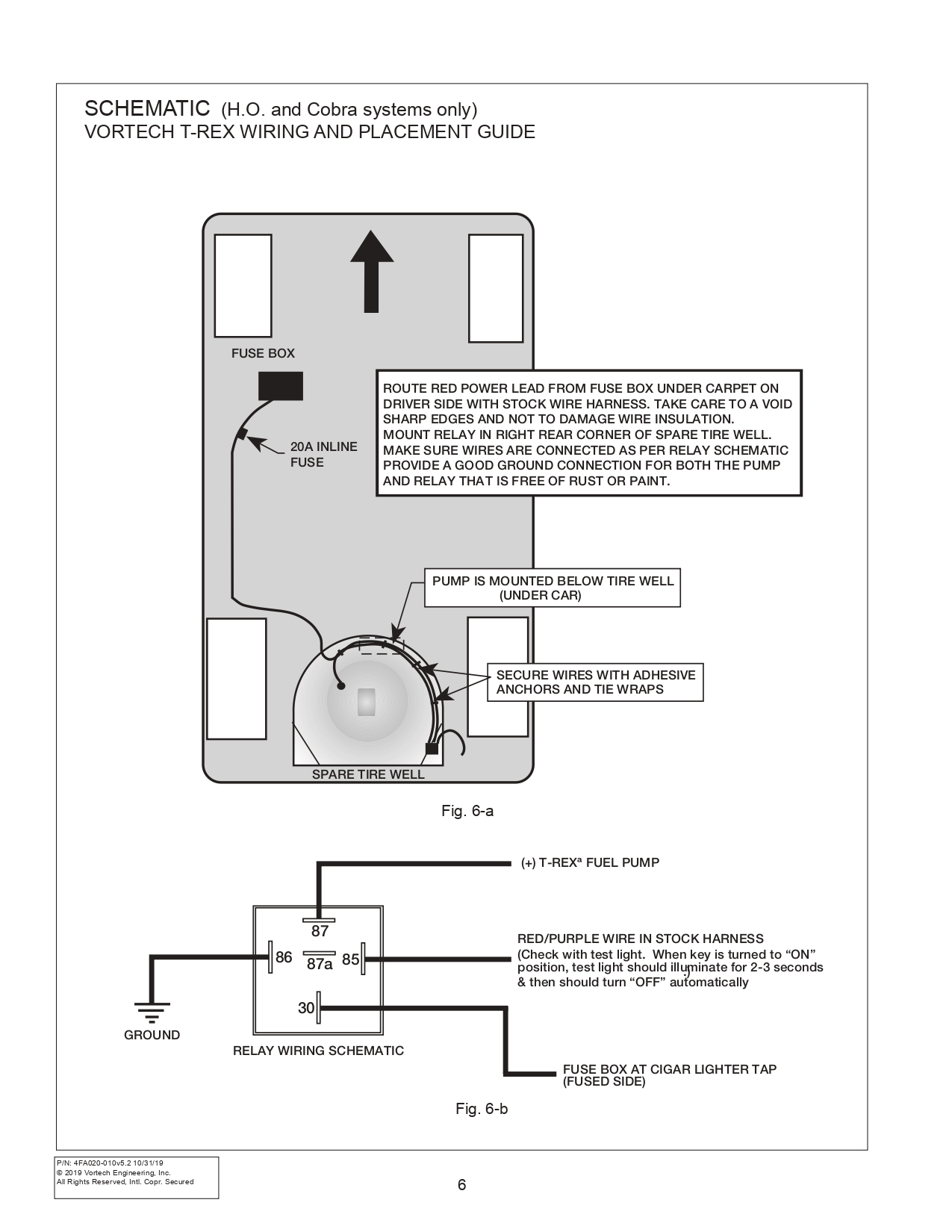

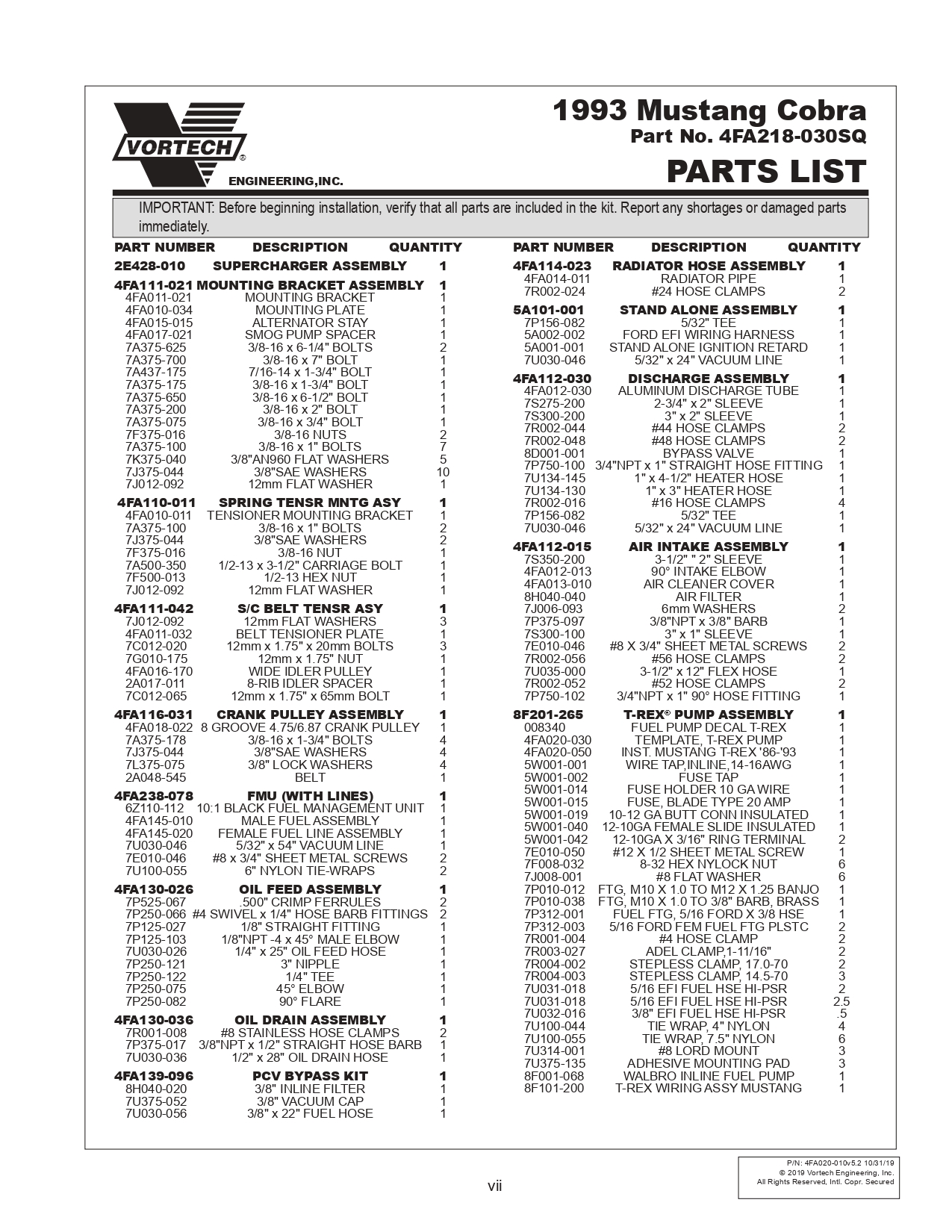

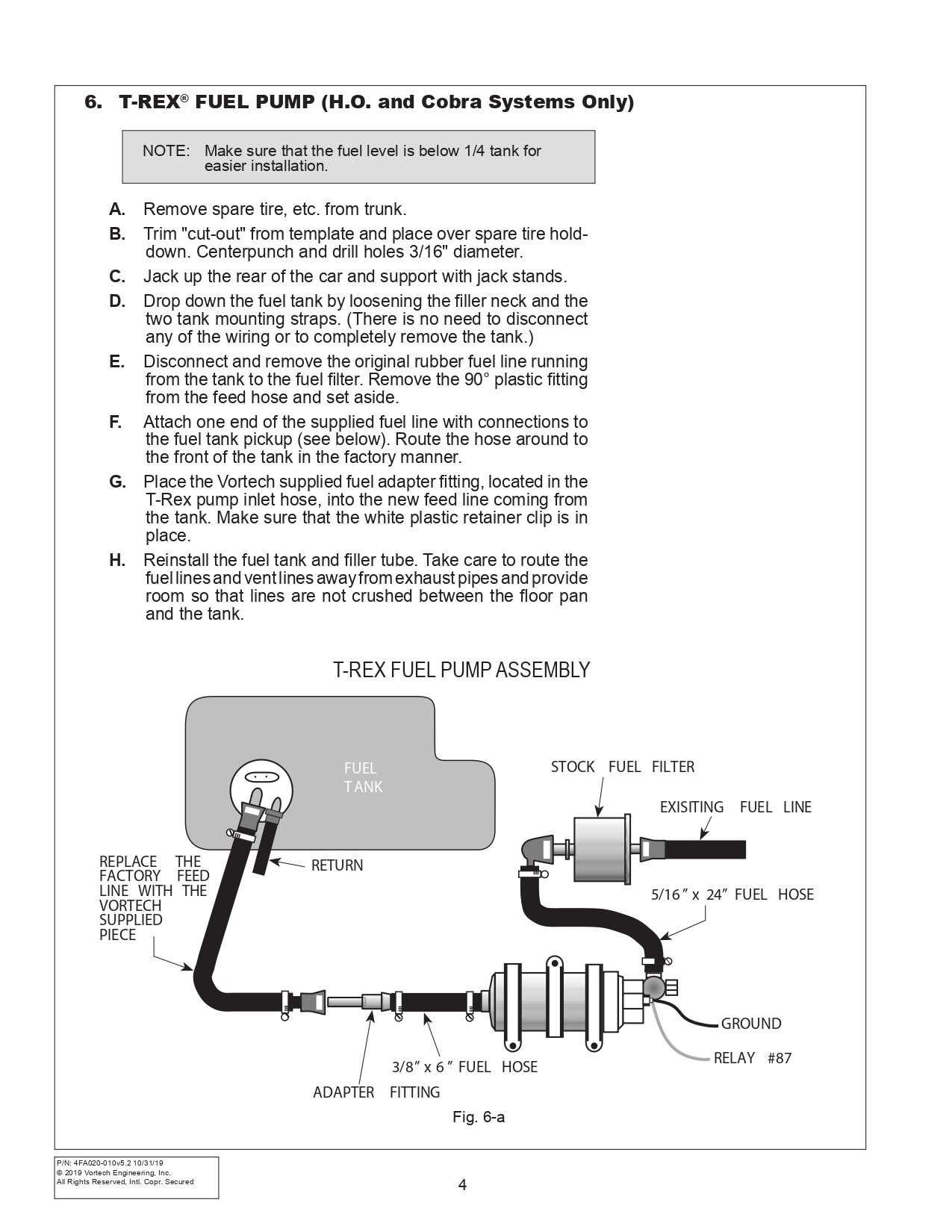

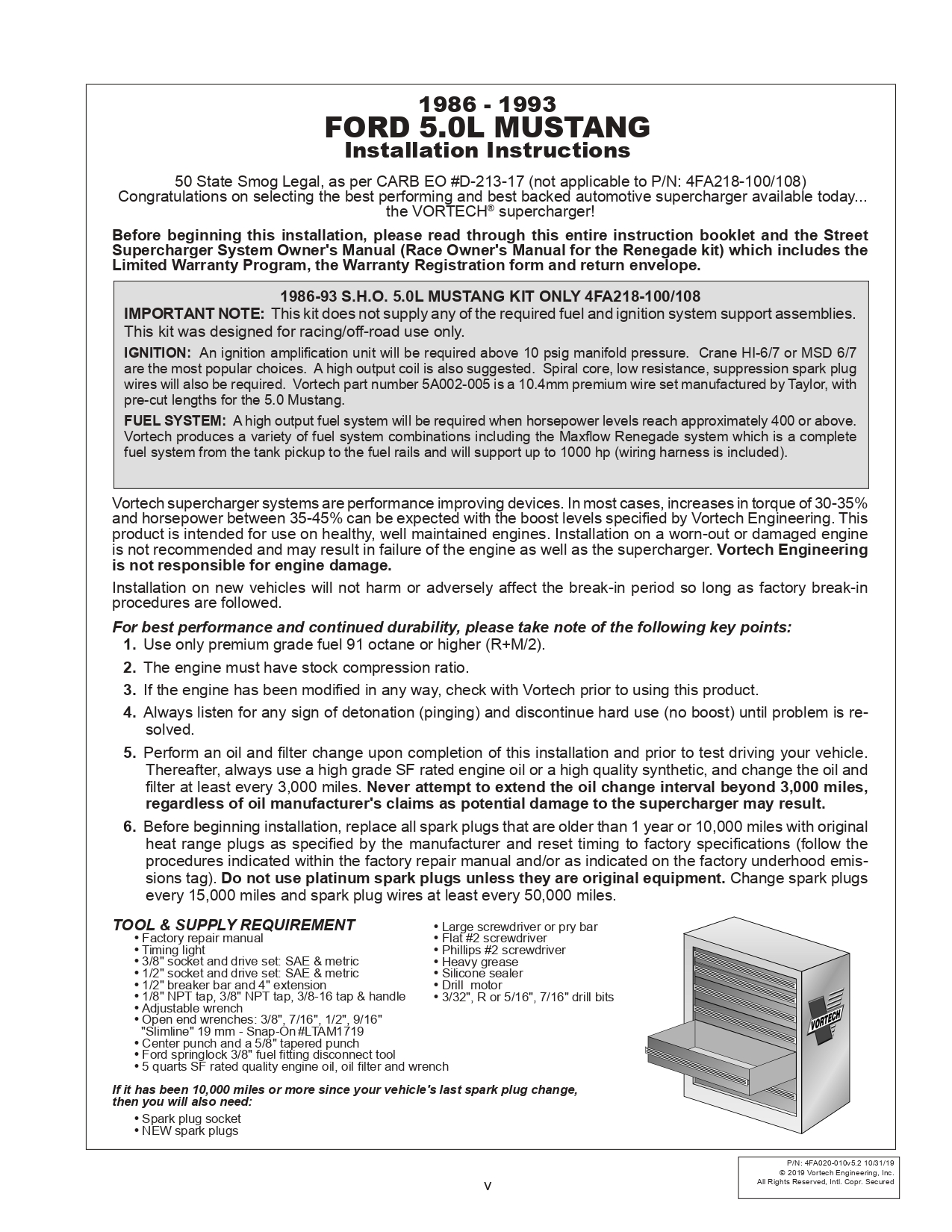

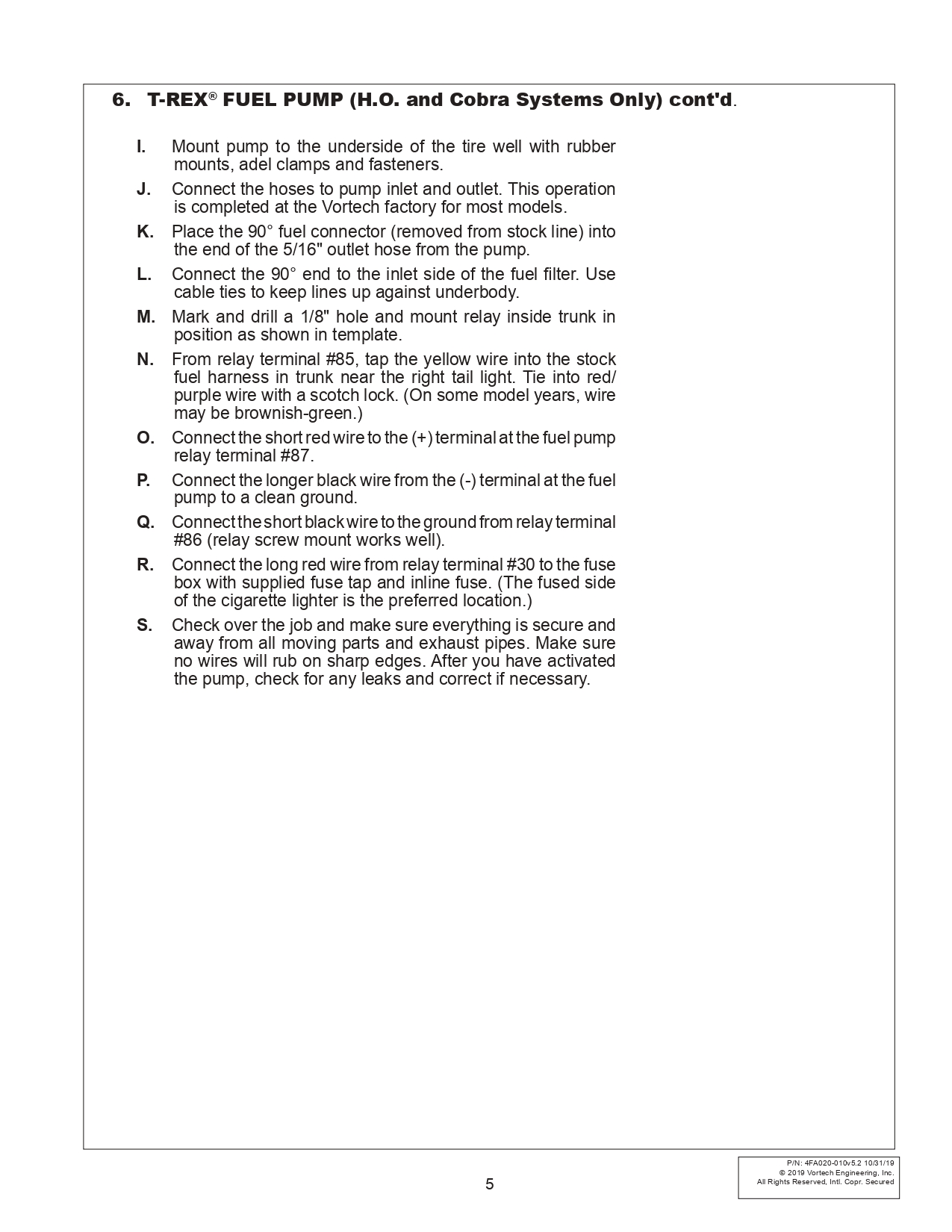

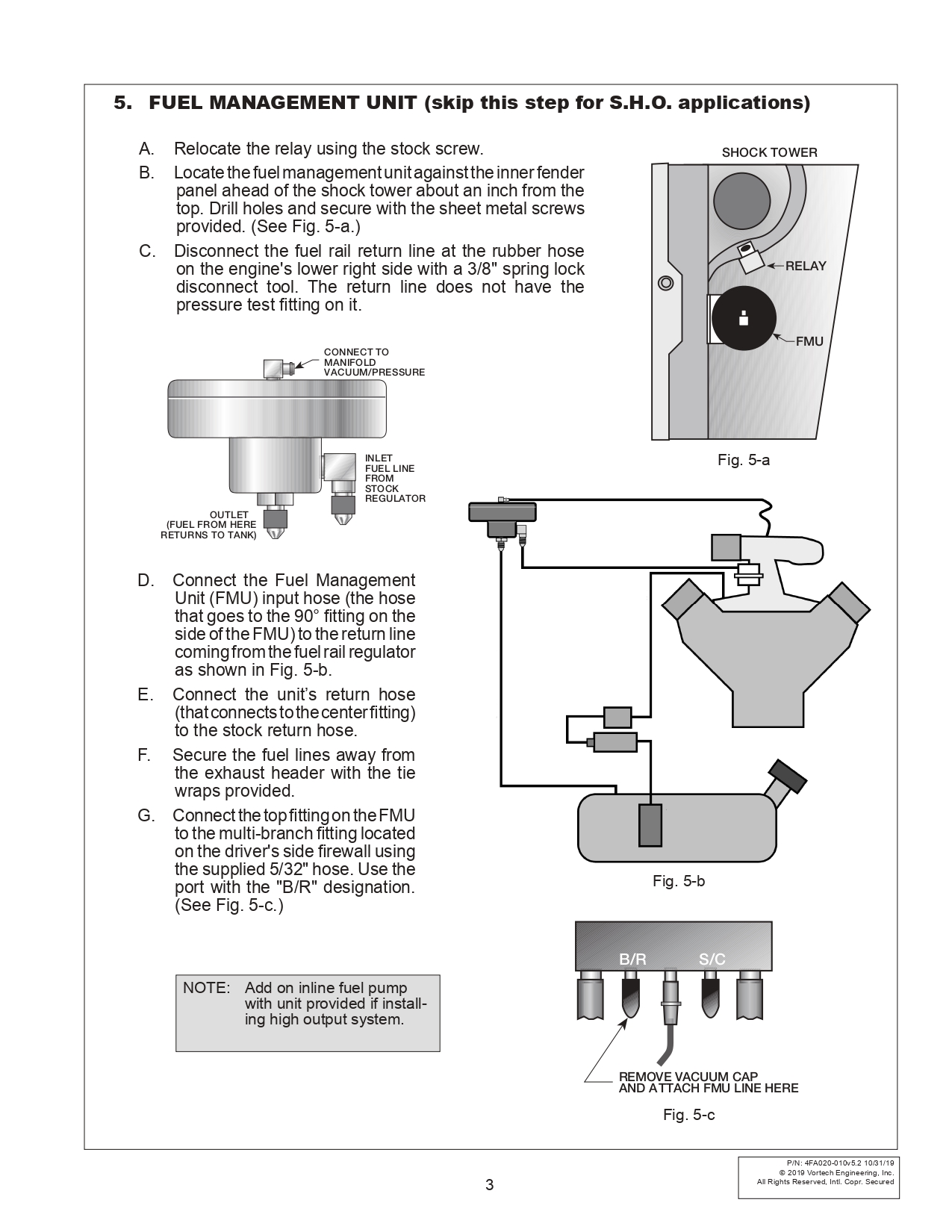

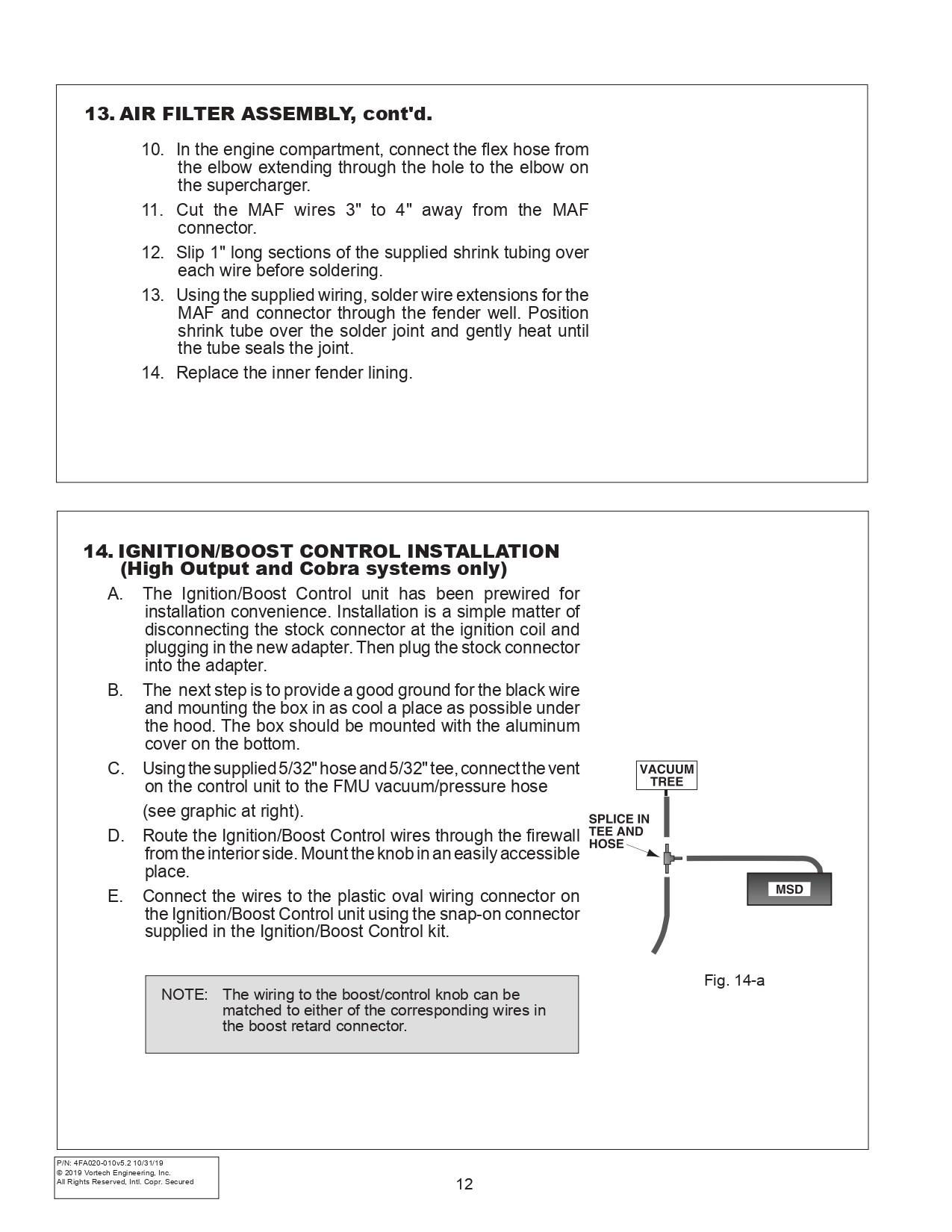

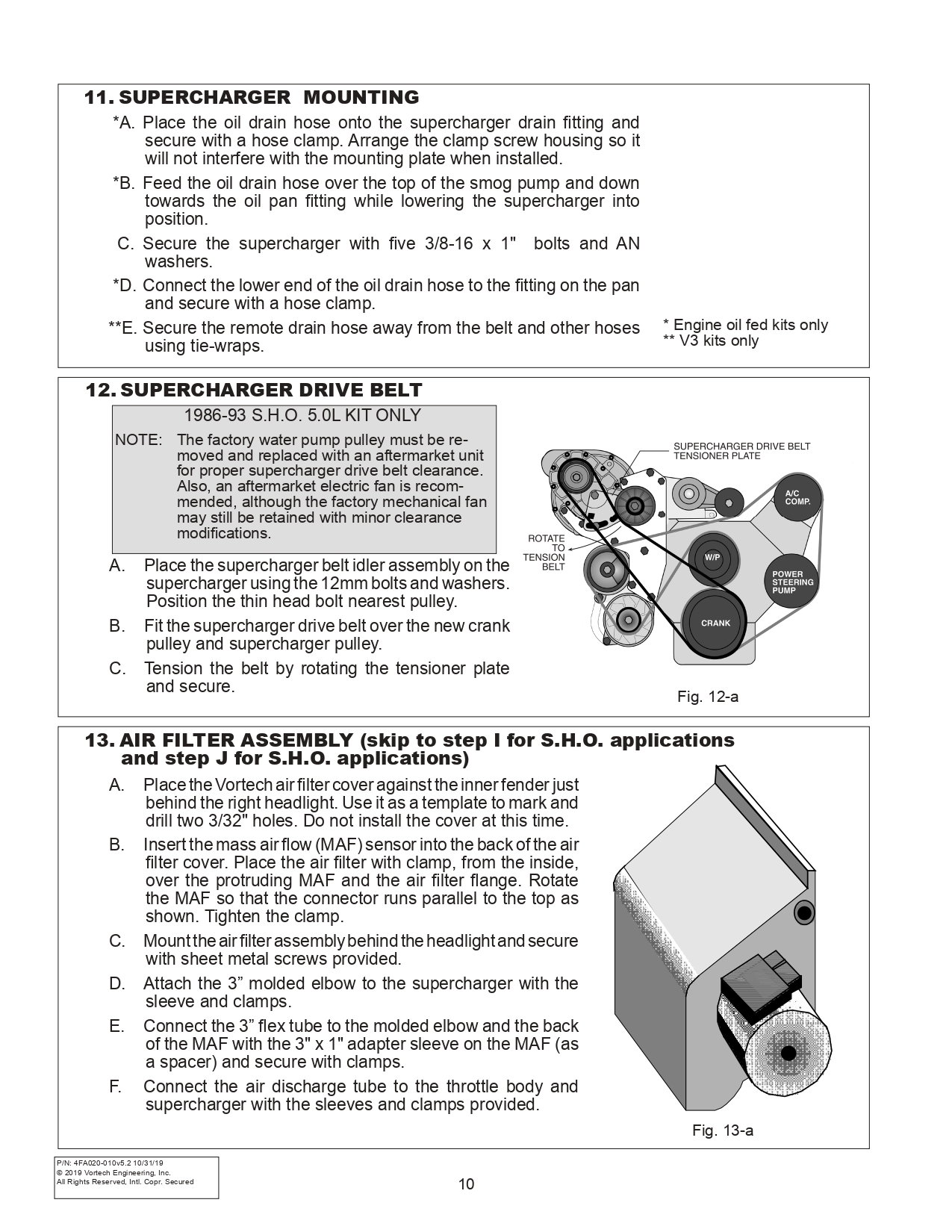

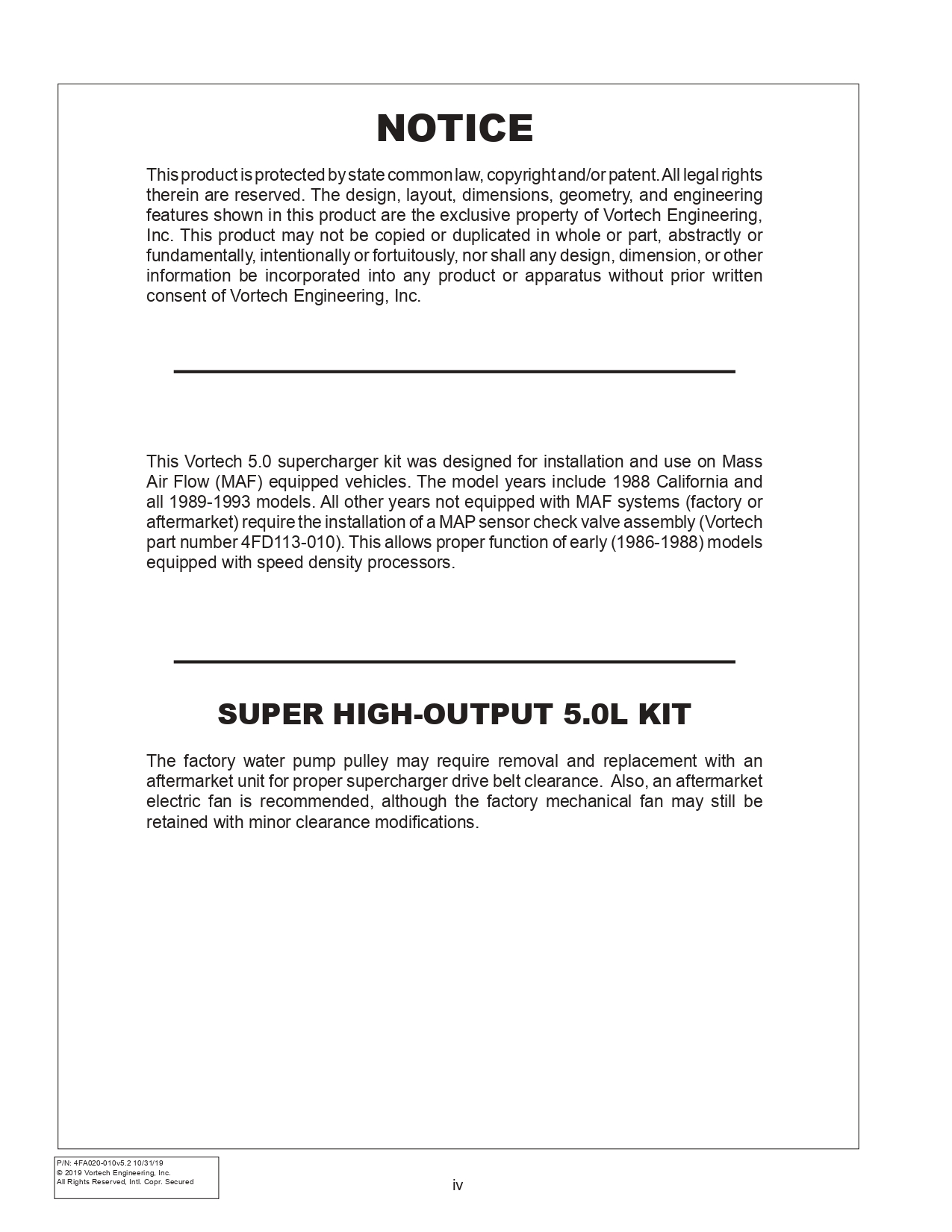

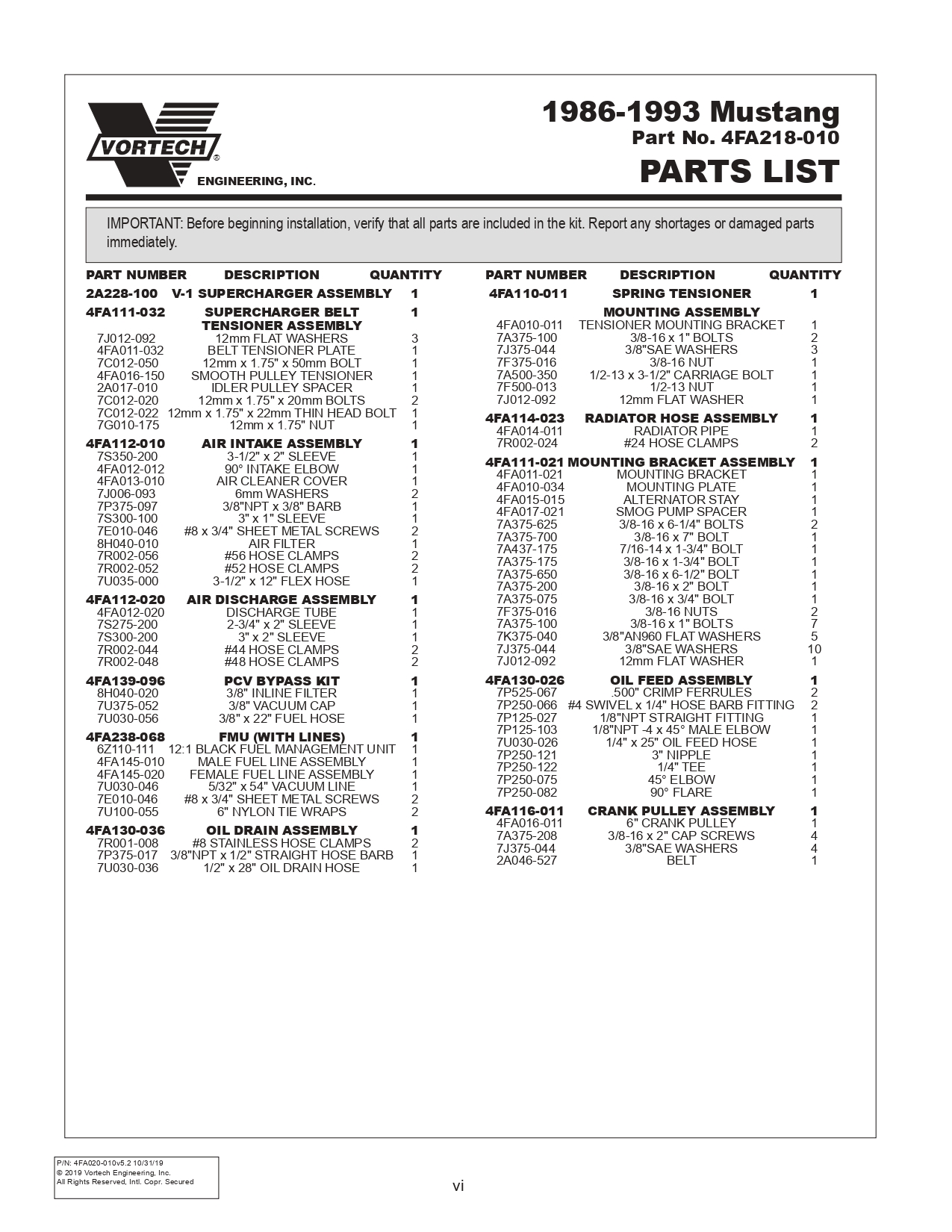

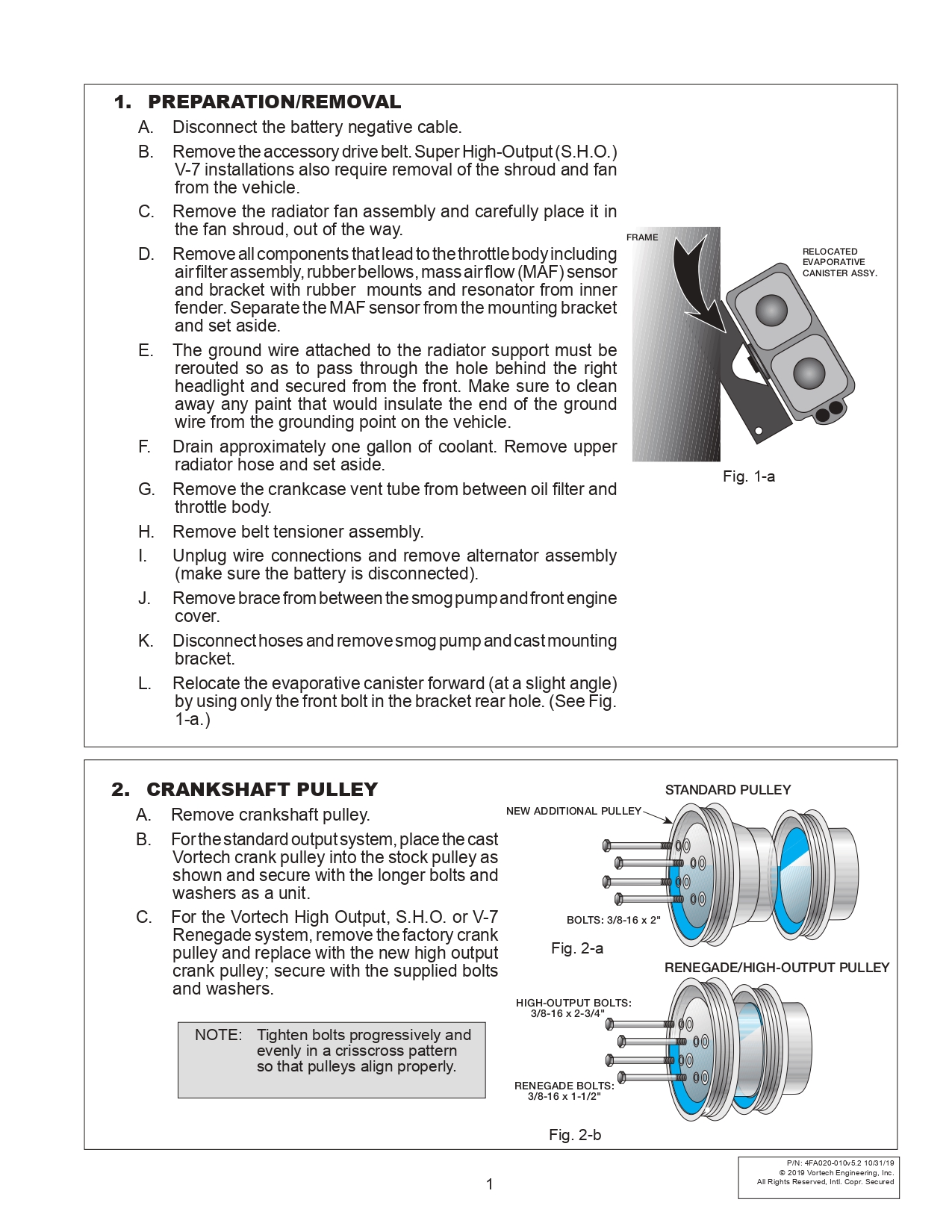

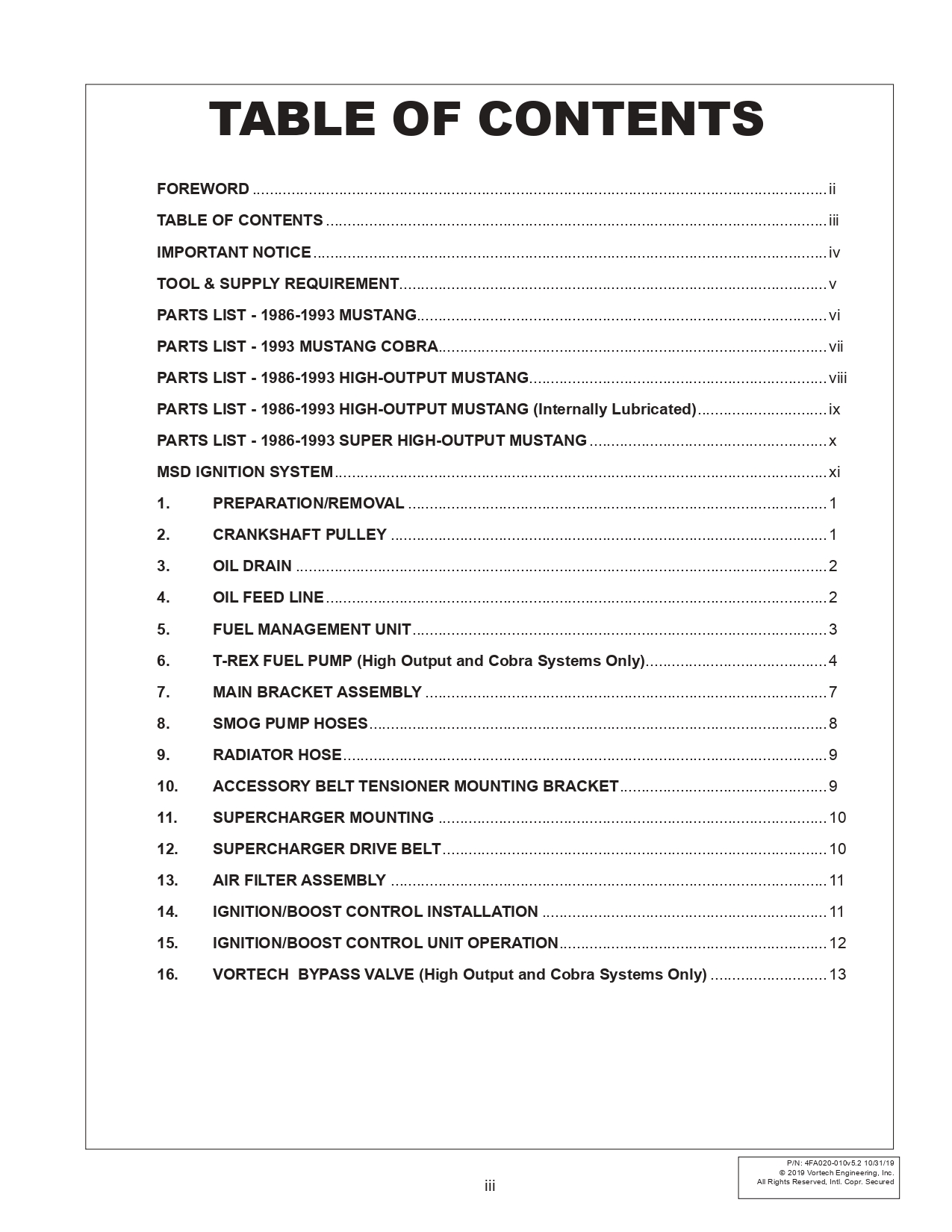

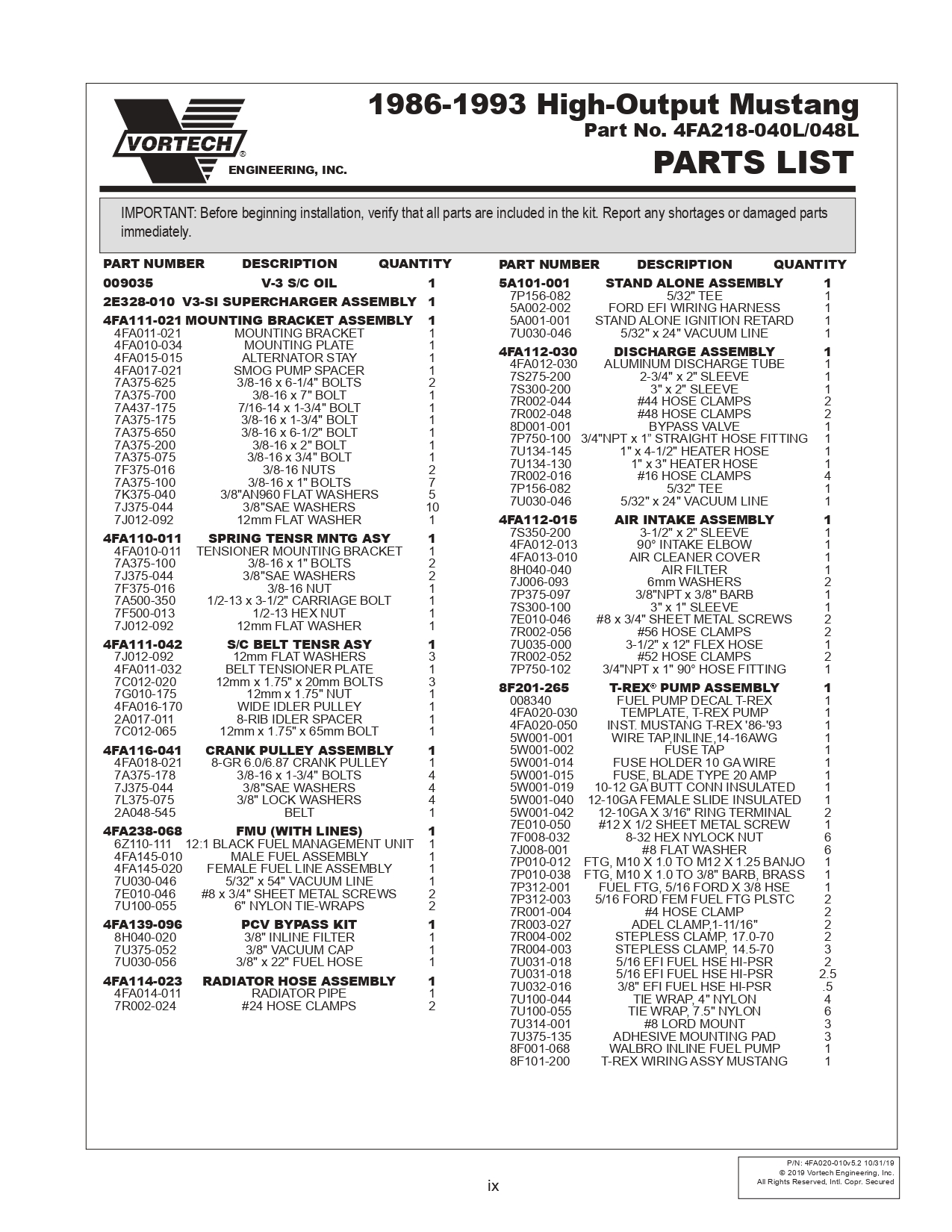

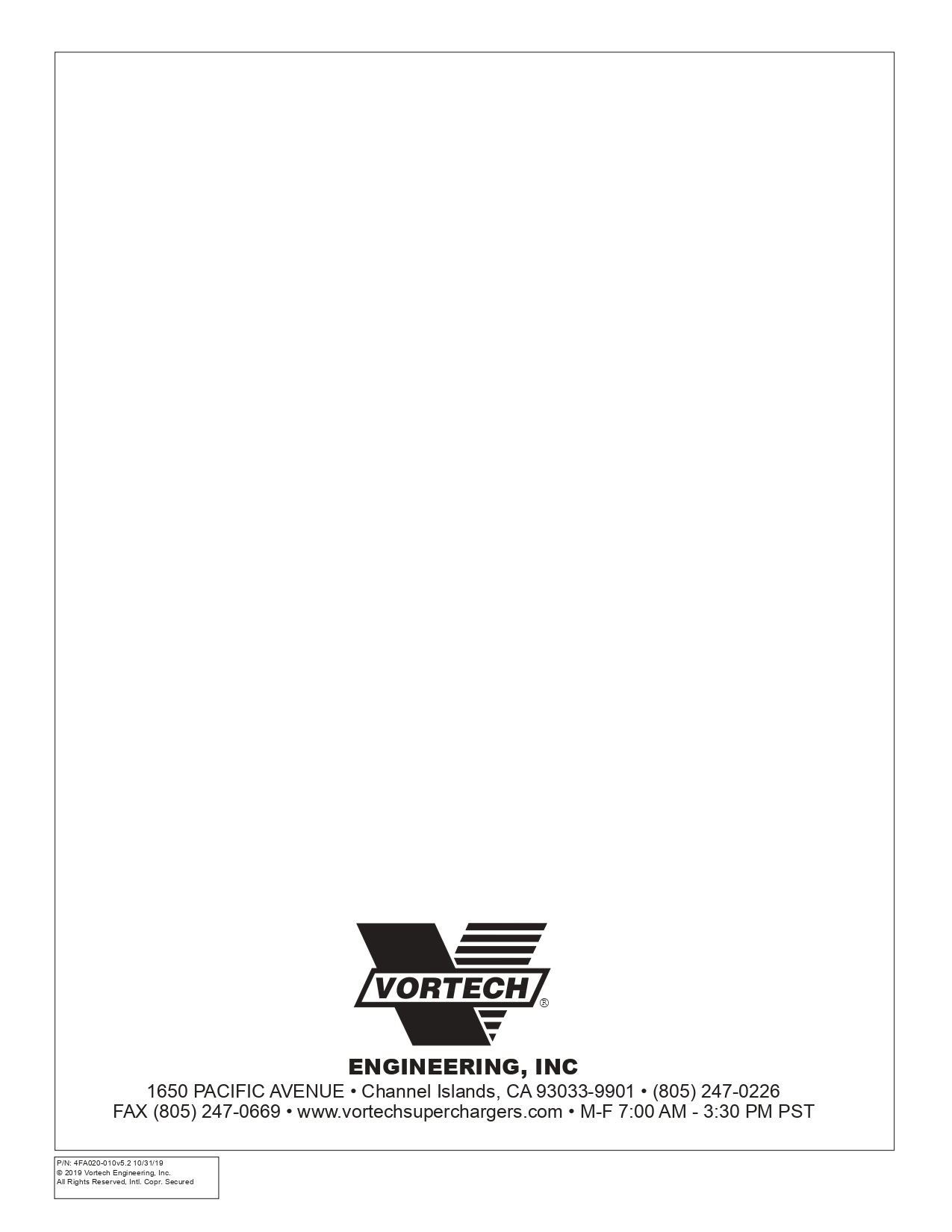

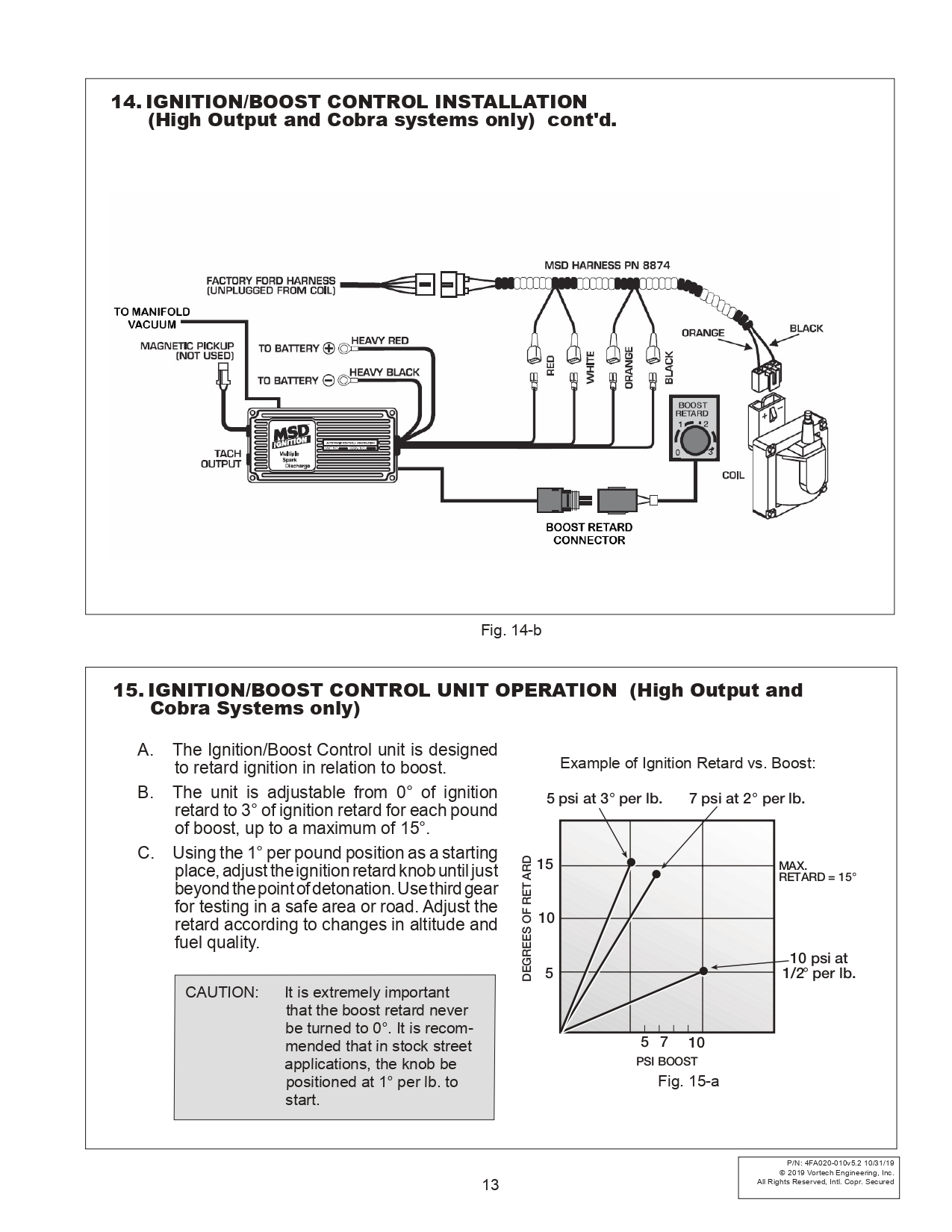

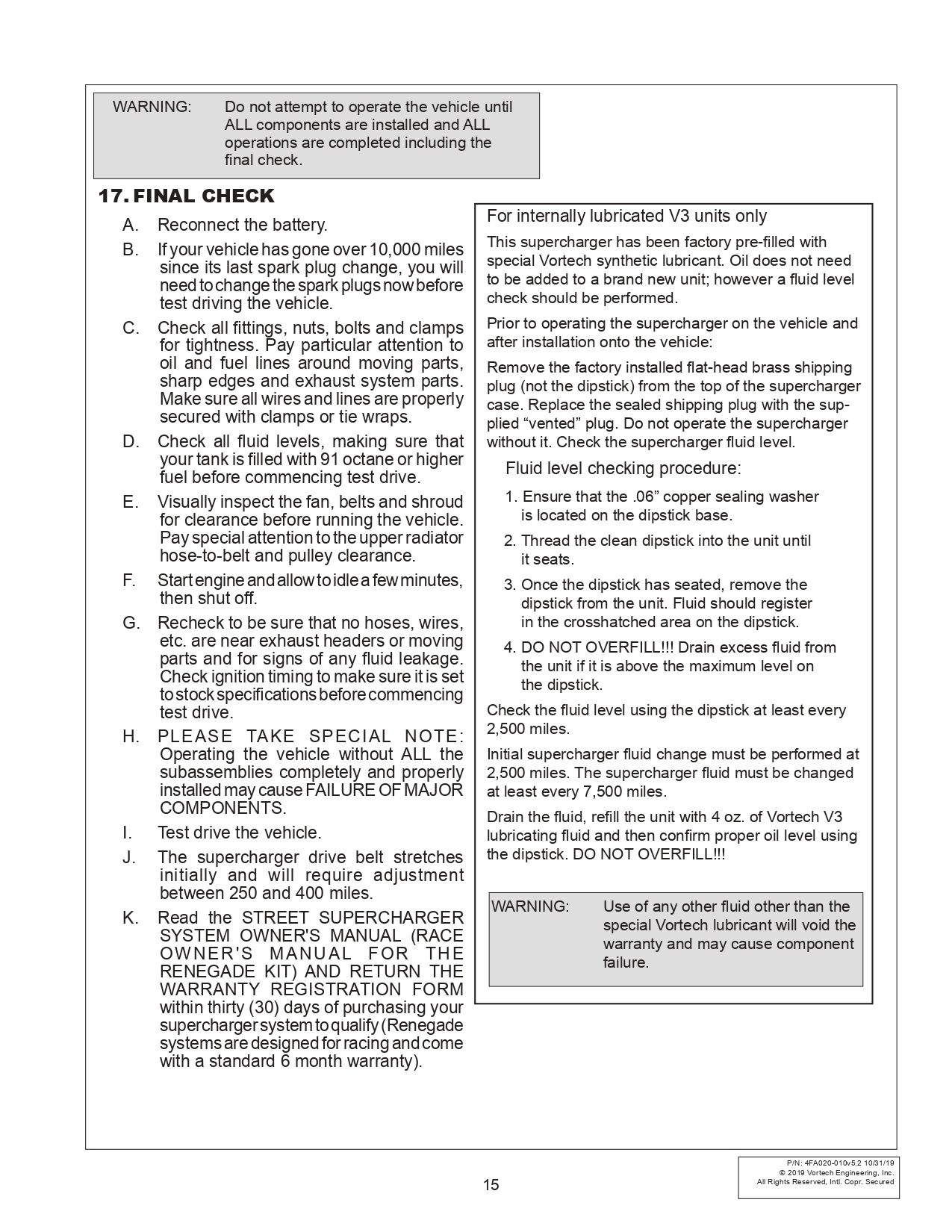

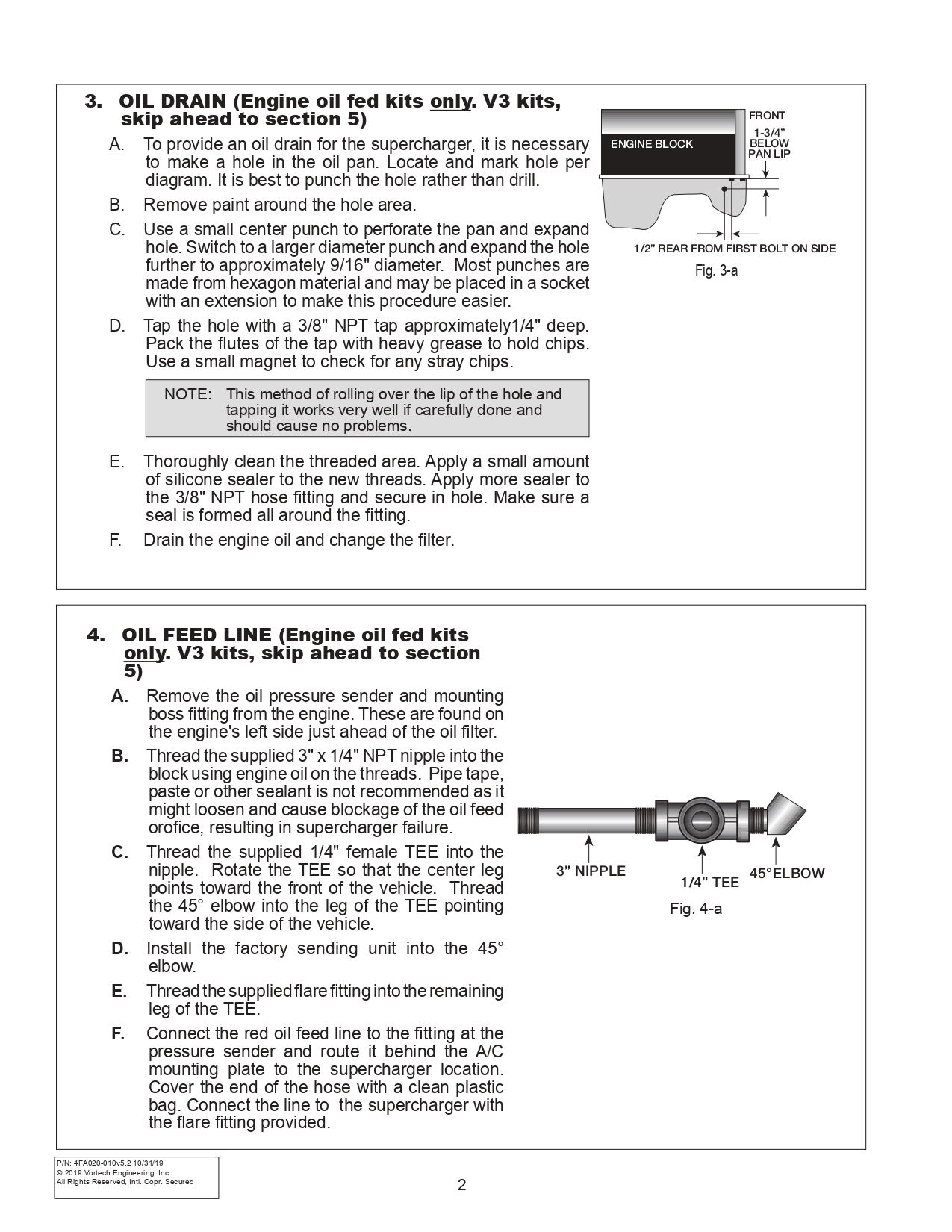

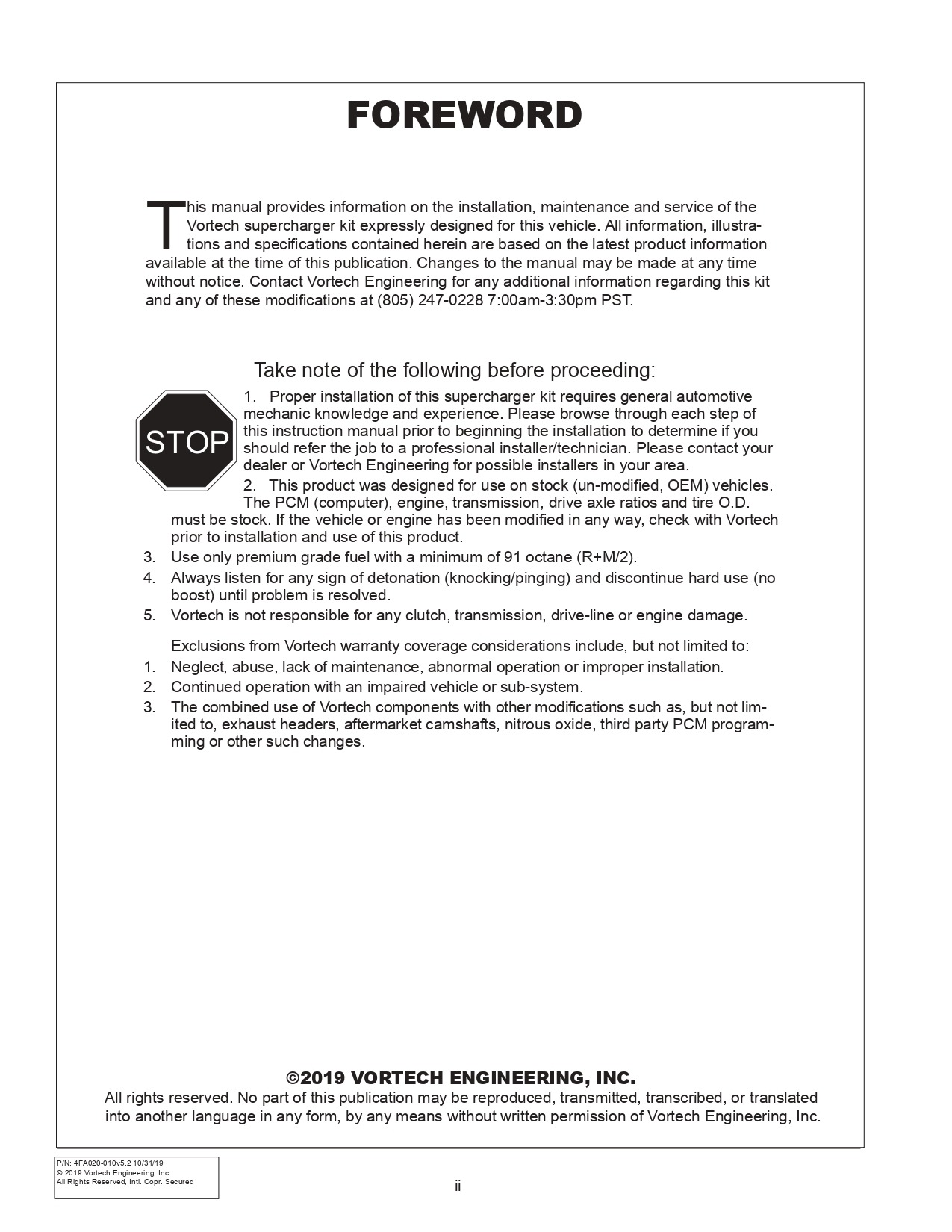

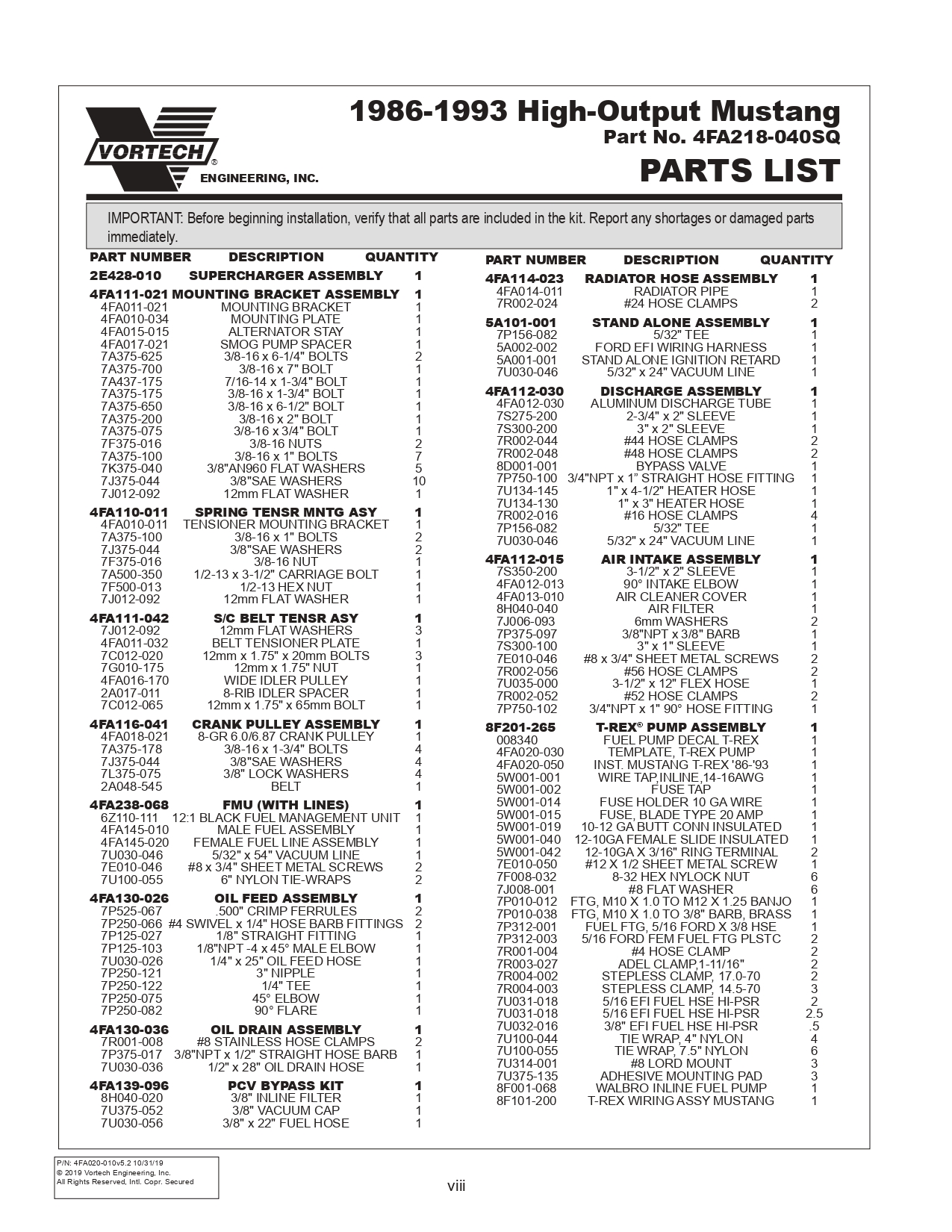

1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions 1986-93 Mustang Vortech V3 Installation Instructions - 1986-93 Mustang Vortech V3 Installation Instructions
