How To Replace 1996-2004 Mustang GT Water Pump

The water pump on your Mustang is responsible for circulating coolant throughout your cooling system. Over the years, your water pump may experience a failed bearing, leaking gaskets, or the fins inside the pump may deteriorate. Replacing a water pump on a 1994-2004 Mustang GT is fairly easy and can be completed with common hand tools. Follow along as we walk you through the easy steps.

• Fits: 1994-2004 Mustangs
• Skill Level: Moderate
• Install Time: 1-2 hours

Product Links:

• 1994-2004 Mustang Water Pumps

Tools Required:

• Socket Set
• Drain Pan
• Coolant

Removal Steps

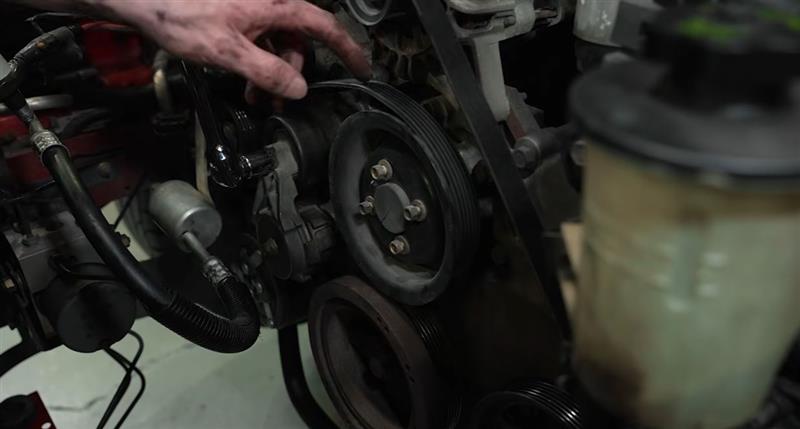

1. Remove The Water Pump Pulley Bolts

   • Before removing the accessory belt, loosen the 10mm water pump pulley bolts. Do not remove them completely at this step.

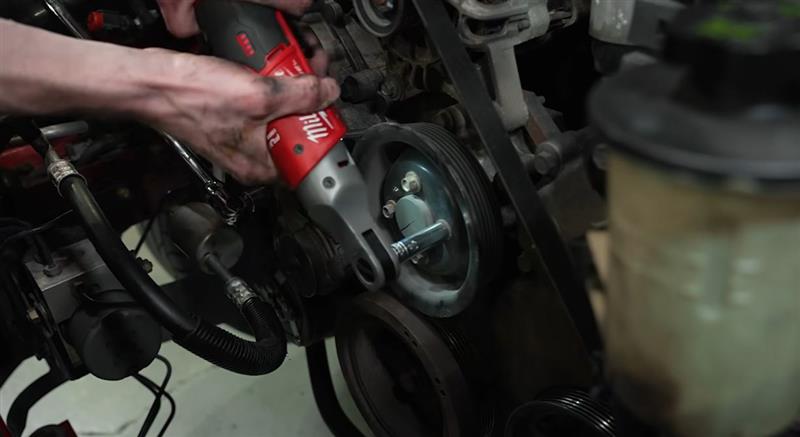

2. Remove The Accessory Belt & Water Pump Pulley Bolts/Pulley

   • Using a breaker bar and 3/8" adapter, loosen the tensioner and remove the accessory belt.
   • Now you can remove the water pump pulley bolts and pulley

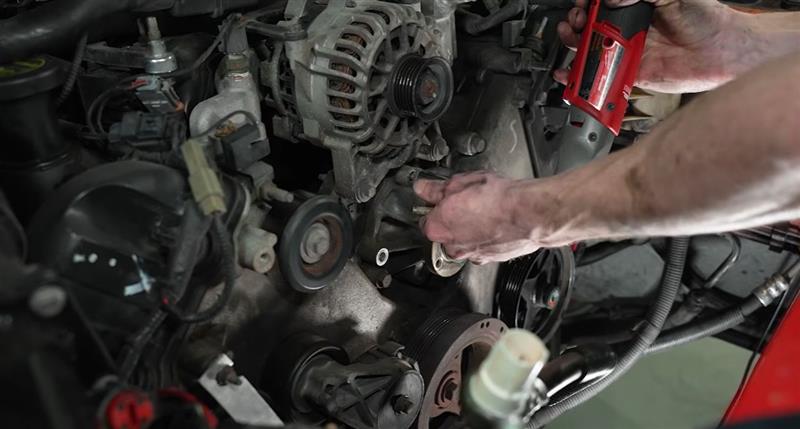

3. Loosen and Remove Water Pump Bolts
   • Place a drain pan under the water pump.
   • Using a 13mm socket, remove the 4 water pump bolts securing the pump to the block.
   • Removing the alternator may be necessary if the water pump will not slide out.
   • Light taps with a rubber mallet can help free up a stuck water pump.

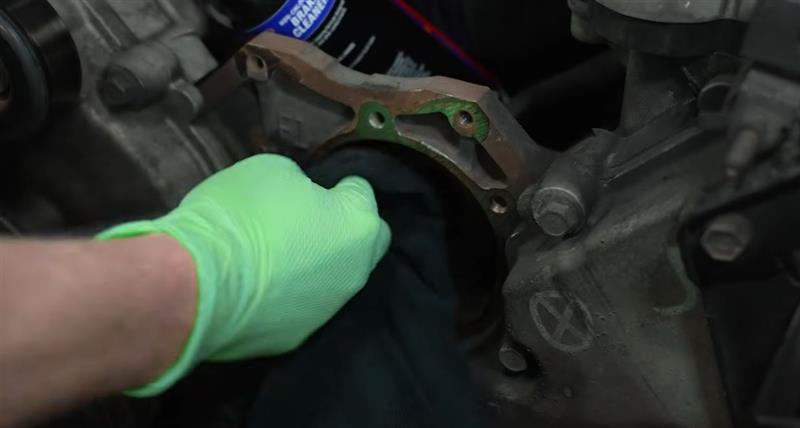

4. Clean Up Mating Surfaces Before Installing New Water Pump
   • Brake Clean, A Grey Scotch Brite Pad, and WD-40 can be used to clean things up.





5. Prepare The New Pump For Installation

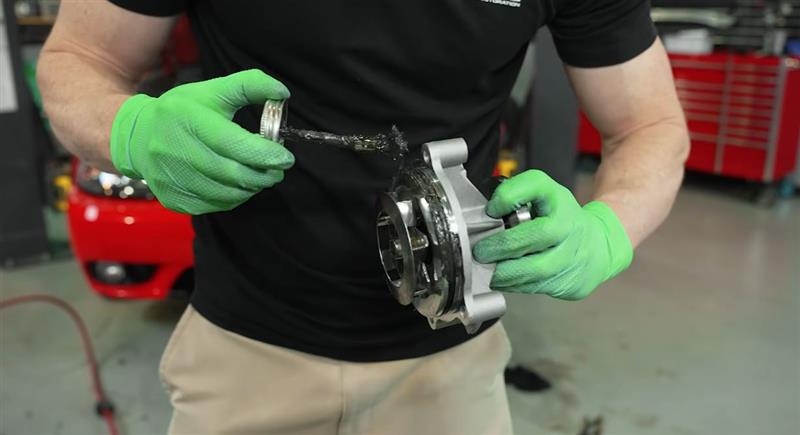

   • Lightly lubricate the O-ring with petroleum jelly.
   • Lightly apply anti-sieze to the mating surface of the water pump.
   • Torque the bolts to spec to ensure a secure fit.

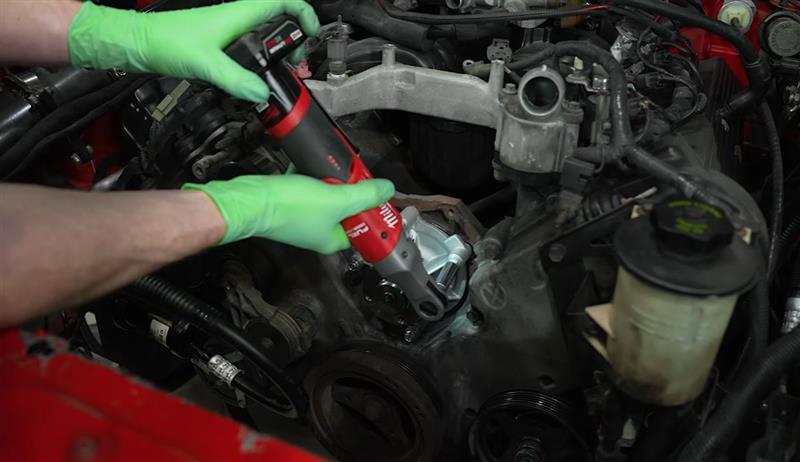

6. Install The New Pump
   • Installation is reverse of removal.
   • Ensure all bolts are torqued to spec.





7. Top Off Coolant & Check For Leaks

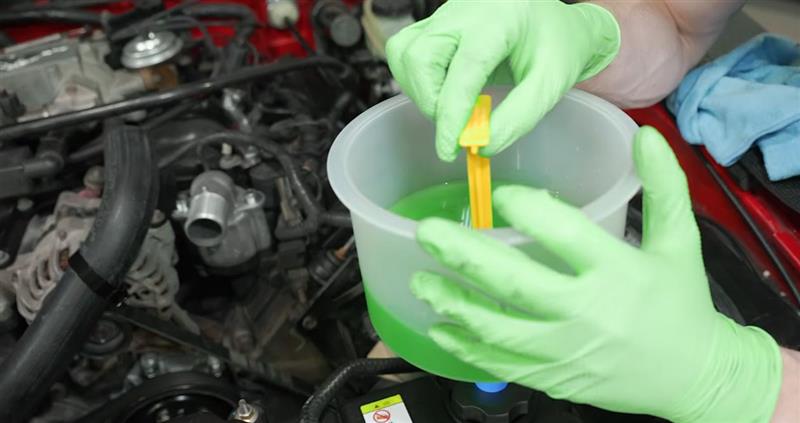

   • Fill your coolant reservoir to replace any lost coolant.
   • Start the vehicle and get to operating temperature to check for any leaks.
