1987-93 Fox Body Mustang One Piece Headlight Installation Instructions

Posted 4/27/2016 by Phillip Perez

Set your Fox Body Mustang apart from the crowd with a set of 1 piece headlights from Late Model Restoration. These kits eliminate the 6 piece factory design for a unique and modern look that is second to none! Installation time is only slightly increased at most! They are available in multiple different lens combinations so they will look good with any exterior color!

FOLLOW: mustang , 79 93 mustang , fox body , video , installation , tech , exterior , lighting , headlights

Installation Instructions

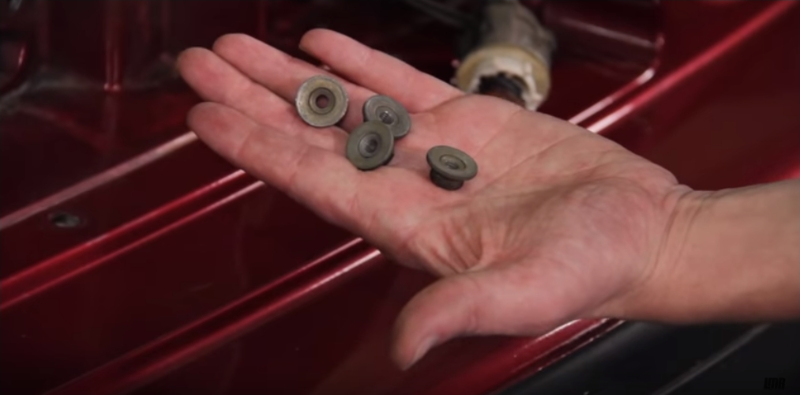

  1. Remove your side marker, park light, finally the headlight. And save four of the attaching nuts because you'll need those for your new one-piece headlight.

  2. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  3. With the lights out of the way go ahead and clean up the headlight bucket.

  4. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

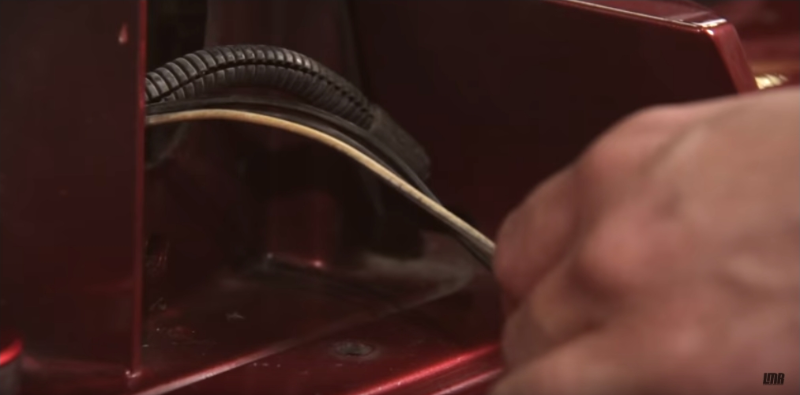

  5. To splice in the new connectors, start with your side marker.

  6. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  7. Grab your new connector and you'll notice it has a black wire and a white wire.


  8. On your factory harness, you'll want the black wire to go to the black wire, and the white wire to go to the brown wire.

  9. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  10. The black wire from the new park light connector goes to the black wire on your factory harness, the yellow wire on your new connector goes to the white wire, and the green wire goes to the brown wire.

  11. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  12. Go ahead trim your factory plugs off.

  13. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  14. Trim the new harnesses down to length. Solder your connections, and heat shrink and tape everything back up.

  15. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  16. For your side marker, you can reuse your factory bulb.

  17. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  18. On your park lamp slash turn signal, if you have an '87 to '89, you can reuse your factory bulb. If you've got a '90 to '93, you will need to pick up a pair of 2357NA bulbs. You can reuse your factory headlamp bulb.

  19. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  20. Go ahead slide everything in to position and reinstall the nuts.
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight
    Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  21. Repeat all these steps for the other side.


  22. Now on the driver's side park, turn light, the yellow wire is going to go to the green wire with yellow stripe.

  23. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

  24. To adjust your headlights, take a Phillips head screwdriver and turn the adjuster and get the bulbs pointed exactly where you need them.

  25. Fox Body Mustang One Piece Headlight - Fox Body Mustang One Piece Headlight

Comments


About the Video

Fox Body Mustang Black One Piece Headlights (87-93) - Install

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2013-02-06
Give you 87-93 Fox Body Mustang an unique look with these 1 piece headlights. They are available in Black, Chrome & Smoked versions :

They replace the 6 (six) piece factory style Mustang head lights with an ultra clear headlight lens and your choice of black or chrome housing. The one piece design makes for easy installation and alignment. Keep your American muscle mustang look without the Euro/Import styling Halo and LED lights. These modern styled headlights are perfect for restoring your faded Mustang headlights!!

As with all our Mustang lighting options, these 1 piece headlights are backed by a NO HASSLE WARRANTY. Follow along in the video as Jmac shows you how to replace/install/remove your Mustang headlights.

Don't forget the matching Fog Lights to complete the transformation of your Fox Mustang's front end.

Fits Ford Mustang - 1987 (87) - 1988 (88) - 1989 (89) - 1990 (90) - 1991 (91) - 1992 (92) - 1993 (93)
Transcript
'87 to '93 Mustangs were originally equipped from the factory with six-piece headlight kit. Now a very common update is to go with a one-piece style headlight. Not all one-piece style headlights are created equal. For starters, ours are covered with our no hassle warranty. Plus, they're adjustable. That way you can aim your headlight beam exactly where you need it, unlike most of the others on the market. These do require a little bit of extra wiring. We'll show you what is needed. Because of the new connectors, we have the bulbs you need to get these headlights installed. Let's go ahead and show you what's required.

We've got some junkie looking headlights on this '90 model coupe. They're yellowed, faded, and not even passing any light anymore. First step is go ahead and get these out of the way. I'm not even going to bore you with the details because it's a pretty straightforward operation.

Remove your side marker, park light, finally the headlight. And save four of the attaching nuts because you'll need those for your new one-piece headlight. With the lights out of the way go ahead and clean up the headlight bucket. Get rid of all that dirt and bugs that are built up in there.

To splice in the new connectors, start with your side marker. Grab your new connector and you'll notice it has a black wire and a white wire. On your factory harness, you'll want the black wire to go to the black wire, and the white wire to go to the brown wire.

On the turn signal slash park lamp, brown, black, and white with a green stripe on your factory harness. The black wire from the new connector goes to the black wire on your factory harness. The yellow wire on your new connector goes to the white wire with the green stripe on the factory harness. And then, the green wire goes to the brown wire on the factory harness. Go ahead trim your factory plugs off. Trim the new harnesses down to length. Solder your connections, and heat shrink and tape everything back up.

Time to install the bulbs. For your side marker, you can reuse your factory bulb. On your park lamp slash turn signal, if you have an '87 to '89, you can reuse your factory bulb. If you've got a '90 to '93, you will need to pick up a pair of 2357NA bulbs. You can reuse your factory headlamp bulb.

Go ahead slide everything in to position, reinstall the nuts, and repeat all these steps for the other side. Now on the driver's side park, turn light, the yellow wire is going to go to the green wire with yellow stripe.

To adjust your headlights, take a Phillips head screwdriver and turn the adjuster and get the bulbs pointed exactly where you need them.

All right, not too bad for about 45 minutes work. To pick up your set of one-piece headlights for your '87 to '93 Mustang, hop on over to latemodelrestoration.com.
