How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)

Follow along with our step-by-step article and video as we show you how to adjust your 1979-1986 4 Eye Fox Body Mustang headlights.

Show More Show Less
Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

FOLLOW: fox body , 79 93 mustang , headlights , how to

How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


TOOLS NEED TO ADJUST:

  • Long Reach Phillips Head Screwdriver
  • Tape Measure
  • Thin Line Masking Tape
  • Battery Charger Recommended For Longer Adjustments


  1. To get started, verify that all of the light's power on and are properly working. You will need to find some level ground and a flat wall.
    2.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  2. Before adjusting the headlights, you will first need to snag a few measurements with the first being the distance between the center of the low beam headlights. The distance will be approximately 48.5".
    3.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  3. Next measure the distance between the high beam lights in which the distance is approximately 33.5".
    4.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)

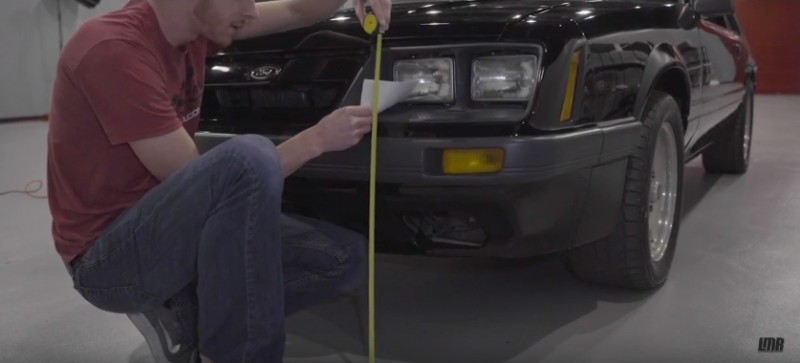

  4. Lastly, measure the distance from the ground to the center point of the headlight which is 26.5".
    5.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  5. Position the vehicle as close to the wall as possible and place a verticle piece of tape on the wall that is in line with the center of the car.
    6.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  6. Now roll the car back so that the front bumper is 25 feet from the wall.
    7.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  7. Measure 26.5" up from the floor and place a horizontal tape line through the centerline.
    8.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  8. Divide the low and high beam center point lengths in half and measure out from the center.
    9. How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  9. Place a verticle piece of tape for the low and high beam measurements.
    10.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  10. Now use a longer piece of tape and extend the horizontal line from the center outward (verify that this piece is 26.5" off of the floor).
    11.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  11. Do the same for the other side of the wall.
    12.


  12. Now that we have a nice template to go off of, turn on the headlights and we have noticed that our driver side is way out of alignment so we will begin with this side.
    13.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)

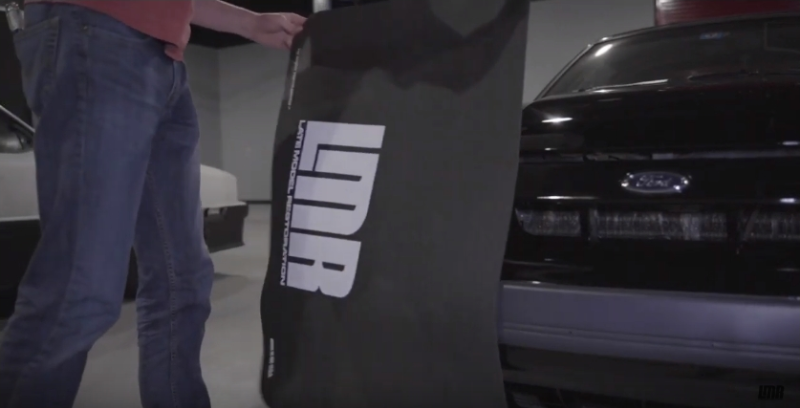

  13. Cover the side that you are not working on with something that won't scratch or mar the paint (our LMR Fender Cover works well for this).
    14.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  14. The verticle adjustment is located at the top of the headlight.
    15.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  15. The horizontal adjustment is located at the side of the headlight.
    16.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)

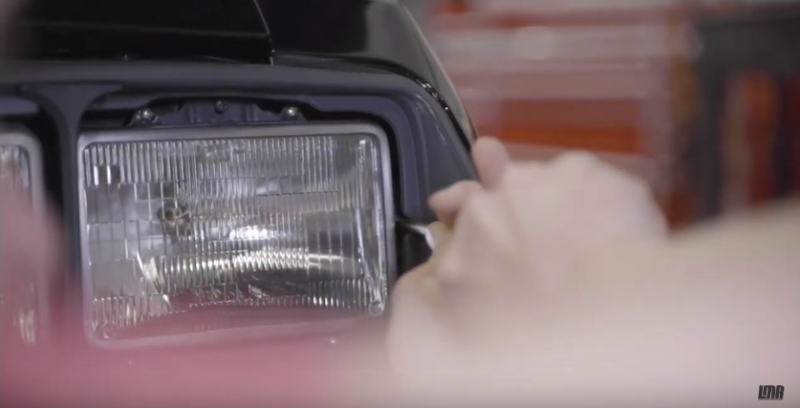

  16. Turn the adjustment screws clockwise or counterclockwise to move the light beam (we chose to center the light beam around the crosshair on the wall and remember the low beams will use the outside crosshairs).
    17.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  17. Whenever one side is done you can move the other side so we will start on the high beams. You will need (2) covers for this since the low beams stay on whenever the high beams are activated.
    18.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  18. Repeat the same adjustment steps that you did on the low beam headlights and center the high beams around the center of the cross-hair.
    19.
    How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986) - How To Adjust 4 Eye Fox Body Mustang Headlights (1979-1986)


  19. Check your work and you are good to go!
