Differences Between A Pushrod And Coyote 5.0

Posted 9/4/2019 by Taylor Ward

Many wonder the pros and cons of both a Pushrod and a Coyote (modular) motor so we have broken down everything you need to know!

FOLLOW: mustang , fox body , 79 93 mustang , s197 , 10 14 mustang , s550 mustang , 2015 mustang

Differences Between A Pushrod And Coyote 5.0 - Differences Between A Pushrod And Coyote 5.0

Differences Between A Pushrod And Coyote 5.0 - Differences Between A Pushrod And Coyote 5.0

When it comes to the classifications of Mustang motors, they can be divided up into two basic configurations: pushrod and modular. Pushrod engines were utilized in all Mustangs from 1964-1995 while every Mustang from 1996 to current was outfitted with a modular engine. In this article, we will discuss why Ford ditched the pushrod platform and what the pros and cons are of both engine types.


What Is A Mustang 5.0 Pushrod Engine?

Differences Between A Pushrod And Coyote 5.0 - Differences Between A Pushrod And Coyote 5.0

A pushrod engine has been the poster child of V8 engine production for quite a while! What makes this defining is the fact that it uses a pushrod to actuate the valves. This is known as an overhead valve engine in which the block houses the crank as well as one camshaft. This camshaft sits above the crank. The chain connects both the crank and camshaft and it rotates at half the rate of the crank. As the cam rotates, the lobe presses up on the lifter and this with the pushrod activates the rocker arm to open and close the valve. Pushrod production for the Mustang stopped in 1995.


History of 5.0 Pushrod In A Fox Body

Differences Between A Pushrod And Coyote 5.0 - Differences Between A Pushrod And Coyote 5.0

Starting in 1979, the 5.0 was first released but was quickly changed out for a 4.2 from 1980-82’. Also, in 1982 Ford decided to re-release the 5.0 for the rest of the Fox Body years. But starting in 1986, the swap toward EFI (electronic fuel injection) took place! The carburetor engine was a thing in the past with the new fuel injected 302 coming rated at 200hp. The unique parts of the 86’ engine were the flat top pistons and swirl chamber heads that shrouded the valves and limited power and the ability for camshaft upgrades. It was also different from the 87-93 models because it has a smaller throttle body and throttle opening.


Beginning in 1987-93’, pushing the 5.0 motor to 225hp and 300 lb-ft of torque was extremely easy because of the addition of E7TW heads that were sourced from Ford’s truck line. The previously flat-topped pistons had been replaced with forged aluminum pistons with valve reliefs that made the new 302 internally much stronger. The forged aluminum pistons were dropped in 1993 for a hypereutectic piston which made the GT put down 205 hp and 275 lb-ft of torque. This reduction in power was smart marketing on for Ford because when the cam out with the new-body in 94’ it could be marketed with more power at 215 hp. The speed density setup was discontinued in 1989 and replaced with a much easier to modify mass air flow setup. The MAF system made mods to the engine, intake, and exhaust system much easier to recognize and was compensated for by the ECU which allowed for correct air to fuel ratios to make optimal power.


Finally, with the 1993 Cobra and Cobra R, this was possibly the most popular Fox Body edition for the 93’. This is because it featured a 302 5.0 that put down 235hp and 280 lb-ft of torque which was all due to the new GT-40 heads that were more of a free-flowing cylinder head that outperformed the factory E7 heads that were found on most 5.0 Fox Body Mustangs. As included in the engine boost was a larger 65mm throttle body, 1.7:1 roller rockers, unique gt40-style “Cobra” intake, and larger 24lb injectors, as well as a larger 70mm mass air meter.


What Is A Mustang 5.0 Modular Engine?

Differences Between A Pushrod And Coyote 5.0 - Differences Between A Pushrod And Coyote 5.0

Manufactured and beginning in 1996 by Ford Motor Company, this OHC engine comes in a V8. Pertaining to the 5.0 L Coyote, it is the latest evolution of the modular engine. The reasoning for this change is because Ford needed to compete with the GM 6.2L LS3 used in the new Camaro and the new Chrysler 6.4L Hemi ESF which came in the Charger, Challenger, and Grand Cherokee. The Coyote had to stay relatively close to the physical size of the 4.6 as well as sharing other specs such as deck height, bore spacing, bell housing patterns, and much more. This was so that the engine could utilize existing Modular production line tooling. The result is the 5.0 Coyote that we know and love today! Check out an earlier article of ours that explores more about the Coyote.

History of 5.0 Modular Engine In A Mustang

Gen 1 Coyote (2011-14’)

Differences Between A Pushrod And Coyote 5.0 - Differences Between A Pushrod And Coyote 5.0

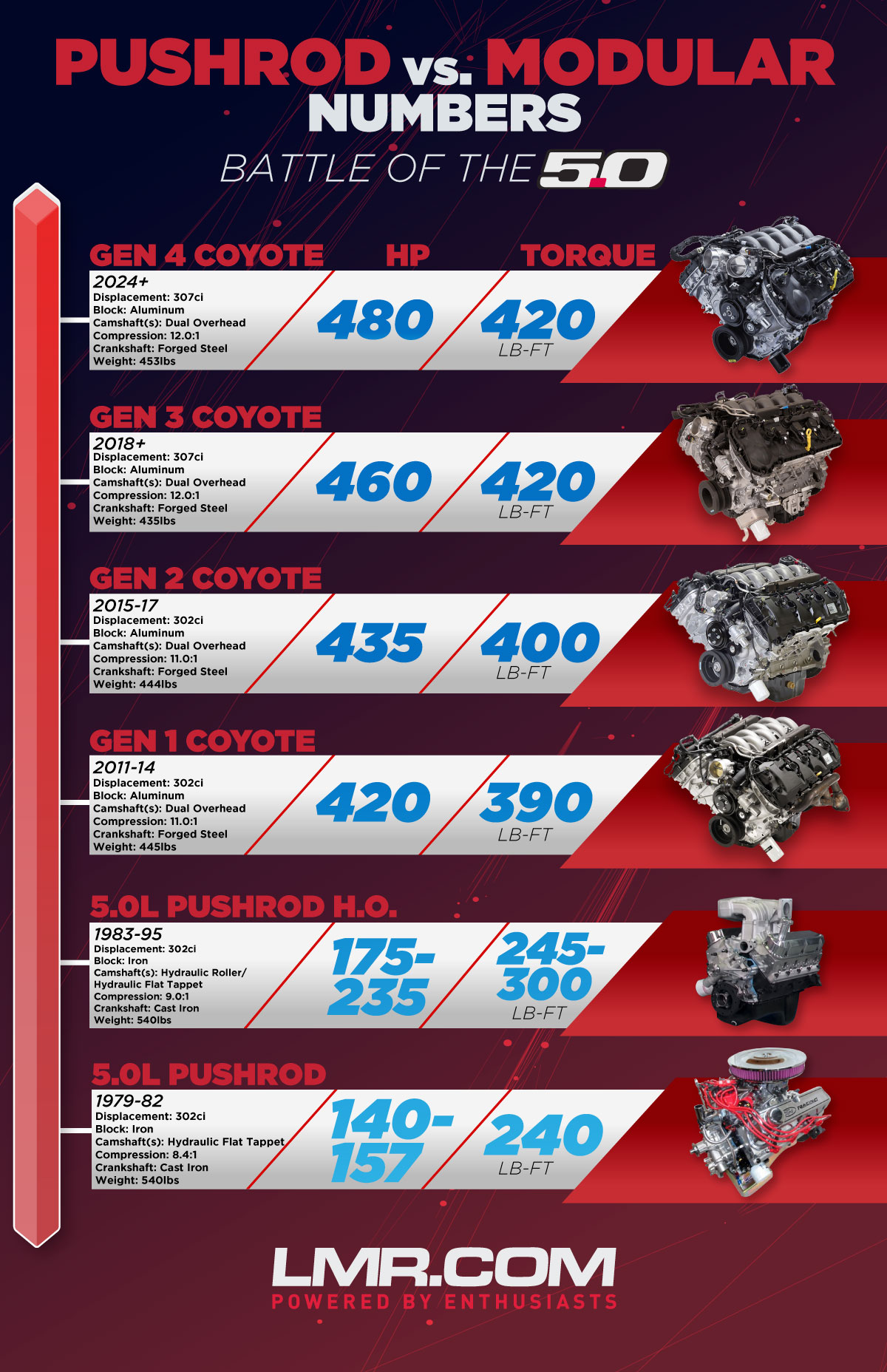

With 2011 being the first year of the coyote, it made a huge statement by producing 412 hp at 6,500 rpm and 390 lb-ft of torque at 4250 rpm while making 11:1 compression. It made this power by utilizing a string aluminum block with deep-skirting, high flow head, variable cam timing, composite intake, and tuned headers. For the 2013-14’ year models, the Coyote increased its hp by 8 and kept the torque the same. This Coyote block had smaller head bolts and no oil cooling jets. It also benefits from a phosphorous coating on the pistons as well as the piston rings from the Boss 302’s V8, and powertrain calibration improvements which contributed to the increase in power as well.


Gen 2 Coyote (2015-17’)

Differences Between A Pushrod And Coyote 5.0 - Differences Between A Pushrod And Coyote 5.0

With the new redesigned exterior, Ford had to upgrade the engine! This 2nd Gen Coyote took some ideas from the 2012-13’ Boss, giving it 435 hp and 400 lb-ft of torque. Here are some notable specs on this engine:

  • 11.0:1 Compression Ratio
  • Aluminum Block
  • 80mm Drive By Wire Throttle Body

Gen 3 Coyote (2018+)

Differences Between A Pushrod And Coyote 5.0 - Differences Between A Pushrod And Coyote 5.0

This new motor features a dual-fuel, high pressure direct injection with low pressure port fuel injections. This combination resulted in 460 hp with 420 ft-lb of torque.


Coyote Specialized Builds

The Roadrunner

This build came available on the 2012-13’ Boss 302 models and Daytona prototypes were used to find something new that could be associated with the feel of a Boss. An intake method was used from Daytona race cars that eliminated lag when there was an open throttle. This allowed the engine to breathe better at higher RPMs. With this intake method it allowed the Boss to exceed the GT’s 7000RPM redline as well as gaining power at a higher RPM.


The Voodoo

This is the most unique version of all the Coyote variants with its 5.2L displacement and uses a flat-plane crank! This means it has a 180-degree angle between throws. This makes engines rev more quickly which makes this a popular choice in racing engines. These come available in the GT350 and GT350R.


The Aluminator

To add the Ford Performance lineup, a variant of the Coyote engine called “The Aluminator” was developed and has a forged-steel crankshaft which made it capable of reaching 580 hp and 445 ft-lbs. of torque. It also had 11.0:1 compression ratio forged pistons that are hard anodized with low friction coating.


The Predator

This variant is a Voodoo is coming equipped on the new 2020 GT500. It will come with 760 hp and 625 lb-ft of torque which makes this the most powerful production Mustang ever. The core architecture was beefed up to handle the 1,813 psi of firing pressure that the supercharged engine will deliver. This supercharger will bring out 12 psi of boost which gets sent up through the intercooler and then back down toward the intake valves.

Differences Between A Pushrod And Coyote 5.0 - Differences Between A Pushrod And Coyote 5.0

What Engine Type Is Right For You?

While this is a question that so many enthusiasts ask about, there is no clear answer. Just like many things there are fans of both and each side has an argument why one is better than the other.

Pushrod
  • Compact Design Which Offers More Room In The Engine Bay.
  • Easy To Add Horsepower.
  • Cheaper To Buy And Upgrade.
  • Your Fox Body Probably Already Has One In It.

Modular
  • More Expensive, But Better Power.
  • Fuel Efficient.
  • Much Higher Power Potential With Fewer Mods.
  • Lower Emissions.

At the end of the day it is all about personal preference and what qualities you find more important. Regardless of your decision you are sure to find good qualities in both options. As always for all thing 79’-present Mustang and Ford Lightning shop with us at LMR.com!
