How To Remove 1999-04 Mustang Front Bumper

Created by Tyler Rodriquez / 3 min read
Date Created: 3/20/2024
Last Updated: 3/19/2024

If you are needing to remove your 1999-2004 Mustang bumper, follow these quick and easy steps from LMR.com.

Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

Removing the bumper from your 1999-2004 Mustang is a simple process that can easily be done in about an hour, allowing you to replace the bumper or access any parts behind the bumper. Let's take a look at the tools you will need and the steps you need to take in order to remove and reinstall your 99-04 Mustang bumper.

Tools Needed

  • Common garage tools
  • Jack and jack stands (or a lift if available)
  • Hand tools
  • Pushpin removal tool

Installation Instructions

Step 1: Prepare the Vehicle

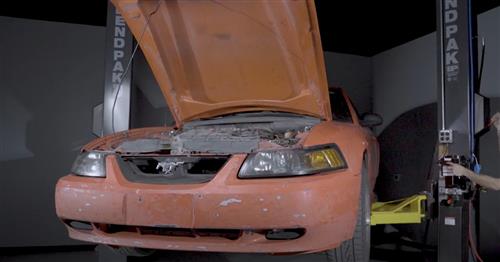

Begin by supporting the front of your car with jack stands or lift the entire vehicle. Ensure safety is a priority during this step.


Step 2: Remove the Grille

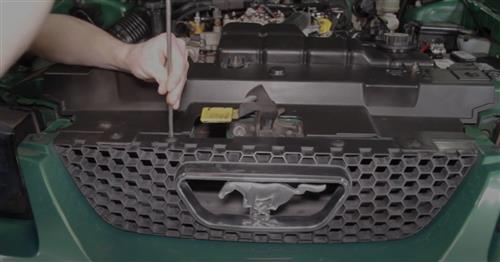

If your factory grille is still intact, remove the six pushpins across the top securing it to the header panel. Note that the process may vary depending on your car model.


Step 3: Access the Splash Shield Screws

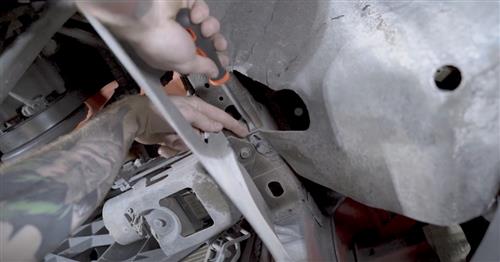

With the key in the on position, turn the front wheels left or right to access the screws securing the front of the splash shield to the bumper. Remove these screws on both sides of the vehicle.


Step 4: Remove Underneath Attachments

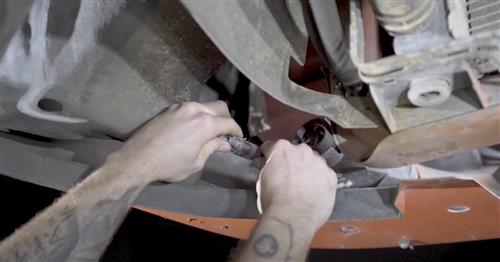

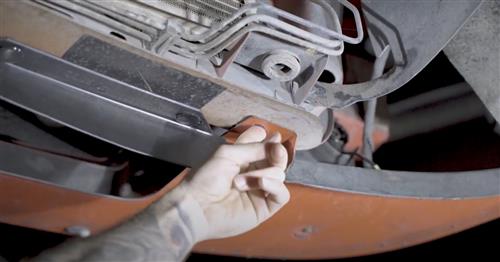

From underneath the car, locate and remove the two push pins securing the front bumper to the core support. Additionally, remove any retaining hardware securing the radiator air deflector to the core support.


Step 5: Disconnect Fog Lights (If Equipped)

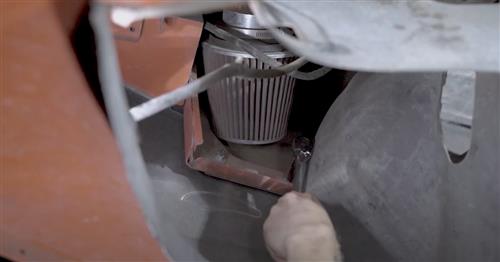

If your vehicle is equipped with fog lights, disconnect the electrical connections from each fog light. Also, remove the push pin securing the splash shield to the frame rail for easier access to the nuts.


Step 6: Detach Bumper from Fender

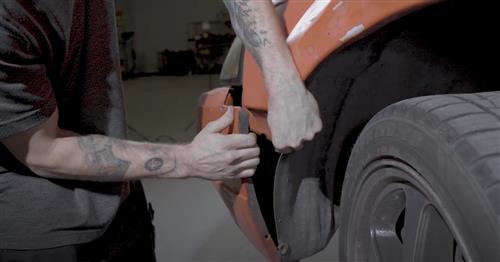

Locate and remove the 2 11mm nuts that attach the front bumper cover to the fender on both sides of the vehicle. Gently remove the studs from the fender.




Step 7: Remove the Bumper

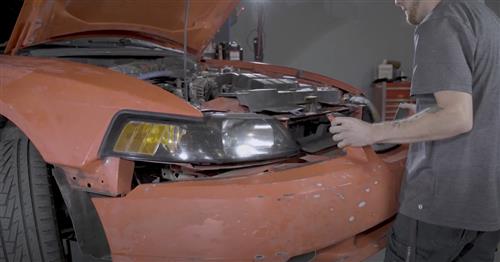

Carefully pull the bumper towards you to detach it from the car. Take your time to ensure no damage is done during this step.


Step 8: Repeat Steps for Reinstallation
If needed, repeat the above steps in reverse order to reinstall the bumper securely onto your Mustang.



About the Video

How To Remove Your New Edge Mustang Front Bumper (99-04)

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2020-06-05
1999-2004 New Edge Front Bumpers: https://latemodelres.to/99-04FrontBumpers

Follow along as Landan walks you through the steps of removing your 1999-2004 Mustang front bumper

YouTube: https://latemodelres.to/youtube-subscribe
Facebook: http://www.facebook.com/latemodelresto
Instagram: http://instagram.com/latemodelresto
Twitter: http://twitter.com/latemodelresto

#LMR #NewEdge #SN95
