How To Remove New Edge Mustang Headliner | 99-04

Created by Taylor Ward
Last Updated 5/27/2021

Follow along as Late Model Restoration walks you through the headliner removal process for your 1999-2004 New Edge Mustang.

Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

FOLLOW: removal , new edge mustang , interior

How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

Removing the headliner from your New Edge can be needed from time to time. This can include a simple replacement for a damaged part, to a full interior restoration. In this removal, we'll use our 2004 Mustang GT to show you how this one is done.

This removal will take you a few hours to get out of the car. Tools will include:

  • Screwdriver Set
  • Torx Bit Set
  • Assorted Cleaning Supplies

Removal

  1. Let’s start off by removing each of the A-pillar trim sections. Grab ahold of the top edge and pull the trim away from the body to release the retaining clips. Do this for each side.
  2. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  3. Remove the headliner trim on each side.
  4. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  5. Now let’s move to the back seat area and you will need to remove the cover off of the seat belt anchor. Once this is removed, take the Torx bolt out from the seat belt to remove this from the car.
  6. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04
    How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  7. Go to the coat hook above the rear interior quarter panel and open the access cover by using a small flat-bladed screwdriver. Once this is down, remove the Phillips head screw holding this in place.
  8. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04
    How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

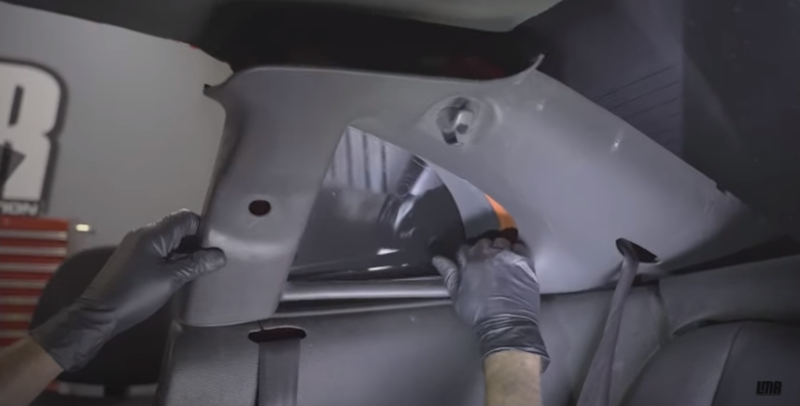

  9. Grab the center of the panel and pull out to release the tabs.
  10. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  11. Repeat this for the other side.

  12. Moving to the dome light, use a small flat-bladed screwdriver to separate the lens from the housing.
  13. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  14. Once this is off you can access the 3 Phillips head screws that hold this in place.
  15. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  16. Lower the dome light down and disconnect the electrical connection.
  17. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  18. Now you will need to remove both sides of the sun visors and the retaining clips. On each sunvisor, there will be two Phillips head screws that will need to be removed. Once these are out you can lower the visor and disconnect any electrical if equipped.
  19. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  20. Repeat this for the other side.

  21. Now on each of the visor clips, you will need to remove the Phillips head screw from these and remove them from the car.
  22. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  23. Located on each back corner of the headliner you will need to release each of the retaining clips holding this in place.
  24. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

  25. These year models are glued in from the factory. Slowly work your way from the side and release all of the adhesives. Once you have the headliner free, you will need to detach the electrical harness.
  26. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04
    How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

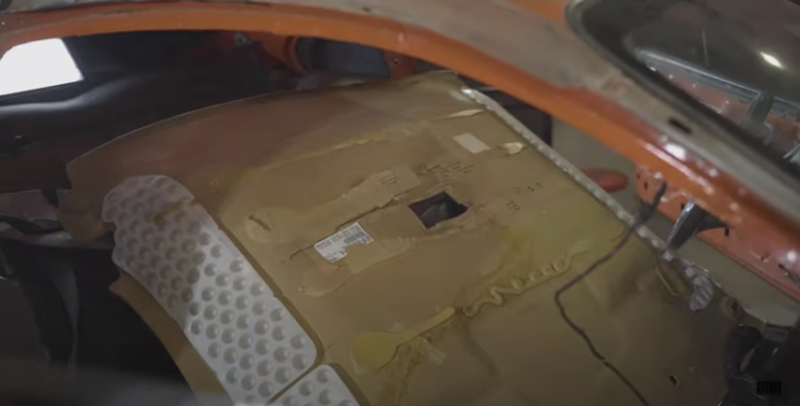

  27. You can now take this time to clean any leftover adhesive on the roof skin.
  28. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04

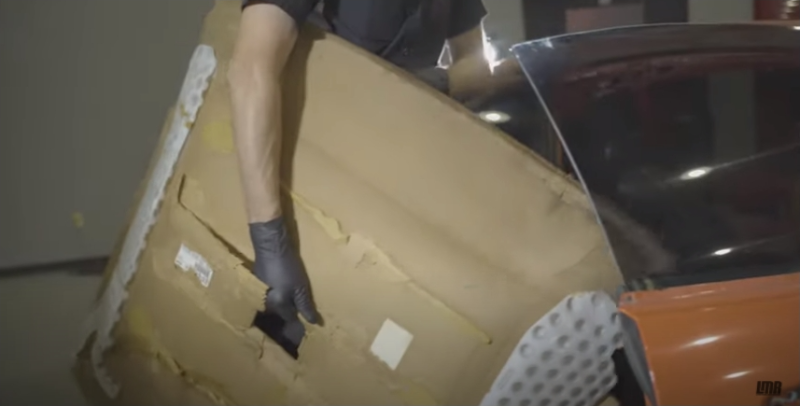

  29. The headliner can now be removed from the vehicle and you're all done!
  30. How To Remove New Edge Mustang Headliner | 99-04 - How To Remove New Edge Mustang Headliner | 99-04


As always, keep it here with the real Mustang Enthusiasts at LMR.com



About the Video

How To Remove New Edge Mustang Headliner (99-04)

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2020-10-21
Buy 99-04 Headliner: http://latemodelres.to/940420_YouTube

Follow along as Jay walks you through the headliner removal process from your 99-04 New Edge Mustang

YouTube: https://latemodelres.to/youtube-subscribe
Facebook: http://www.facebook.com/latemodelresto
Instagram: http://instagram.com/latemodelresto
Twitter: http://twitter.com/latemodelresto

#LMR #NewEdge #Interior

Use of this video is subject to the terms as set forth in our LMR Install Video Disclaimer | https://lmr.com/page/lmr-install-video-disclaimer
Transcript
99-04 Mustang Headliner Removal

How’s it going everyone, Jay here with LMR.com. Today we will go over the steps on how to remove your factory headliner from your 99-04 Mustang.



Removing the headliner from your New Edge can be needed from time to time. This can include a simple replacement for a damaged part, to a full interior restoration. Lets go over to our 04 Gt to show you how this one is done.

Let’s start off by removing each of the A-pillar trim sections. Grab a hold of the top edge and pull the trim away from the body to release the retaining clips. Do this for each side.

Remove the headliner trim on each side.

Now let’s move to the back seat area and you will need to remove the cover off of the seat belt anchor. Once this is removed, take the torx bolt out from the seat belt to remove this from the car.

Go to the coat hook above the rear interior quarter panel and open the access cover by using a small flat bladed screwdriver. Once this is down, remove the phillips head screw holding this in place.

Grab the center of the panel and pull out to release the tabs.

Repeat this for the other side.

Moving to the dome light, use a small flat bladed screwdriver to separate the lens from the housing.

Once this is off you can access the 3 phillips head screws that hold this in place. Lower the dome light down and disconnect the electrical connection.




Now you will need to remove both sides of the sun visors and the retaining clips.

On each sunvisor, there will be two phillips head screws that will need to be removed. Once these are out you can lower the visor and disconnect any electrical if equipped.

Repeat this for the other side.

Now on each of the visor clips you will need to remove the phillips head screw from these and remove them from the car.



Located on each back corner of the headliner you will need to release each of the retaining clips holding this in place.


These year models are glued in from the factory. Slowly work your way from the side and release all of the adhesive. Once you have the headliner free, you will need to detach the electrical harness. You can now take this time to clean any leftover adhesive on the roof skin.



Alright everyone, this one will take you a few hours to get out of the car. Tools will include a screwdriver set, a torx bit set, and assorted cleaning supplies.

If you enjoyed this video, make sure to give it a thumbs up. Make sure to subscribe to our channel and turn on notifications so you can be up to date on new tech videos like this one.

As always, keep it here with the real Mustang Enthusiasts LMR.com
