Fox Body Mustang Dashboard Hardware Kit Diagram

Created by Tyler Rodriquez / 7 min read
Date Created: 2/24/2026
Last Updated: 2/24/2026

Replacing the hardware on your Fox Body dash? Follow our easy-to-use guide to find out where each bolt and screw goes.

Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

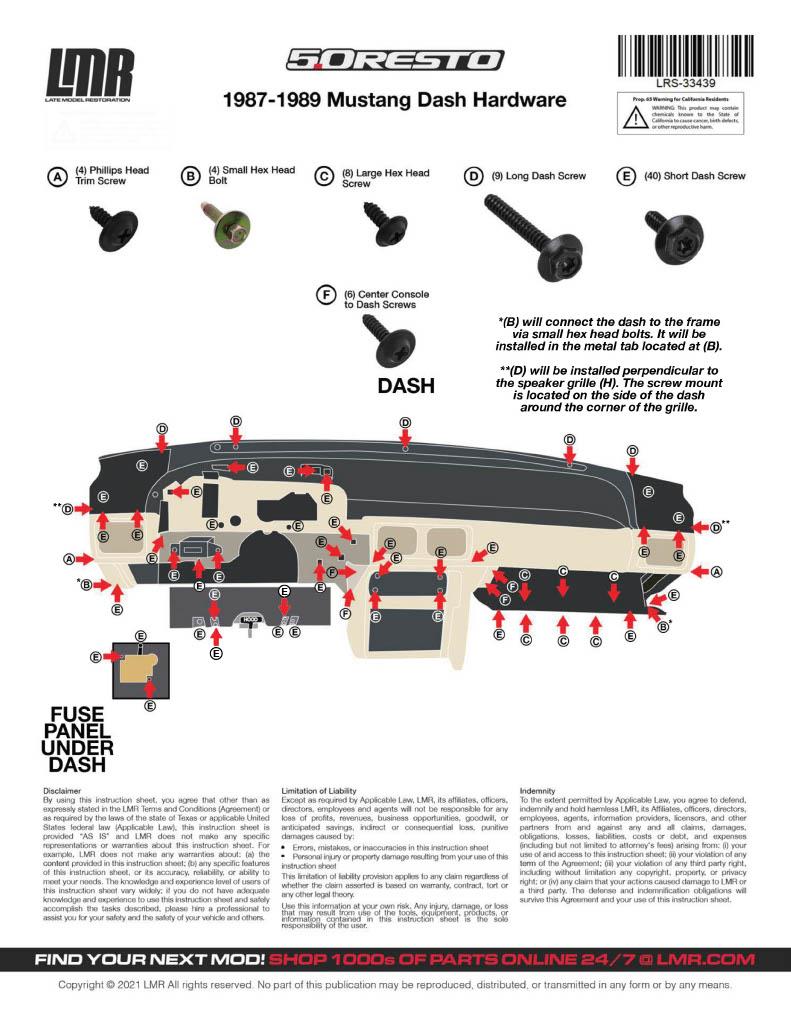

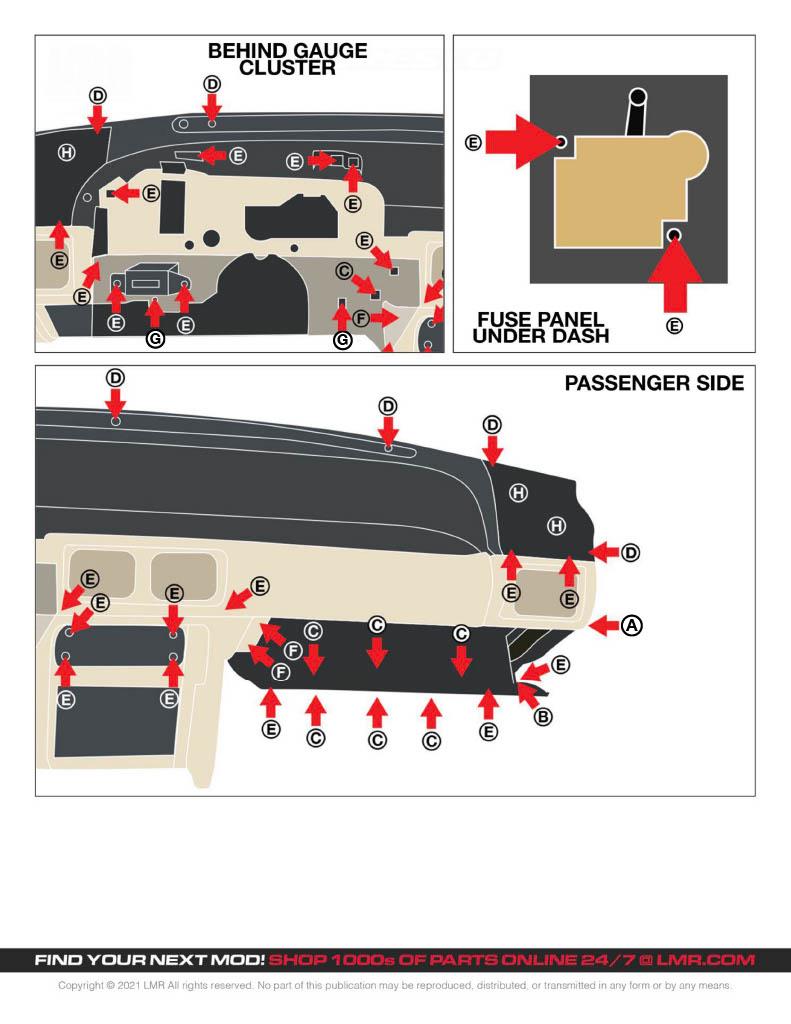

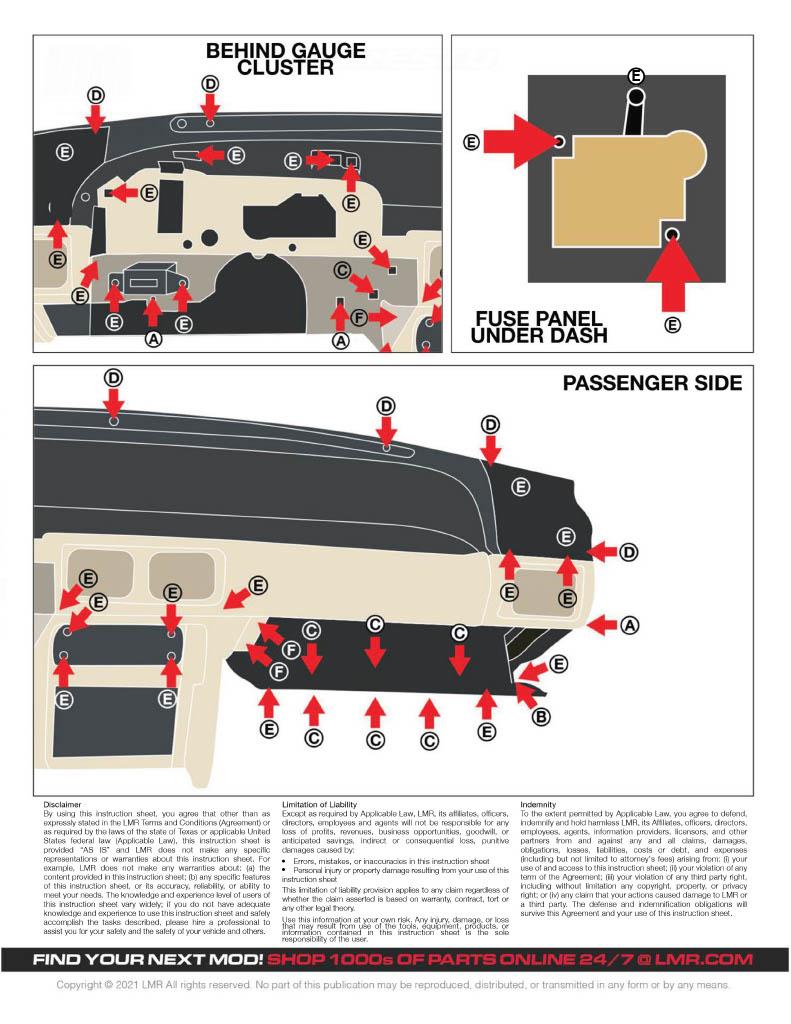

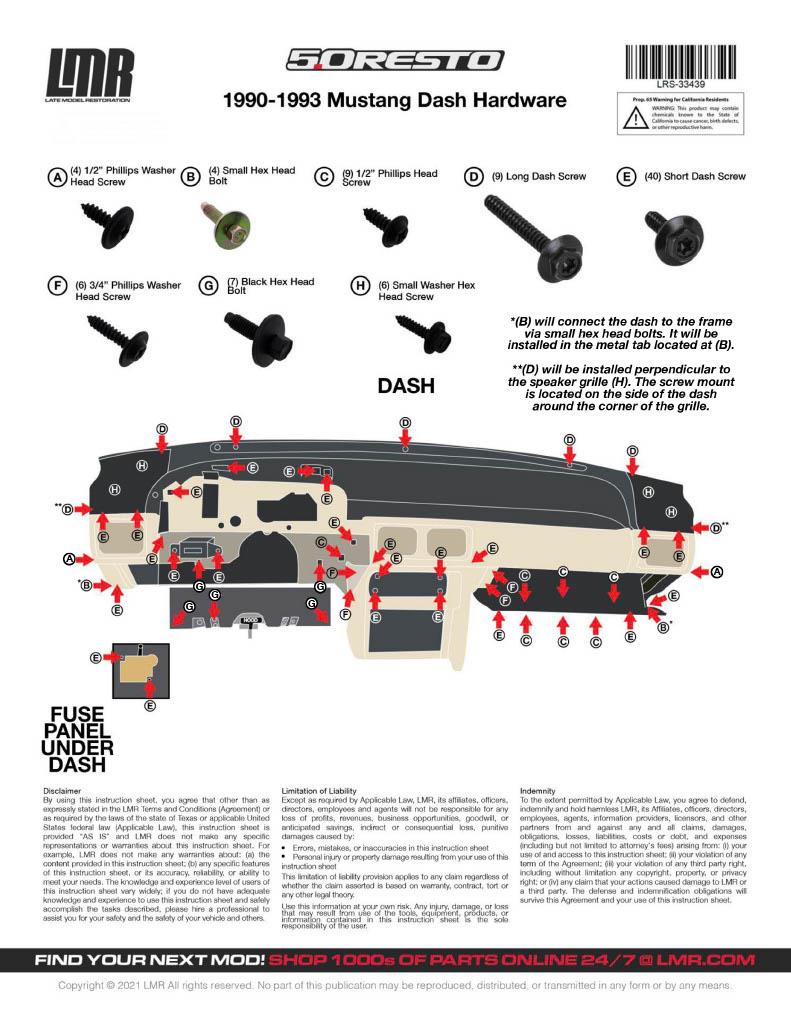

Over time and with multiple owners, Fox Body Mustangs tend to lose dash hardware. Rather than chase down every last screw, we here at LMR have put together two different kits to properly secure your dash. Check out our instructions below to get your 1987-1989 and 1990-1993 Fox Body Mustang dashboard installed.
