How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

If you're looking to get the most performance gains out of your 2015-2017 with minimal modifications to it? These Power Packs are the perfect mod for you!

Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

Mustang Ford Performance Power Pack Stage 2

Before we Get Started

The Mustang Ford Performance Power Pack Stage 2 is the perfect addition to any Mustang lover who is looking to get the most performance out of their Mustang GT. In this video, we highlight just what this performance pack will do to your GT, and exactly how much of a difference it makes once installed correctly.
If you don't want to void warranty, we suggest having an authorized dealership complete the install for this performance power pack. Ford Performance Performance Pack Warranty

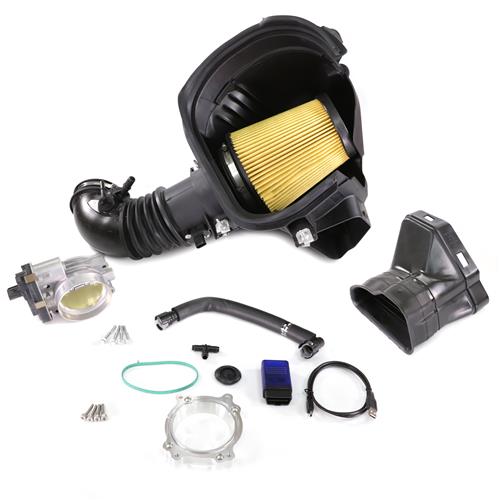

What's in the Box?!
  • GT350 throttle body
  • GT350 cold air intake
  • throttle body adapter to adapt the larger GT350 unit to the factory intake manifold
  • ProCal tool
  • all needed installation hardware
  • calibration sheet with code and instructions

***A LAPTOP COMPUTER IS REQUIRED***

Before the Install

The only modification to the car as it sits is a Ford Performance GT350 catback exhaust with the sport mufflers. This car is a Performance Pack car so it has a six-speed MT-82 transmission and 3.73 Rear end gears.
For a good starting point before the Stage 2 performance pack, this car managed to make 395 horsepower at 6500 RPMS and 370 feet of torque at 3900 RPMS. Those are SAE corrected numbers with a fifth gear pull and 93 octane fuel. With these kind of numbers, this Mustang is already a beast. Of course, being Late Model Restoration, we HAVE to take it up a notch!

Installation Instructions

  1. To get started with the install, pop the hood and disconnect the negative battery cable. Disconnect the Mass airflow sensor connection.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  2. Remove the bolt securing the box to the fender with a 10mm socket.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  3. Remove the PCV connection and the EVAP connections on the air inlet tube.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  4. Remove the sound tube from the inlet tube and the small push pin from the strut tower, remove the sound tube from the firewall and use the provided plug to cover the hole in the firewall.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  5. Loosen the 7mm hose clamp from the inlet tube and remove the factory airbox from the car.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  6. Disconnect the throttle body connection as well as the 4 8mm bolts securing the throttle body to the intake manifold and then remove the throttle body.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  7. Install the provided green gasket into the provided throttle body adapter.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  8. Align the throttle body adapter to the intake manifold and use the provided allen head bolts to secure the throttle body adapter to the manifold. Torque the bolts to 7 lb-ft.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  9. Position the GT350 throttle body into place and secure it the intake manifold with the provided bolts. Torque to 60 in-lbs.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  10. You will want to make 2 cuts in the rubber seal in the GT350 cold air intake, then position the cold air intake into the car and make sure the rubber seal you cut is facing down.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  11. Slide the inlet tube over the throttle body and secure the airbox with the previously removed retaining bolt.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  12. Tighten the 7mm hose clamp on the inlet tube.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  13. Drill a small hole in the airbox and attach the harness clip.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  14. Detach the other small harness clip on the fender and utilize the included zip tie to secure the harness.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  15. Cut the EVAP line to the right of the throttle body and install the 3/8 vacuum tee. Remove the quick connect from the EVAP line on the left side of the throttle body and install it onto the T-fitting as well.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  16. Take this time to reconnect any lines or anything else that has been removed during the throttle body installation.


  17. Install the provided foam seal with the larger firmer piece of foam on the filter side.

    How To Install Mustang Ford Performance Power Pack Stage 2 (15-17) - How To Install Mustang Ford Performance Power Pack Stage 2 (15-17)

  18. Reinstall the intake manifold cover and reconnect the negative battery cable.


  19. Use your laptop to create a Ford performance account by following the included instructions sheet and download the Pro Cal software.


  20. Connect the ProCal to the OBD2 port located on the right side of the driver side kick panel.


  21. Connect the cable to ProCal and your laptop and allow it to read the VIN.


  22. Enter the calibration code and download the file. Then program the vehicle and allow the program to finish and unplug the ProCal from the OBD2 port.


Review

Let's take a look at what she's at after our install!

Stock Dyno: 395HP/370TQ

  • Ford Performance GT350 Sport Catback Exhaust
  • Manual MT-82 (5th gear pull at 1:1)
  • 3.73 Gears
  • 93 Octane
  • 19" Wheels


After Dyno: 421HP/399TQ

  • Ford Performance Stage 2 Power Pack
  • Ford Performance GT350 Sport Catback Exhaust
  • Manual MT-82 (5th gear pull at 1:1)
  • 3.73 Gears
  • 93 Octane
  • 19" Wheels

That's a 26 Horsepower peak gain and an 29 Torque peak gain!



About the Video

2015-2017 Mustang GT Ford Performance Stage 2 Power Pack - Review & Dyno

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2016-10-25
Improve performance and horsepower in your 2015-2017 Mustang GT with this Ford Performance Cold Air and Calibration Power Pack 2! These calibrations feature exclusive Ford proprietary software and engineering backed by a Ford Performance warranty. This Power Pack includes a GT350 cold air intake with 87mm throttle body and Ford calibrator. This kit increases performance by 21hp and 24 lbs/ft torque peak gains over stock to the flywheel.

Stock Dyno: 395HP/370TQ

- Ford Performance GT350 Sport Catback Exhaust
- Manual MT-82 (5th gear pull at 1:1)
- 3.73 Gears
- 93 Octane
- 19" Wheels


After Dyno: 410HP/389TQ

- Ford Performance Stage 1 Power Pack
- Ford Performance GT350 Sport Catback Exhaust
- Manual MT-82 (5th gear pull at 1:1)
- 3.73 Gears
- 93 Octane
- 19" Wheels

Fitment: 2015-2017 Mustang GT

Item # M9603M8A
MPN # M-9603-M8A
Transcript
How’s it going everybody? Landan with Late Model Restoration! Welcome to round 2 covering the Ford Performance power packs for the 2015 to 2017 Mustang GT’s. This video will contain my review, install and dyno runs on the stage 2 power pack from Ford Performance.

If you’re in the market for more horsepower and torque in your 2015 to 2017 Mustang GT and want to keep things clean and simple; you should definitely consider this stage 2 power pack from Ford Performance.

This power pack is going to feature the same throttle body and cold air intake found on the GT350, and of course an exclusive calibration for this particular setup. The throttle body itself features an 87mm opening versus the factory 80mm to allow more airflow resulting in more power. The cold air intake arrives pre-assembled with a high-flow paper filter, inlet tube, and air box.

Aside from those two key components, this kit includes Ford Performance’s ProCal tool. This tool allows for calibrations of both manual and automatic transmissions. Manual Mustang owners get an exclusive no-lift strategy, which by the way is really cool, while automatic owners get increased line pressure for faster, more positive shifts. The ProCal tool will increase throttle response to the electronic throttle body, allows adjustment of rear end gear changes, and the ability to read diagnostic trouble codes.

When you open the box you’ll find the GT350 throttle body, GT350 cold air intake, throttle body adapter to adapt the larger GT350 unit to the factory intake manifold, of course the ProCal tool, all needed installation hardware, calibration sheet with code and instructions.

Keep in mind when purchasing this kit; a laptop computer is required to operate the ProCal tool and whenever you flash the PCM with the Ford Performance calibration, ninety-one octane fuel and higher is required.

Ford Performance does rate this kit at twenty-one peak horsepower and twenty-four pound feet of torque over a factory car. This stage two kit is 50-state legal and retains the vehicles warranty as long as an authorized Ford dealership completes the install. For more information on the limited warranty, click the link in the video description, or check it out on the product page.

Alright fellas, I’m going to strap our 2015 Mustang GT to the dyno and get a baseline pull. The only modification to the car as it sits is a Ford Performance GT350 catback exhaust with the sport mufflers. This car is a Performance Pack car so it has a six speed MT-82 transmission and 3.73 Rear end gears.

For a good starting point before the Stage 2 performance pack, this car managed to make three hundred and ninety-five horsepower at sixty five hundred RPMS and three hundred and seventy pound feet of torque at thirty-nine hundred RPMS. Those are SAE corrected numbers with a fifth gear pull and ninety-three octane fuel.

To get started with the install, pop the hood and disconnect the negative battery cable. Pry up on the intake manifold cover and slide it out, underneath the strut tower if equipped.

Disconnect the Mass Air Flow sensor connection. Detach the clip securing the harness to the air box.

Remove the bolt securing the box to the fender with a 10mm socket. Now, remove the PCV connection and two EVAP connections on the air inlet tube.

Our car already had the sound tube deleted. You will need to do the same. Remove it from the inlet tube and the small push pin near the strut tower.

Finally, remove the nut from the stud on the firewall that secures the sound tube. Discard the sound tube and use the provided plug to block off the hole in the firewall.

Loosen the 7mm hose clamp on the inlet tube and remove the factory air box from the car.

Disconnect the throttle body connection. Remove the four 8mm bolts securing the throttle body to the intake manifold and then remove the throttle body.

Make sure the area is clean of any foreign material. Align the spacer plate with the intake manifold making sure the counter-sunk holes are flush with the threaded holes.

Use the provided Allen head bolts to secure the throttle body and torque to seven pound feet.

If it helps, remove any oil separator that may be attached. It could get in the way while you install the GT350 throttle body.

Now, position the GT350 throttle body into place and use the provided bolts to secure it to the intake manifold. Torque these bolts to sixty inch pounds and then rotate sixty degrees.

Plug in the electrical connection to the throttle body. Grab the GT350 cold air intake and make two cuts in the rubber seal.

Position the cold air intake into the car and make sure the rubber seal you just cut is angled down. Slide the inlet tube over the throttle body and secure the box with the previously removed retaining bolt.

Next, drill a small hole in the air box and attach the harness clip. Detach the small harness clip on the fender and utilize the included zip tie to secure the harness.

Now, cut the EVAP line to the right of the throttle body and install the included three eights vacuum “T”. Remove the quick connect from the EVAP line on the left side of throttle body and install it onto the “T” fitting as well.

Take this time to reconnect any lines or anything else you may have removed to put the throttle body on. Install the provided foam seal with the larger, firmer piece of foam on the filter side.

Reinstall your intake manifold cover and reconnect the battery. Take this time to visually inspect your work and make sure everything is nice and tidy.

Grab your laptop, ProCal tool, USB cable and calibration sheet. Follow the simple instructions on the sheet to create a Ford Performance account and have access to download the ProCal software. Once that is finished, plug in the tool to the OBD two port located just the right of the driver side kick panel.

Plug the cable into the ProCal and the laptop. Open the ProCal software and allow it to read the VIN. Enter the calibration code and download the file. Program the vehicle. Allow the programming to finish and then unplug the ProCal from the OBD two port.
