How To Replace Fox Body Outer Door Belt Weatherstrip | 1987-93

Created by Taylor Ward
Last Updated 5/24/2021

Check out LMR's Fox Body Outer Door Belt Weatherstrip replacement article for 87-93 Mustangs. Our 5.0Resto outer door belt weatherstrips are a perfect fit!

Viewing this install and using the information shared is subject to the terms set forth here - View the LMR Install Instructions Disclaimer.

FOLLOW: how to , 79 93 mustang , door , weatherstriping

How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

The outer door belt weatherstrips are an essential component to the door of your Fox Mustang. This piece sits between the glass and the outer door belt molding, and is commonly referred to as the “dew wipes”. The reasons why you want to replace these are pretty obvious... Over the years the rubber dry rots and becomes brittle, and the felt lining on the inside of the weatherstrip wears away which can cause annoying squeaks since the glass is rubbing against the rubber.

Our 5.0 Resto outer door belt weatherstrips are a great replacement and feature all of the same characteristics as the factory pieces. They’re black in color, they’re a direct fit replacement, and they pair great with other 5.0 Resto door restoration parts such as outer door belt moldings, run channel trim, and run channel weatherstrips. These outer door belt weatherstrips fit 1987 to 1993 coupe and hatchback Mustangs as well as 1987 t-top and convertible Mustangs. These will not fit 1988 to 1993 convertible models since those cars had their own unique outer door belt weatherstrip which we currently offer those on the site as well.

Today we’re going to be working on one of our shop cars where we recently restored the entire upper door with new outer door belt moldings, run channel weatherstrips, the run channel trim, roof rail moldings, and we even painted the door frames and mirrors with trim black paint to complete the fresh look.

Before you get started, you’ll need to gather a few tools. These tools include:

  • drill
  • 1/8th" drill bit to drill out the existing rivets
  • Phillips head screwdriver
  • 9/32 socket
  • socket driver
  • large plastic pry tool or something equivalent to shield the glass
  • (6) 5/32 rivets
  • rivet gun
  • fresh razor blade
  • some cleaning supplies

Now just to clear the air, we completely removed the side mirror from the car because the door panel was already off of the car. To fully remove a power mirror, you’ll have to remove the door panel to disconnect the electrical connection. Check out our 1987-93 Mustang Door Panel Removal Article if you need some help.


Removal

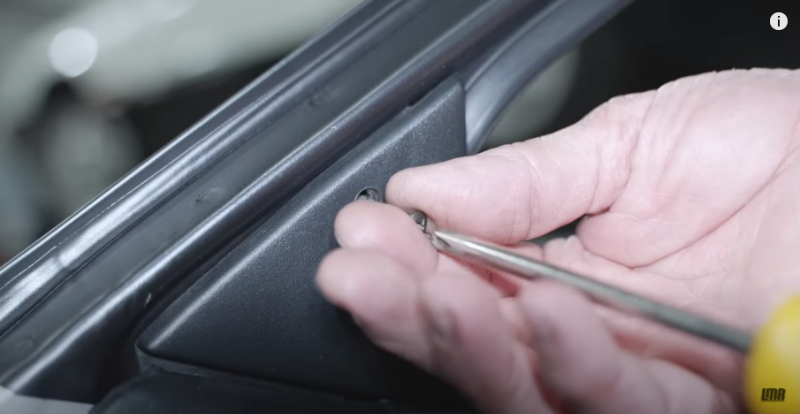

  1. First, you’ll want to loosen and remove the Phillips head screw securing the inside mirror cover.
  2. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

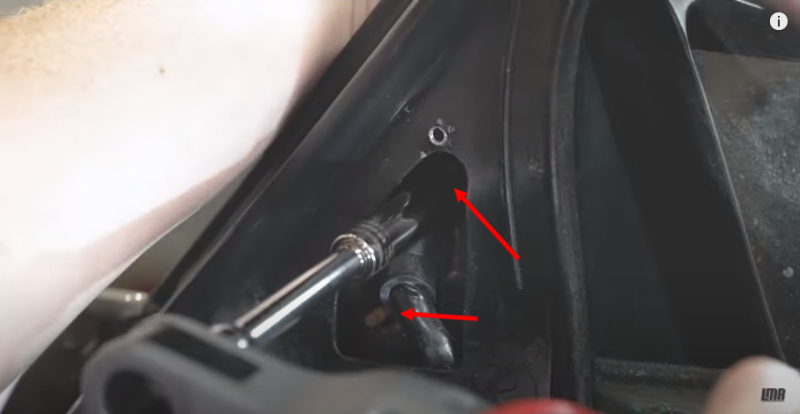

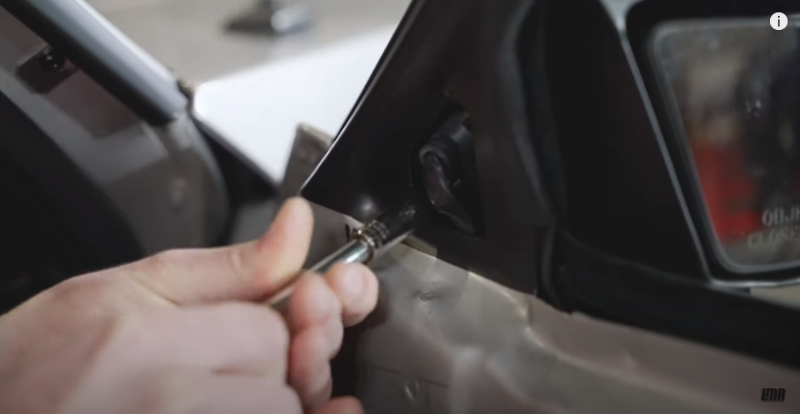

  3. Set the cover aside and remove the (2) 9/32 nuts that secure the mirror to the door frame. If you aren’t fully removing the mirror, leave this loose as it will help with removing the outer door belt molding.
  4. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

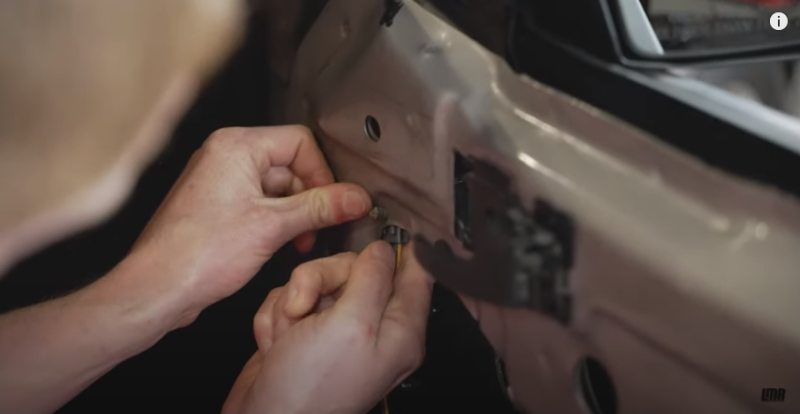

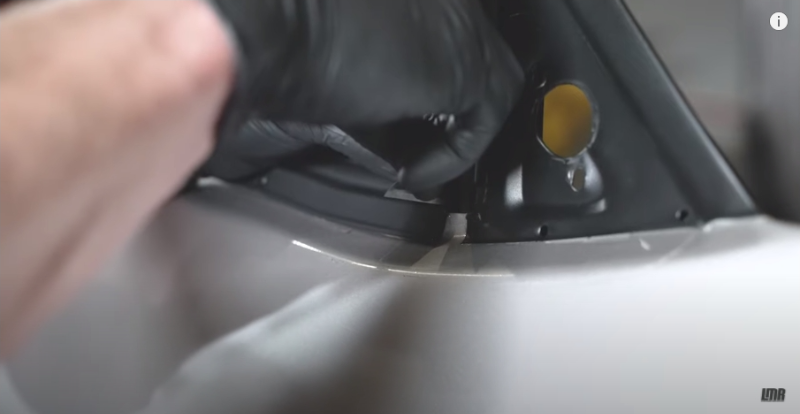

  5. Once the door panel is off of the car, disconnect the electrical connection behind the door frame.
  6. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

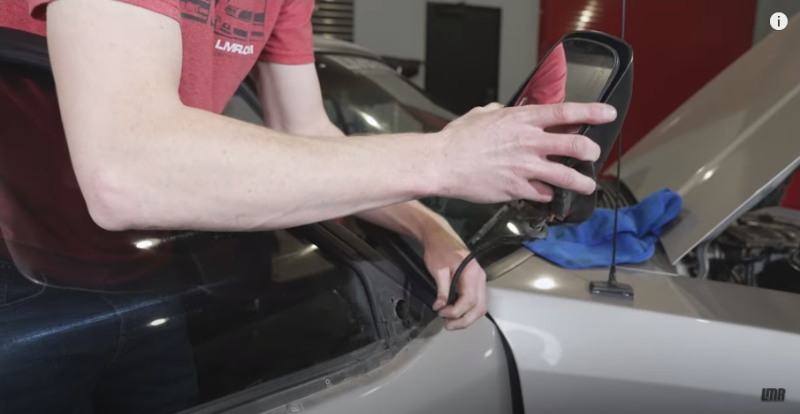

  7. Dislodge the harness clip and then remove the mirror from the car.
  8. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

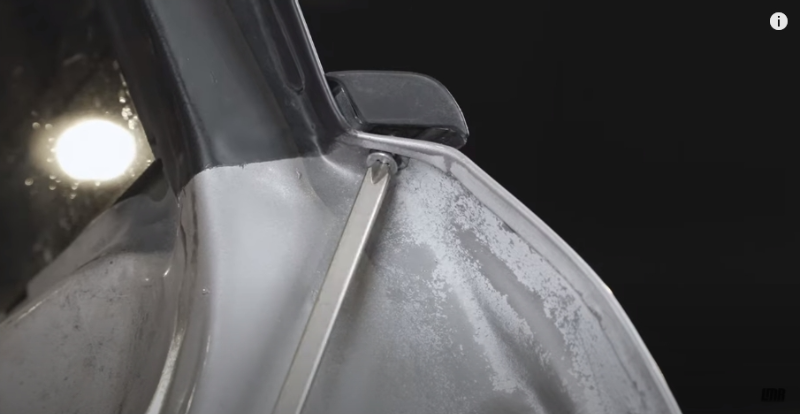

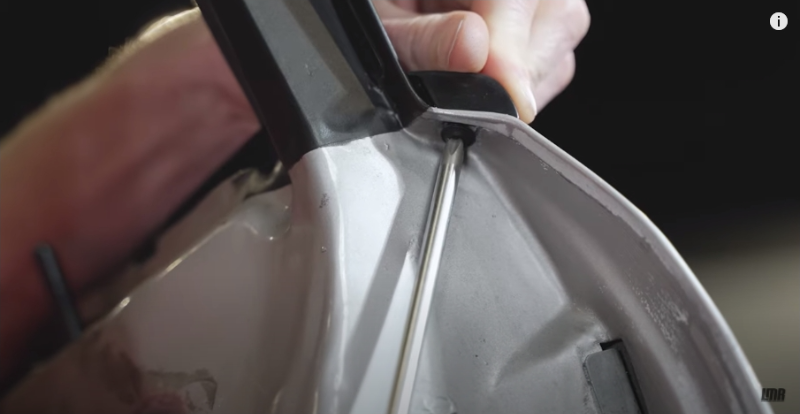

  9. At the rear of the outer door belt molding, loosen and remove the Phillips head screw.
  10. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

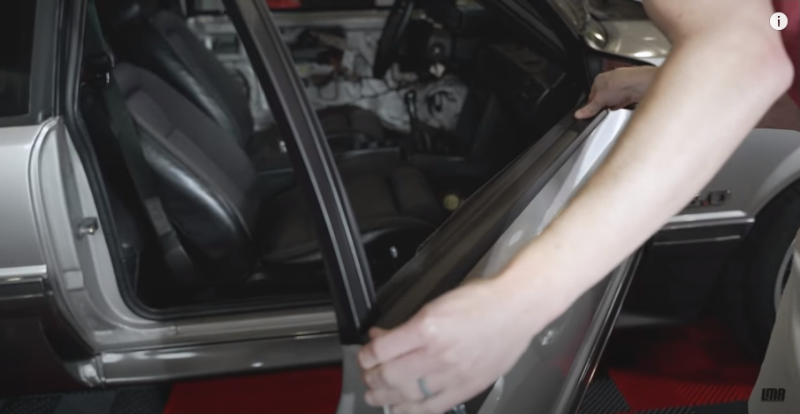

  11. Carefully slide back the outer door belt molding a few inches to clear the buttons and then remove the molding from the door.
  12. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

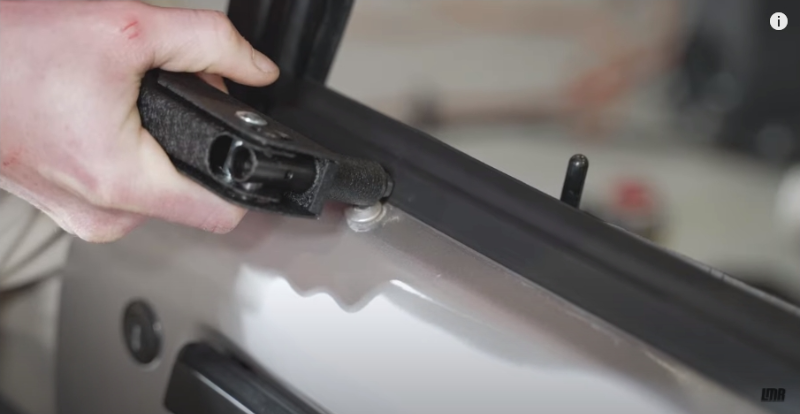

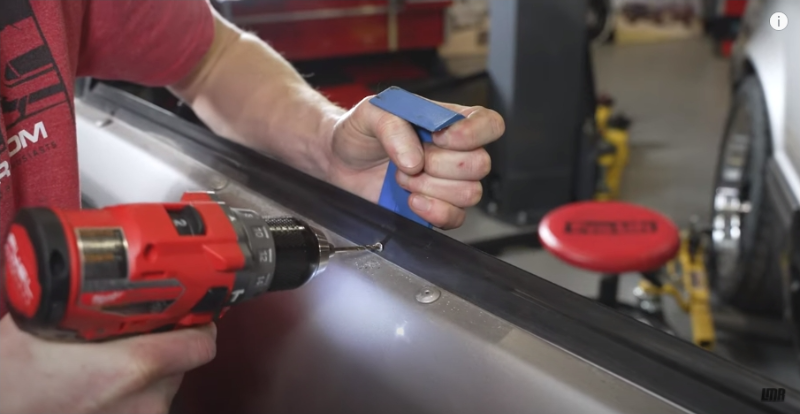

  13. Drill out all (3) of the rivets and use your shielding tool to protect the glass.
  14. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

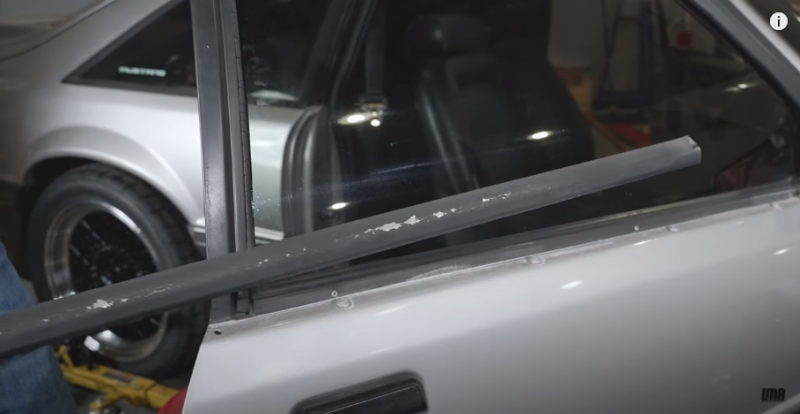

  15. Whenever the rivets are removed, lift up on the weatherstrip to remove it from the door frame.
  16. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

  17. Use this opportunity to thoroughly clean the area.
  18. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93


Install

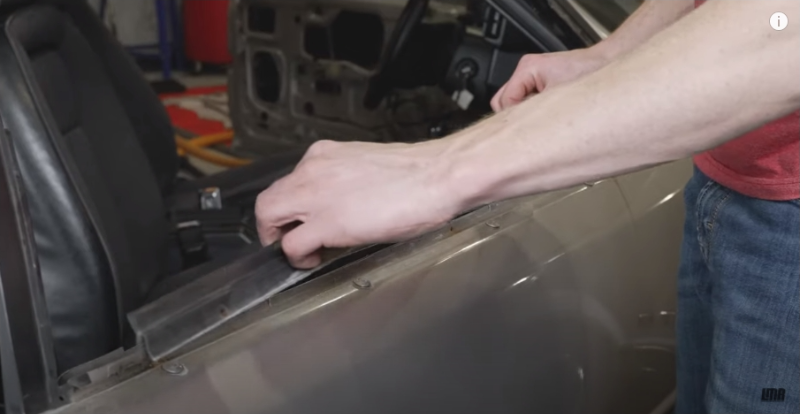

  1. Place the new weatherstrip on the door frame. If needed, carefully clearance the weatherstrip with a razor blade so that it clears the run channel.
  2. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

  3. Go ahead and install all (3) of the rivets. The order in which you do this does not matter. Be mindful of the painted areas.
  4. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

  5. Reinstall the mirror and retighten the retaining screws.
  6. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

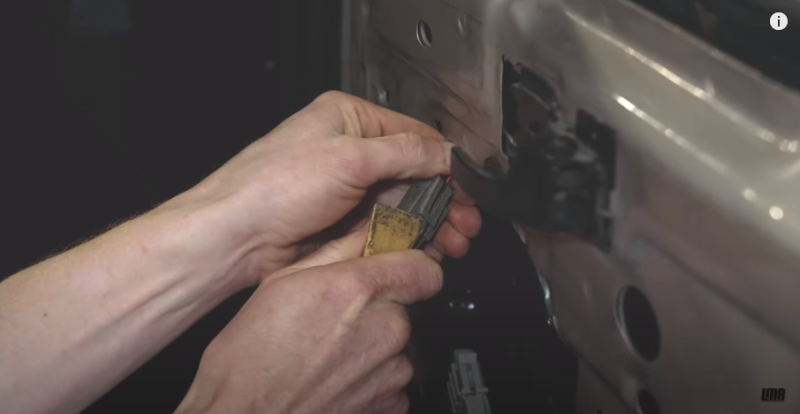

  7. Connect the electrical connection and reposition the harness clip.
  8. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

  9. Reposition the outer door molding over the buttons and slide it forward until it stops. Make sure this molding is properly engaged with the buttons.
  10. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

  11. Reinstall and carefully retighten the rearward screw.
  12. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93

  13. Repeat these same steps for the other side.

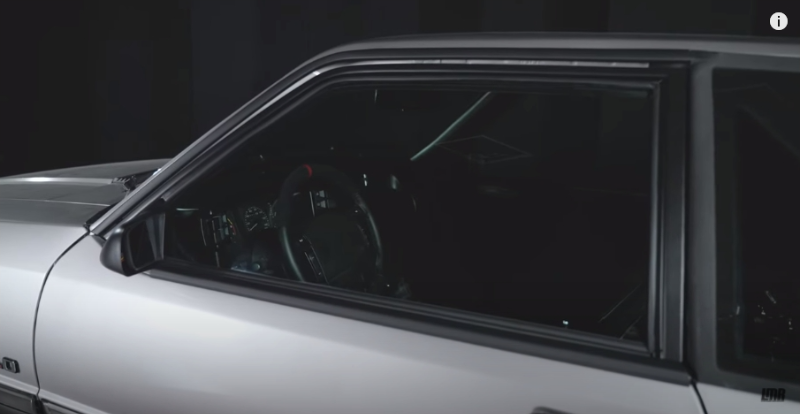

  14. Double-check your work and then you’re good to go!
  15. How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93 - How To Replace Fox Body Outer Door Belt Weatherstrip | 87-93


For those of you that have followed us for quite some time now know that we really enjoy the restoration parts. These 5.0 Resto outer door belt weatherstrips are phenomenal and are a must-have for your Fox Mustang restoration project. As always, for the most up-to-date product information, pricing, and availability on anything in the article, please reference LMR.com.


Until next time, for all things Fox Body, keep it right here with real enthusiasts, LMR.com!


5.0 Resto Outer Door Belt Weatherstrip Kit


About the Video

How To Replace Fox Body Mustang Door Belt Weatherstrip (87-93) - Install

Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!

Published on 2021-04-29
Purchase Outer Door Belt Weatherstrip: http://latemodelres.to/21452PR_YouTube

Door Panel Removal: https://youtu.be/AOK47vzs3bs

The door belt weatherstrip, sometimes called "dew wipe", is located to the inside of the door belt molding and presses against the door glass to seal it off from water. It attaches to the top of the door with rivets that can be purchased locally from any hardware store. Often times this piece dry rots and cracks which can be painful if you rest your arm on the window sill while driving.

Fitment Note
These 5.0 Resto outer door belt weatherstrips fit 1987-93 Mustang coupe & hatchback as well as 1987 T-top & Convertible. They will not fit 1988-1993 Mustang Convertible.
