3 1/2" Single Wall Slash Cut Polished Stainless Tips

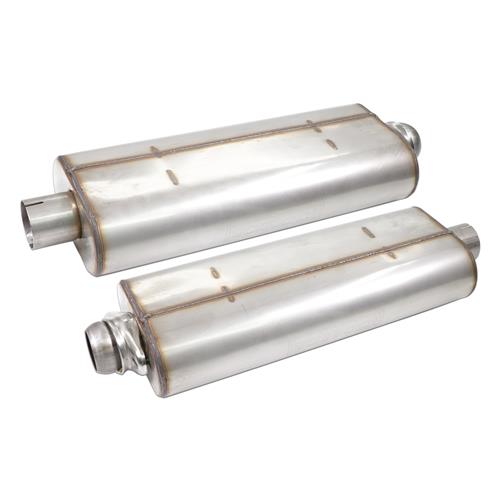

4X8 Dual Mufflers
Forward Exit
What's in the Box
(1) Cat-Back Exhaust System
Installation Hardware
Lightning Bassani Exhaust Kit
This is a cat back exhaust system for your 1999-2004 Ford SVT Lightning. The kit is designed to exit in front of the rear tire just like the original kit comes. This is a full stainless steel kit with 2.5" piping and polished stainless steel 3.5" slash cut tips. Bassani uses gasket-less ball and socket connections to simplify installation. Each system is shipped complete with premium high-grade mounting hardware to secure everything in place. All Bassani Aft-Cat exhaust systems feature stainless steel tips polished to a "show quality" finish and a stainless steel band clamp for easier installation. Regardless of whether you're 18 or 80, Bassani delivers a distinct, deep exhaust note that's sure to impress. Legal in all 50 states, will not affect factory warranty or emissions standards. Precision-engineered stainless steel for durability and backed by a LIFETIME WARRANTY.
Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!
Published on 2013-10-29 Watch and listen to LatemodelRestoration.com employee Landon's amazing 2000 SVT Lightning! His performance truck features an awesome mod list that includes Bassani BX Aluminized mid pipe and cat back exhaust. See His Full Mod List Below:
This Bassani catback exhaust kit is available in both stainless steel (BE-54150L4) and aluminized (BE-BX54150L4) versions. They both feature a dual high flow muffler design with dual polished round tips for performance and looks to match. They both produce the same aggressive exhaust tone that will get you noticed while increasing horsepower and torque. They include all needed hardware and instructions to complete the install in your own driveway.
Bassani offers their mid-pipes in two different versions: off-road without catalytic converters and with high flow catalytic converters. These mid pipes are available in both aluminized and full stainless steel versions. They are the perfect way to get rid of the restrictive factory mid pipe on your supercharged 5.4L Lightning!
Shop More Ford SVT Lightning Parts Here: http://www.latemodelrestoration.com/Ford-Lightning
Landon's Full Mod List
--Engine/Transmission--
K&N Filter 90mm Mass Air C&L intake pipe Ported Eaton 6lb lower pulley Electric fans Shift Kit Factory Tech valve body
Bassani - The Sound of Power
Bassani has been recognized as a leader in specialized exhaust components for more than 30 years. Their performance history dates back to 1969 when they began designing exhaust systems for motorcycles. Bassani designs, tests, and manufactures the ultimate in high performance exhaust systems. Shop LatemodelRestoration.com to get your Mustang outfitted with Bassani performance headers, x-pipes, mufflers, and complete stainless steel exhaust systems!
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
Wheel Width
Wheel Backspacing
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Pattern
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
Wheel Offset
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Centerbore
The centerbore of the wheel is the opening in the middle of the wheel, surrounded by the lug holes. This opening helps to center the wheel to the hub. Its diameter is typically measured in millimeters (mm) and varies in size depending on vehicle application. Manufacturers approve up to a 1% variance in tolerance to pass wheels during inspection.
