1996-04 Mustang Comp Cams Beehive Valve Springs 4.6 4V by Comp Cams

Price: 342.95 USD
Availability: InStock

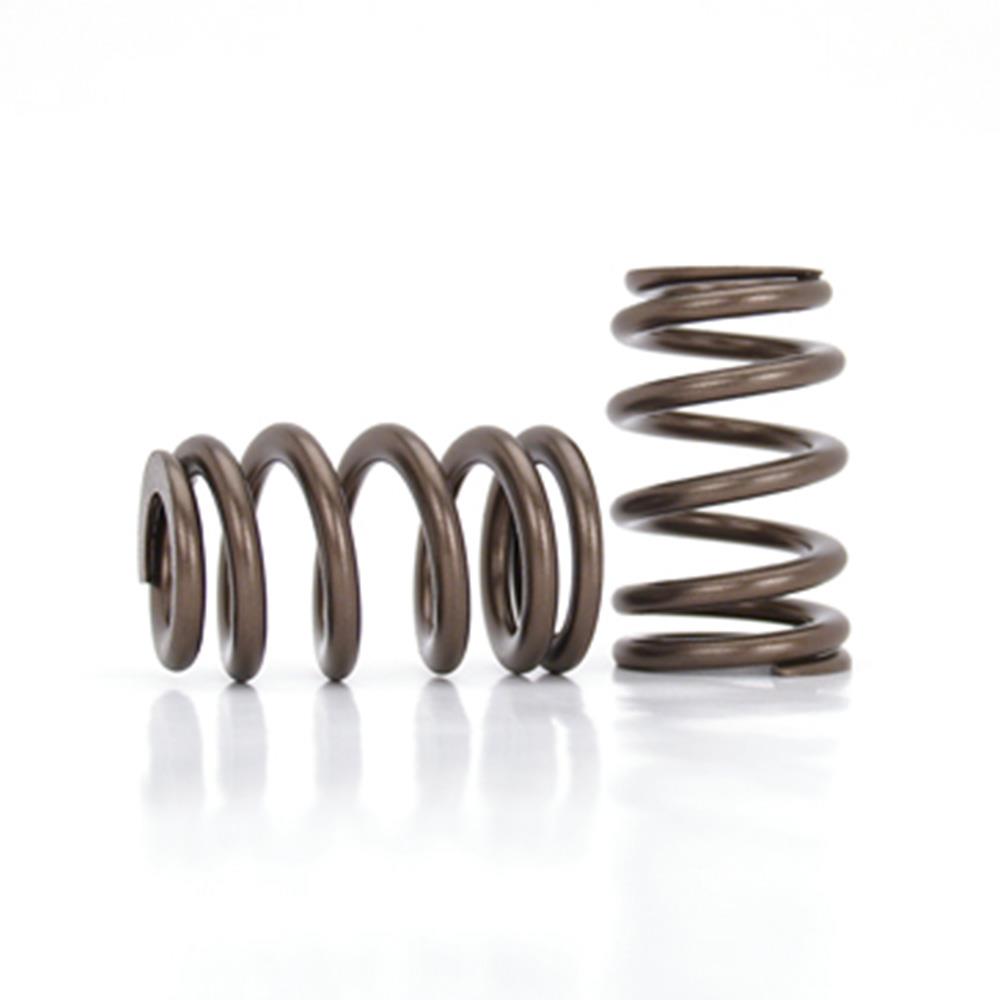

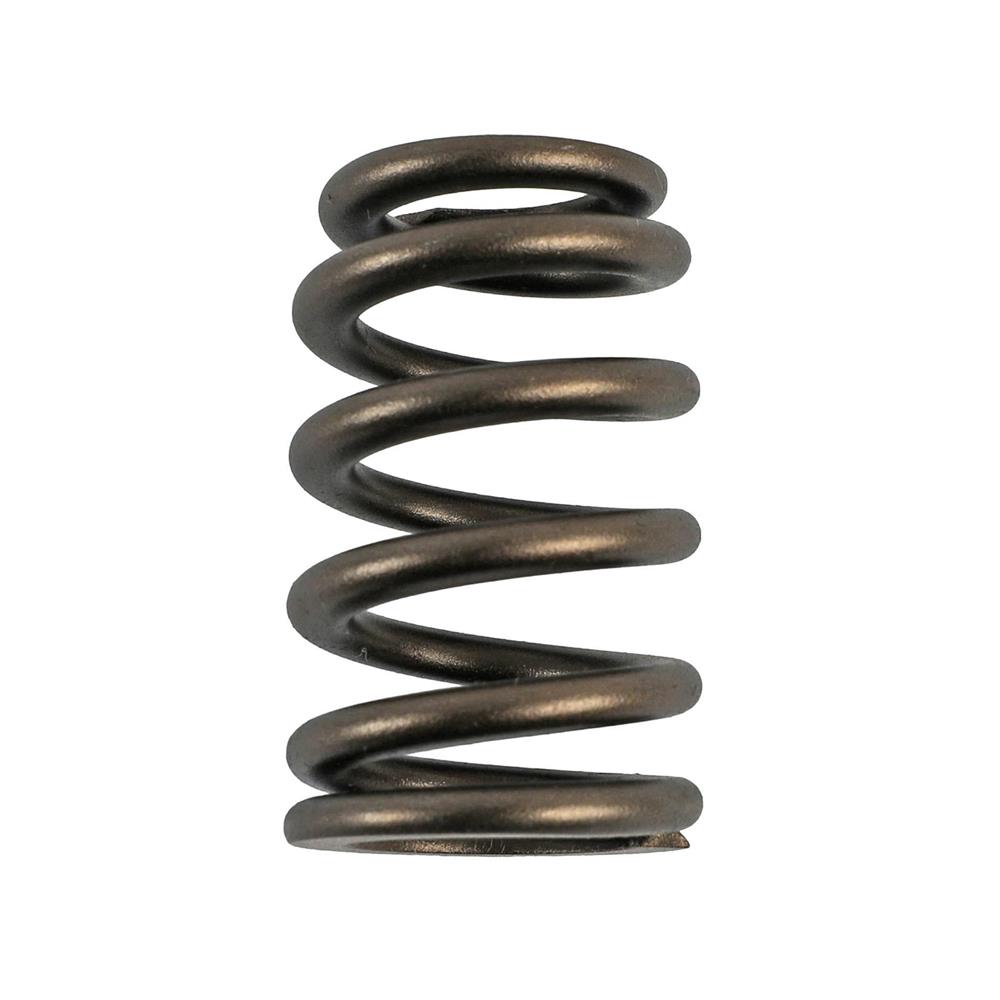

1996-04 Mustang Comp Cams Beehive Valve Springs 4.6 4V

Comp Cams beehive valve springs are a nice upgrade when putting new cams in your 1996-2004 Mustang 4.6 4V engine.

Item #CCA-2612316
MPN# 26123-16

Everyday Low Price: $342.95

Low Stock Only 2 available.

This item is returnable. Details

This item is not eligible for discounts or coupon codes.

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Increased Valvetrain Stability
Lighter Weight
Less Spring Pressure

Features

Up to .510" lift
Bee Hive Style Springs
Spring Rate 324 lbs./in

What's in the Box

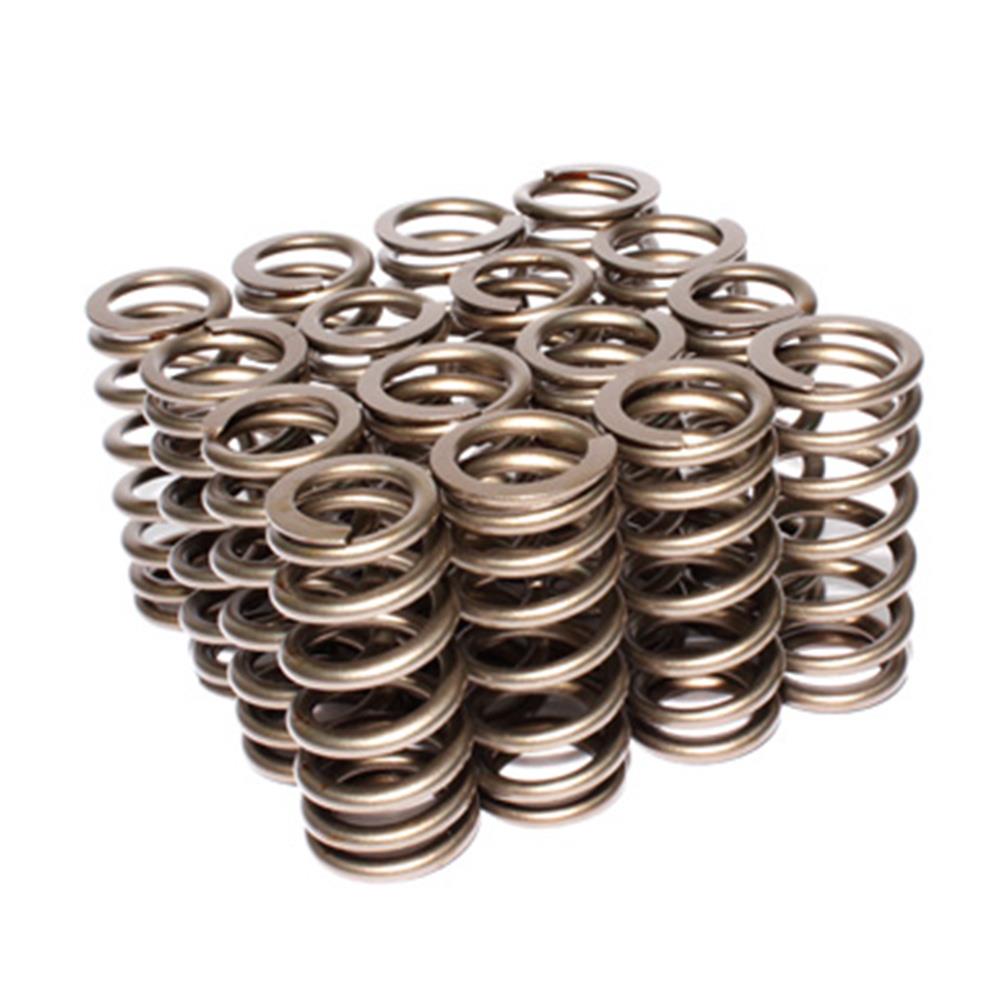

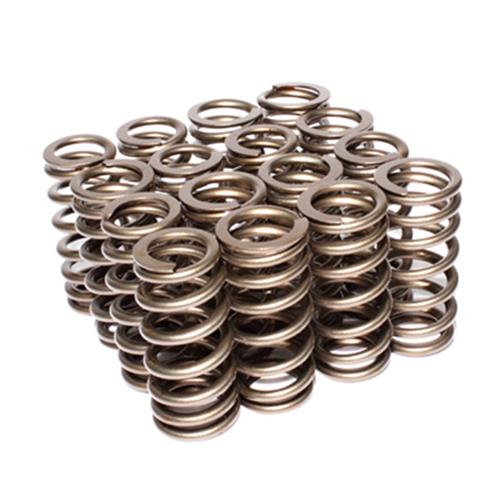

(16) Valve Springs

1996-2004 Mustang 4.6 4V Comp Cams Valve Springs
Install an upgraded camshaft in your 1996-2004 Mustang 4.6 4V and ensure proper valve seat pressure with these Comp Cams valve springs. Comp Cams' valve springs allow you to install a high-performance cam of up to 0.500" lift on any OEM 4V cylinder heads. These valve springs deliver increased valve train stability and a much lighter valve train. This is achieved with a lower spring pressure, rated at 324 lbs. per inch, for better valve control and reduced spring weight. For street/strip applications, these valve springs are the best choice possible. Because of the unique Beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain durability for street driving.

Spring Specifications

Beehive design
Coil Bind Height (in.): 0.900 in.
Spring Rate (lbs/in.): 324 lbs./in.
90 lbs. @ 1.470" installed height
252 lbs. @ .970" Open Pressure
Inside Diameter of Outer Spring (in.):0.742 in.
Outside Diameter of Outer Spring (in.): 1.150 in.
Lock Material: Steel
Lock Groove Quantity: 3-groove
Lock Style: 7 degree
Valve Stem Diameter (in.): 0.275 in.
Valve Stem Diameter (mm): 7.00mm

Product Note

Two kits are required per vehicle

Comp Cam Warranty - Click Here

Ford Mustang - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Engines: 4.6 4V

California Residents:

WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

About This Brand

Comp Cams - The Absolute Leader In Valve Train Performance
COMP Cams - The Absolute Leader In Valve Train Performance

COMP Cams manufactures truly superior hydraulic and solid flat tappet, hydraulic and mechanical roller, and overhead camshafts for Latemodel Mustangs and Lightnings. Comp Cams are designed and manufactured using cutting-edge technology and the finest engineering in the industry.

Whether your engine is naturally aspirated, run nitrous, a supercharger or a turbo, Comp Cams make more horsepower than any other. Looking for that ultimate hard-hitting Mustang idle? Check out the aggressive new ThumprCams.

Match Comp Cams camshafts up with their competition-grade lifters, valve springs, timing sets, and other supporting components, and you’ll experience the ultimate in race-winning reliability!
