2009-14 F-150 Fuel Pump Fuse 27 Relocation Kit by Ford

2009-2014 F-150 Fuel Pump Fuse 27 Relocation Kit

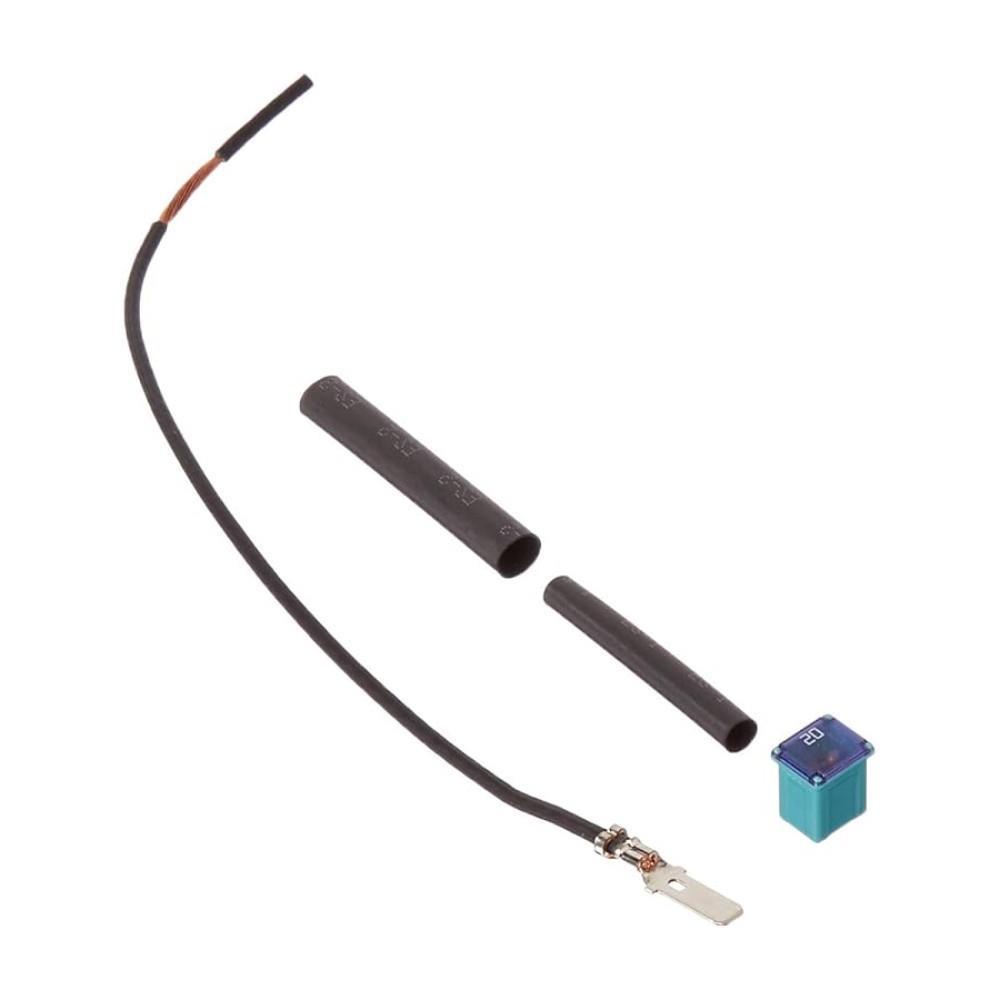

Prevent potential fuel pump fuse and fuse box issues on your 2009-2014 Ford F-150 with this fuel pump Fuse 27 relocation kit. Ford identified an issue with the fuel pump power circuit in which excessive current draw could cause Fuse 27 to overheat or become damaged, potentially resulting in a crank-no-start condition, stalling, or damage to the fuse box. This relocation kit addresses the issue by moving the fuel pump power feed to an alternate location in the fuse panel. The updated wiring and larger fuse help provide a more robust connection capable of handling the fuel pump circuit's electrical load. The kit includes a pre-terminated extension wire, heat shrink, and updated fuse, along with detailed installation instructions to simplify the relocation process. Whether you're repairing an existing Fuse 27 issue or performing a preventative repair, this kit provides the components needed to relocate the fuel pump power feed on your 2009-2014 F-150.

Can Fuse 27 cause a no-start condition on an F-150?
A damaged Fuse 27 or fuel pump power circuit can prevent the fuel pump from receiving power, which can result in a crank-no-start condition. Other fuel system and electrical problems can produce similar symptoms, so proper diagnosis is recommended.

Is the Fuse 27 relocation kit a preventative repair?
It can be used to address the known fuel pump circuit issue and help prevent further problems associated with overheating or damage at the original Fuse 27 location. Inspect the existing fuse box and wiring for damage before performing the repair.

Should I replace Fuse 27 if it is damaged?
If Fuse 27 or its surrounding fuse-box connection shows signs of overheating or damage, simply replacing the fuse may not address the underlying problem. The circuit should be properly inspected and repaired according to the applicable Ford service procedure.
