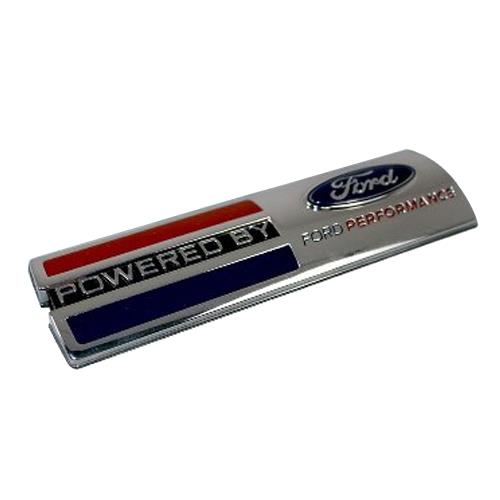

Powered By Ford Performance Fender Badge
These Powered By Ford Performance badges are an easy styling modification for any Mustang! The Powered by Ford Performance badge is the perfect emblem to add to any restoration project, but these peel and stick emblems look at home on any Ford-powered muscle car. Old or new, show the crowd what you have under the hood with a new Powered by Ford Performance fender badge.
Quick Emblem Removal
Heating the original Mustang emblem badge with a hairdryer to loosen the double sided tape can aid in the removal of the original emblem. Fishing line held in each hand can be pulled behind the emblem to help separate the original emblem from the Mustang Body. Once started, the emblem badge can be removed by placing a thin flat object between emblem and body being careful not to scratch the paint. Apply light steady pressure to break the seal of the double-sided tape and gently pry until the emblem is free of the body.
Ford Performance - Mustang Ford Racing Parts
Ford Performance Parts is the leader in performance parts and accessories for Mustang and Ford Lightning.
LMR.com is proud to offer Ford Racing Performance Parts for your project. Ford Racing is dedicated to manufacturing the highest quality products offered in the industry. Choose from suspension, exhaust, wheels, and other performance parts at Late Model Restoration. If you want the best for your Mustang or SVT Lightning, look no further than Ford Performance Parts!
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Pattern
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
