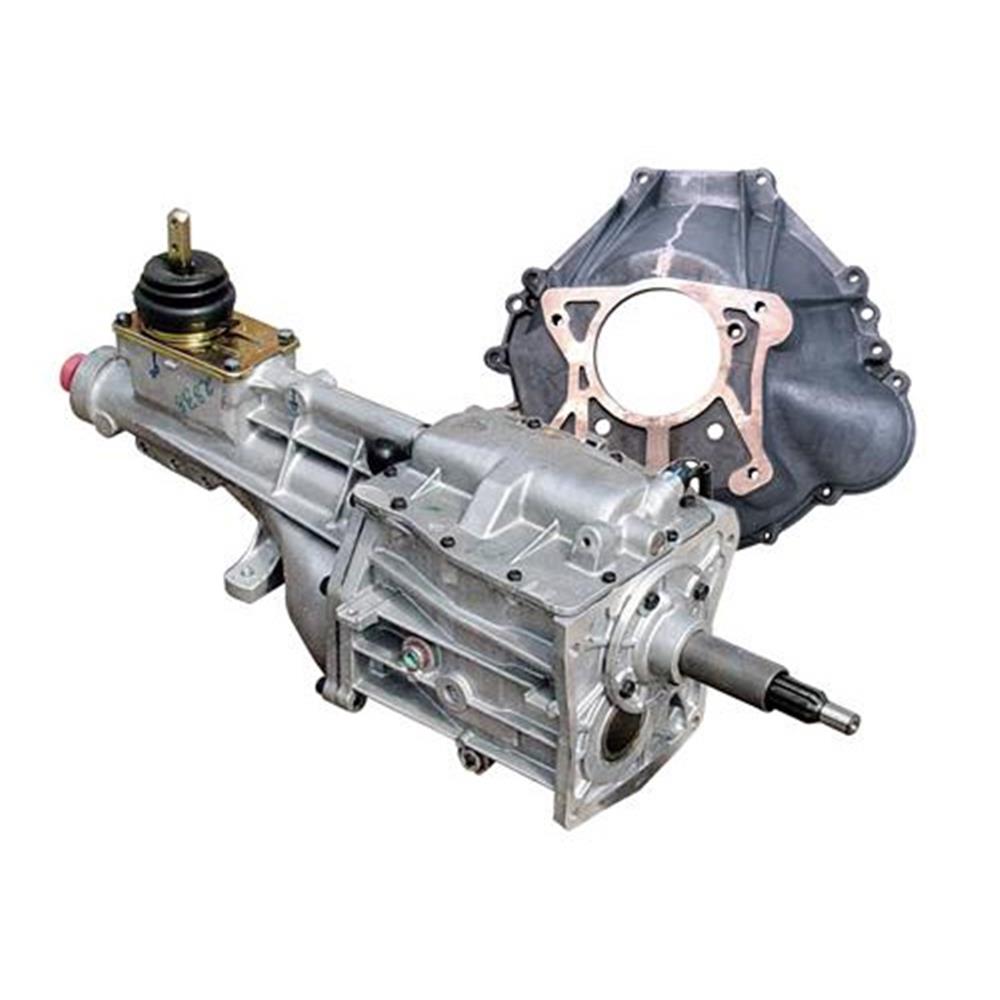

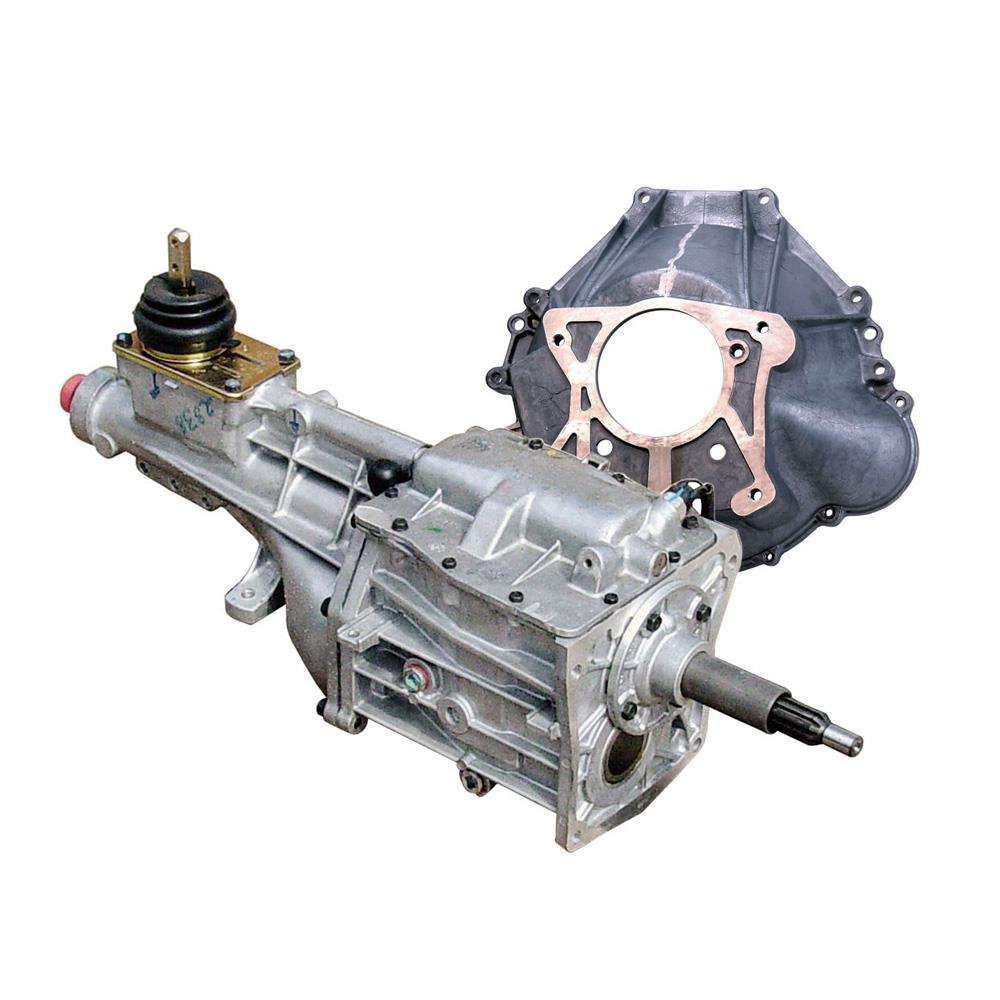

1979-1993 Mustang Tremec Heavy-duty "World Class" T5 & Bellhousing by Tremec

Price: 2349.99 USD
Availability: InStock

1979-1993 Mustang Tremec Heavy-duty "World Class" T5 & Bellhousing

Mustang Ford Racing T5 Transmission M-7003-Z (World Class Heavy Duty T-5/T5z)

How To Remove Mustang T5 Transmission (1982-2004 5.0L, 3.8L, 2.3L)

How To: Fox Body Mustang AOD To T5 Swap (84-93)

Stock T5’s don’t fare well in modified Mustangs. Forget rebuilding, step up to the Tremec World Class T5Z transmission!

Item #M7003ZB

Everyday Low Price: $2,349.99

In Stock

This item is not returnable. Details

This item is not eligible for discounts or coupon codes.

Free Shipping over $99

Add to Cart

Not Available for APO or Air shipping.

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Stronger Than Standard T5
Includes stock shifter base
Bolt-in Replacement

Features

Improved Synchronizers & Bearings
Steel Input Bearing Retainer Pre-Installed!
Cast Aluminum Bellhousing

What's in the Box

(1) Transmission w/ Shifter
(1) Bellhousing
(1) Pivot Stud

Mustang Heavy-duty "World Class" T5 Transmission
This Tremec Heavy-duty "World Class" T5 Transmission is a great replacement for a blown, grinding, or malfunctioning Ford Mustang transmission. This 1979-1993 Fox Body T5 transmission offers several upgraded features over the factory transmission. Not only does this T5 transmission include higher performance internal parts it is also rated for more power than the factory transmission of your Mustang.

High Quality Construction
Tremec's Heavy-duty "World Class" T5 Transmission has a 300ft/lbs torque capacity to take on the demand of high horsepower Fox Body Mustangs. T5 transmission parts include improved synchronizers, bearings, and a short throw shifter, this transmission shifts smoother and faster to give you better performance on and off the track. This Ford Mustang T5 transmission features double mold 2nd speed and 3rd-speed gears with carbon fiber 3-4 blocker rings.

Easy Installation
We also include a new M-6392-E aluminum bell housing, as it's not always easy to find an original bell-housing laying around. It can be used as a replacement part or for building a kit car or street rod, or just swapping from an automatic to a T5 Transmission. This unit features cast aluminum construction and is produced from the original Ford tooling.

T5 Transmission Technical Specs

1.0625" diameter 10 spline input shaft
28 spline output shaft
7 tooth speedometer drive gear
Holds approx. 2.8 Qts Synchromesh fluid

T5 World Class Gear Ratios:

1st 2.95
2nd 1.94
3rd 1.34
4th 1.00
5th 0.63

Will This T5 Manual Transmission Fit My Mustang?

This is a direct replacement for the 1983-1993 Ford Mustang 5.0L, originally equipped with a T5 5-speed.
This transmission will also bolt up to 1979-1982 that was originally equipped with the SROD 4-speed transmission as long as a T5-specific bell housing is used.
This transmission is a direct replacement for the original T5Z M-7003-Z transmission

TREMEC Transmission Limited Warranty - Click Here

Ford Mustang - 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

About This Brand

Tremec is one of the industry leading manufacturers of performance manual transmissions. They have spent years researching and developing the highest quality torque transfer solutions. Tremec provides world class products to the global automotive and industrial markets. With a wide range of Tremec transmissions available for the Ford Mustang, Latemodel Restoration is proud to offer the Tremec Magnum XL 6 speed transmission!
