1994-04 Mustang SVE Tubular Radiator Support by SVE Special Vehicle Equipment ®

Price: 169.99 USD
Availability: InStock

1994-04 Mustang SVE Tubular Radiator Support

Reduce front end weight while adding extra strength to your 1994-2004 Mustang with this SVE tubular radiator support!

Item #SVE-9404TRS

Everyday Low Price: $169.99

In Stock

This item is returnable. Details

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Improves Rigidity
Reduces Front End Weight
Weld In Design For Strength
Replaces OE Radiator Support

Features

Fully Tig Welded
New Rubber Isolators
Correct Radiator Mount Tabs
Lightweight Tubular Construction

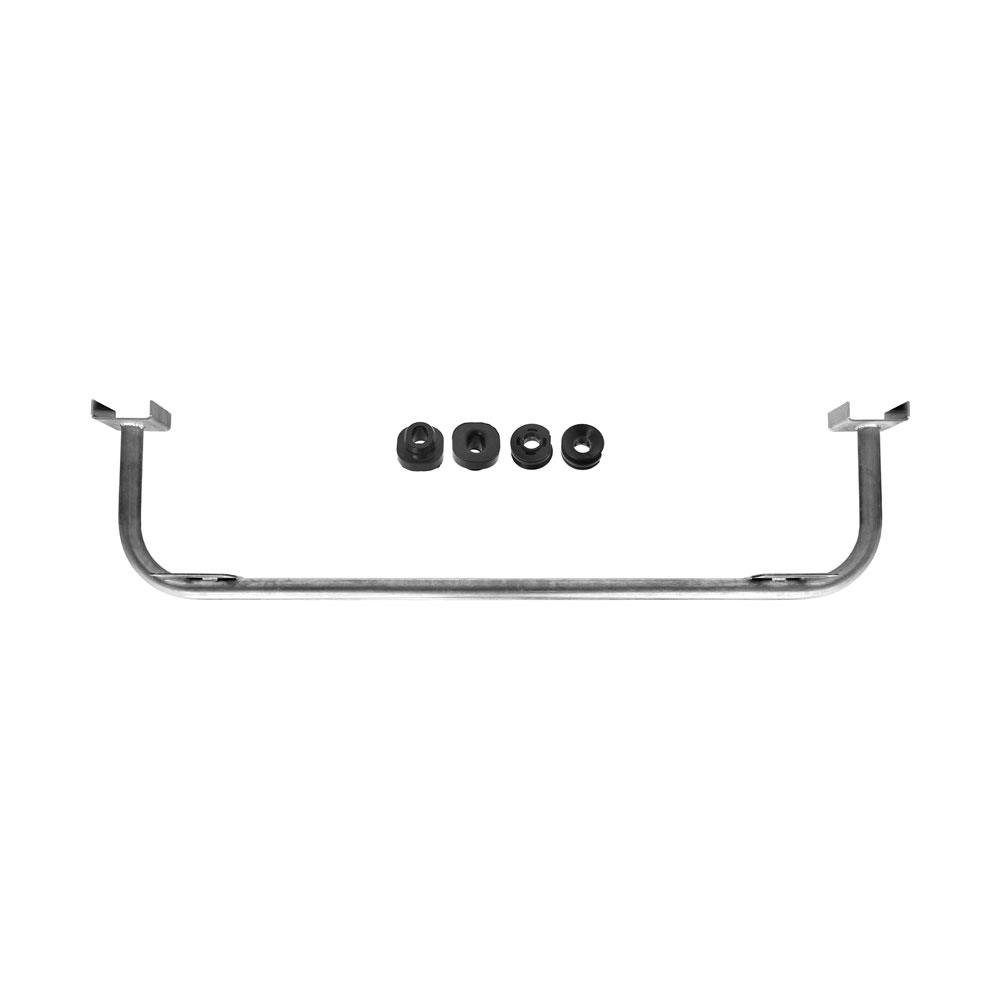

What's in the Box

(1) Tubular Radiator Support
(2) Rubber Upper Insulators
(2) Rubber Lower Insulators

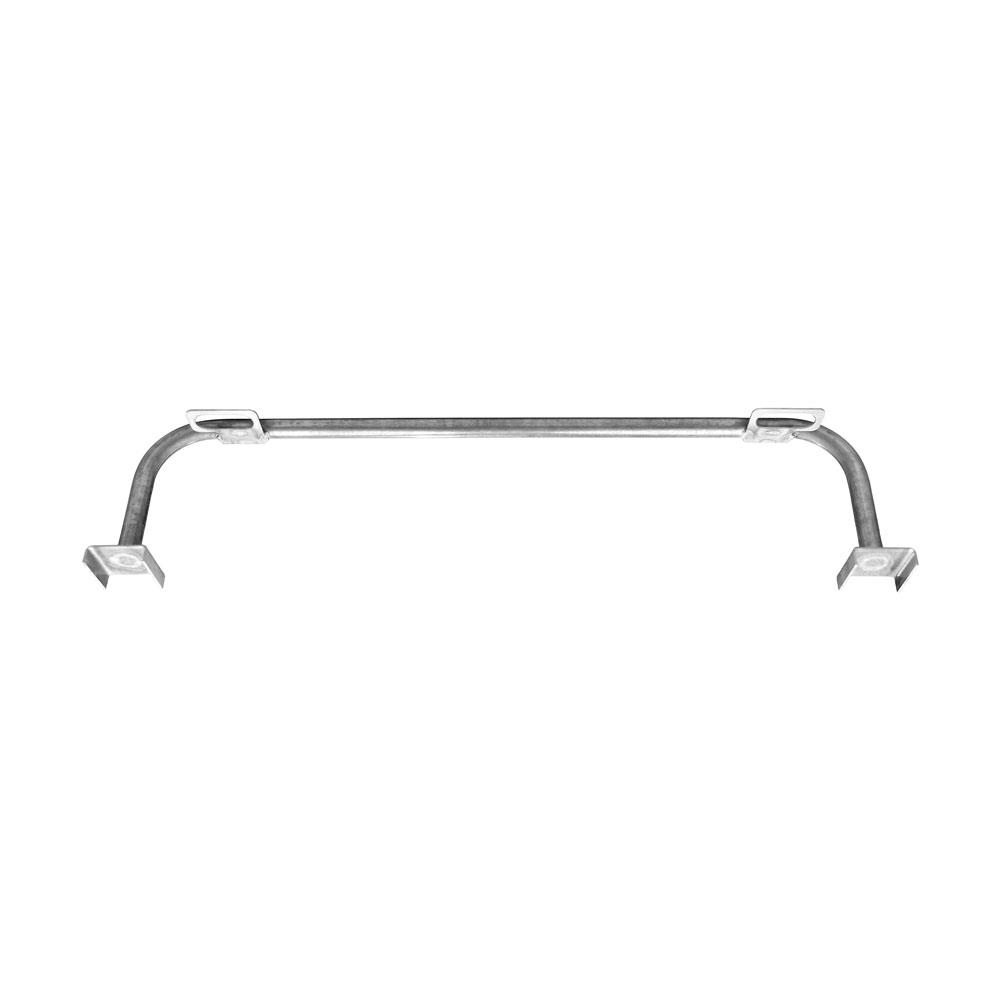

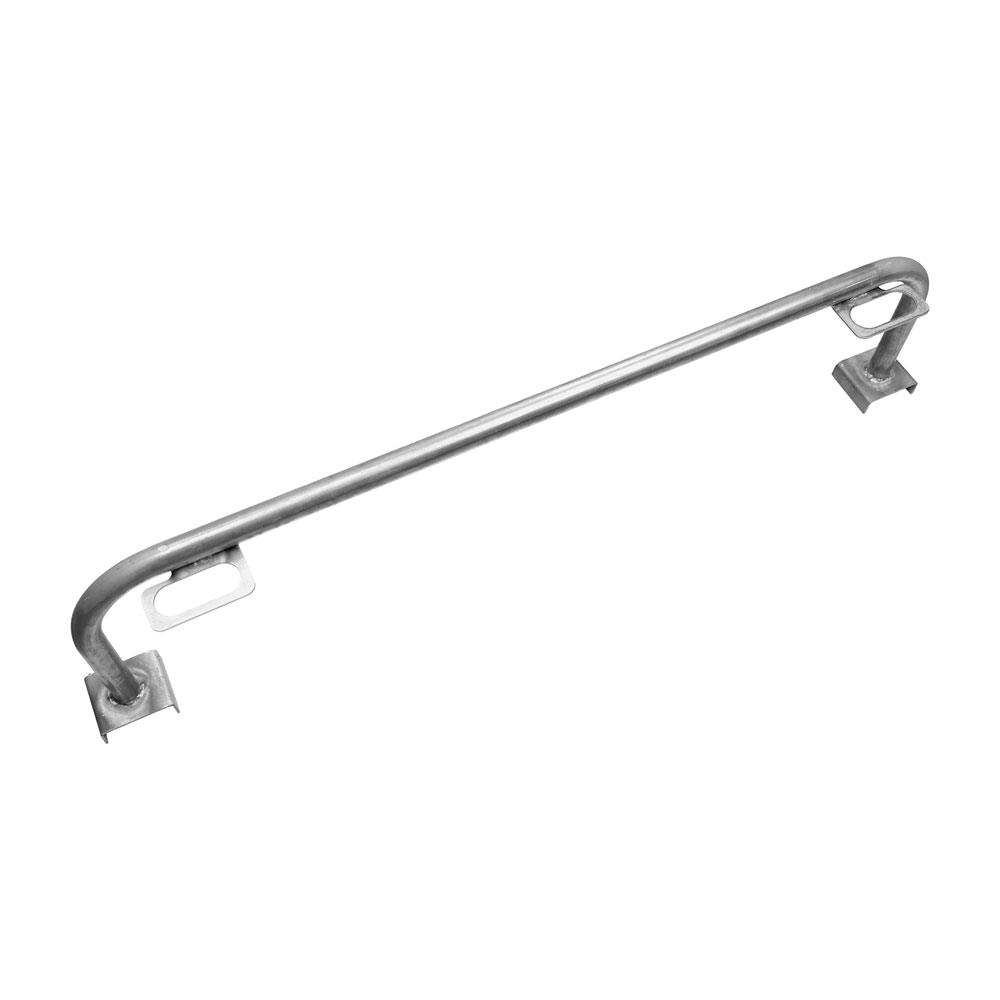

SVE Tubular Radiator Support
Replace the bent or weak factory radiator core support in your 1994-2004 Mustang with this lightweight tubular core support from Special Vehicle Equipment®! Each support is designed and built to completely replace the lower portion of your factory radiator support, which reduces front-end weight. For those looking for all-out performance from your Mustang, reducing the front-end weight is a big help, whether you are hitting the track or the drag strip. Swapping in a lightweight SVE tubular radiator support is the way to go. By welding in the new tubular support, you add some rigidity to your front end while still minimizing weight without worrying about bolts coming loose and falling out.

SVE Quality

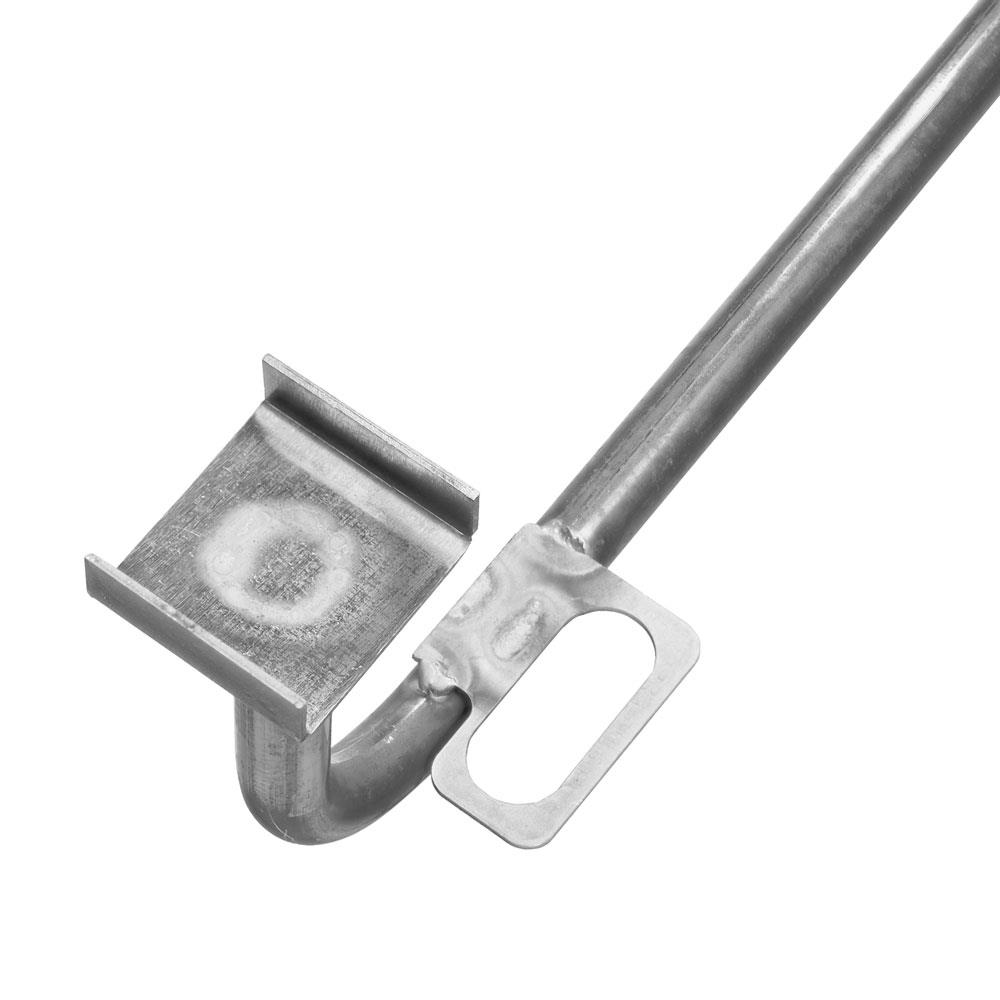

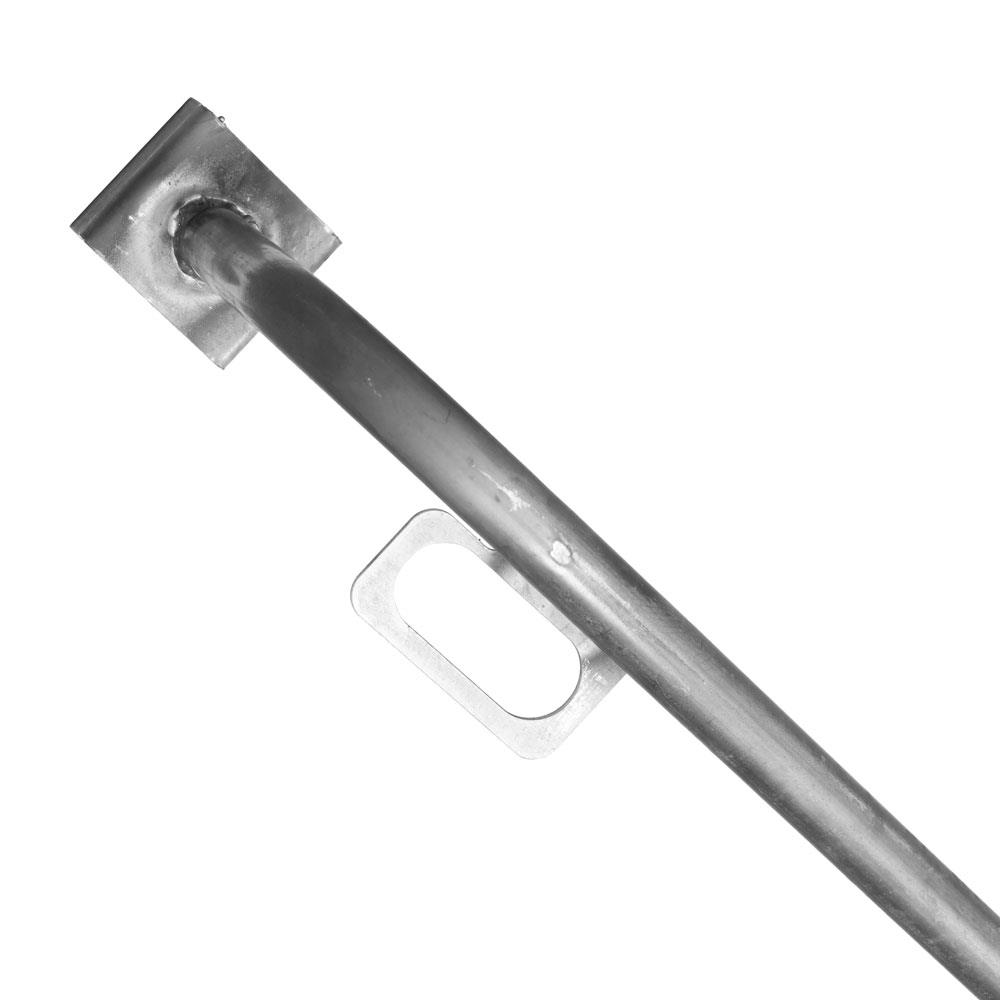

Constructed from mandrel-bent 1" DOM steel tubing with a .090" wall thickness that was precision bent to give the radiator the proper mounting location and height. Radiator support mounting brackets are preinstalled to save time on measuring the factory support locations. Slotted lower radiator mounting point allows the support to accommodate 1994-95 and 1996-2004 radiator mounting tabs. All the brackets and mounting plates have been fully Tig-welded for superior strength and structural rigidity. SVE's radiator support arrives in a bare, raw-steel finish, ready to be welded in place. Finish off in your car's specific paint color or an E-coat finish to complete the install.

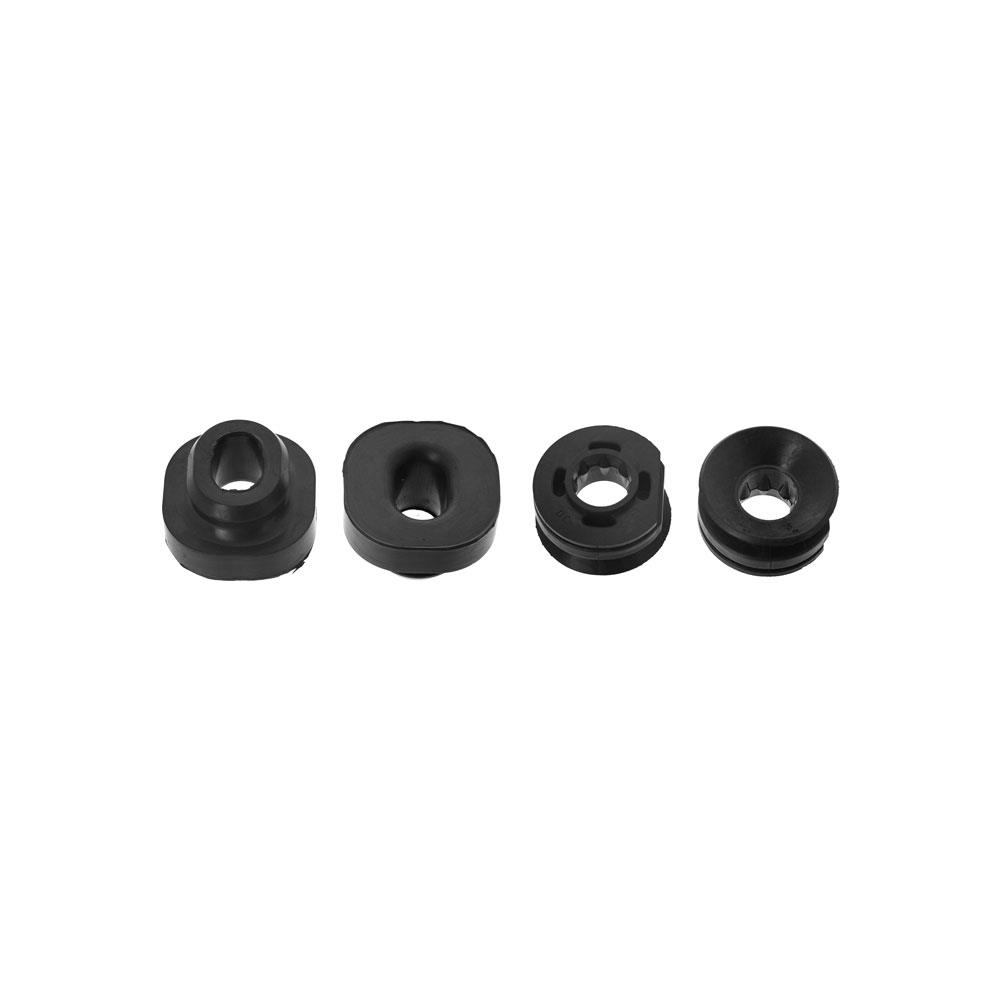

DCR Radiator Insulators
To have a fresh, complete install, we include these DCR rubber insulators. These insulators are an important piece to keep your metal radiator from coming into contact with your metal radiator support. They are exact reproductions of the original insulators, so you will have a pain-free installation. These radiator insulators are designed to give you many more years of driving satisfaction from your SN95 or New Edge Mustang!

Suggested Parts

SVE Products Limited Warranty - Click Here

Ford Mustang - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Fitment notice

Will NOT fit cars with A/C. Does NOT have provision for A/C Condensor.
Removal of the lower section of the radiator support and welding required for installation.
This product will need to be prepped and painted after installation.
Due to the bare metal finish and weld-in design of this radiator support, this item may arrive with minor surface rust.
Relocation of some items may be necessary for installation
- Power Steering Cooler Tube
- 94-95 Overflow Tank Mount & CCRM Bracket
- 96-04 Degas Bottle Support Rod
