1992-1996 Bronco 5.0/5.8 Trick Flow Twisted Wedge 170cc Cylinder Heads - 61cc Chamber

Add some serious gain in horsepower under the hood of your 1992-1996 Bronco 5.0/5.8 with these 170cc twisted wedge heads from Trick Flow!

Item #TF-51400004M61B
MPN# TFS-51410004-M61

Everyday Low Price: $2,049.98

In Stock

This item is returnable. Details

This item is not eligible for discounts or coupon codes.

Free Shipping over $99

Add to Cart

× close

Images

LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

Benefits

Reduces Weight
Increases Torque
Increases Horsepower

Features

170cc Volume
Aluminum Construction
61cc Combustion Chamber

What's in the Box

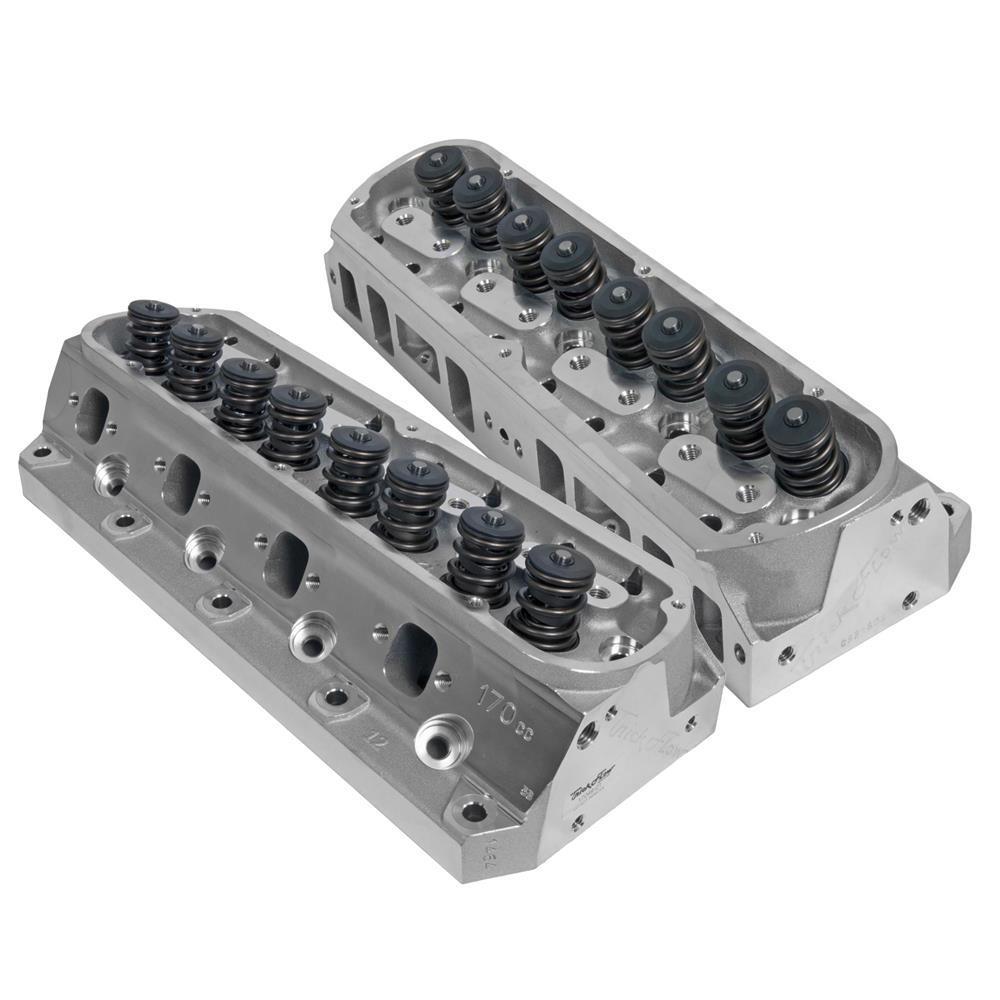

(2) Cylinder Heads

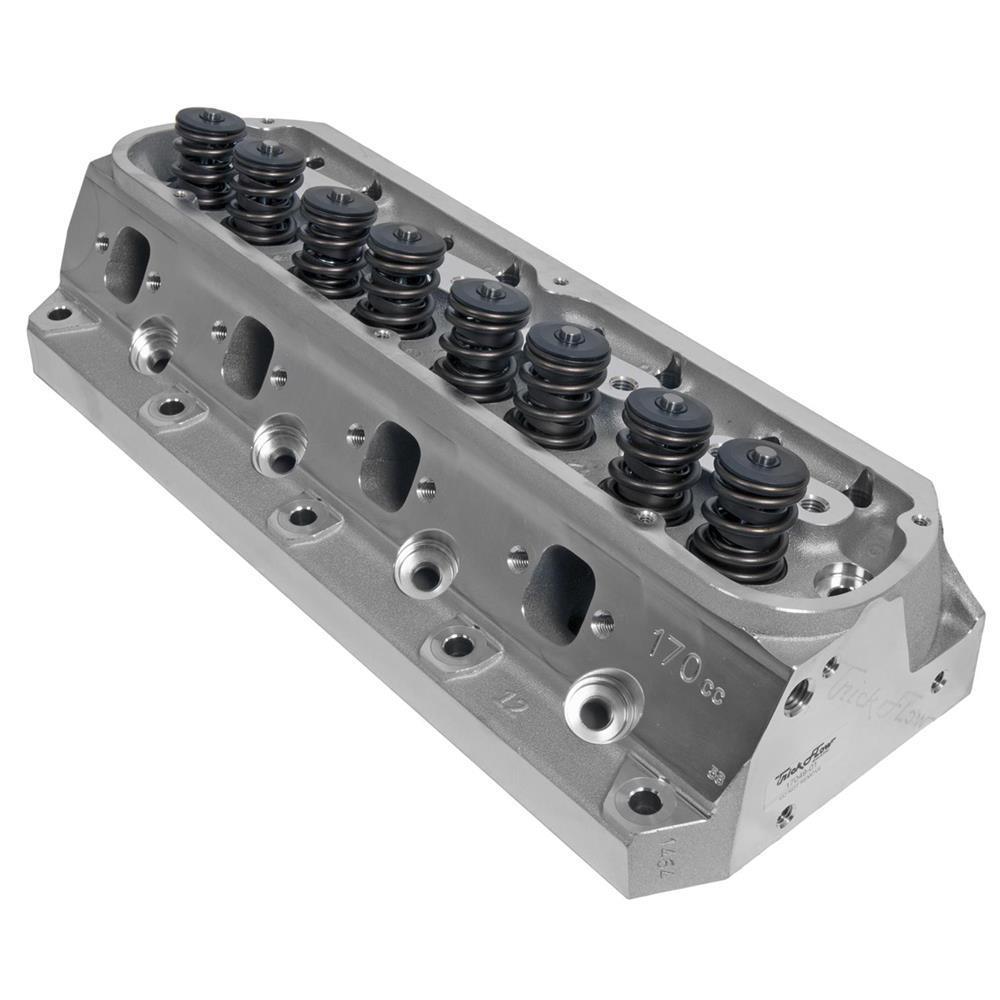

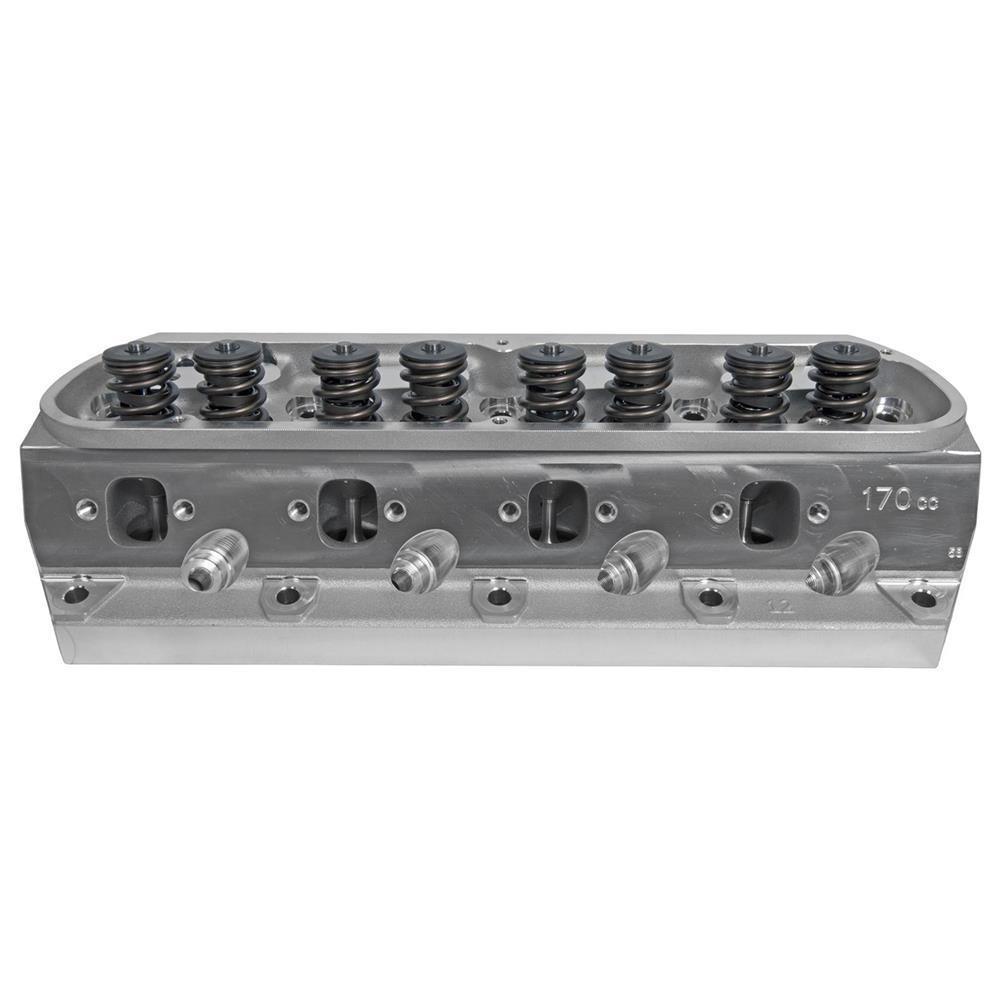

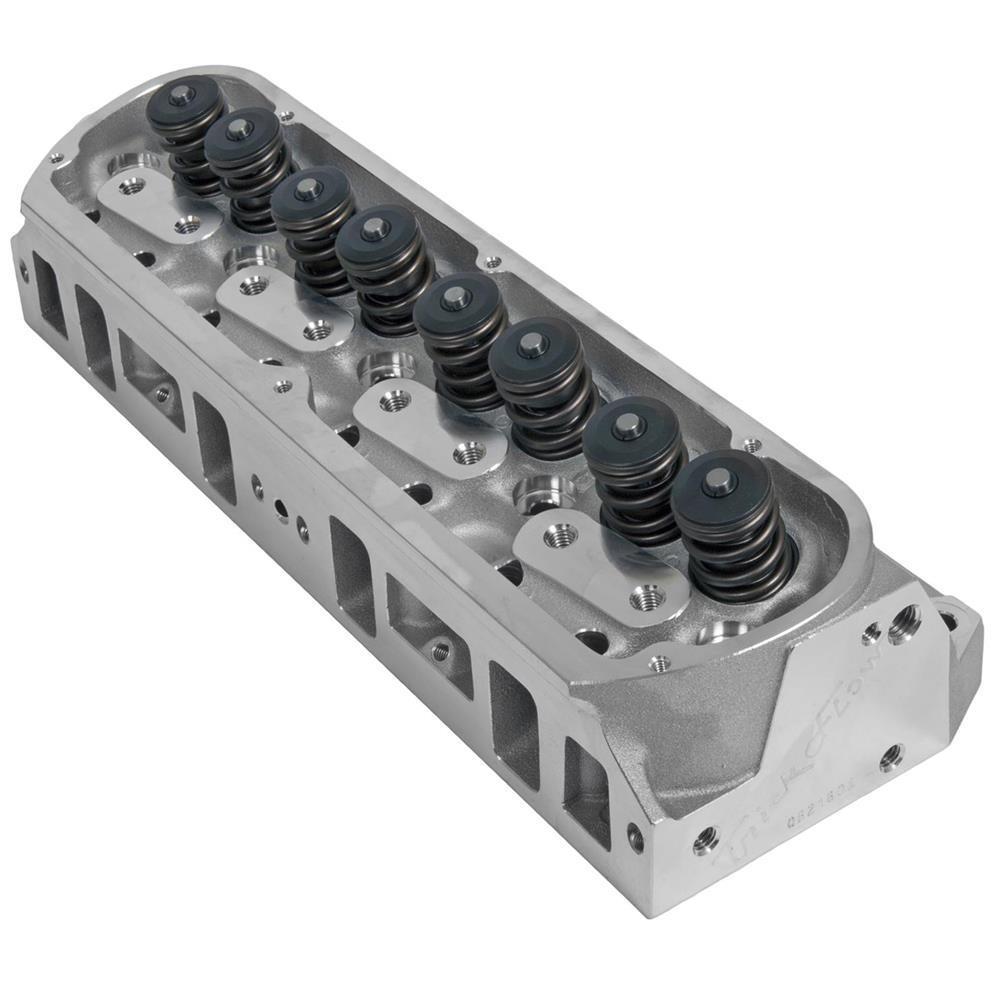

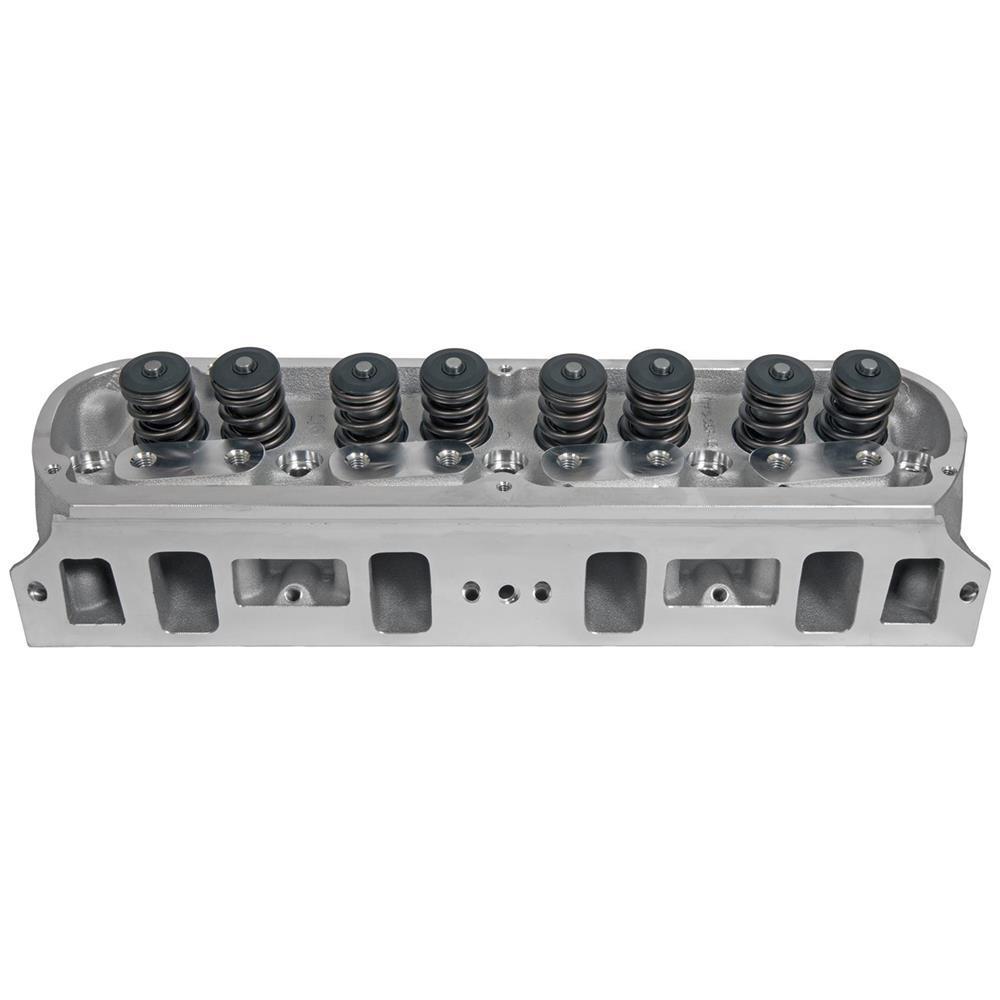

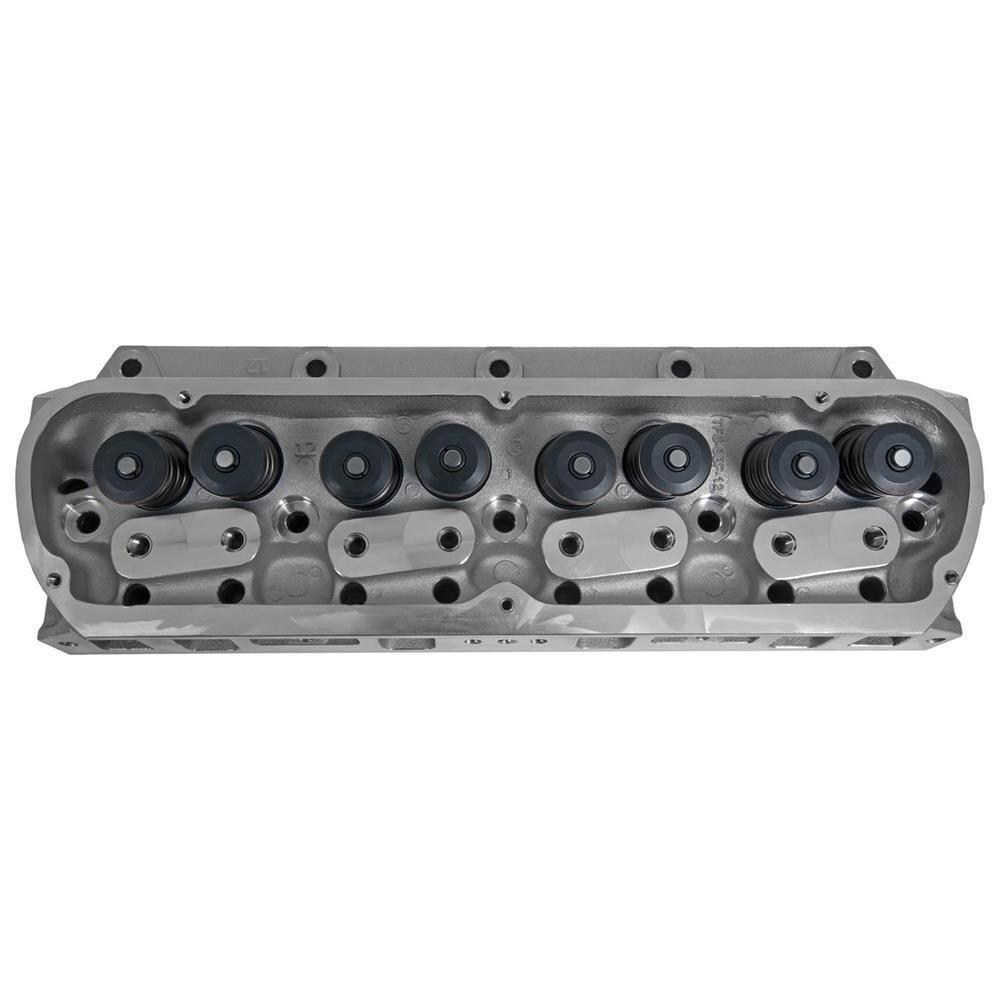

Trick Flow Twisted Wedge Heads 170cc - 61cc Chamber

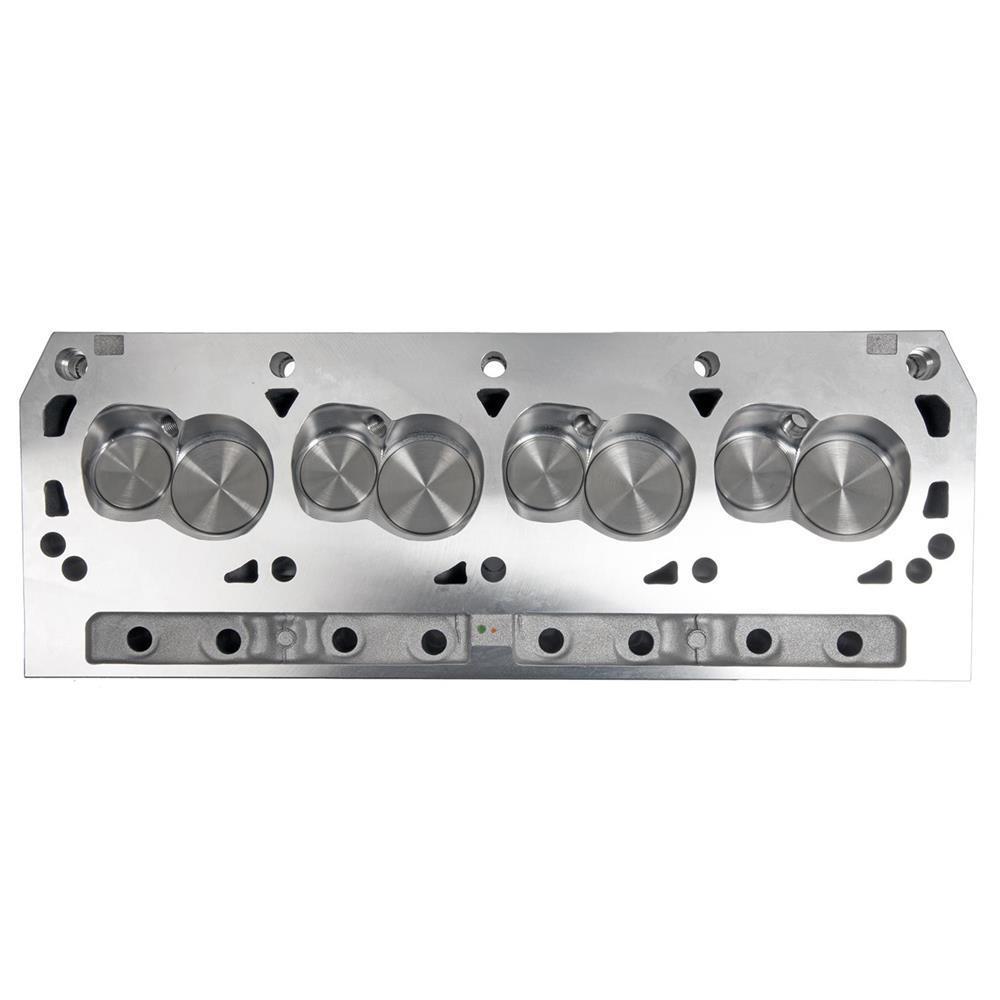

Make serious horsepower with these Twisted Wedge Street Ported 170 Aluminum Cylinder Heads that are 50-state-emissions-legal for your 1992-1996 Bronco 5.0/5.8! Twisted Wedge heads feature an exclusive combustion chamber design. The patented 61cc chambers feature rotated intake and exhaust valves moved over the center of the cylinder bores. As a result of optimizing the valve locations, valve angles, and combustion chamber shape, the Twisted Wedge heads use stock height intake and exhaust ports that allow the use of most OEM and aftermarket intake and exhaust manifolds. The Twisted Wedge heads are built for heavy-duty use, a .56" thick combustion chamber walls, and a fire deck for strength without compromising cooling capacity. Additional support risers are strategically located in the water jacket for additional rigidity and head gasket integrity.

Head Specs

Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Combustion Chamber Volume (cc): 61cc
Intake Runner Volume (cc): 170cc
Exhaust Runner Volume (cc): 66cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Valve Diameter (in): 2.020 in.
Exhaust Valve Diameter (in): 1.600 in.
Maximum Valve Lift (in): 0.600 in.
Outside Diameter of Outer Spring (in): 1.460 in.
Number of Springs Per Valve: Dual

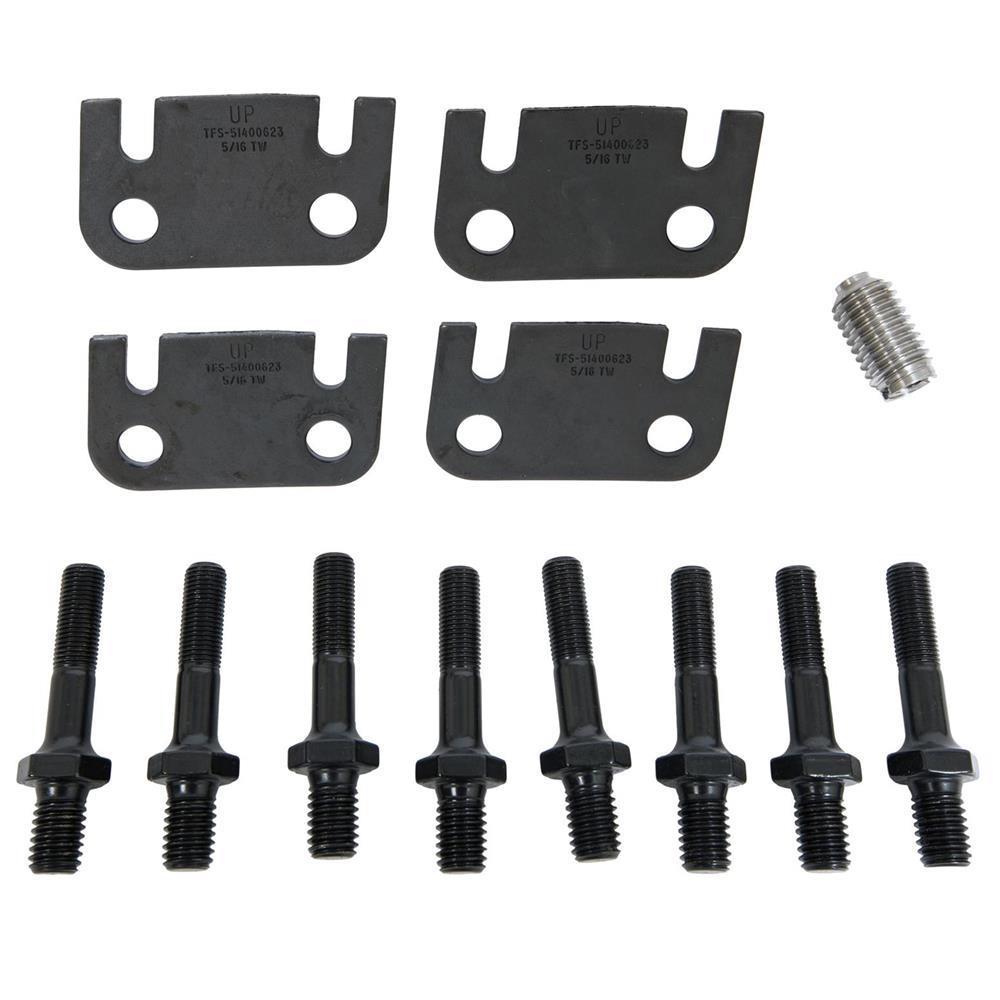

Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 3/8-24 in.
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplate Pushrod Size: 5/16 in.
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 15
Exhaust Valve Angle: 17
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes

Trick Flow Warranty - Click Here

Ford Bronco - 1992, 1993, 1994, 1995, 1996
Engines: 5.0, 5.8

Fitment Notice

Designed for hydraulic roller camshafts.
Some piston modification may be needed depending on your specific application.
These cylinder heads will accept factory emissions (AIR Injection) and are street ported.
