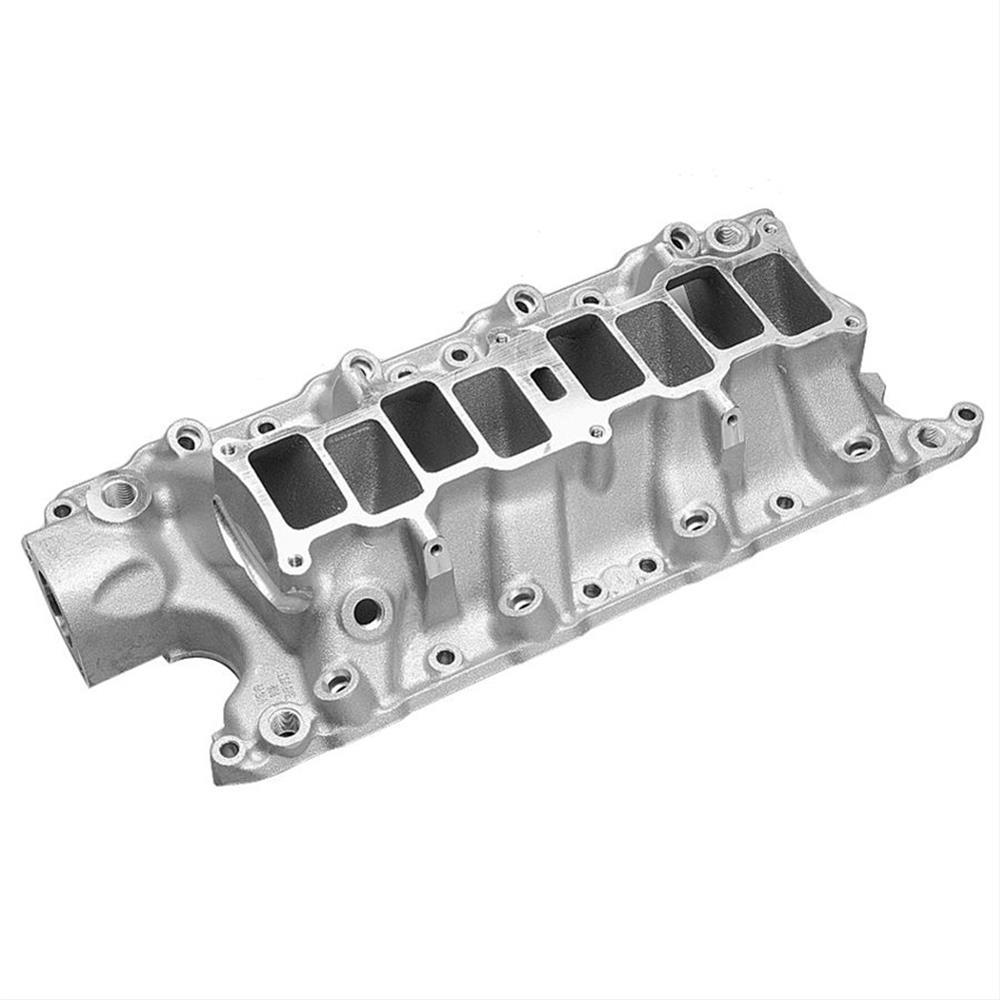

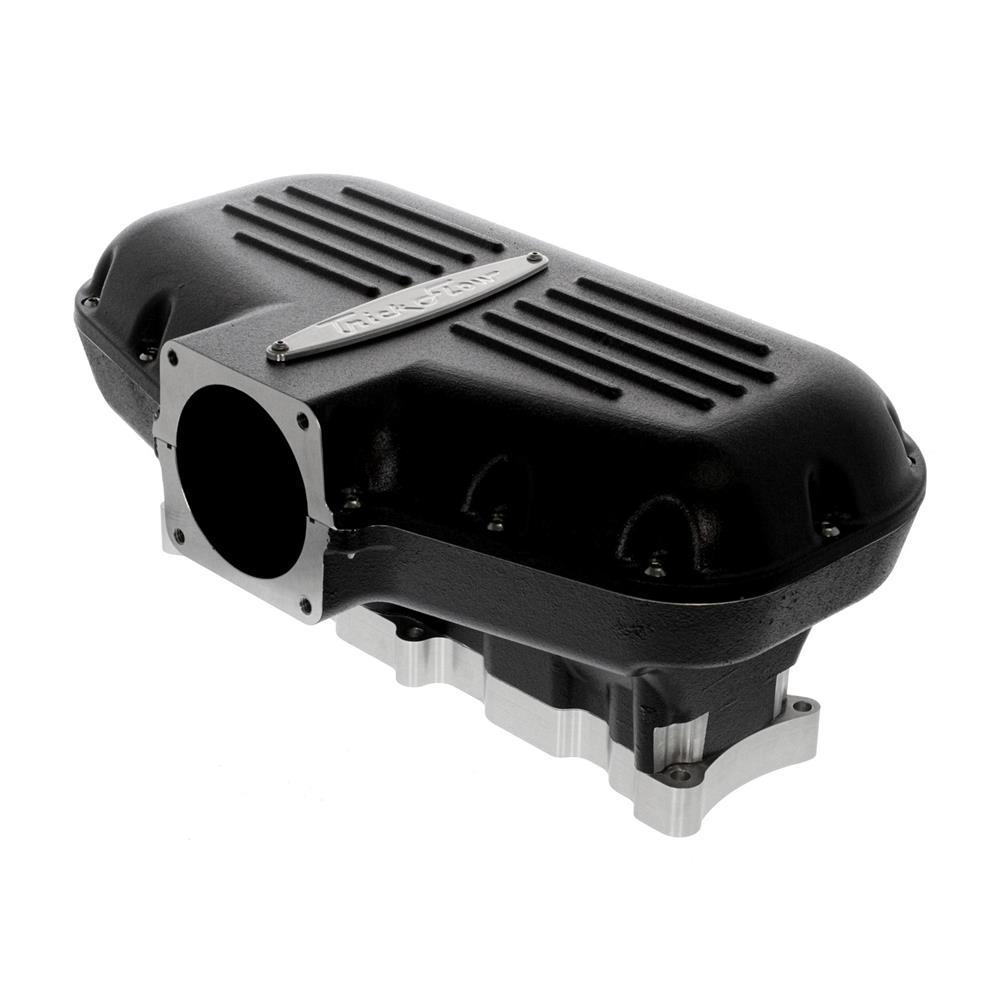

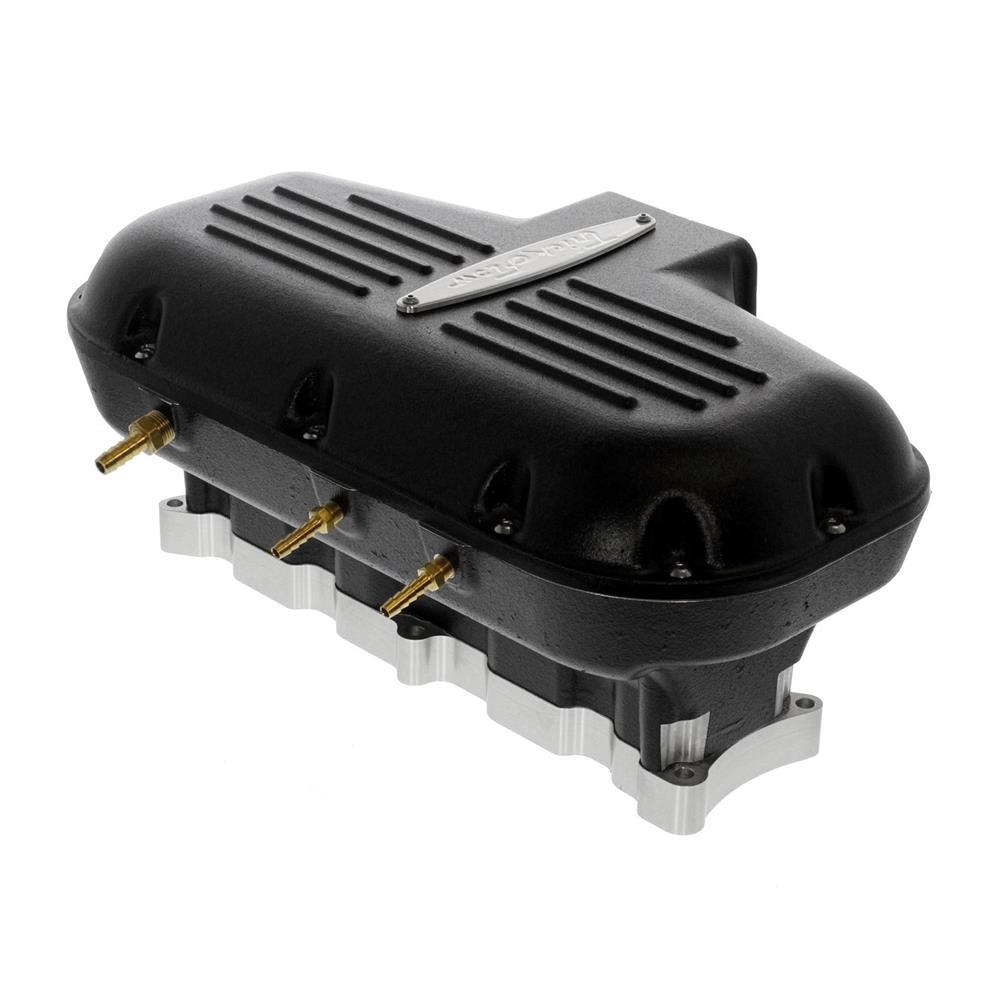

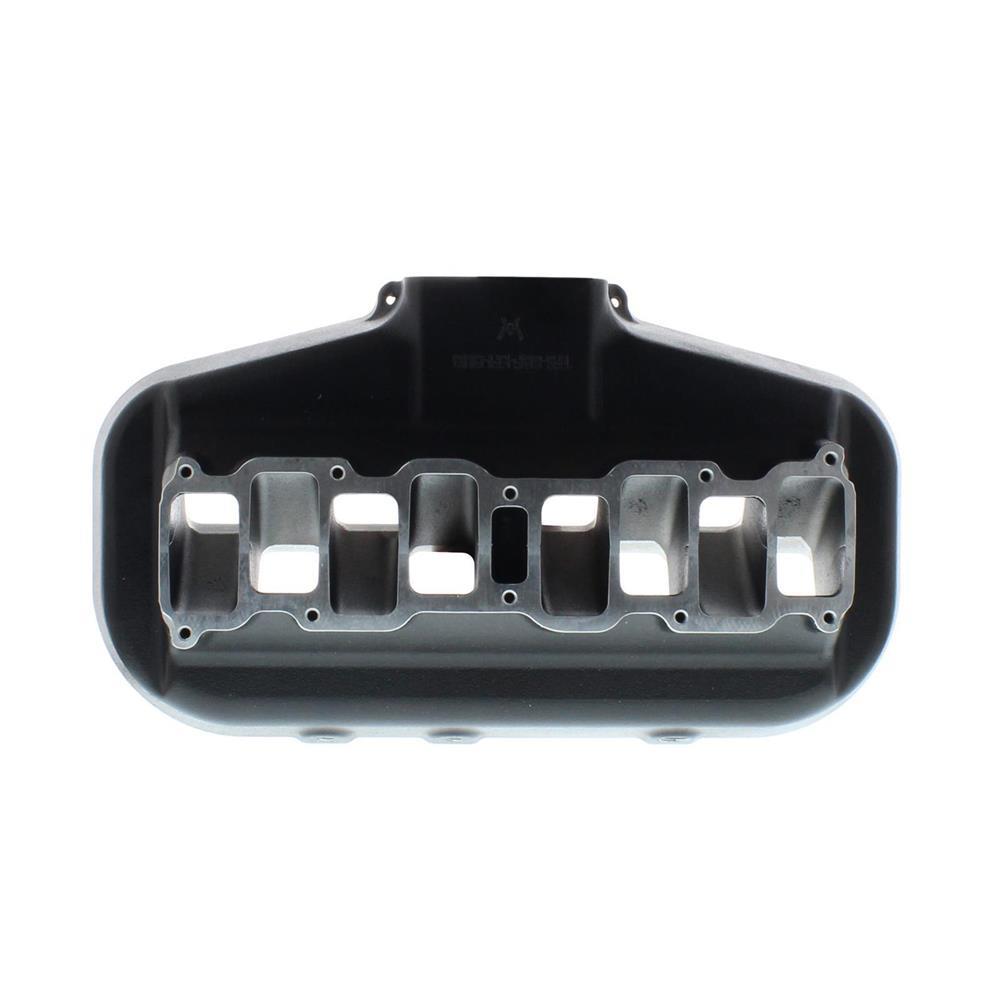

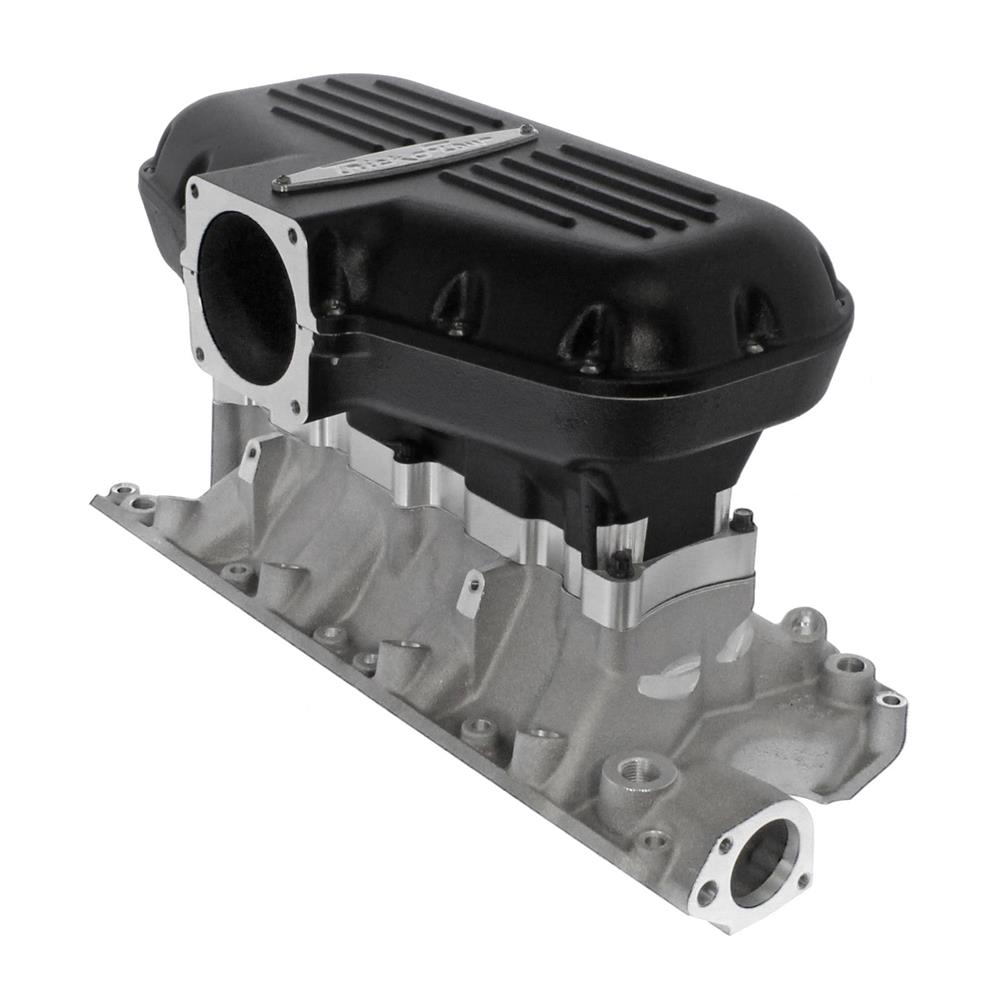

1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0 by Trick Flow

1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0

Increase mid to high RPM power in your 1986-1995 Mustang 5.0 with this black Trick Flow Box-R-Series intake manifold!

Trick Flow Brand Image
Questions? Click here to ask an expert.

Item #TFS-51511008
MPN# TFS-51511008

Everyday Low Price: $1,249.99

Out of Stock
 This item is returnable. Details
This item is not eligible for discounts or coupon codes.
Alert Me Add to a List
× close
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
1986-95 Mustang Trick Flow Box-R-Series Intake Manifold - Black 5.0
LMR showroom & will call pickup service will be closed beginning Monday 9/21/26 for renovations until further notice. Need help? Contact Us.

 Benefits

  • Increased Performance
  • Trick Flow Quality
  • 3,000-8,000 RPM Range
  • Made In USA

 Features

  • Black Powdercoat Finish
  • 90mm Throttle Opening
  • Large Cross-Section
  • 9.750" Intake Runners

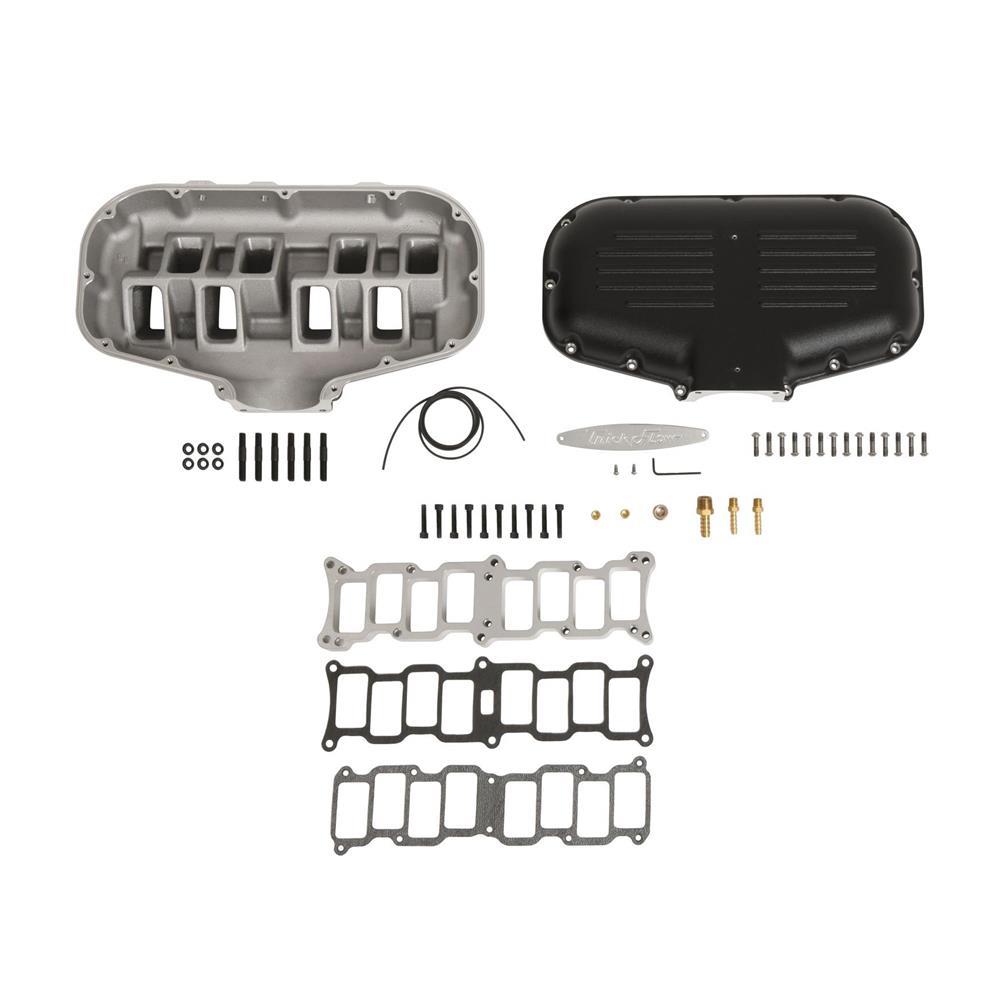

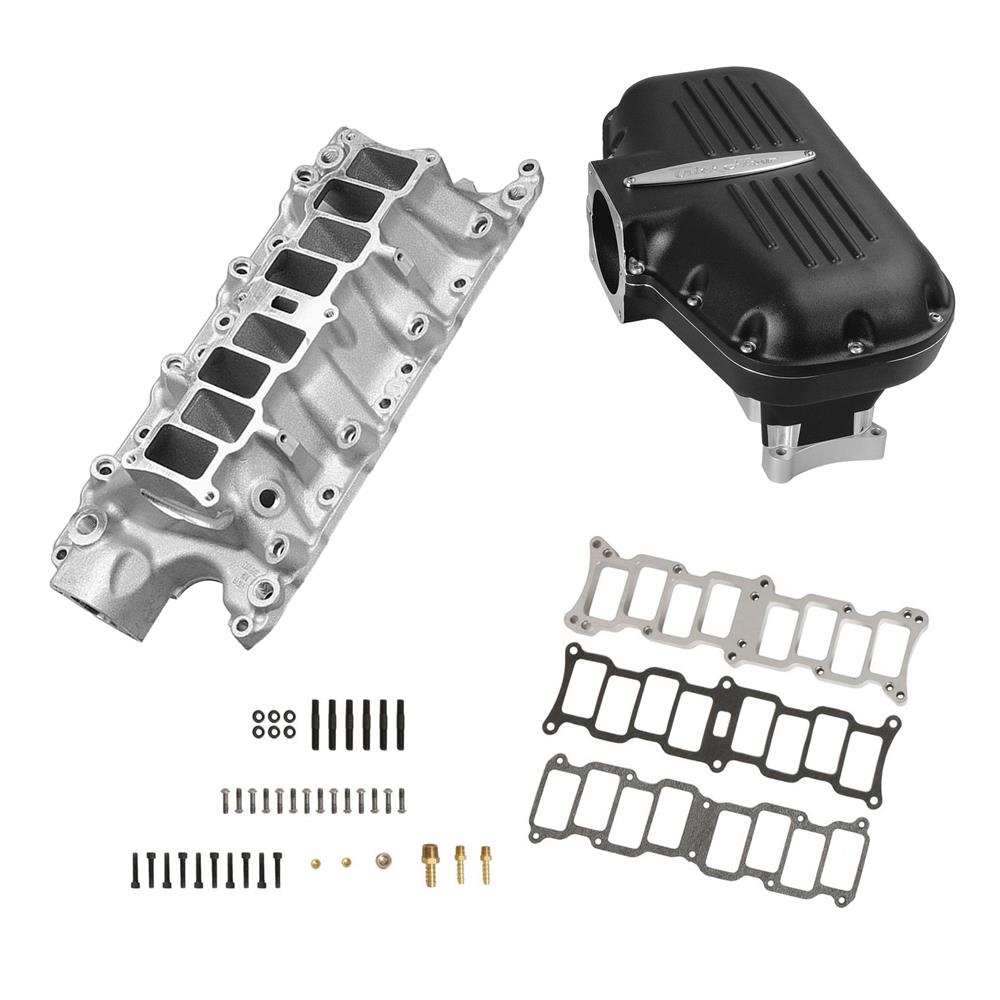

 What's in the Box

  • (1) Intake Manifold
  • Installation Hardware
  • Installation Gaskets

1986-1995 Ford Mustang Trick Flow Box-R-Series Intake Manifold - 5.0 - Black
Allow your high-revving 1986-1995 Mustang 5.0 engine to breathe better with this black 90mm Trick Flow Box-R-series intake manifold kit! When it comes to making horsepower, one size doesn’t fit all. That’s why Trick Flow Specialties offers several different manifold combinations for 302 Windsor Fords. Box-R-Series EFI intake manifolds are ideal for big mid- and upper-RPM horsepower gains for ultra-high performance street and race engines. This kit comes with the upper intake, lower intake, upper-to-lower intake hardware, and gasket.

Trick Flow Quality
Each intake manifold is computer-engineered to deliver an excellent balance of airflow for mid to high rpm, thanks to its short, large cross-section runners to further improve flow velocity and performance. The castings are made from A319 aluminum, so they work well with nitrous, boosted, or high rpm NA engines and are designed to fit under most stock-height hoods. The "R" series manifold features a massive 90mm throttle opening and an RPM range of 3,000-8000. The upper intake features a satin black finish, while the lower has a natural cast finish for a great-looking intake combo.

Intake Specs
  • Large cross-section with 9.750 in. runners.
  • Overall height to the upper manifold flange is 11.500 in.
  • Overall height to the lower manifold flange is 4.625 in.
  • 2.000 in. x 1.200 in. port size at head.
  • 2.380 in. x 1.380 in. port size at mating flange.
  • 90mm throttle body opening.
  • 3,000 - 8,000 RPM Range.
Suggested Parts


Trick Flow Warranty - Click Here

Installation Instructions
  • Ford Mustang - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
  • Engines: 5.0
Fitment Notice
  • Fits 1986-1995 Ford Mustang 5.0
  • If installing this Intake Manifold with Tall Valve Covers, you may need an intake spacer for proper clearance.
California Residents:
Prop 65 Warning SignWARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

About This Brand


Trick Flow

Trick Flow - Serious Horsepower
Horsepower doesn't happen by accident. It takes time, skill, and the right combination of parts to allow your engine to produce optimum power levels.

Trick Flow engineers use advanced Computer-Aided Design (CAD) work stations and high-tech 3D modeling to develop and analyze components quickly and accurately. Trick Flow machinists use state-of-the-art rapid physical prototyping, CNC-machining centers, and hot rodding know-how to turn designs into molds and foundry tooling.

Prototypes and products are subjected to hours of relentless testing on one of Trick Flow's dynamometers, and extensive road and race track data is gathered to guarantee parts perform as intended. Trick Flow's commitment to quality combined with a "zero defects" attitude ensures Trick Flow products will exceed your expectations.

From Lightning cylinder heads to Mustang camshafts, pistons to intake manifolds, Trick Flow is committed to making products that are designed and engineered to deliver power!
