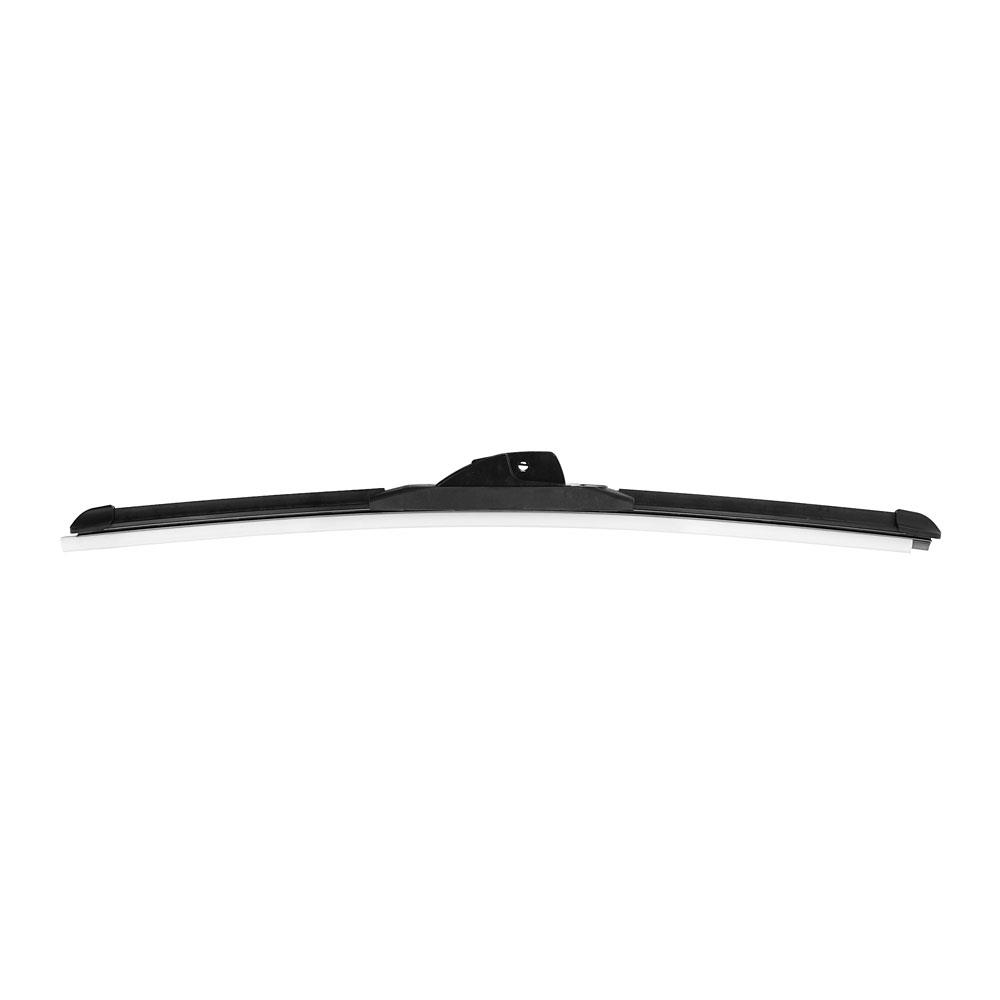

Get the best for your 1993-95 SVT Lightning F150 with Motorcraft wiper blades from LMR.com. This is a Motorcraft replacement windshield wiper blade for your 93-95 Ford SVT Lightning. Wiper blades wear out and become cracked, causing water to smear around on your windshield. Get yours replaced before you get caught in the rain again! Sold Individually!
Check out our YouTube channel for even more tech tips, installation videos, how-tos, and more. The best place to go for anything Mustang related!
Published on 2018-05-21 Ford F-150 Lightning Wiper Arm Kit. Replace the worn out wipers on your 1993-1995 Ford Lightning with this direct replacement wiper arm and blade kit! Wiper blades tend to wear out or become cracked, causing water to just smear around on your windshield. Replace yours before you get caught in the rain again! This Lightning wiper blade kit includes two 20" wiper blades and two wiper blade arms.
Ford Motor Company Genuine Parts, Motorcraft® Parts and Ford and Motorcraft Remanufactured Parts are all excellent choices when it comes to performance, longevity and value for your Mustang or SVT Lightning. And they’re all backed by a Ford Motor Company limited parts warranty*, so you know their parts you use are going to perform like they should. Put the same parts on your Lighting & Mustang that came from the factory!
The wheel size is the diameter of the wheel, in inches, not counting the tire.
Modern tires in North America have several other measurements associated with their size.
A tire designated as a "225/70R14" denotes a tire with the following dimensions: width of tread: 225 mm; ratio of tire height to width: 70 percent; rim diameter: 14".
Therefore a 185/70R14 has the same rim diameter and aspect ratio, but a smaller overall diameter and narrower tread face than the 225/70R14.
Wheel Width
Wheel Backspacing
The easiest way to measure backspace is to lay the wheel face down onto the ground so the backside of the wheel is facing up.
Take a straight edge and lay it diagonally across the inboard flange of the wheel. Take a tape measure and measure the distance from where the straight edge contacts the inboard flange to the hub mounting pad of the wheel. This measurement is the backspace.
The photo below shows three wheels with 2", 3", & 4" backspace.
Wheel Bolt Pattern
The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. A bolt circle of 4x100 would indicate a 4 lug pattern on a circle with a diameter of 100mm.
The diagram indicates the proper measuring methods. 6 lug wheels are measured like the 4 lug wheels.
Wheel Offset
The offset, measured in millimeters, can be negative or positive, and is the distance from the hub-mounting surface to the rim's true centerline. A positive offset means the hub-mounting surface is closer to the outside edge of the wheel; a negative offset means the hub-mounting surface is closer to the inside edge of the wheel. Offset affects the scrub radius of the steering and it is advisable to stay within the limits allowed by the vehicle manufacturer. If tires are fitted which are significantly wider than those specified by the manufacturer, a compromise may have to be adopted whereby a wheel with less offset is used to prevent the tire rubbing on the suspension.
Wheel Centerbore
The centerbore of the wheel is the opening in the middle of the wheel, surrounded by the lug holes. This opening helps to center the wheel to the hub. Its diameter is typically measured in millimeters (mm) and varies in size depending on vehicle application. Manufacturers approve up to a 1% variance in tolerance to pass wheels during inspection.
